RMC-180 MARK II

PTZ Camera Controller
PTZ Camera Control

PTZ Camera Controller

RMC-180 MARK II

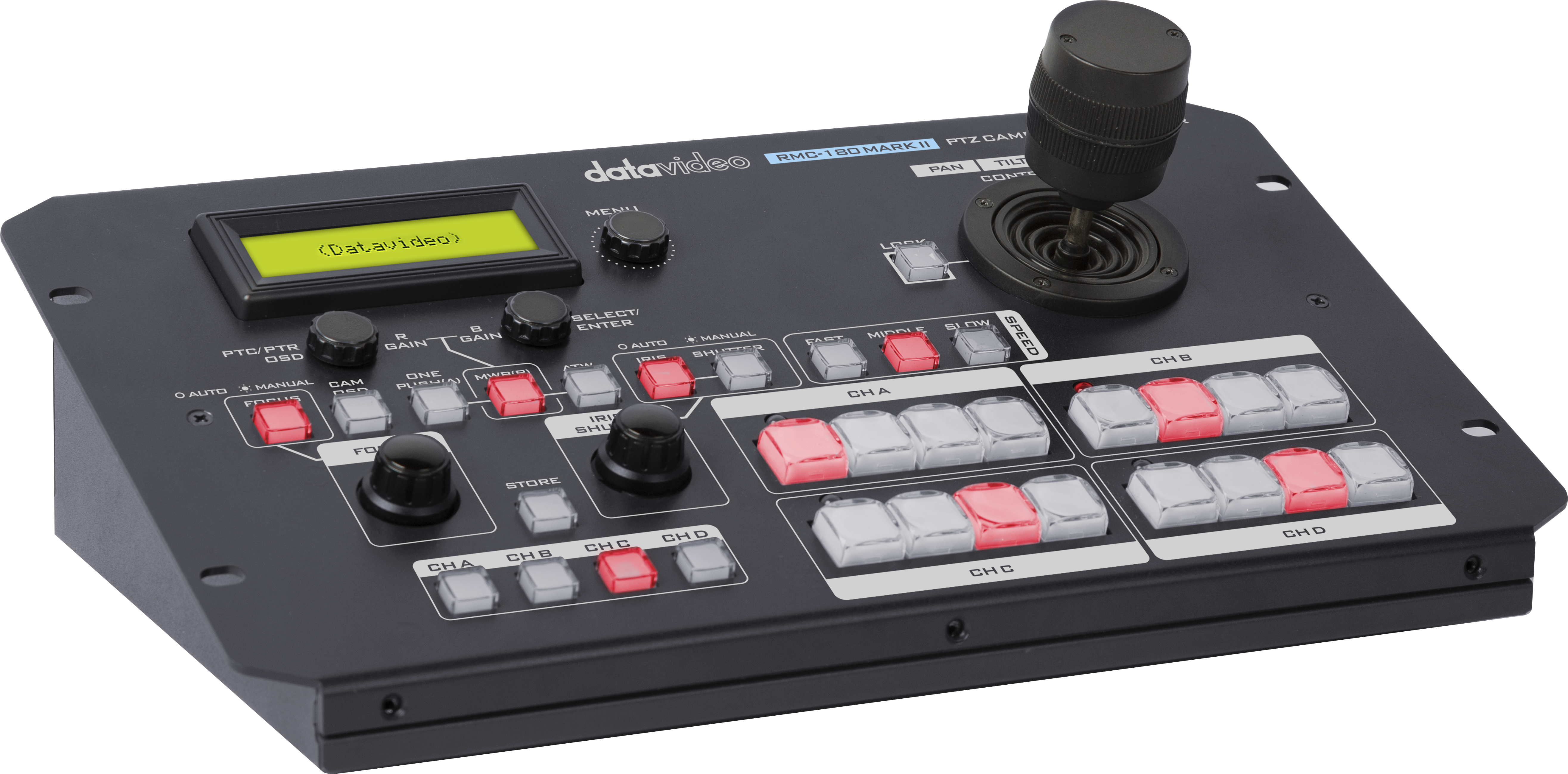

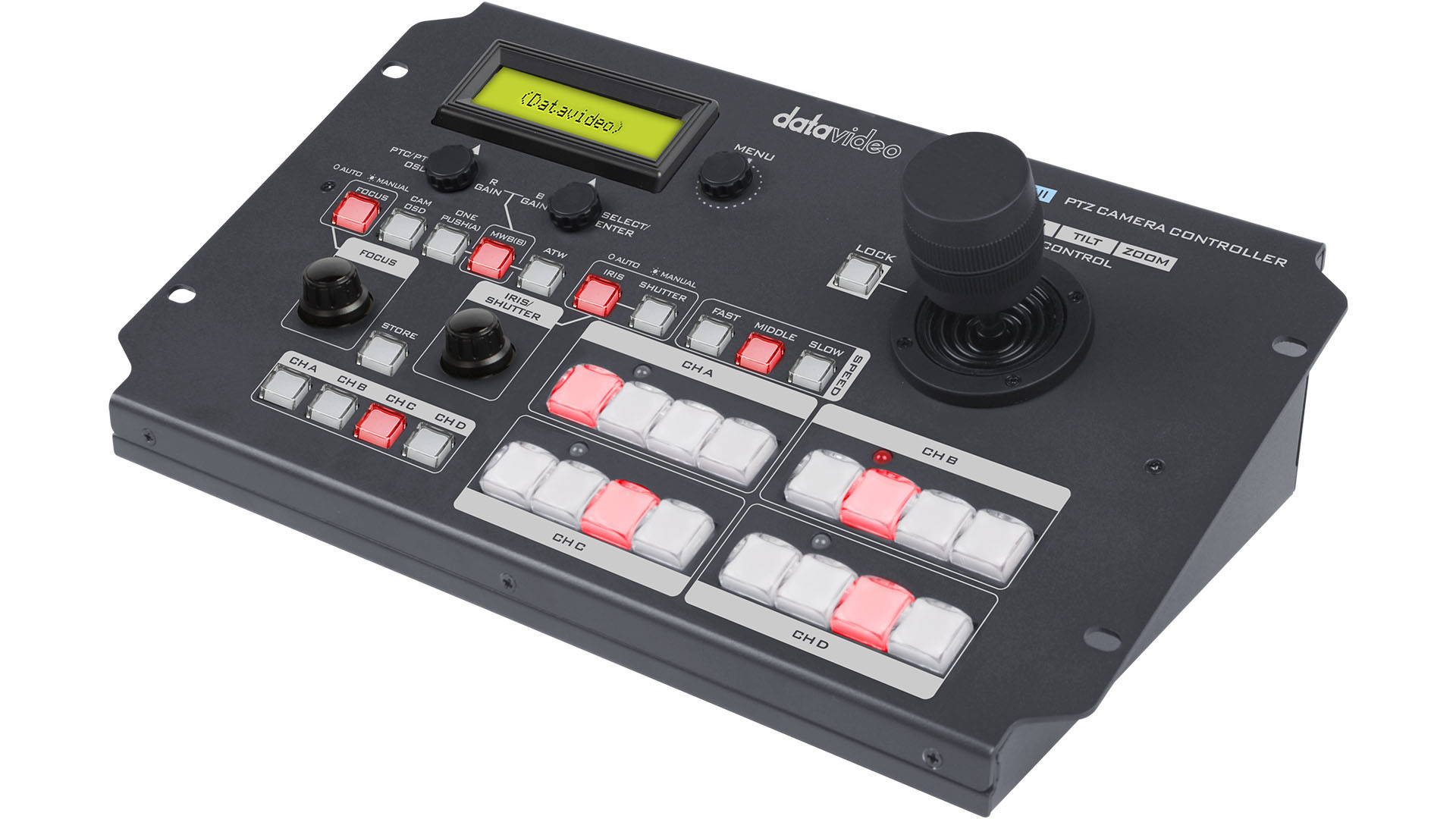

RMC-180 MARK II PTZ Camera Control Unit

The RMC-180 MARK II is a camera controller, which allows you to control up to 4 compatible Datavideo PTZ, block cameras, or Robotic Pan Tilt Heads via RS-422.

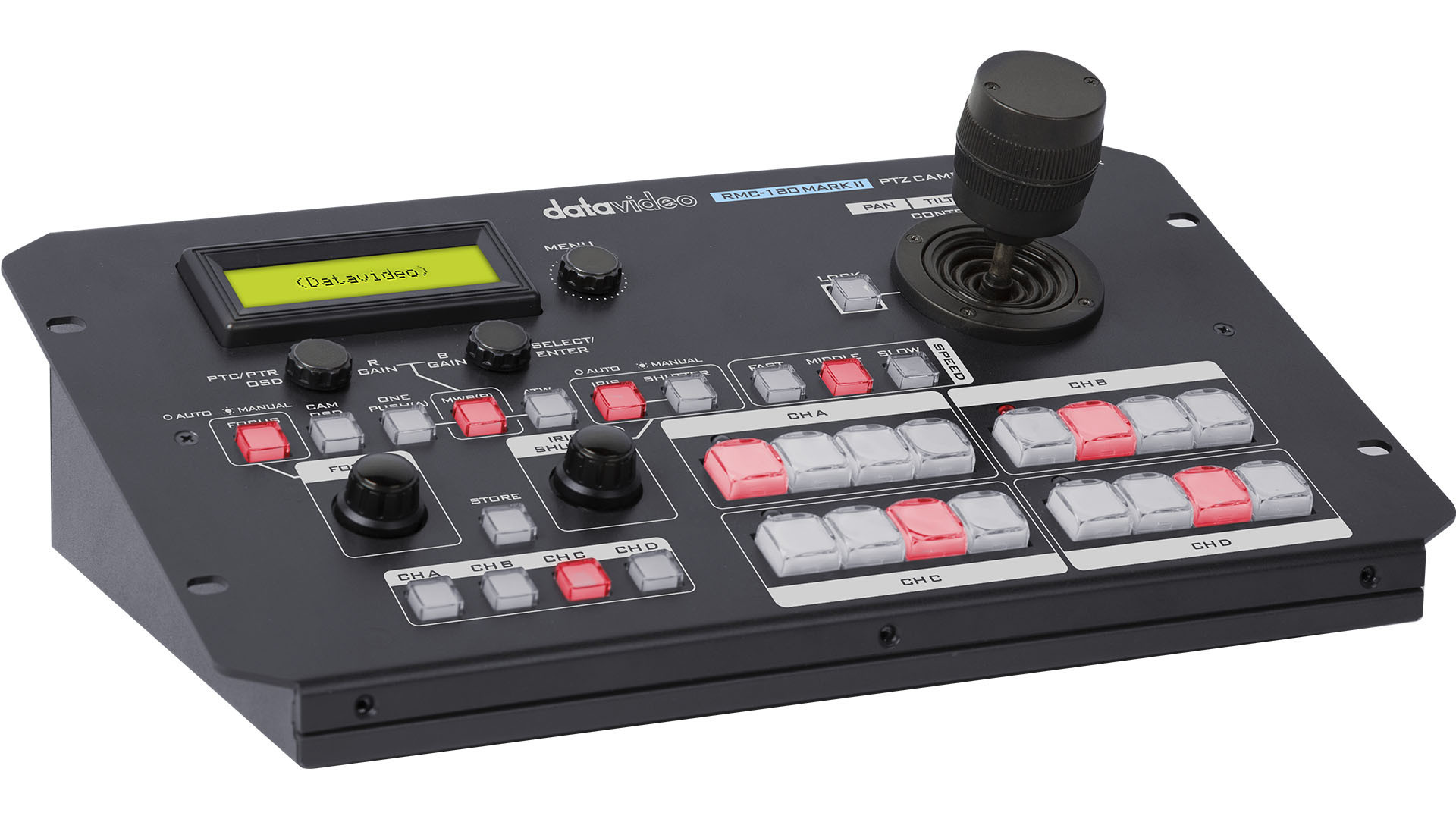

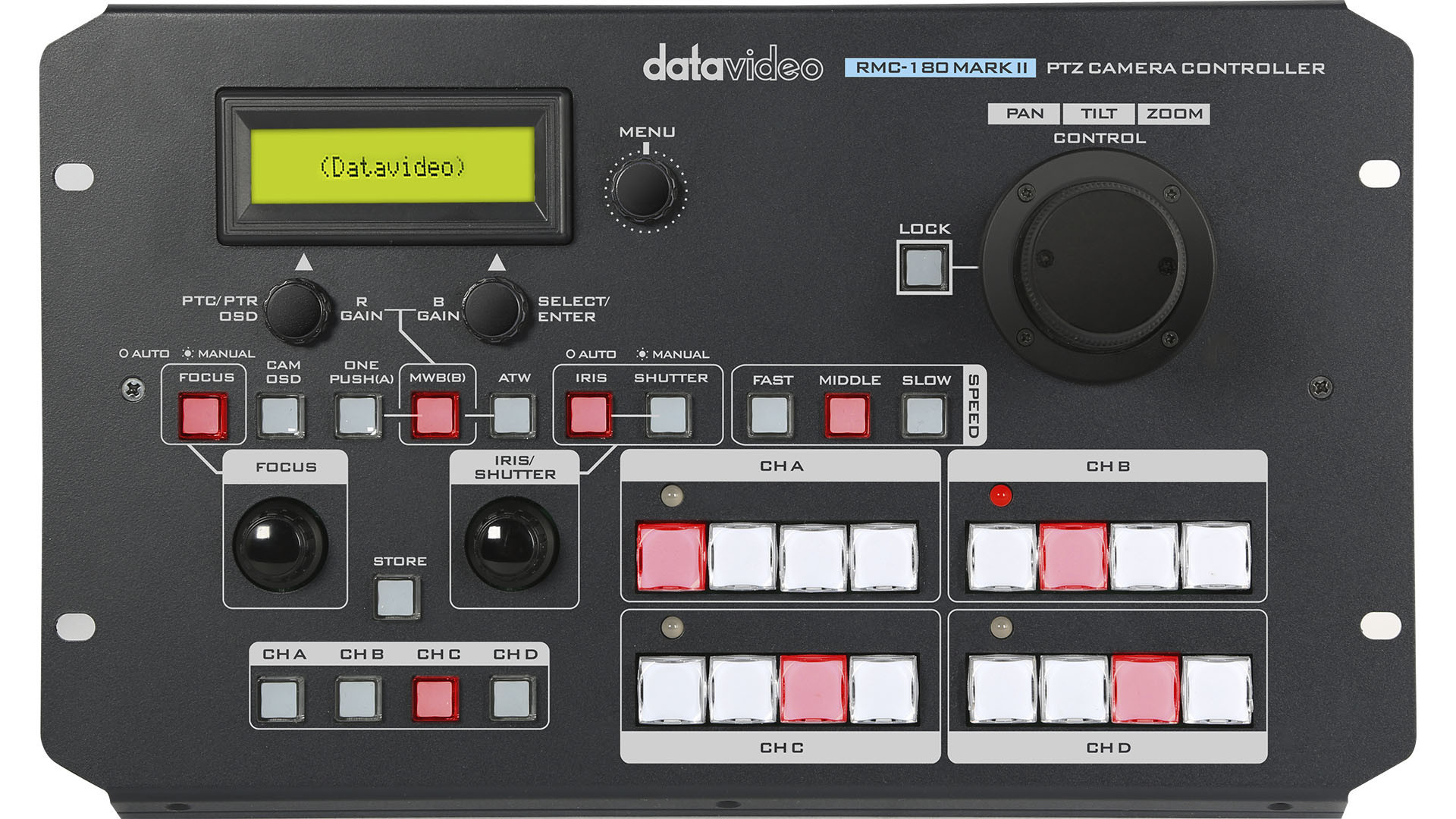

Simple Multi-Camera Control at Your Fingertips

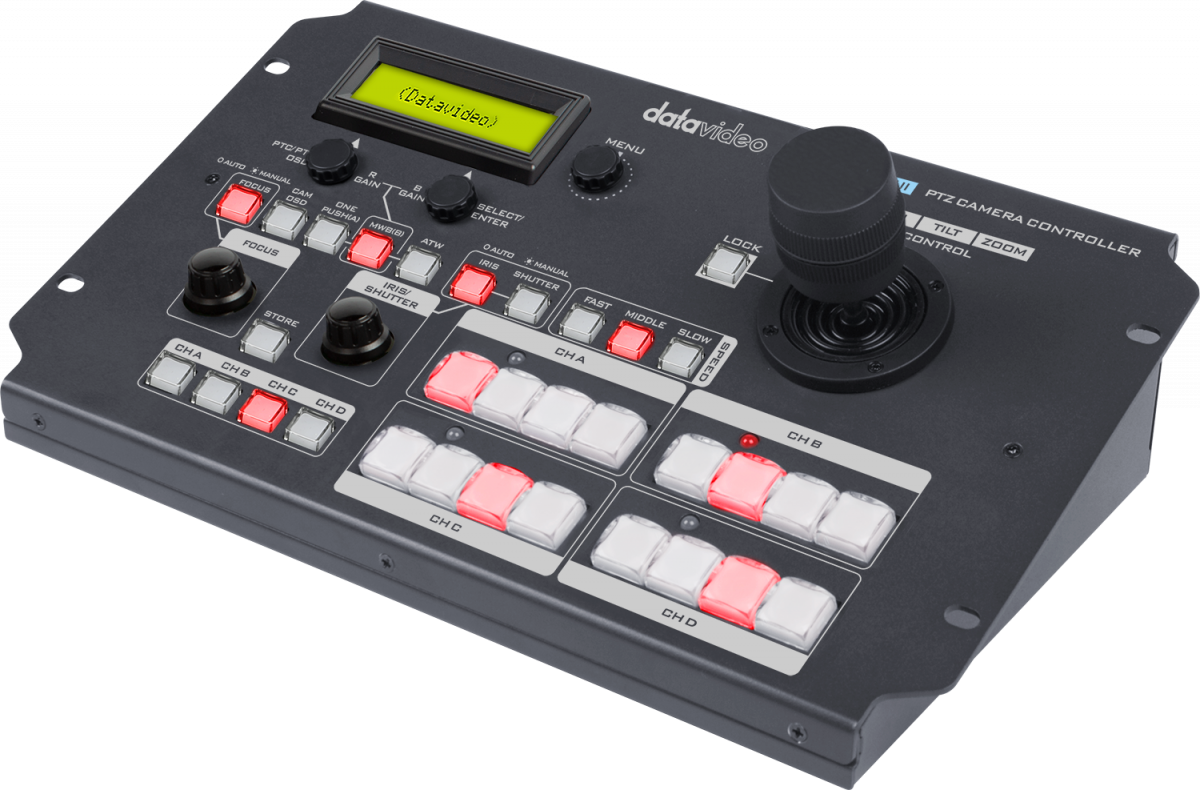

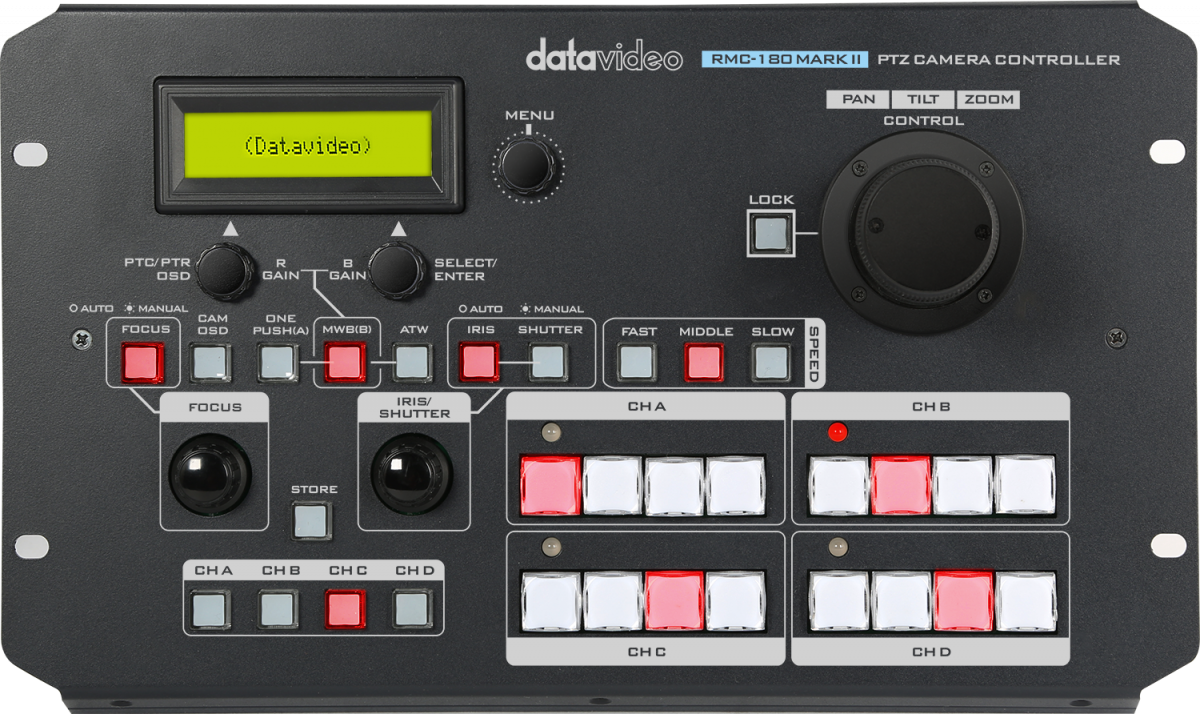

With its ergonomic joystick and tactile button layout, the RMC-180 MARK II makes it easy to set up and control up to four Datavideo PTZ cameras and Robotic Pan Tilt Head for any live video production.

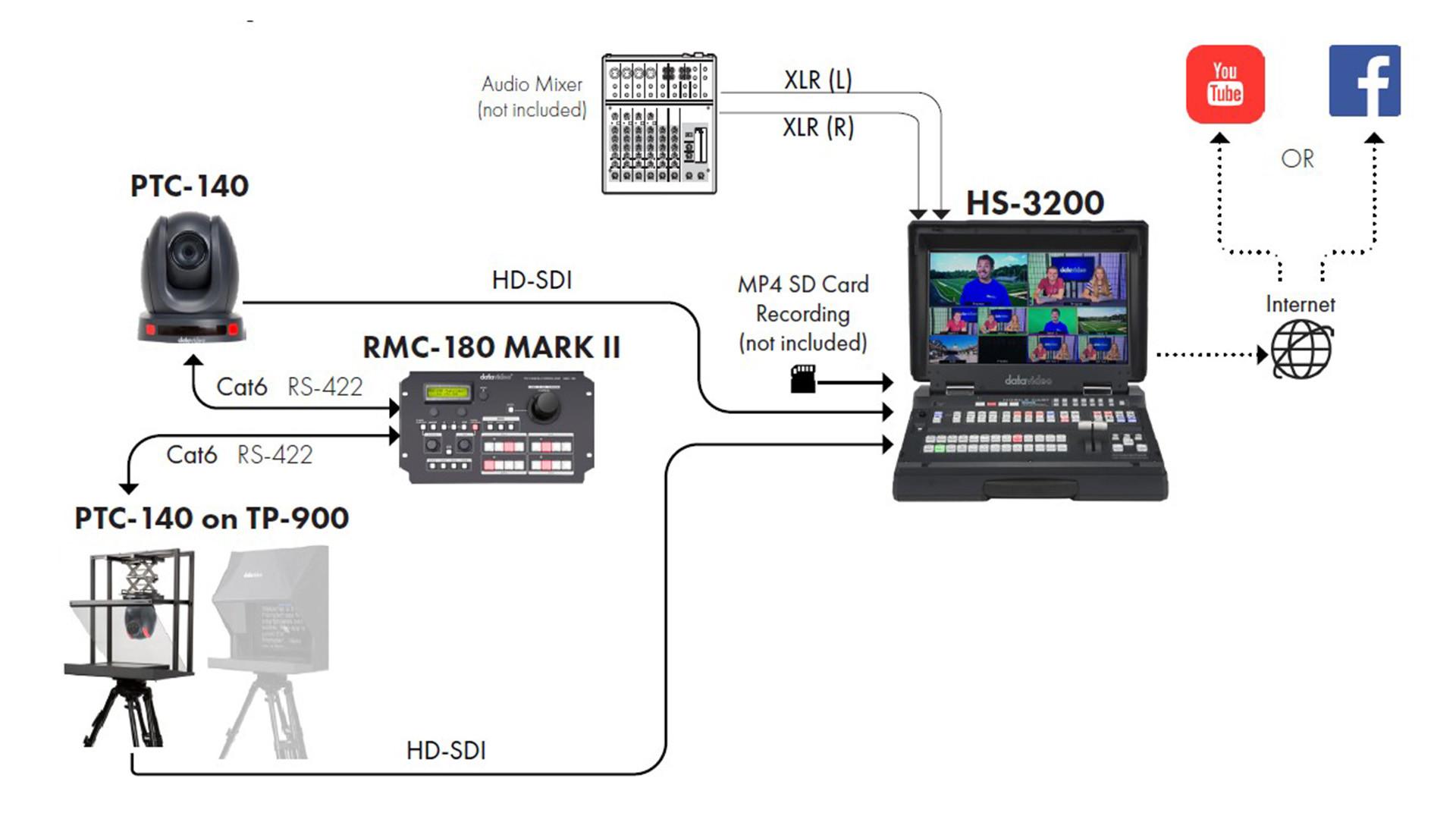

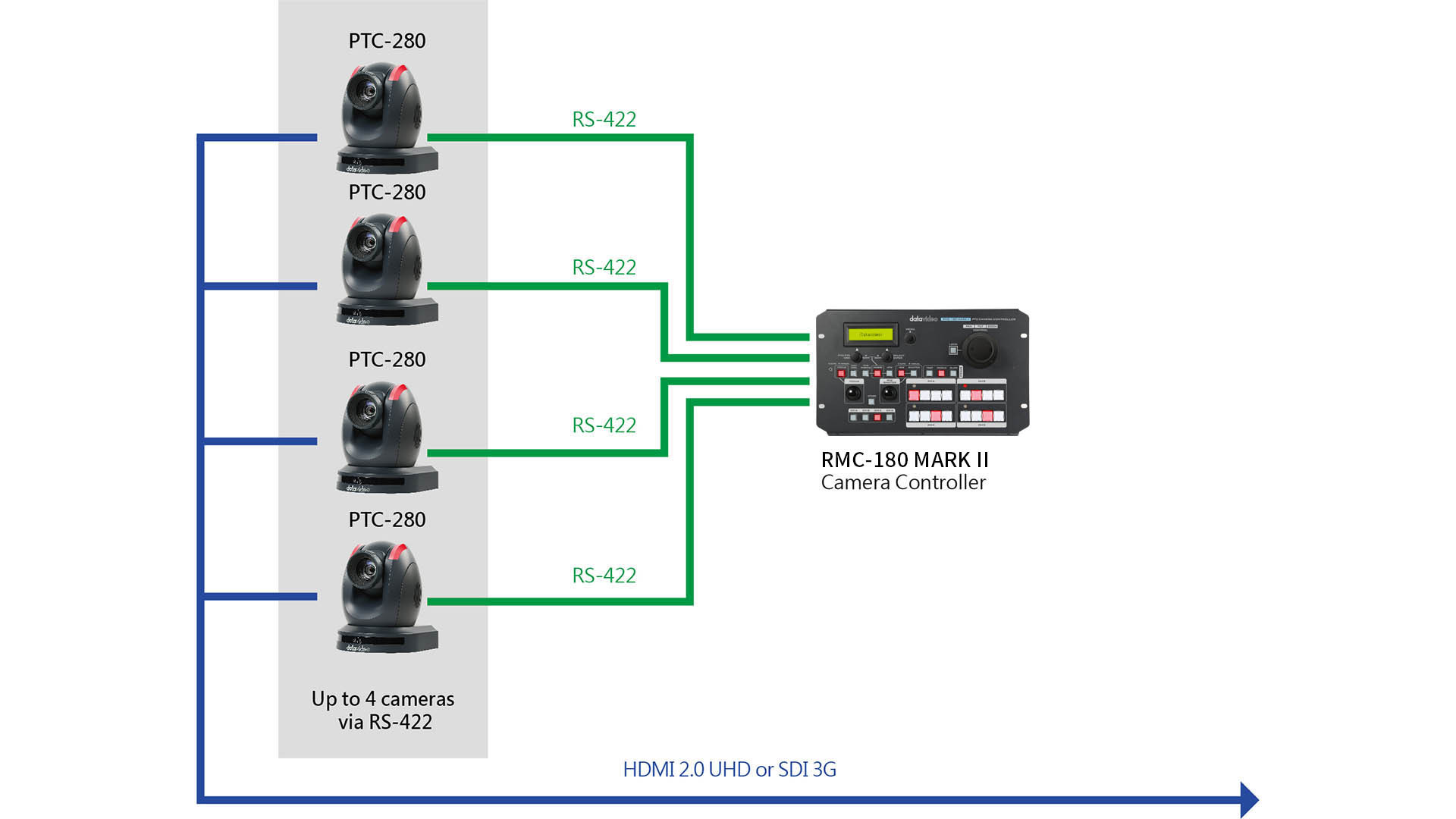

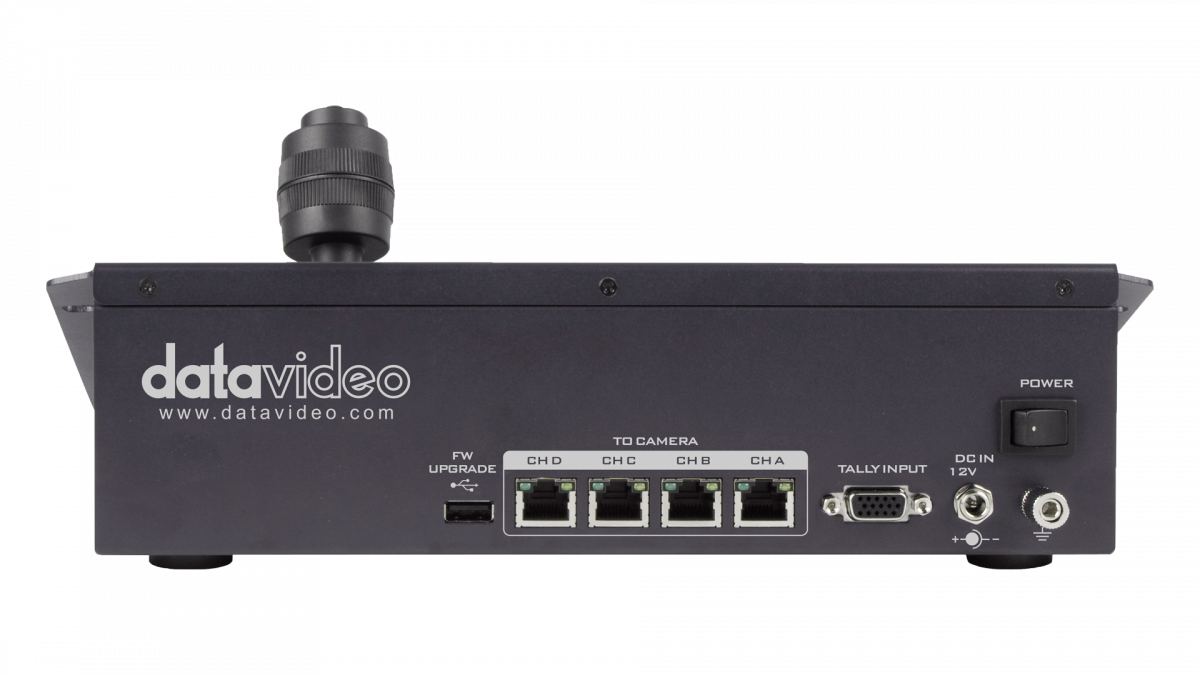

Just Plug and Play

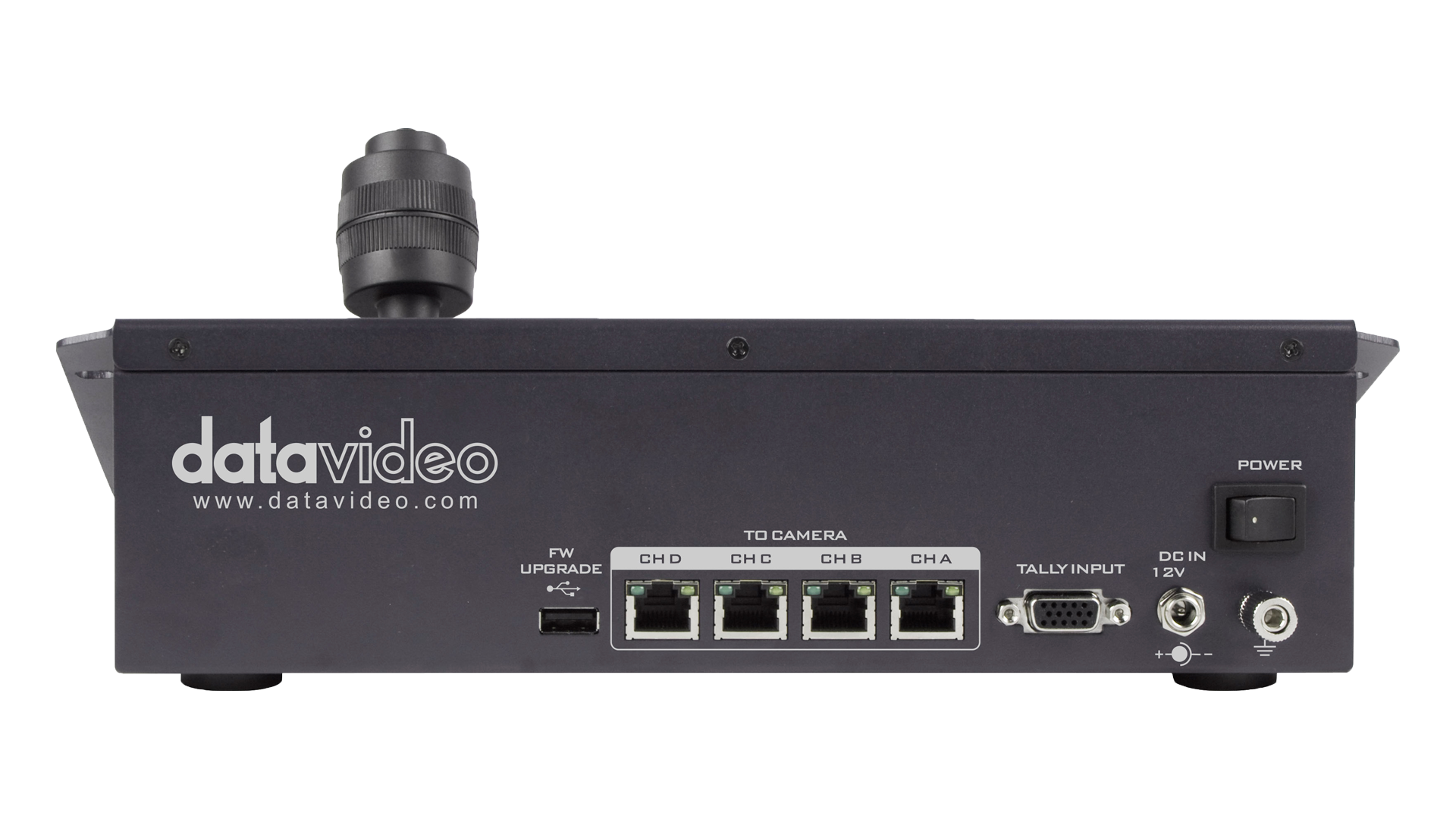

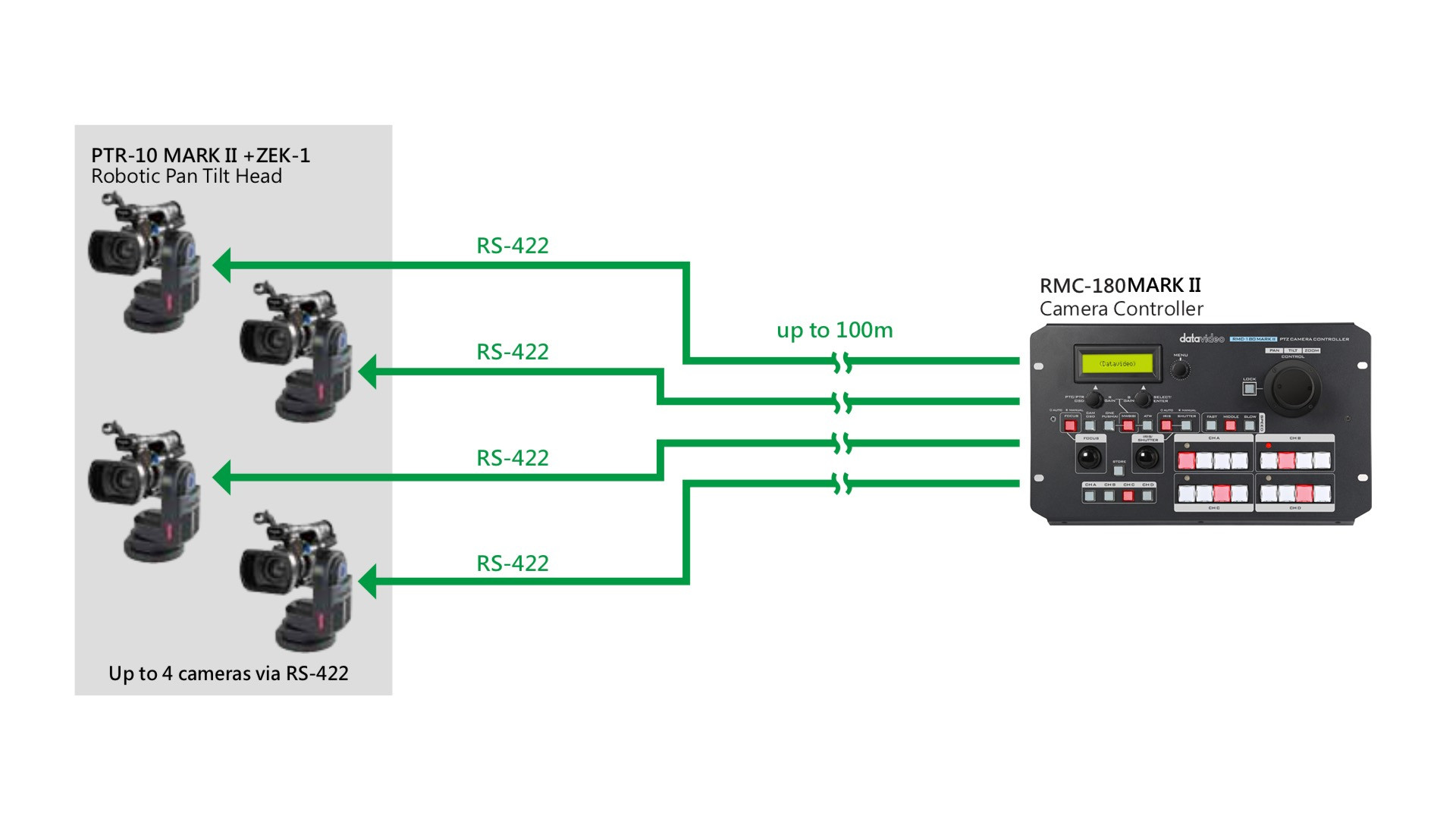

Thanks to RS- 422 standard interface, four RJ-45 ports provide plug and play between RMC-180 MARK II and PTZ cameras. The interface standard is RS- 422 and uses any RJ-45 cable to connect the RMC-180 MARK II to the RS-422 port of the Block/PTZ camera.

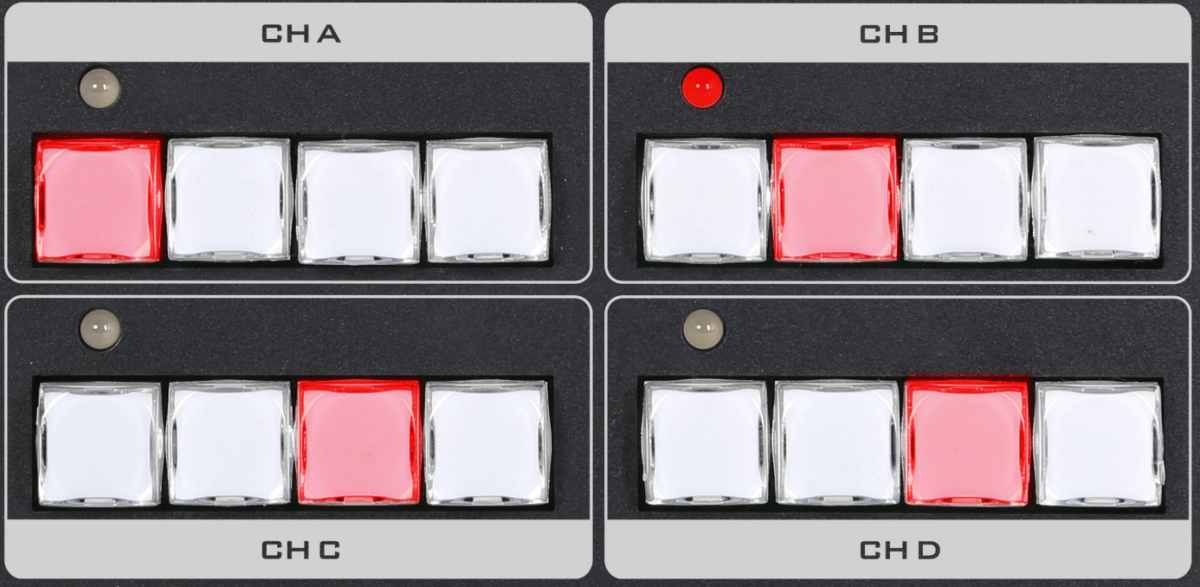

Automatic Camera Position Presets

The RMC-180 MARK II provides shortcut keys for up to 4 position presets for each of your cameras (up to 8 presets if only 2 cameras are connected). Easily program close-ups, wide-shots, and recall them with the press of a button. Recall the preset intuitively by pushing the mechanical buttons assigned to each preset.

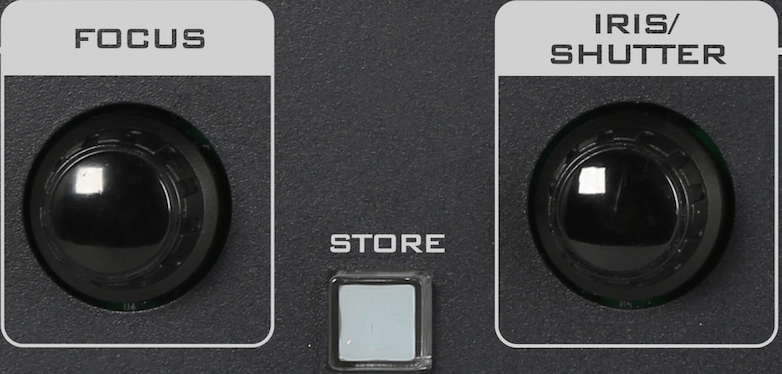

Manual Focus and Manual IRIS control

RMC-180 MARK II controls of Pan, Tilt, and Zoom and Iris, Focus, Gain, and other functions such as the OSD on specific models. Control via CAT5/CAT6 cable with RJ45 connectors.

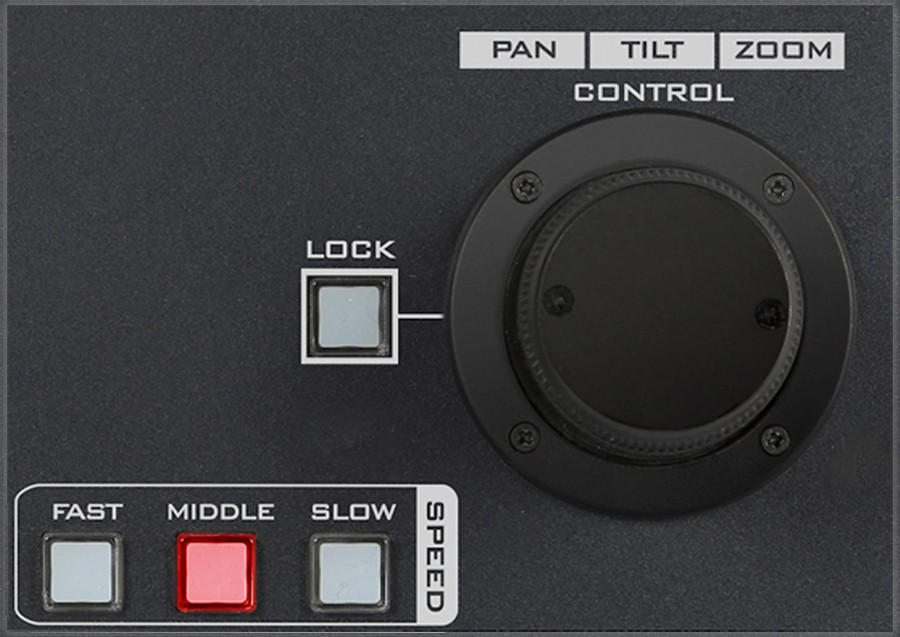

Speed Mode Makes Your Camera Movement Match to the Pace of the Program

The controller can move the cameras (pan, tilt and zoom) at slow, medium, and fast speeds. It provides you with a quick option for your selecting the speed of your camera movement.

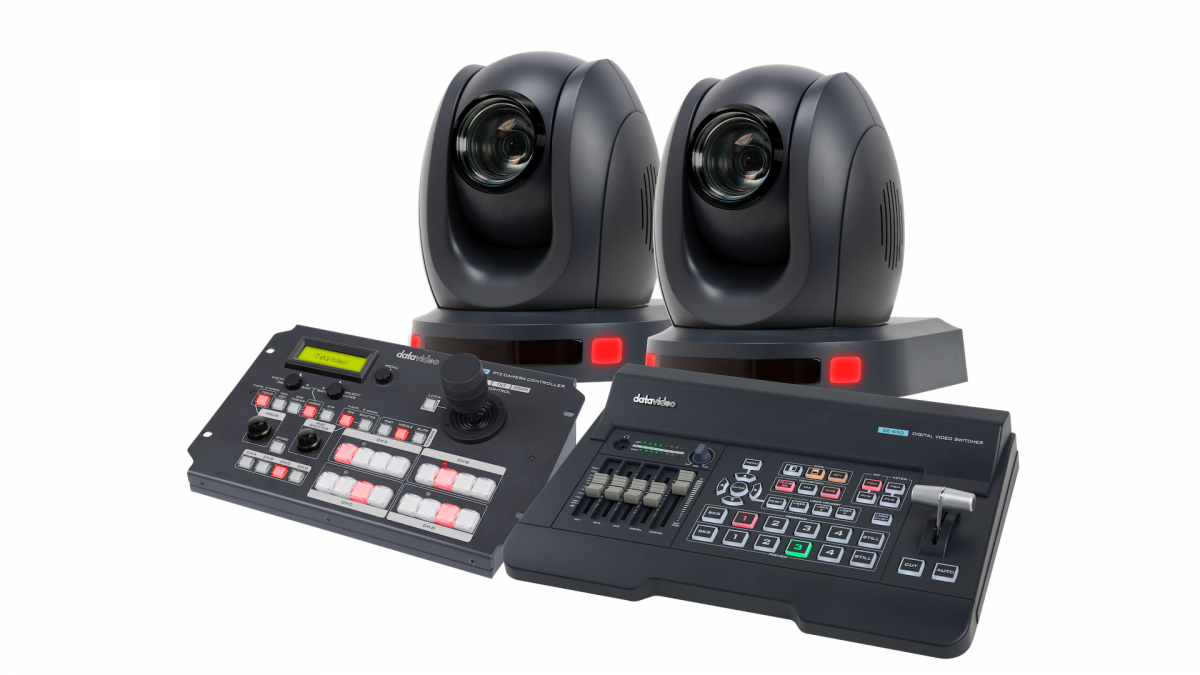

Support Datavideo's Switcher Tally Indicators

Compatible with Datavideo's switcher tally indicators. There are generally two tally LED modes, which are Tally User and Tally Input. Easy to implement in different workflow.

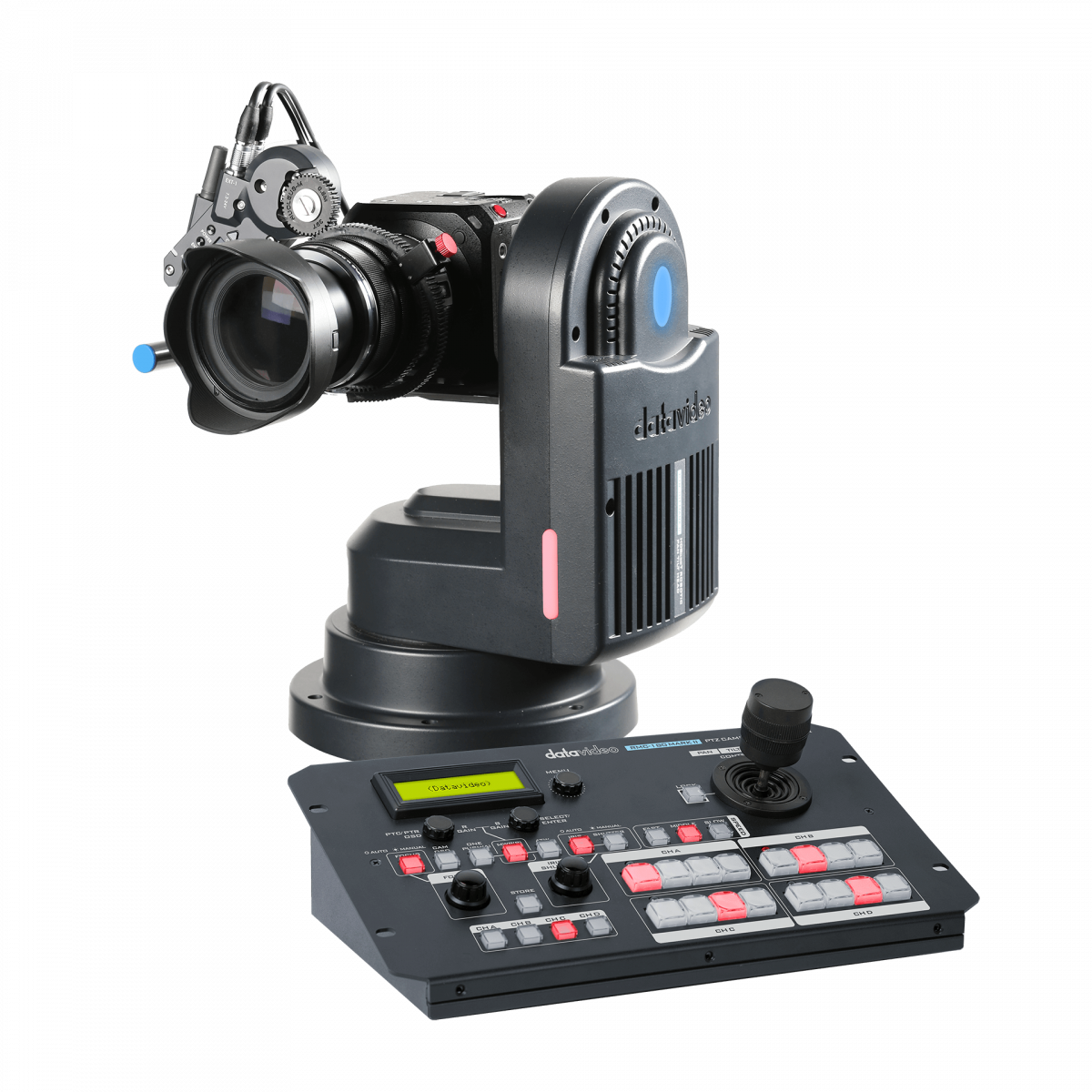

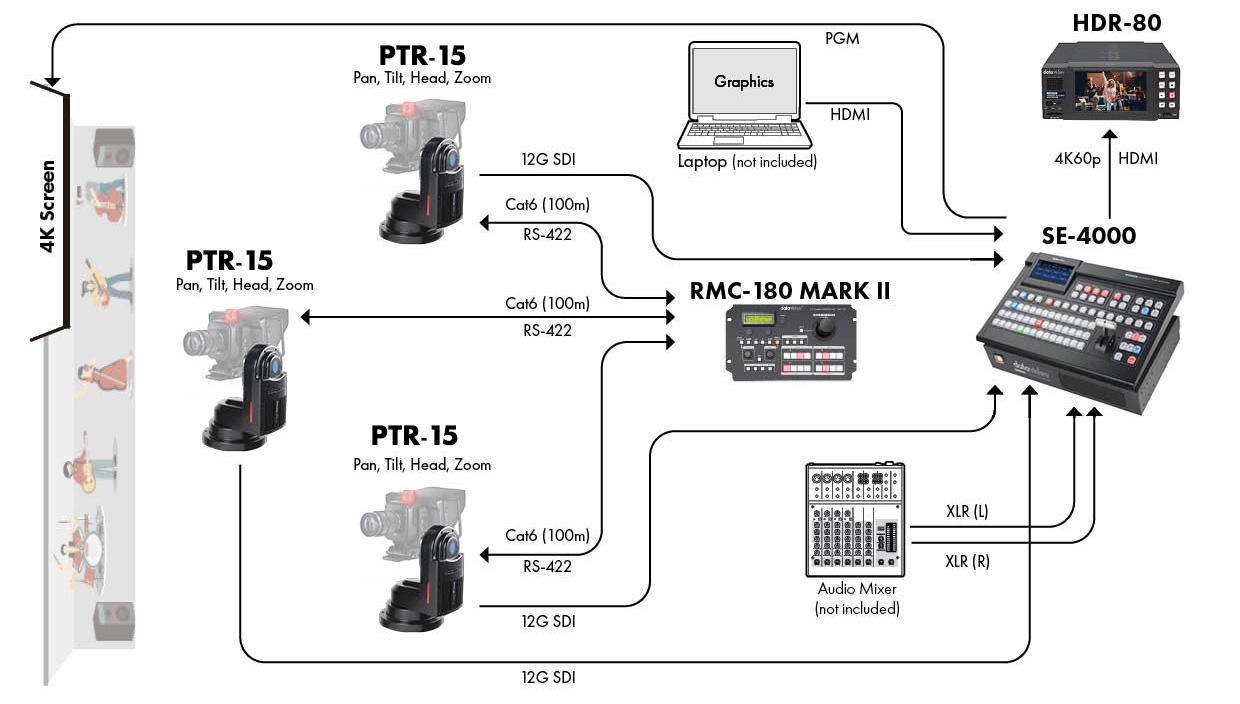

Controls PTR-10 with Presets

RMC-180 MARK II can control up to four PTR-10 MARK II. It can also save up to fours presets per camera and adjust focus and iris of each camera that is mounted on the PTR-10 MARK II.


Tutorial videos created specifically for the RMC-180 MARK II

Datavideo Academy is a comprehensive learning platform established by Datavideo Technology. As a professional Broadcast and AV equipment manufacturer, Datavideo Technology is not only committed to providing quality products to users, but also has the responsibility to help users learn to operate Datavideo products.

Through the Datavideo Academy platform, users can easily master the operation of Datavideo products and experience the unique design of Datavideo products, further creating a variety of applications and bringing a good user experience. Now, a tutorial video for the RMC-180 MARK II is available at Datavideo Academy to help you get the best performance out of the product. Please click on the following link.

Where to Buy?

   Find an authorized reseller

PTZ Camera Controller

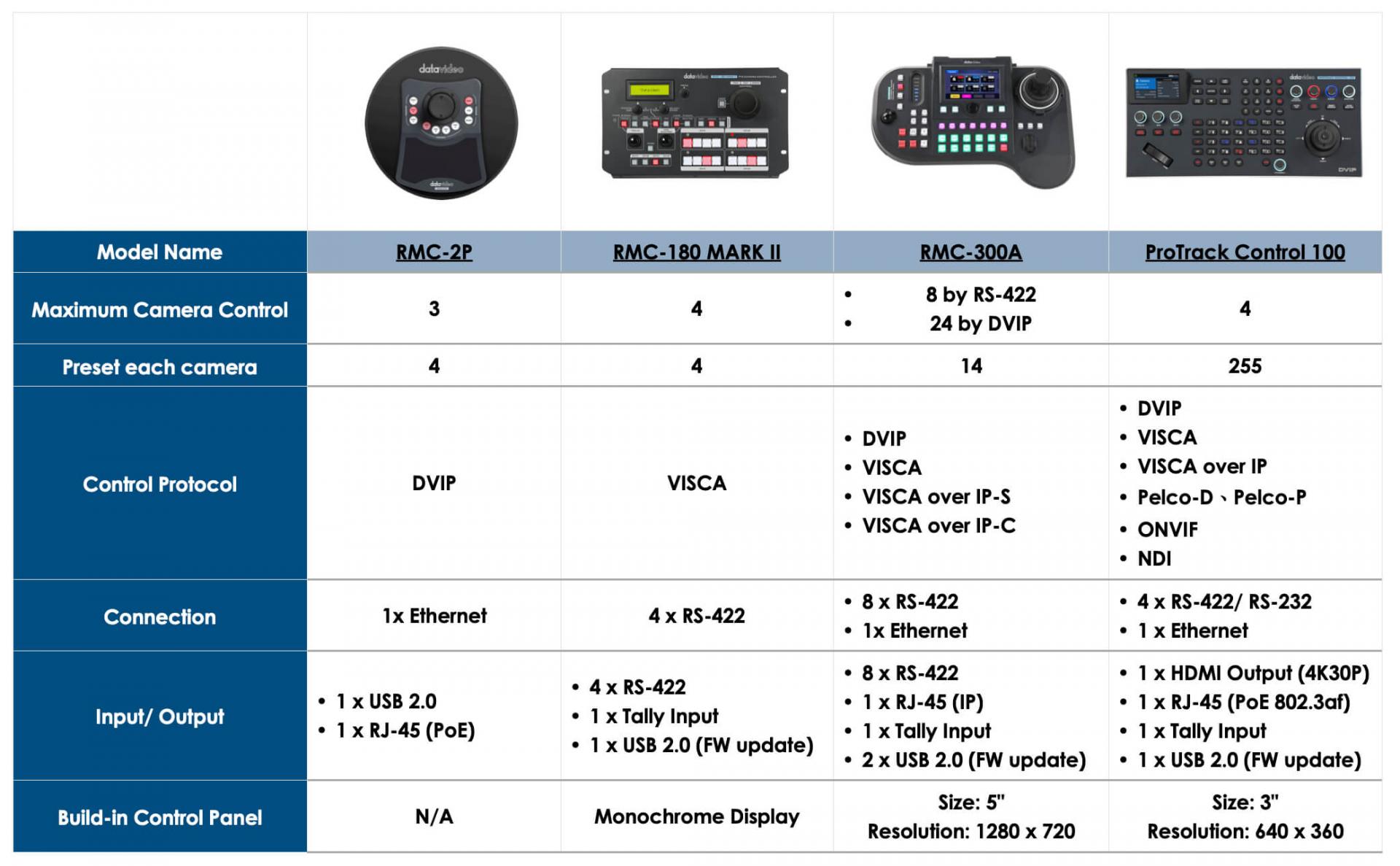

COMPARE MORE PRODUCTS
Model Number
RMC-180 MARK II
Maximum Camera Control
4
Preset (Position)
4 for each camera
Control Protocol
Sony VISCA
Connection to Cameras
Point to point
Input/Output
RS-422 (RJ-45 Connector) x 4
Build-in Control Panel
Monochrome display
Firmware Upgrade
Via USB
Dimension
310 x 170 x 125 mm
Weight
1.53kg
Operating Temp. Range
0°C ~ 40°C
Storage Temperature
-40°C ~ 60°C
Operating Humidity
---
Power
DC 12V 1A
What's in the Box
1 X RMC-180 Mark II item
1 X Adaptor
1 X Accessory List
1 X USB Type A to Type A cable
