PTR-10T MARK II

HDBaseT Robotic Pan Tilt Head
HDBaseT
Robotic Pan Tilt Head

HDBaseT Robotic Pan Tilt Head

PTR-10T MARK II
HDBaseT

Datavideo’s Brand-New PTR-10T MARK II is a Robotic Pan-Tilt Head that is Designed to Turn Any Small Size Video Camera or Block Cameras into a Robotic Camera

A sleek design fits seamlessly in your studio. With its weight of 3.4 Kg, it can be placed on any heavy-duty tripod or mounted on the wall and ceiling which brings up a lot of flexibility for your video production.

The PTR-10T MARK II can be controlled by the included IR controller, VISCA protocol controller, Datavideo RMC-180 Camera controller, RMC-300A Universal Remote-Control Panel, HS-1600T series and compatible with HDBaseT over Ethernet and other integration solutions such as Crestron.


Multiple Signal Interface

PTR-10T MARK II supports a lot of signal interface for passing through the remote head. Amongst these interfaces are SDI, HDMI, RS-232, RS-422, HDBaseT, Tally, and LANC.

Cost-Effective

PTR-10T MARK II makes the change from regular camcorder cameras to remote controlled PTZ very cost effective. Multi-camera remote operations can be handled by a single person.

Cost-Effective
Wide Range of Compatible Cameras Supported

Wide Range of Compatible Cameras Supported

The PTR-10T MARK II implements LanC control that is compatible with a wide range of professional video camcorders, allowing you to select the best camcorders for your needs.

Light Weight, Strong, and Sturdy Design

With a weight of 3.4 kg, PTR-10T MARK II is built from aluminum alloy, making it a very sturdy base for your camera. It can support cameras up to 4 kilograms.

Diversified Controller Options

Diversified Controller Options

Compatible with Serial, Ethernet, and Lanc. Datavideo RMC-180 series, RMC-300A, and HS-1600T series will fit your need.


Support Your Cameras Up to 4 Kg Weight on PTR-10T MARK II

Super strong design. PTR-10T MARK II is built from aluminum alloy, making it a very sturdy base for your camera.

Support 50 Preset Camera Shooting Positions

When your video production requires many different angles and positions, 50 preset camera positions will meet your needs.

Using the IR remote allows you to call up to 50 presets at any time.

When combined with the RMC-300A universal remote controller, the 14 physical buttons can be called at any time.

When using the RMC-180 MARK II remote control, there are 4 physical buttons to call.


PoE++ Supported

You do not need any battery mount on your camera when using PTR-10T MARK II. The PoE++ is building in the PTR-10T MARK II; No extra battery or power needed when operating.

Built-in Tally light

Built-in Tally Light

With the big tally light in the front to show the status of your camera.

D-Tap Connector for DC Output

The D-tap connector is widely used in the broadcast industry as a standard for powering accessories from battery or mains power.

This will make it easier for you to find a ready-made power cable for your specific camera. Included is a D-tap to DC 5.5mm with lock for Datavideo cameras.

D-tap connector for DC output

Selectable DC

Voltage output for different cameras

(7.4 / 8.4 / 10 / 12V )

Multiple Signal Interface

Optional Accessories: ZEK-1 Zoom Encoder Kit

ZEK-1 is the solution to your free running Zoom cameras.


PTR-10T MARK II can read its own Pan/Tilt movement and send back to controller for position memory and recall. Now, with ZEK-1, it can detect and read out the Zoom changes. And convert those information into Zoom position to send back for controller to memory and recall the saved zoom position.

Compatible with cameras via zoom moving ring.

ZEK-2 is a Robotic Cinema Camera Solution

ZEK-2 Zoom Encoder Kit is a mechanical device that allows you to mount the Tilta Nucleus-M motor which adds automatic zoom positioning to the Panasonic Lumix BGH-1 camcorder mounted on the PTR-10/10T MARK II Robotic Pan Tilt Head.

Datavideo's Comprehensive HDBaseT Lineup

Experience a seamless live production future with Datavideo's exceptional HDBaseT products. HDBaseT technology facilitates robust connectivity through advanced digital networking over existing cable infrastructure. Discover the excellence of our HDBaseT cameras, which deliver stunning 4K video and dynamic Auto Tracking with precision. The HS-1600T MARK II switcher revolutionizes integration and control, making it simpler and more efficient. Datavideo's HDBaseT lineup enhances live production with the power of uncomplicated, high-performance connectivity.

HDBaseT Compatibility List

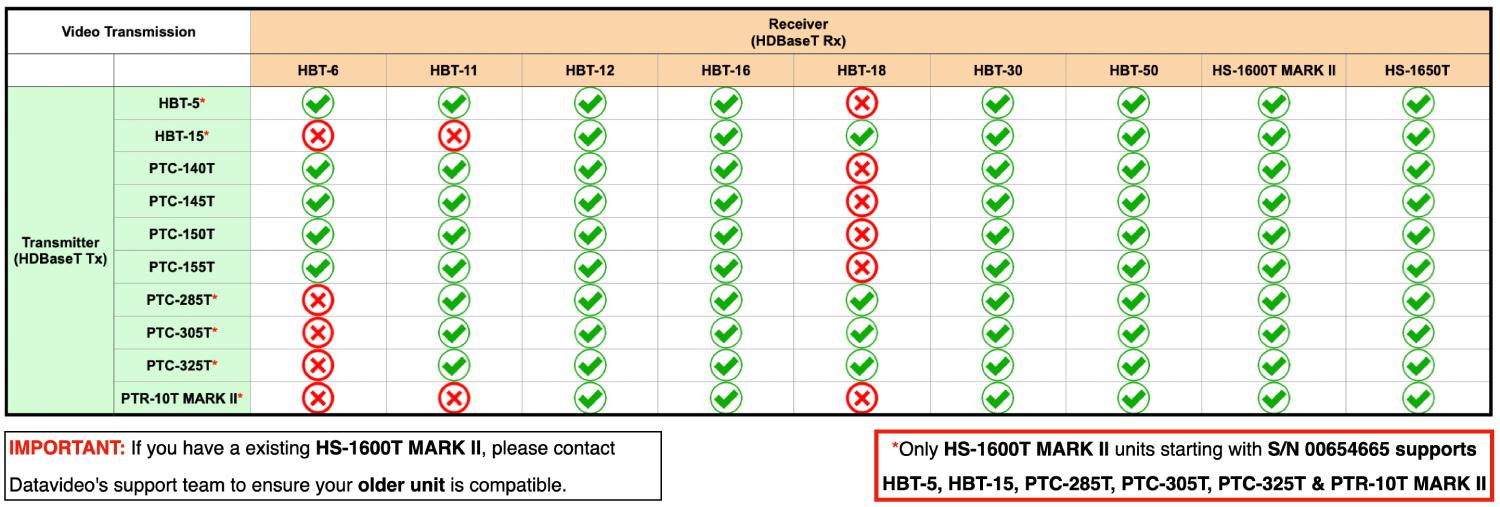

HDBASET COMPATIBILITY LIST

The chart above shows the product's direct compatibility with other HDBaseT products.

HDBaseT Certified List of Cables

Tutorial Videos Created Specifically for the PTR-10T MARK II

Datavideo Academy is a comprehensive learning platform established by Datavideo Technology. As a professional Broadcast and AV equipment manufacturer, Datavideo Technology is not only committed to providing quality products to users, but also has the responsibility to help users learn to operate Datavideo products.

Through the Datavideo Academy platform, users can easily master the operation of Datavideo products and experience the unique design of Datavideo products, further creating a variety of applications and bringing a good user experience. Now, a tutorial video for the PTR-10T MARK II is available at Datavideo Academy to help you get the best performance out of the product. Please click on the following link.

Camera Compatibility List

Find a camera that is compatible with the PTR-10T MARK II.

NEED MORE HELP?

   Contact us to get more help!

HDBaseT Robotic Pan Tilt Head

COMPARE MORE PRODUCTS
Model Number
PTR-10T MARK II
Video Interface
HDMI x 1
SDI x 1
RJ45 x 1 (HDBaseT)
Video Output
2160p 29.97/25
1080p 59.94/50
1080i 59.94/50
720p 59.94/50
Control Unit
RMC-180
HS-1600T
HS-1600T Mark II
RMC-300A
VISCA Protocol Controller
IP Control
IR remote
Genlock
---
Timecode
---
Panning / Tilting Range
Pan: 340°
Tilt: ±45°
Panning / Tilting Speed
Pan: 0.12~15° /Sec
Tilt: 0.06~10° /Sec
Preset
Pan/Tilt position 50
Control Distance
1,200M by RS422
100M by HDBaseT
Control Protocal
Sony VISCA
DVIP
Control Input
RS-422
HDBaseT
Maximum Load
4 KG Max
Control Output
RS-232
RS-422
BX-Lens
LanC
Power Requirement
DC 12V~ 18V, 3A (Without Camera)
DC 12V~ 18V, 5A (With Camera)
Power Supply
DC 12/10/8.4/7.4V, 24W Max
Operating Temp. Range
0~40 C°
Operating Humidity Range
10~80%
Storage Temp. Range
-10~60C°
Storage Humidity Range
5~80%
Weight
3.4 KG
Dimension (LxWxH)
230 x 190 x 300 mm
Optional accessories
ZEK-2 KIT
WM-10
WM-11
CM-10
What's in the Box
PTR-10T Mark II Main Unit x 1
DC 12V power adaptor x 1
AC cord x 1
IR remote control x 1
DC with lock to D-Tap cable x 1
HDMI cable x 1
SDI cable x 1
Remote cable (2.5mm phone-jack to mini-din 8pin) x 1
1/4” screw x 2
1/4” to 3/8” screw adaptor x 1
