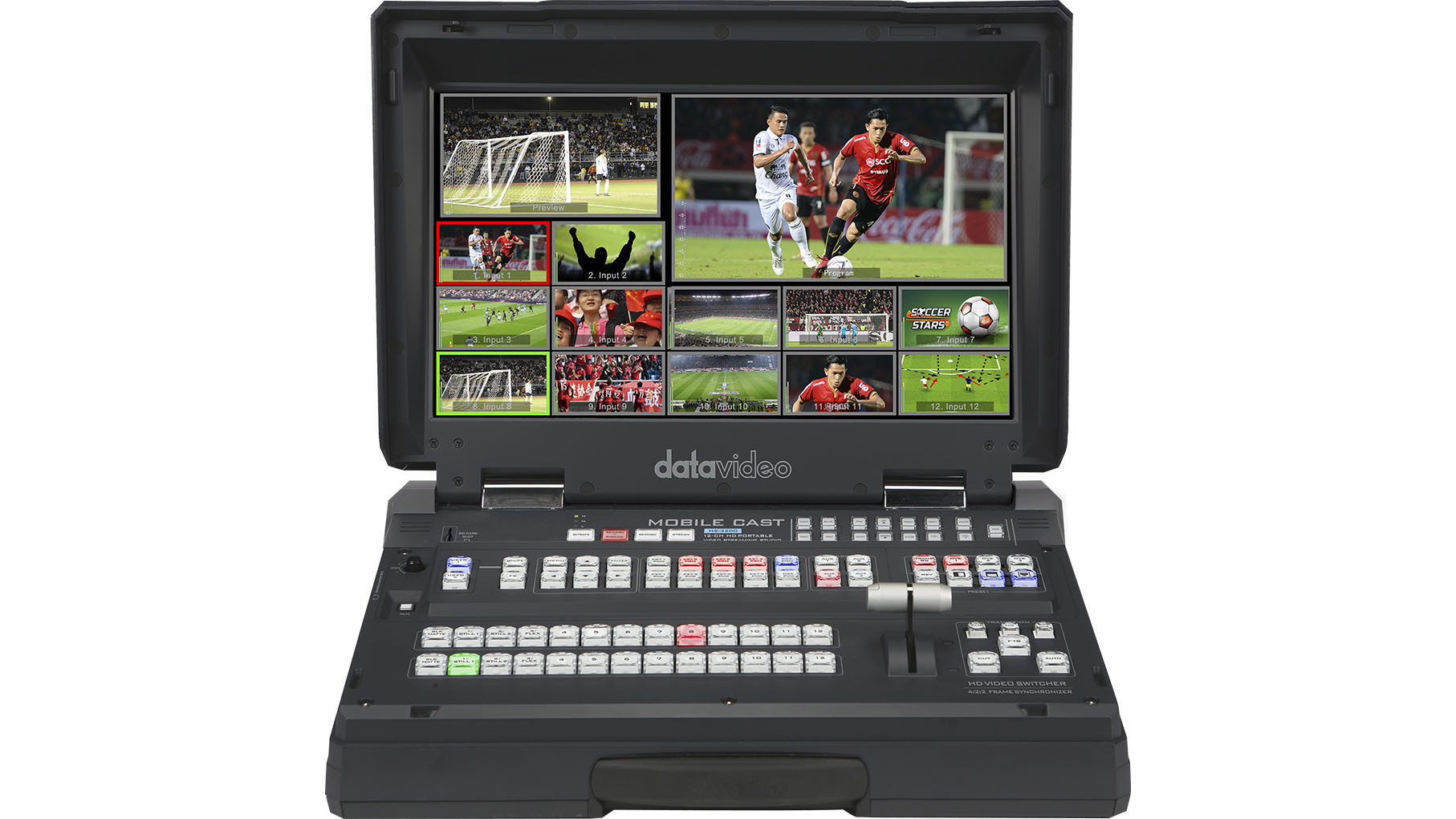

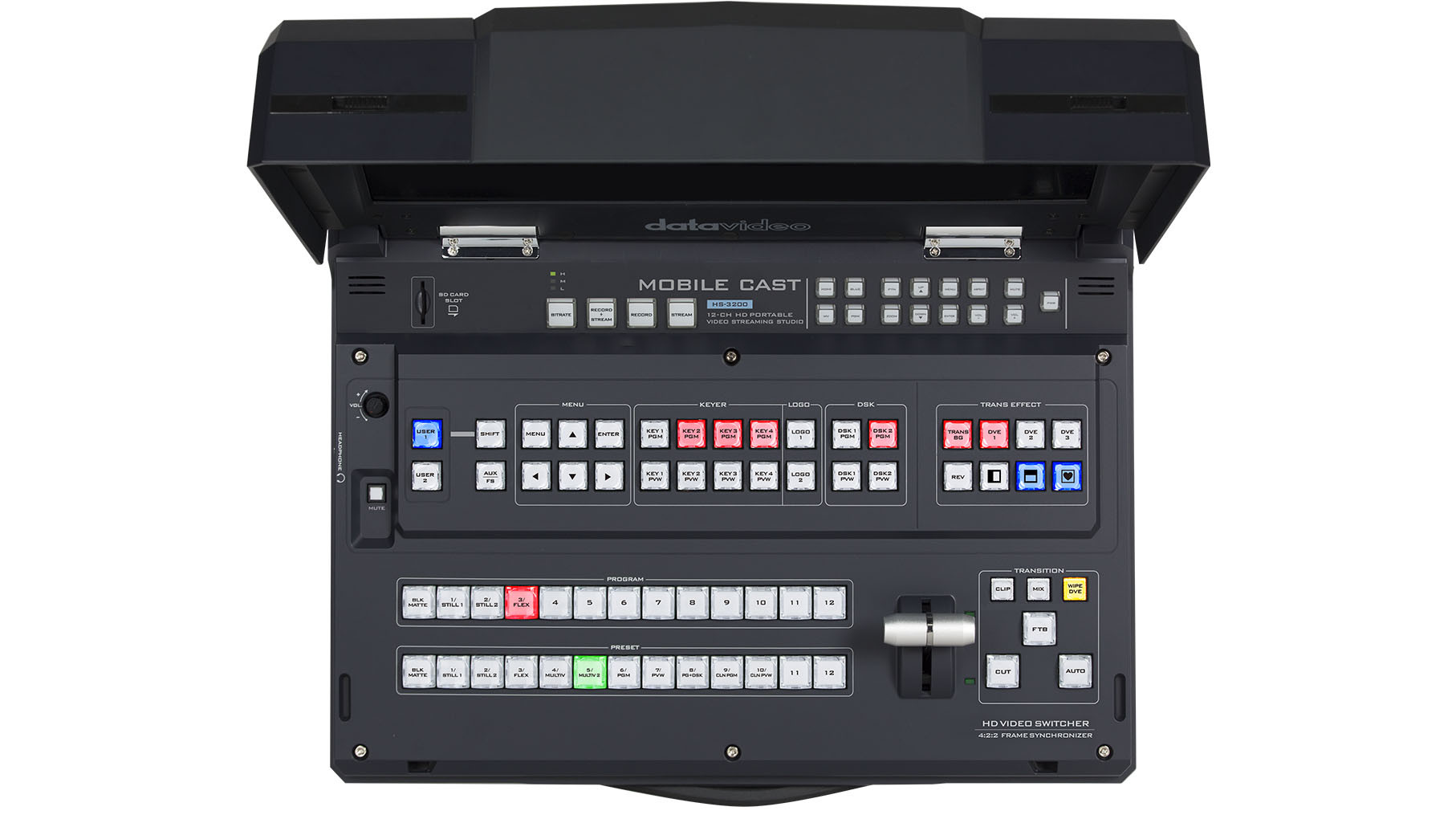

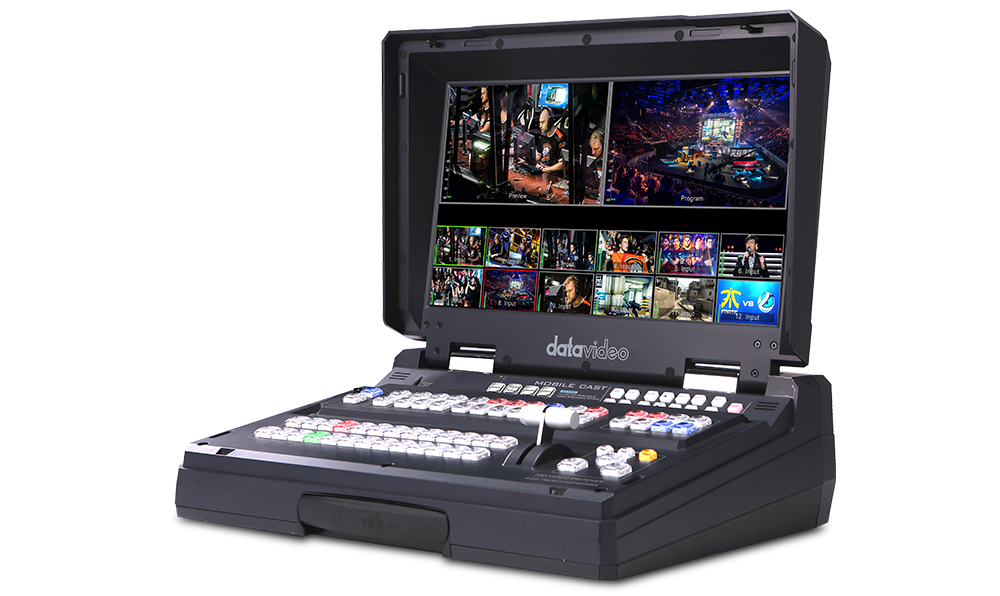

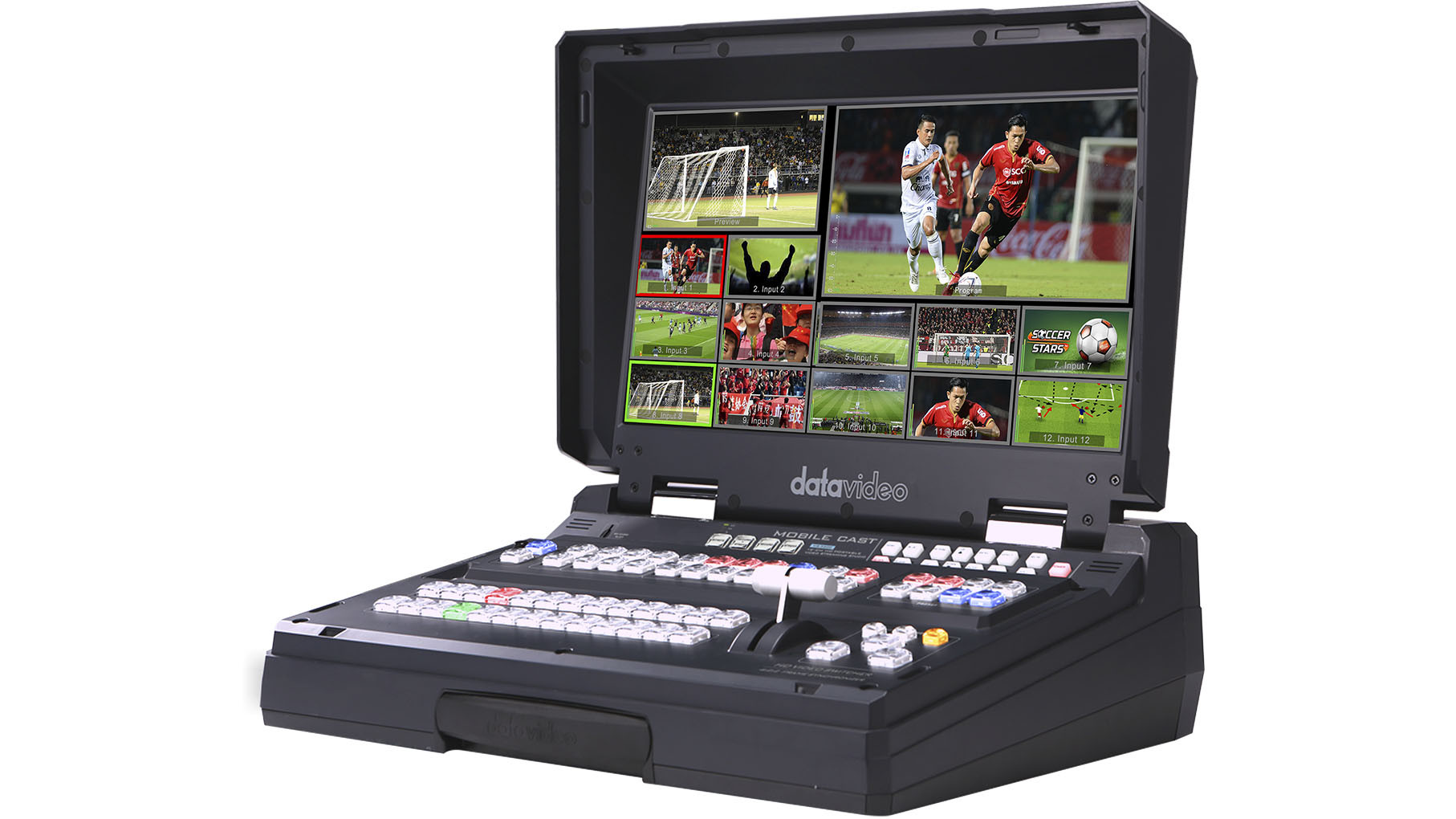

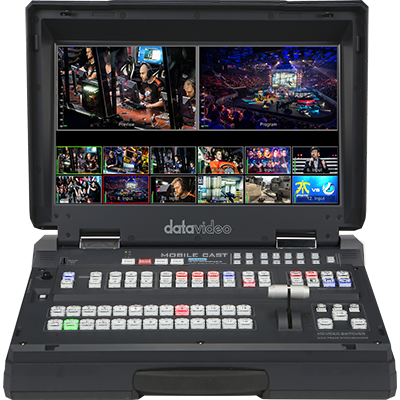

HD 12-Channel HD Portable Video Streaming Studio
HS-3200 is a 12 channel professional mobile hand carry switcher with real Full 1080p/60 (3G) High Definition support, it features easy-to-use video streaming and recording appliance for professional video producers who need to simultaneously stream a live event and record the master quality version for post-event editing.
With 12 digital inputs including 8 SDI and 4 HDMI inputs with embedded audio, 5 SDI and 4 HDMI outputs for connecting HD recorder, monitor, etc.
HS-3200 is a lightweight, portable and powerful featured mobile studio solution which is designed for live events and TV programs that need to mix a variety of video and audio sources. HS-3200 is also a great value solution for the worship, education and AV market.
The HS-3200 also has powerful, easy to use effects, including Chroma / Luma Key, DSK, PIP, DVE, Wipe Generator, Still stores, logo insertion.

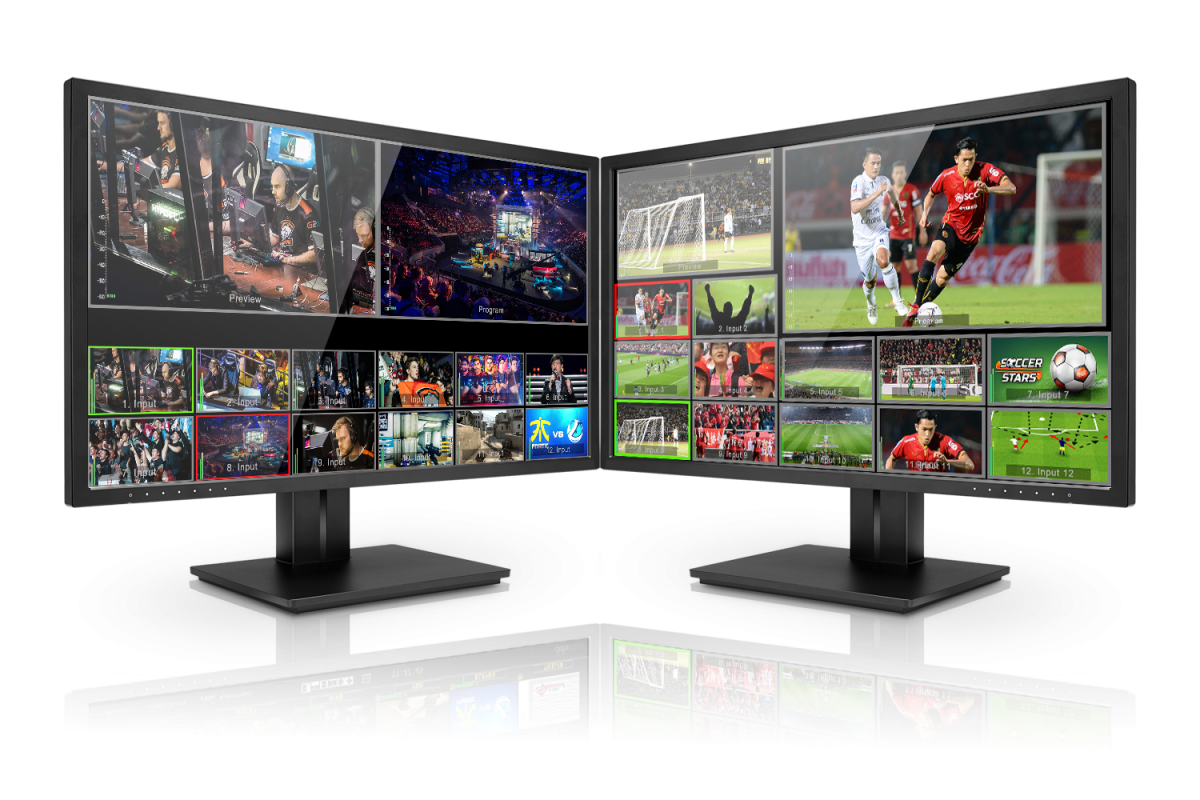

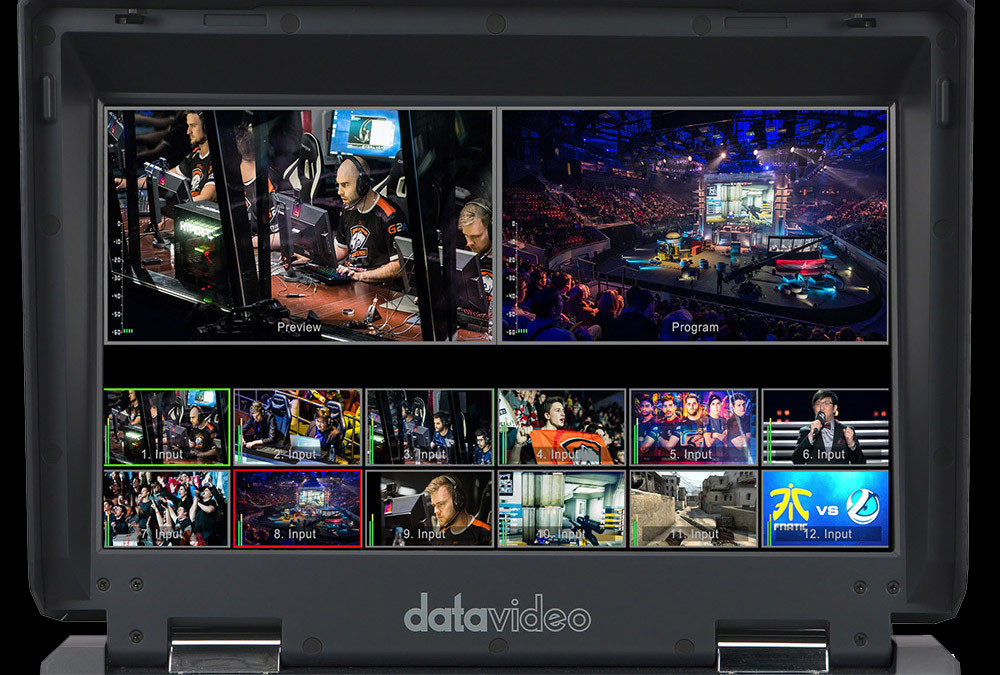

Advanced features include a 17.3-inch Full HD 1080p video monitor, which displays the multi-view, the Multi-view includes all the input sources, as well as preview and program.
- One machine for 12 channel 1080p video switching, recording and streaming

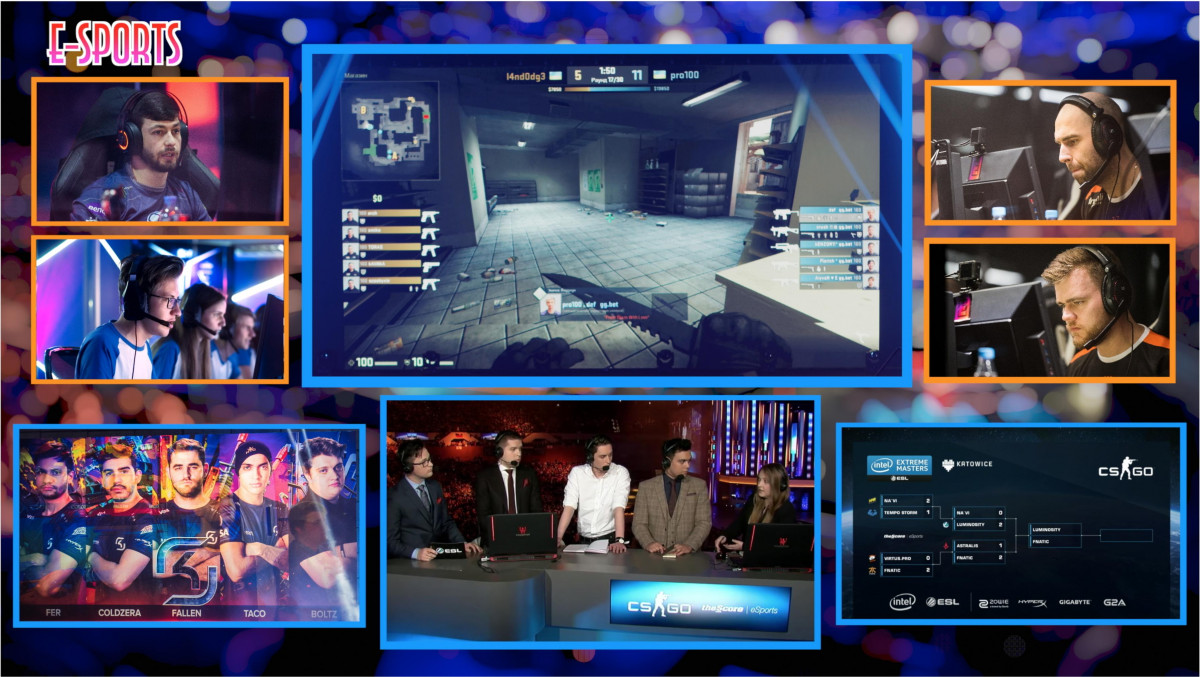

- Up to 8 Picture in Picture based on Flex Source support
- Four video keyers
- Broadcast quality H.264 media streaming for sending videos to broadcast platforms like Facebook, YouTube or Twitch
- Record on SD Card for post-production
- Pre-saved multiple sets of animation files and background pictures
- Full native 1080p (3G) operation
- Simultaneous Live Streaming & Recording
- Broadcast quality HD / SD H.264 network streaming
- Support different bitrate for recording and streaming

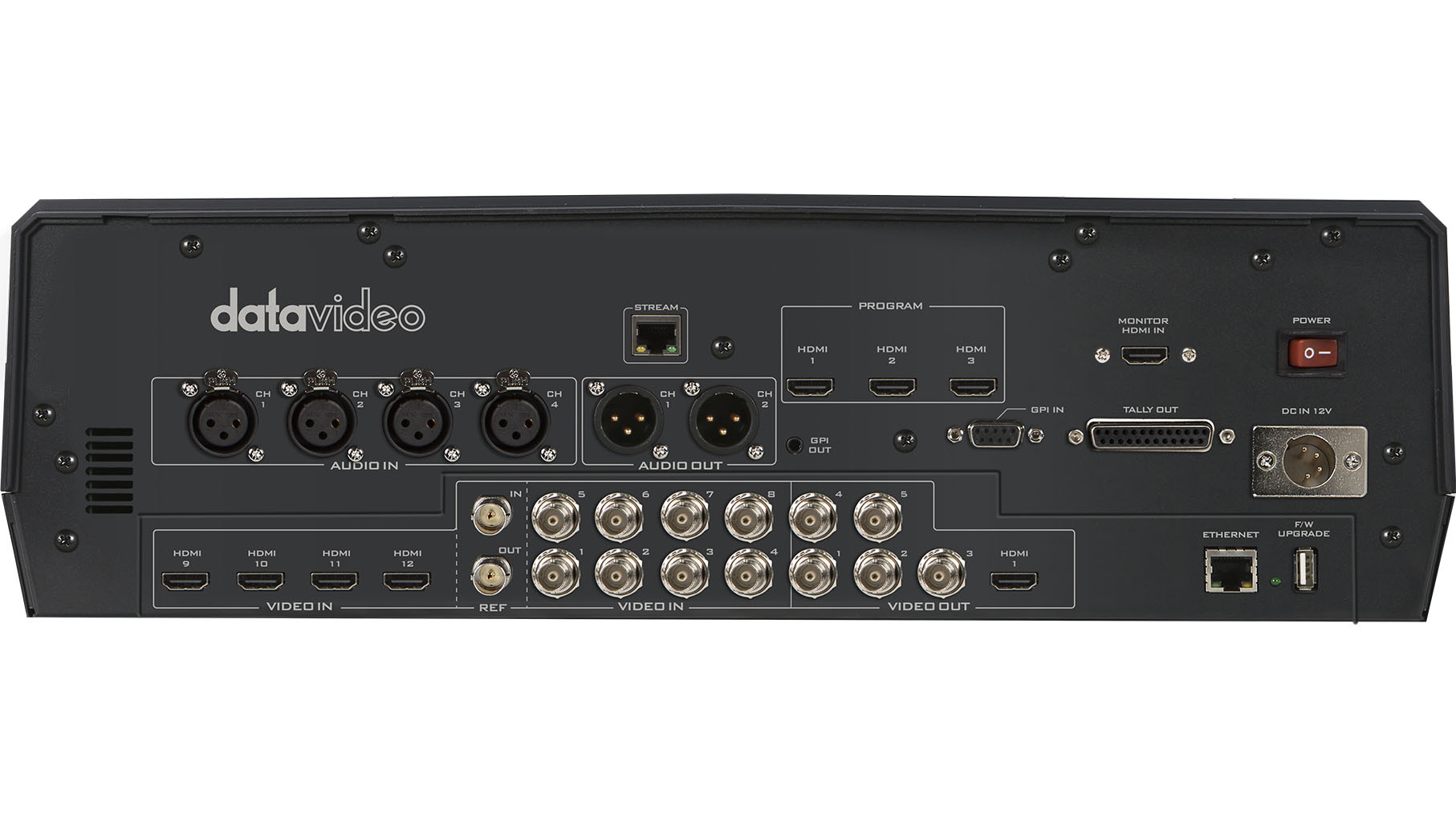

- 12 Total Video input interfaces (8 x SDI, 4 x HDMI)
- 9 Video Outputs: 5xSDI+4xHDMI

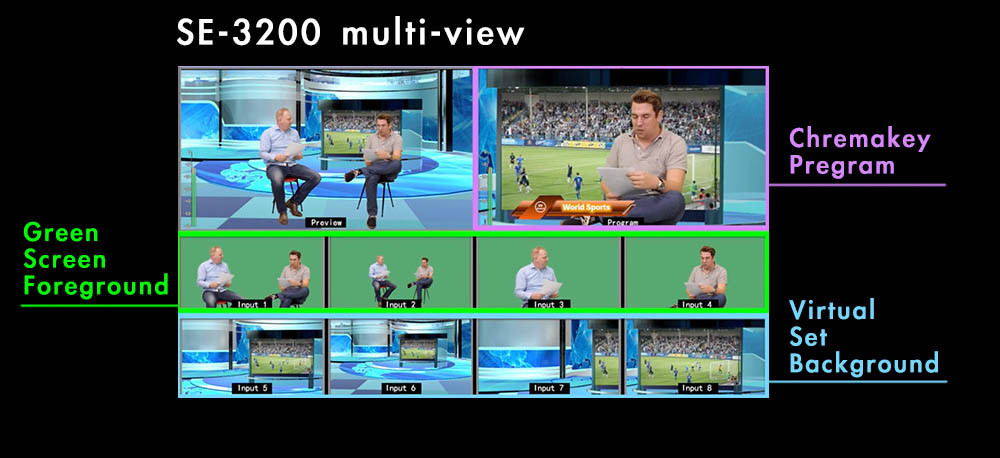

- 4 Upstream Keyers, supporting Chroma key & Linear / Luma key
- 8 PIP (4 flex source included)
- 2 DSK, supporting Linear & Luma Key Modes
- 2 Logo insertion (Animation logo, X/Y size)
- Wipe, Mix, DVE, Cut and Stinger Transitions
- 32 Wipe patterns including Circle & Heart, and Borders & Softness Control
- Clip player (150 Frames) Stinger Transitions function
- Any Input (1-12) can be used as a Frame store (Stills Store)
- Support XPT (Cross Point Assignment)
- 4 x XLR Analogue Audio Inputs
- 2 x XLR De-Embedded Analogue Audio Outputs
- Tally output
- USB Port for FW upgrade
- One 17.3-inch with a resolution of 1920x1080 dots
Producing the 2019 NAMM Show | Datavideo HS-3200 Portable Studio
【Official】Top 5 Features of HS-3200 HD 12-Channel HD Portable Video Streaming Studio
【360 Product Video】HS-3200 HD 12-Channel HD Portable Video Streaming Studio｜Datavideo
- 1x HS-3200
- 1x AD switch DC 12V with AC Cord
- 1x Thank You Card
