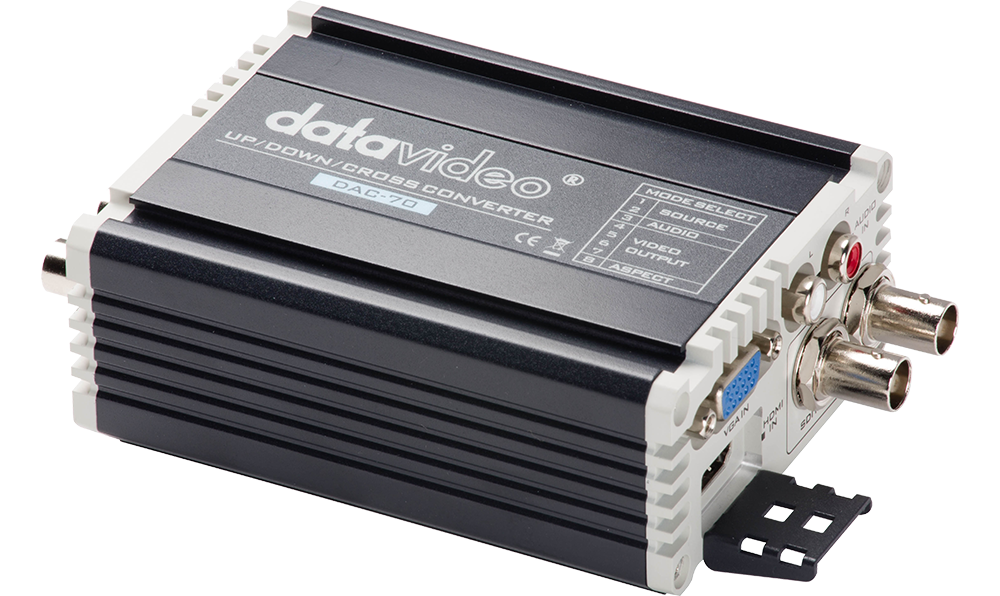

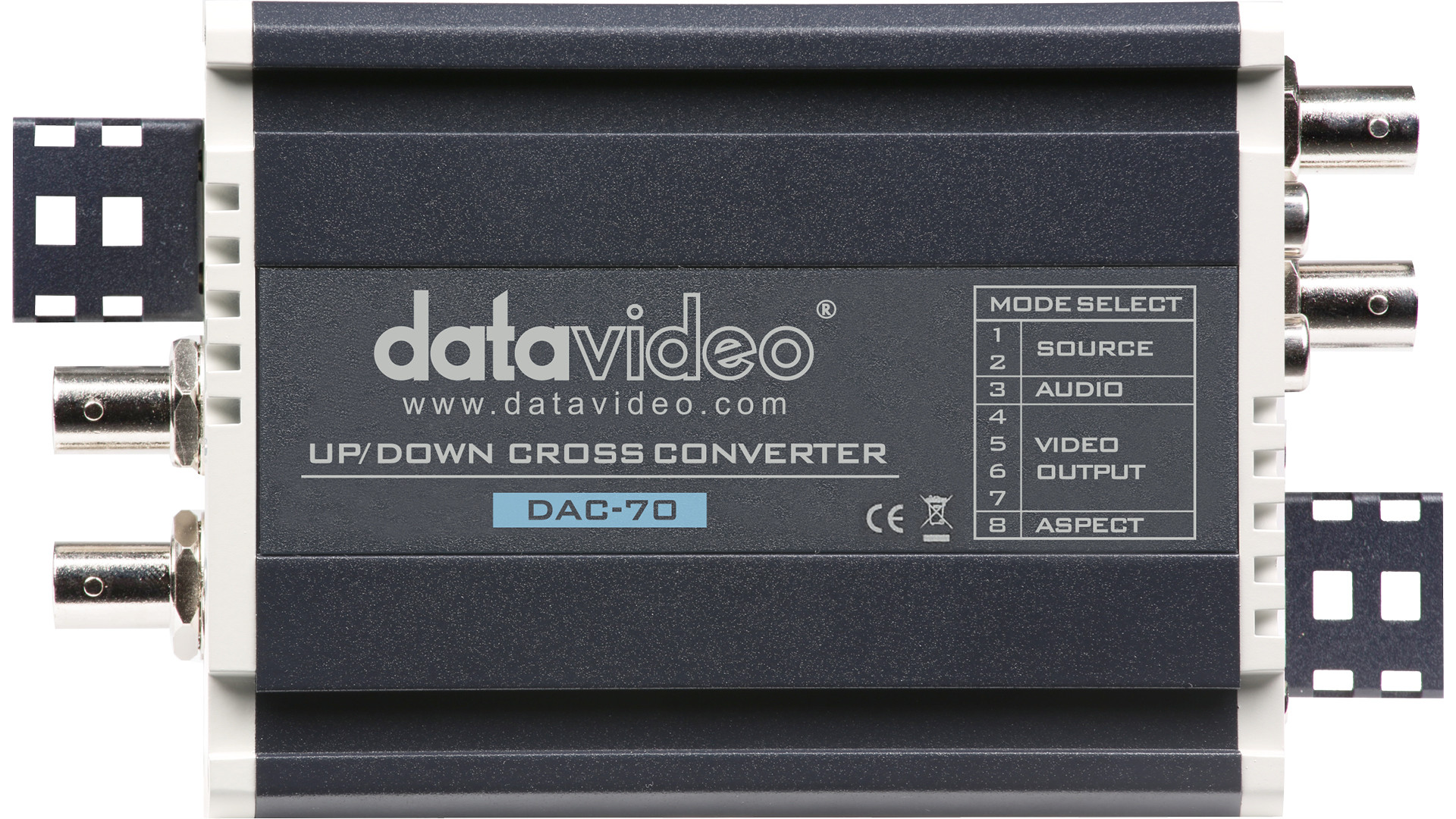

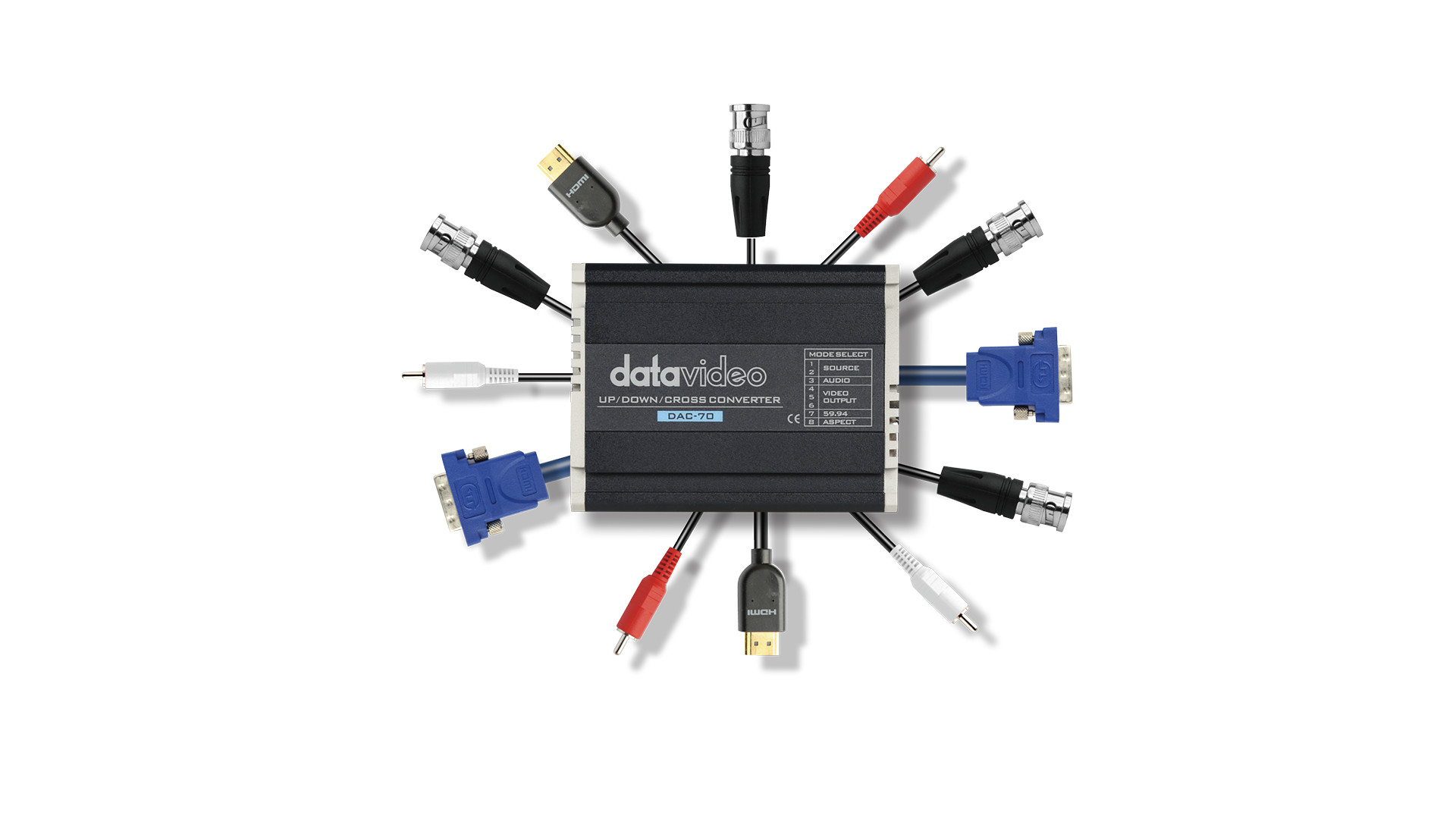

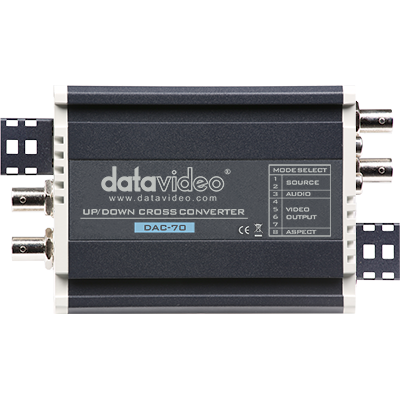

DAC-70

Up / Down / Cross Converter

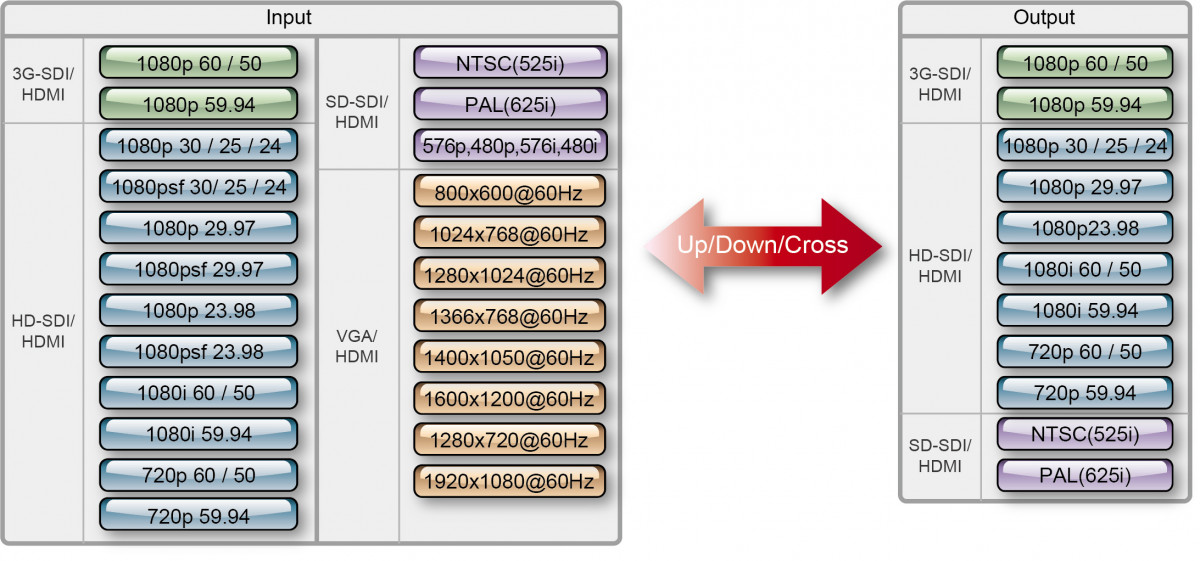

Ultra Wide Range Scaler for Excellent Compatibility

The DAC-70 supports a multitude of video resolutions ranging from SD to Full HD. If you need to connect two otherwise incomptible video devices together, the Swiss Army Knife of converters has you covered.

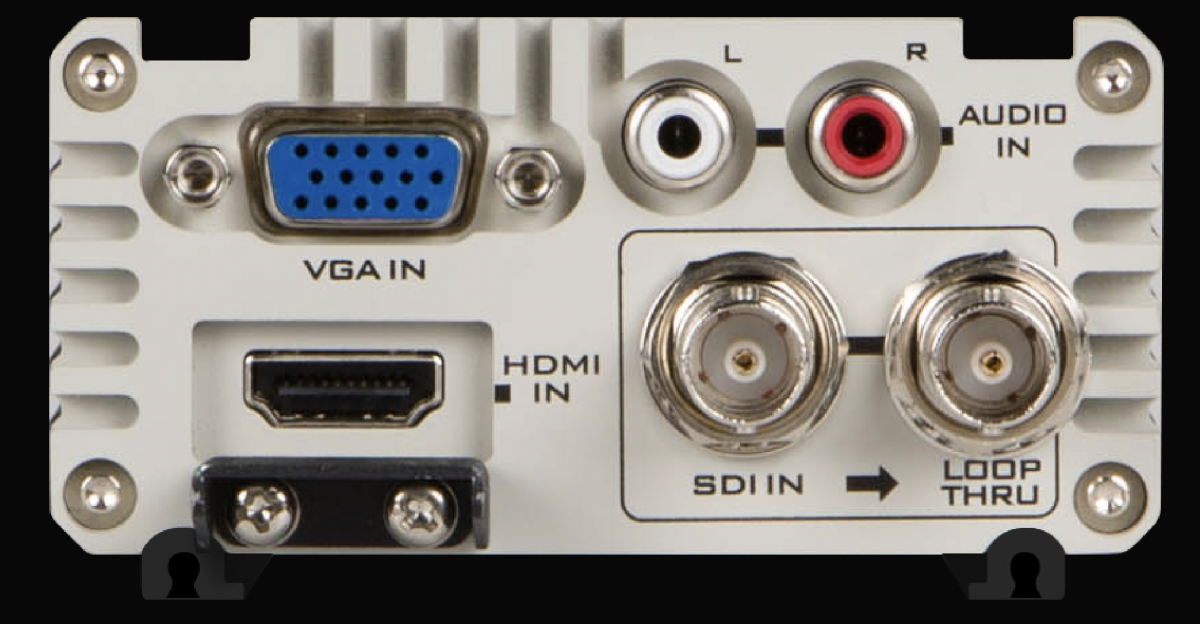

Add External Audio or Keep the Embedded Audio

Keep the embedded audio in the stream, or replace the audio using the RCA inputs.

Add External Audio or Keep the Embedded Audio

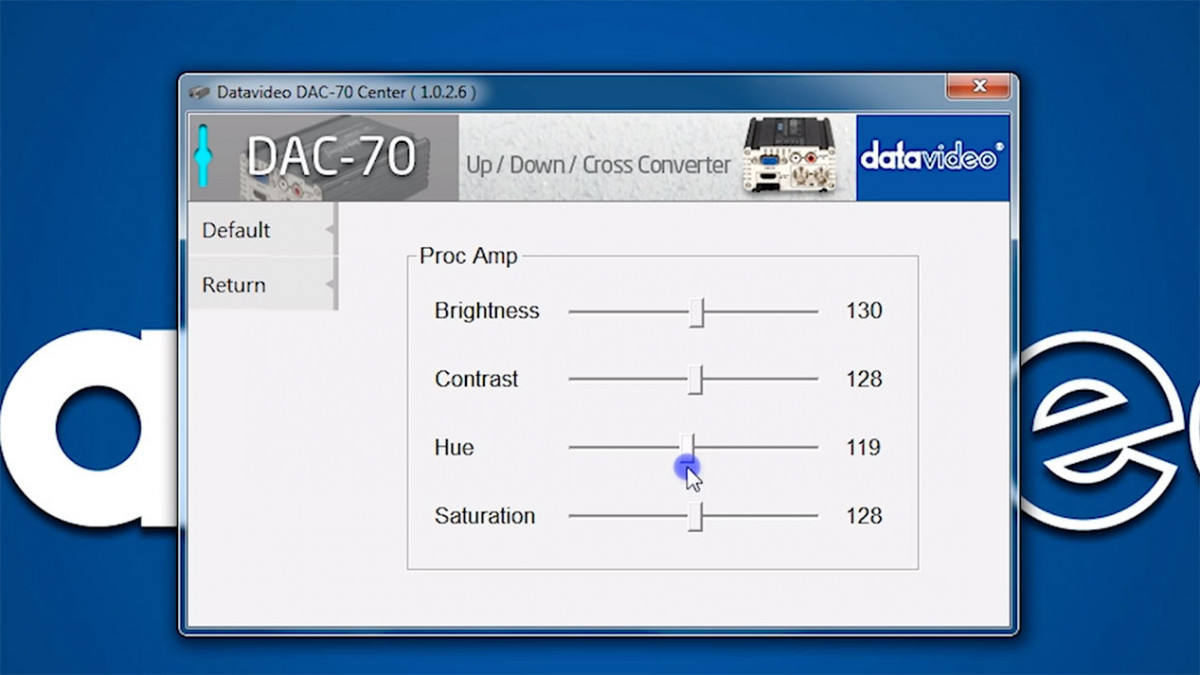

Adjustable brightness, contrast, hue, and saturation settings.

Adjustable brightness, contrast, hue, and saturation settings.

Use the DAC Center Utility to adjust the video output. Simply connect a PC computer to the DAC-70 via USB.



Built-in Distribution Amplifier

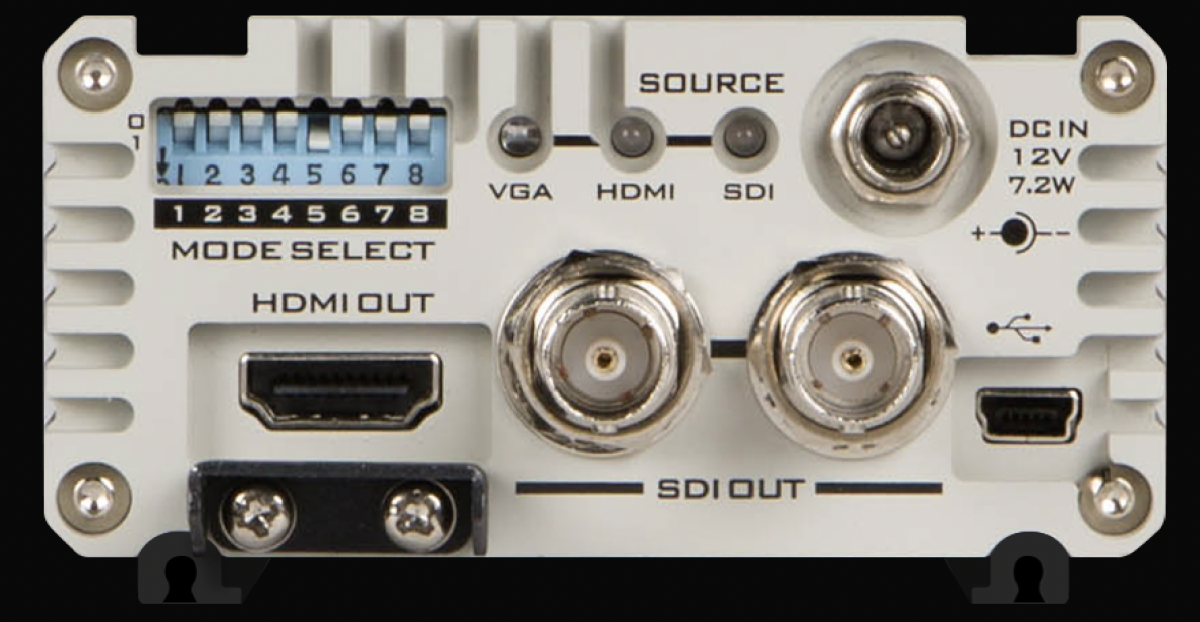

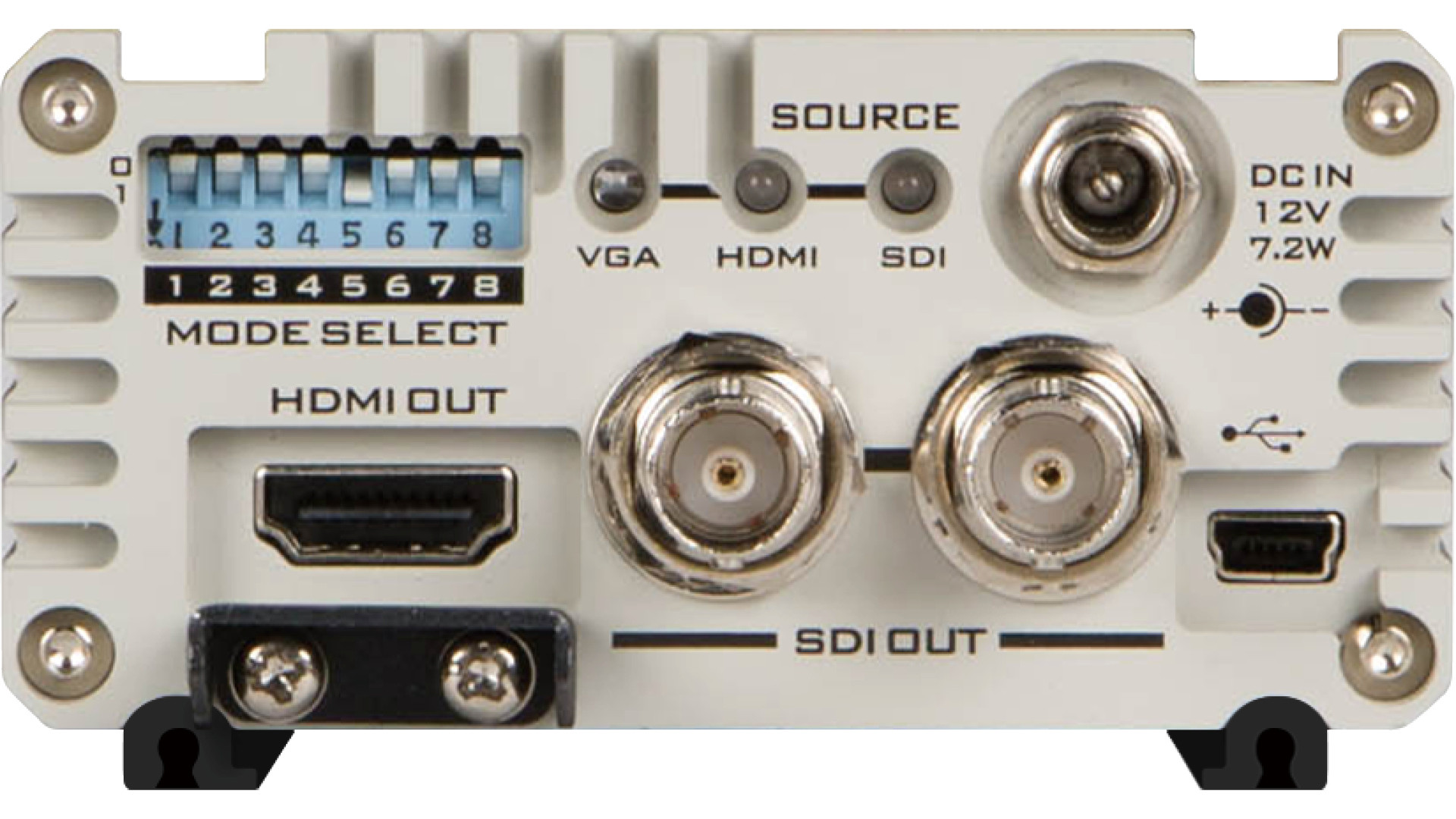

The DAC-70 always scales, converts, and outputs video to 3 ports (2x SDI and 1x HDMI)

Built-in Distribution Amplifier

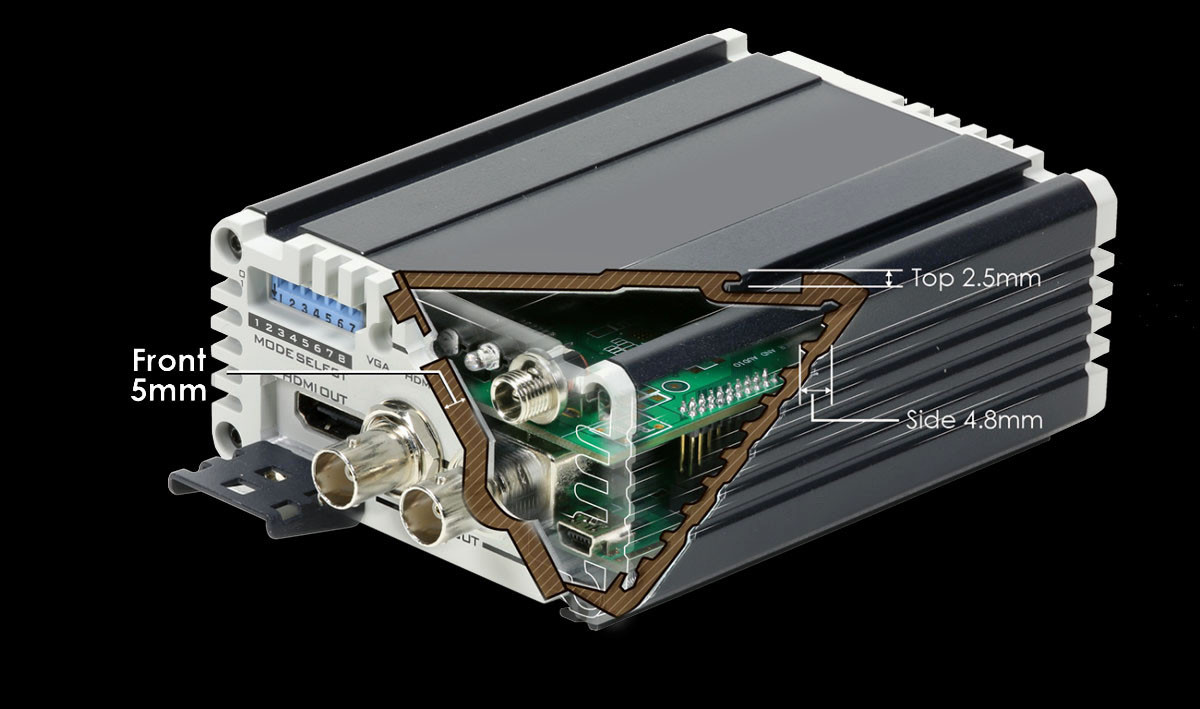

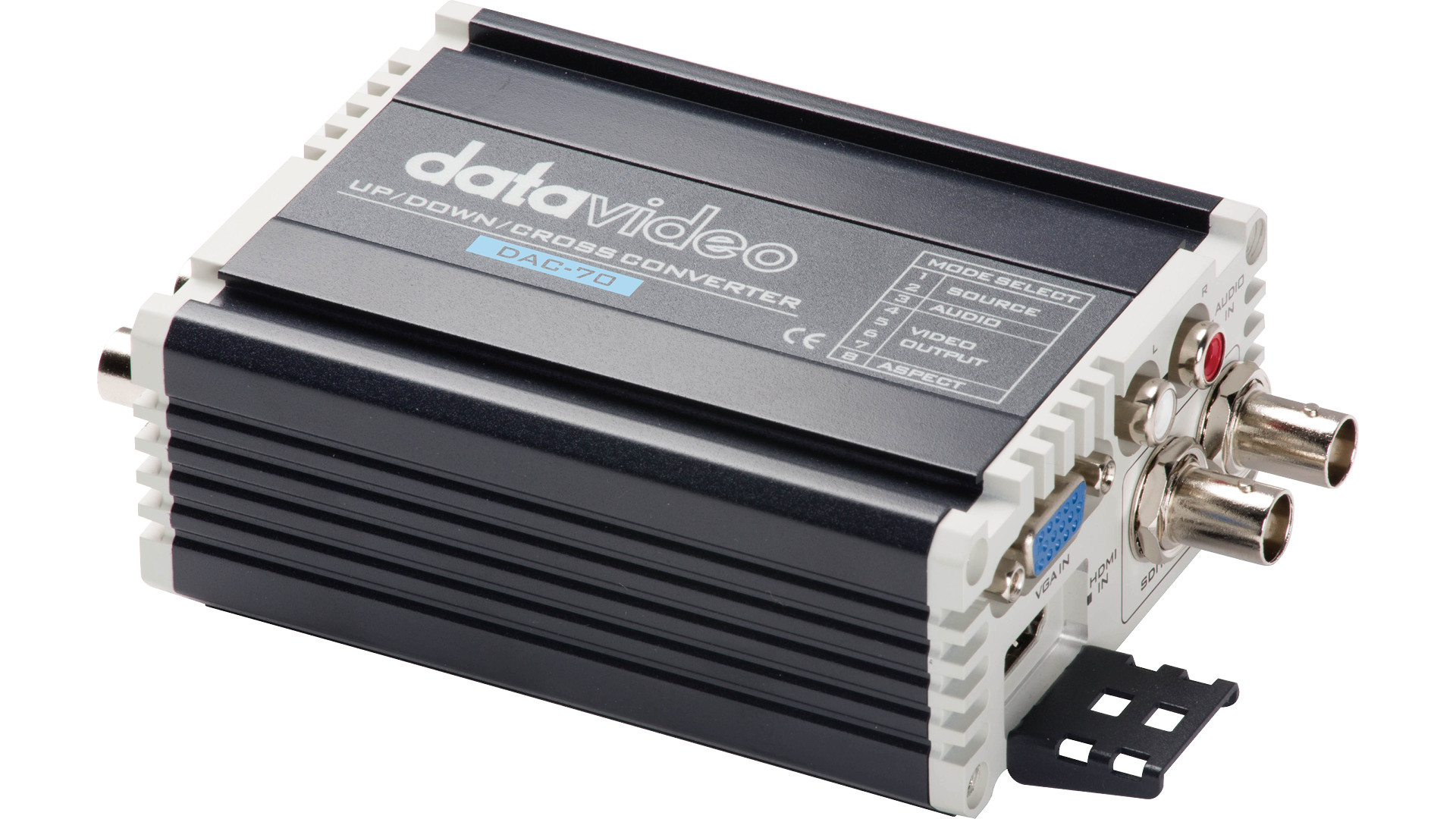

Aluminum Alloy and Heavy Duty Design

Aluminum Alloy and Heavy Duty Design

Super sturdy and durable. DAC series has a rugged metal housing for use in even the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.

Where to Buy?

   Find an authorized reseller

Up / Down / Cross Converter

COMPARE MORE PRODUCTS
Model Number
DAC-70
Conversion
VGA/HDMI/SDI to HDMI/SDI
Multi-format Up/Down/Cross

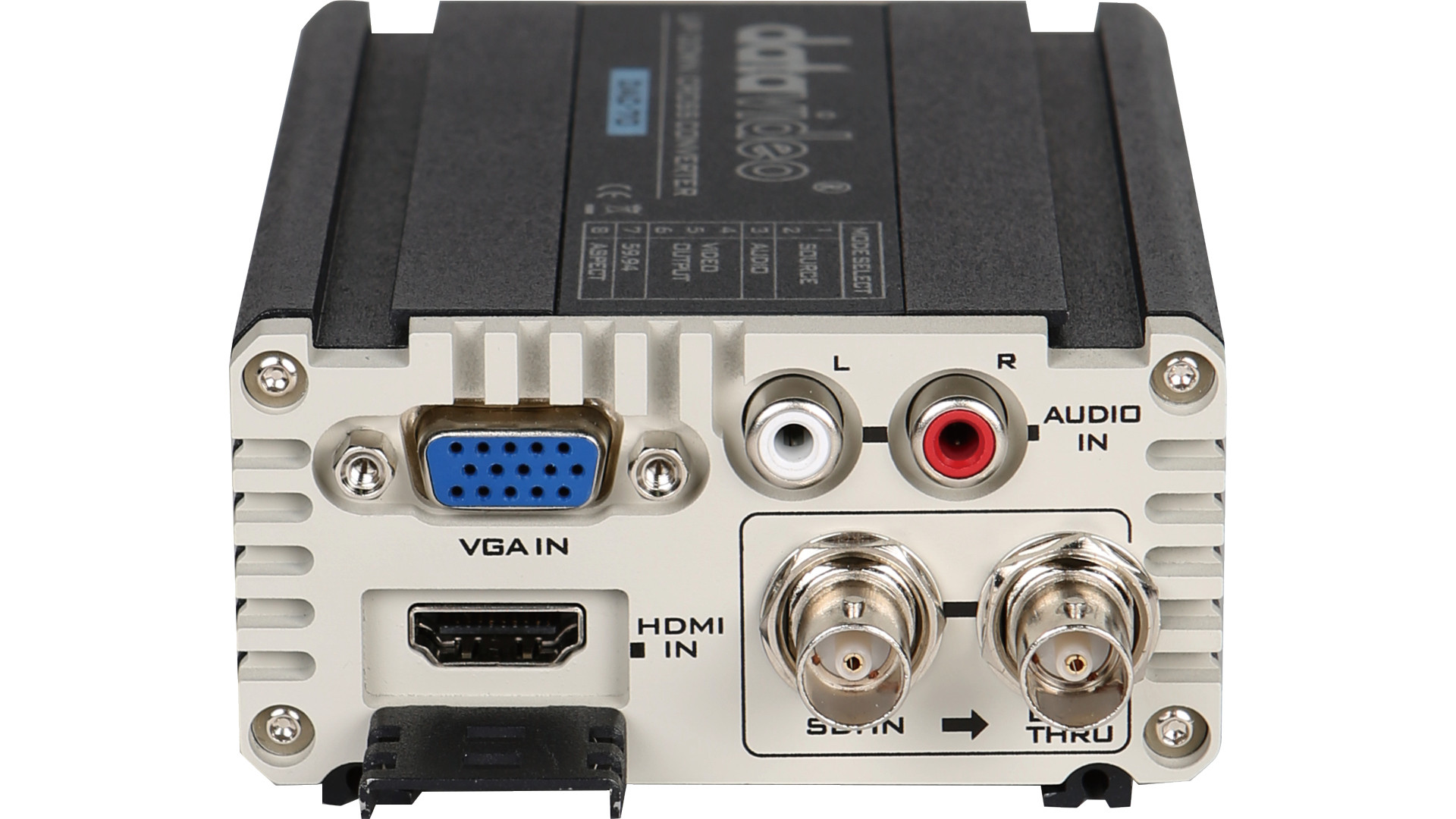

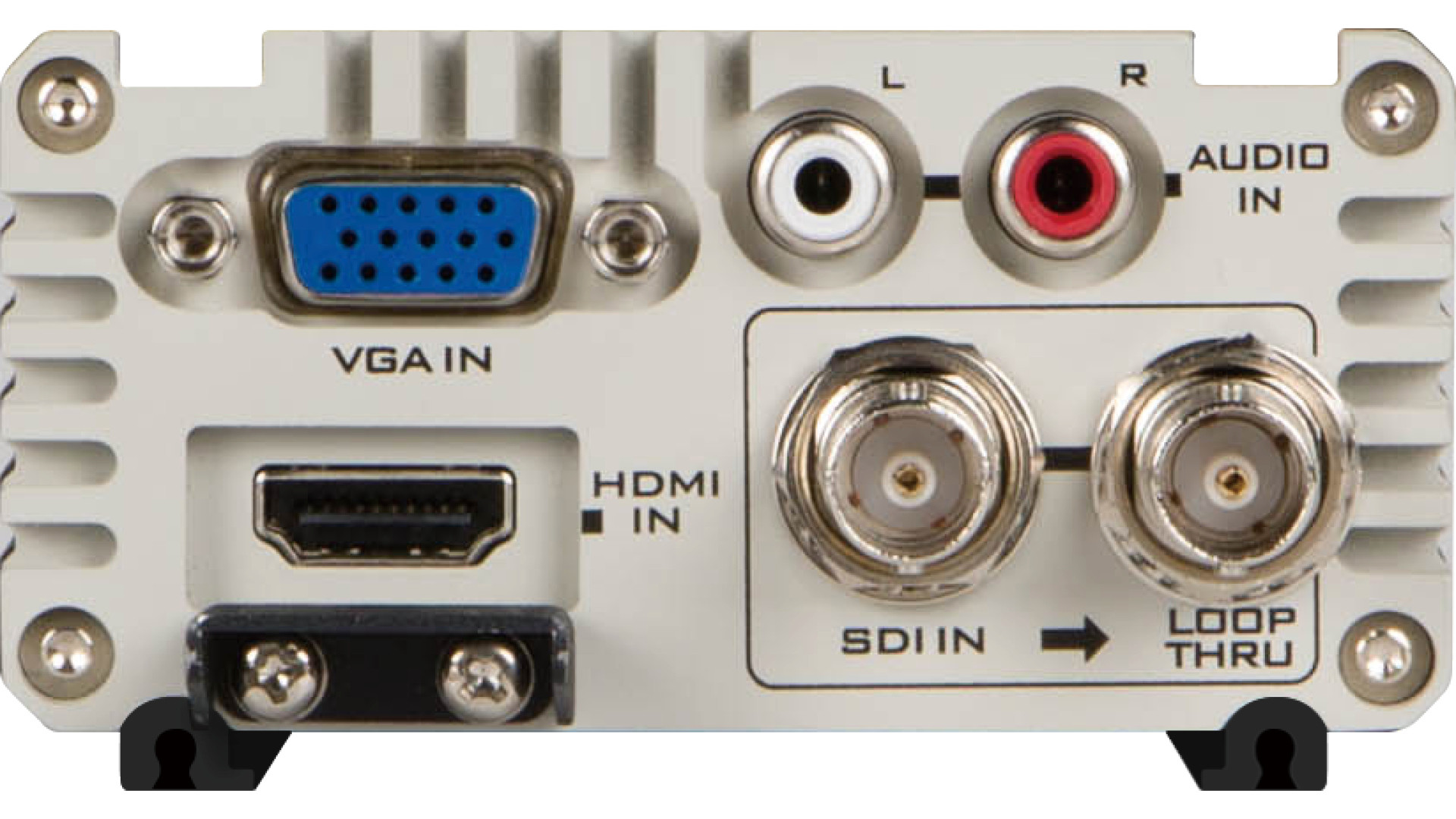

Video Inputs
1x VGA, 1x HDMI,
1x 3G/HD/SD-SDI (support Level A and Level B)
Loop Through
Yes
Video Outputs
2x 3G/HD/SD-SDI with embedded Audio (support Level A and Level B)
1x HDMI
Audio Inputs
2x RCA (Stereo Pair), 2x SDI/HDMI Audio embedded
Audio Outputs
SDI embedded audio up to 8CH, 48KHz, PCM audio
HDMI embedded audio up to 8CH, 48KHz, PCM audio
Audio Format Selection
----
Audio Gain
----

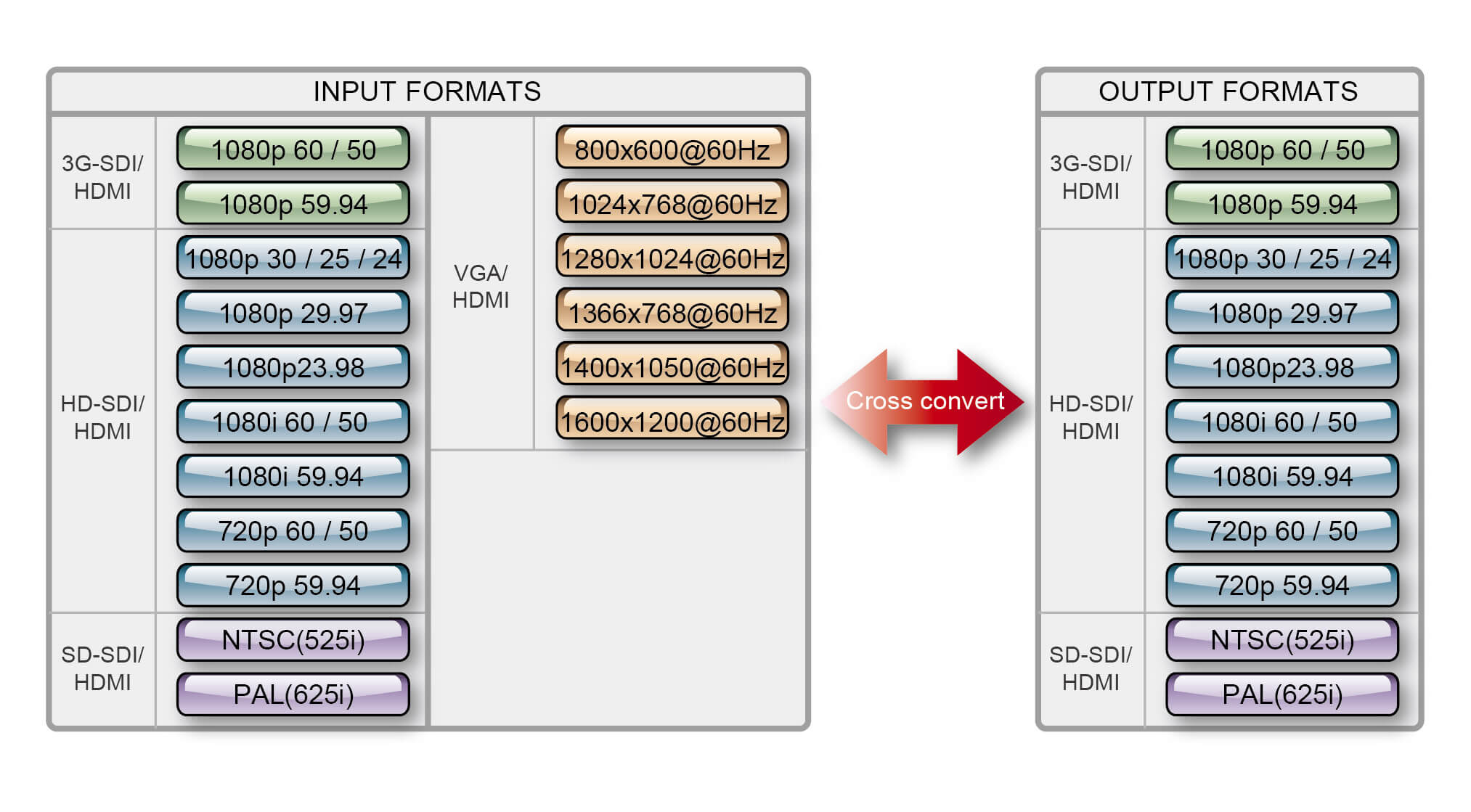

Supported Video Input Formats
1080p(23.98/24/25/29.97/30/50/59.94/60Hz),
1080psf(23.98/24/25/29.97/30Hz), 1080i (50/59.94/60Hz), 720p (50/59.94/60Hz),
625i, 576p, 576i, 525i, 480p, 480i, 1920x1080(60Hz), 1280x720(60Hz), 1600x1200(60Hz), 1400x1050(60Hz), 1366x768(60Hz), 1280x1024(60Hz), 1024x768(60Hz), 800x600 (60Hz)
Output Resolutions
1080p(23.98/24/25/29.97/30/50/59.94/60Hz), 1080i (50/59.94/60Hz), 720p (50/59.94/60Hz),
625i, 525i
Equalizer
Yes
Reclock
Yes
SDI Cable Drive
Yes
Updates and Configuration
Mini USB x 1
Dimension (LxWxH)
112 x 85 x 45 mm
Weight
0.4 kg
Operating Temp. Range
0~40 °C
Power
DC 12V, 6W
What's in the Box
1 x DAC-70
1 x AD Switch DC 12V
1 x DIP switch Pin 8 label
