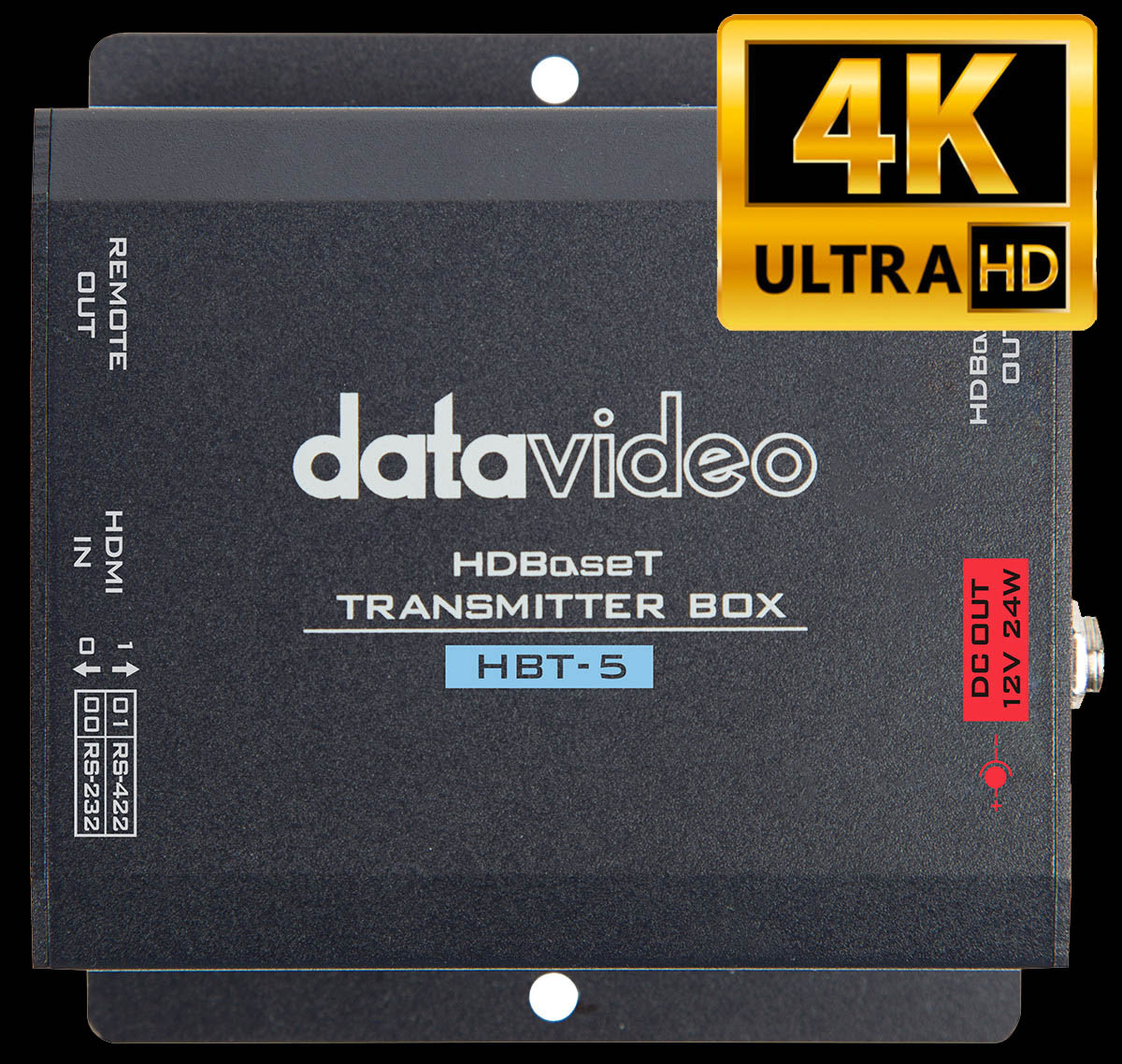

HDBaseT Transmitter Box

Supports HDMI Deep Color & full 3D & 4K@30 (HDBaseT technology)



HDMI Deep Color supports better color depths. To giving your display device a great image.

Transmits HDMI signals up to 60m at 1080p and 35m at 4K@30 using Cat 6 cable



The extender supports Ultra HD and Full HD resolution and the accompanying digital audio.

Receiver can be powered directly by a power supply, or by Power over Ethernet from the transmitter



HBT-5 transmitter can be powered by the same single power source using Power-over-Ethernet (PoE), easy to install for various applications. Support 12V power out for remotely located equipment.

HDCP compliant



Can perfectly display the video source with HDCP in high clarity with zero interruption.

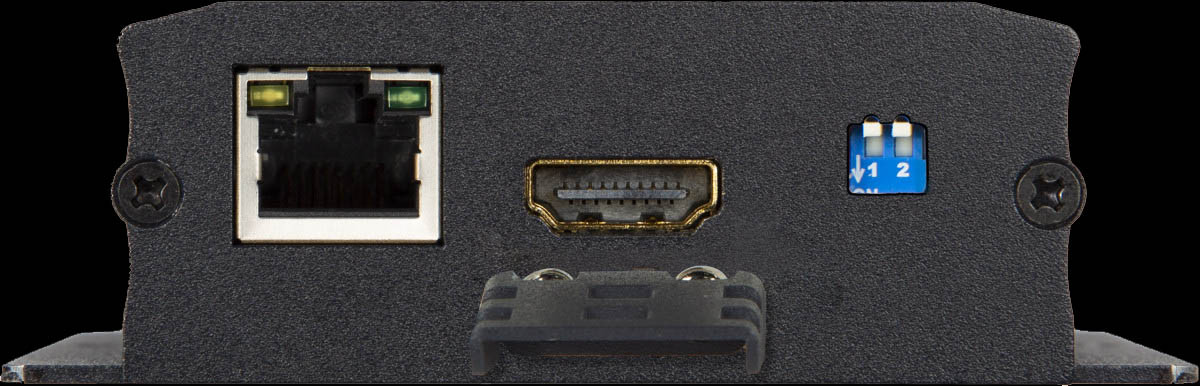

Supports control over RS-232/ RS-422

HBT-5 offers RS-232/RS-422 control signals, which allow to control the source device from the display location.

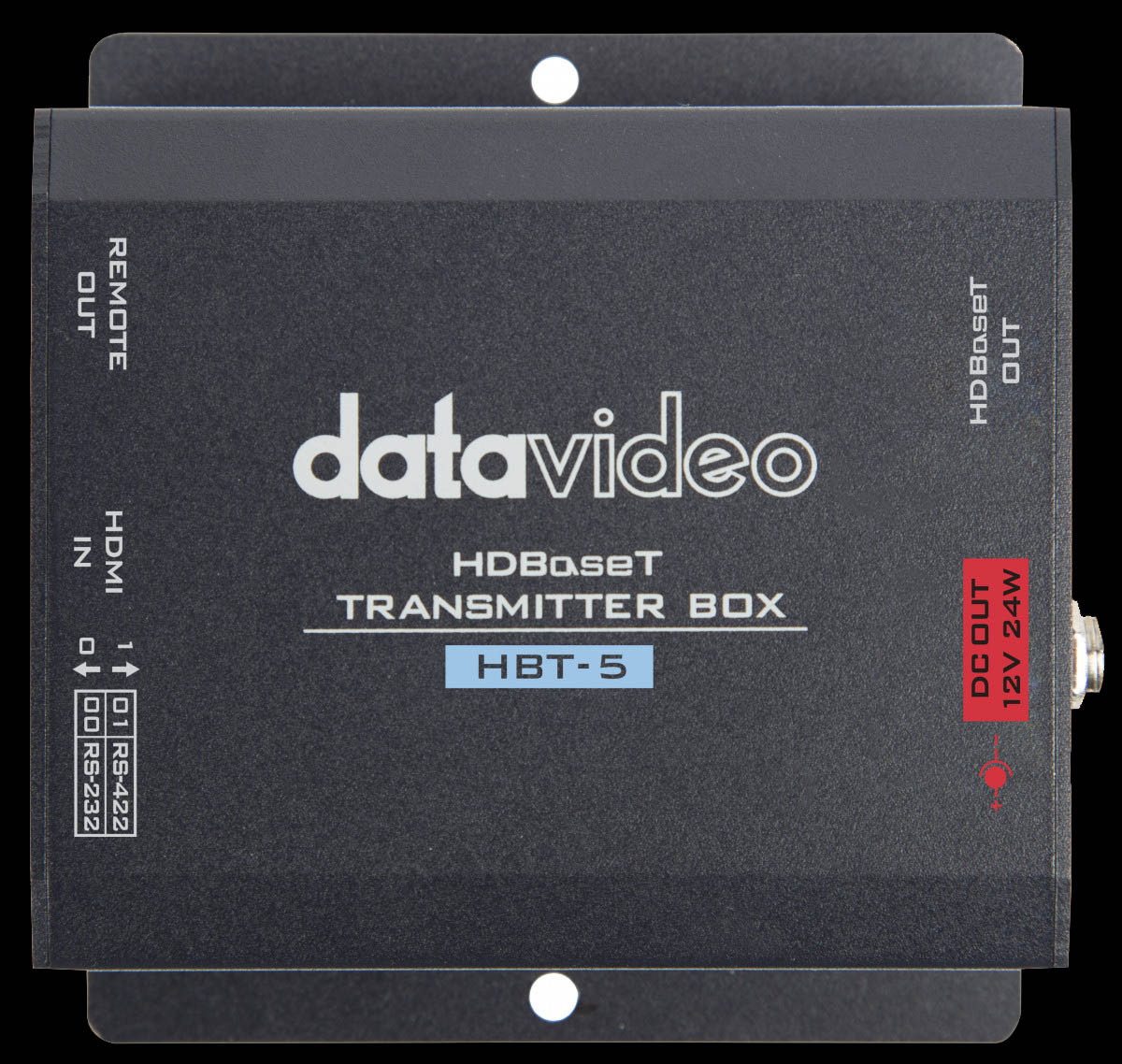

Supports default EDID and EDID learning from the display



EDID pass-through passes signal between the source and display

Dolby TrueHD & DTS Master audio support



Supports Dolby Digital, DTS-HD and Dolby TrueHD audio

Specifications

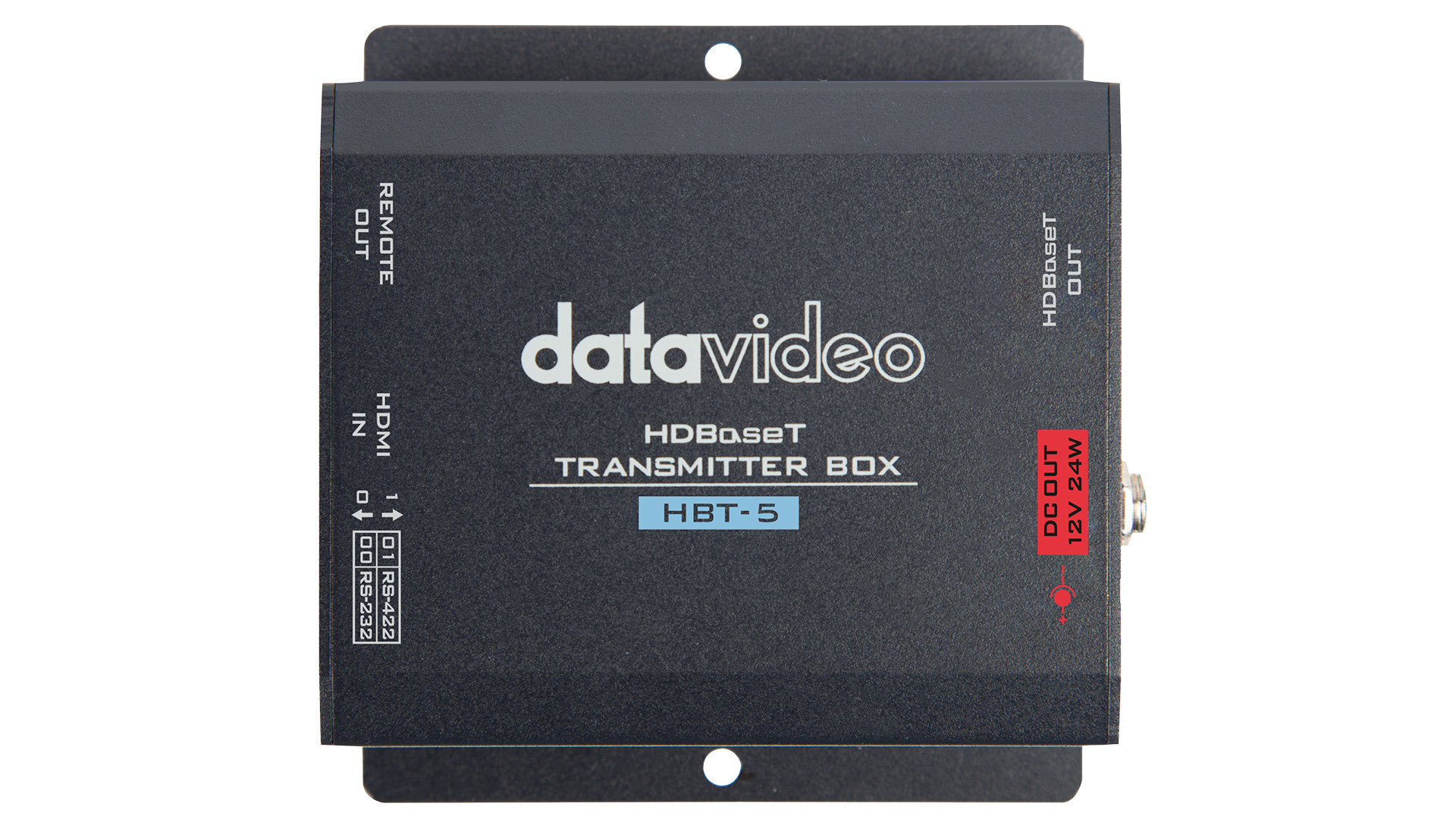

HBT-5 HDBaseT Transmitter Box
Video/Audio Input

HDMI x1

Video/Audio Output

HDBaseT RJ-45 x1

Supported Video Format

3840x2160p: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50, 720p: 60/59.94/50
525i59.94 NTSC, 625i50 PAL

Video Process

4K2K30 4:4:4 8bit
4K2K60 4:2:0 8bit

Video bandwidth

Single-link 340MHz [10.2Gbps]

RS-422/ RS-232

YES

Power Distributor/Camera Power Distributor

Power IN: PoE
Power OUT: DC OUT: DC 12V/24W

HDBaseT Distance

1080p@60 60m (198ft) by CAT6 cable
4K2K@30 35m (114ft) by CAT6 cable

HDMI compliance

HDMI Deep Color, full 3D & 4K2K@30

HDCP compliance

HDCP 2.2/1.4

Audio support

Surround sound [up to 7.1ch) or
stereo digital audio

Dimension (LxWxH)

88 x 76 x 30 mm

Weight

151 g

Operating Temp. Range

0~40 °C

What's in the Box
Content

1 x HBT-5 main unit
1 x Thank You Card
1 x DC to DC cable

PRINT

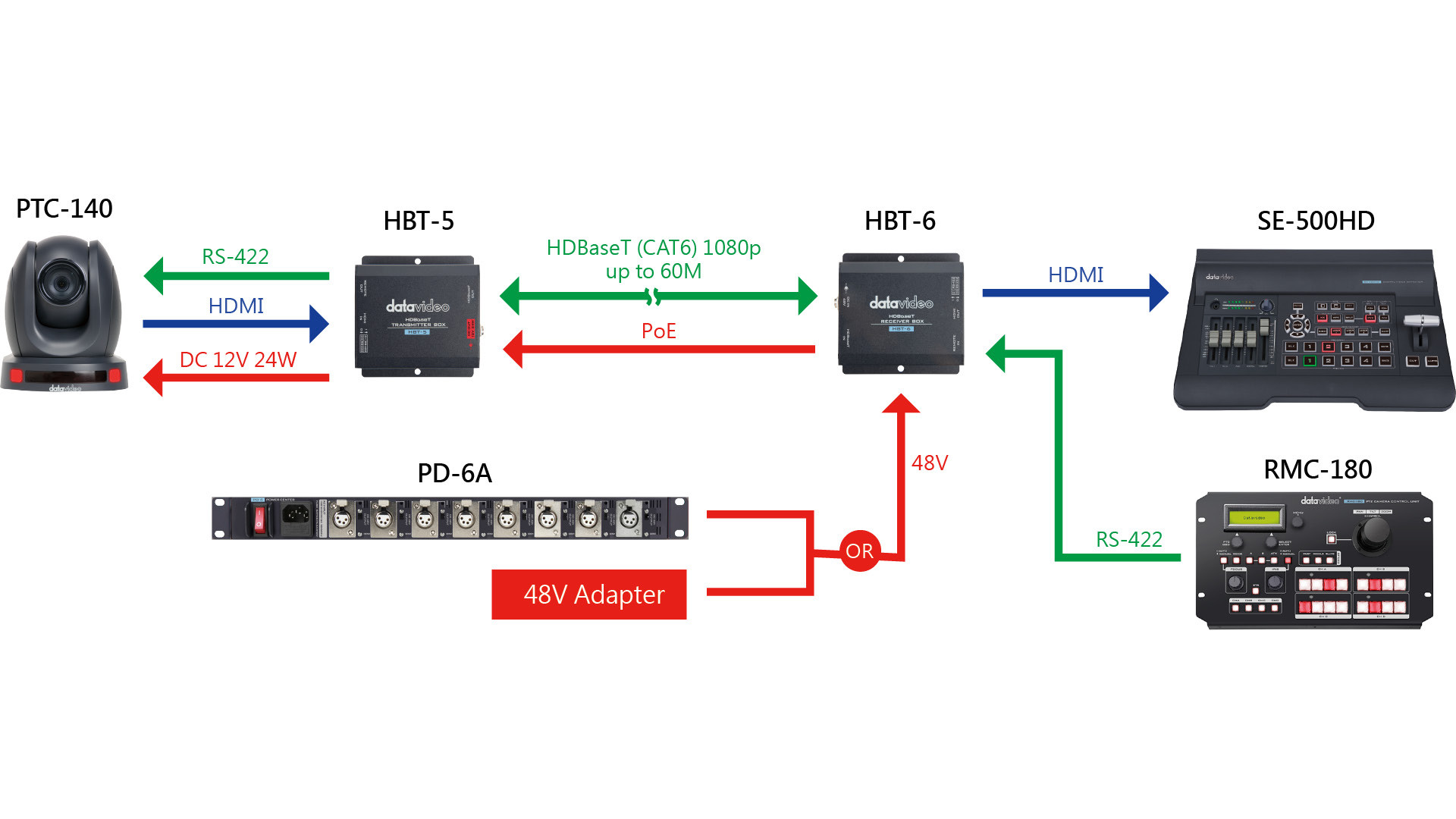

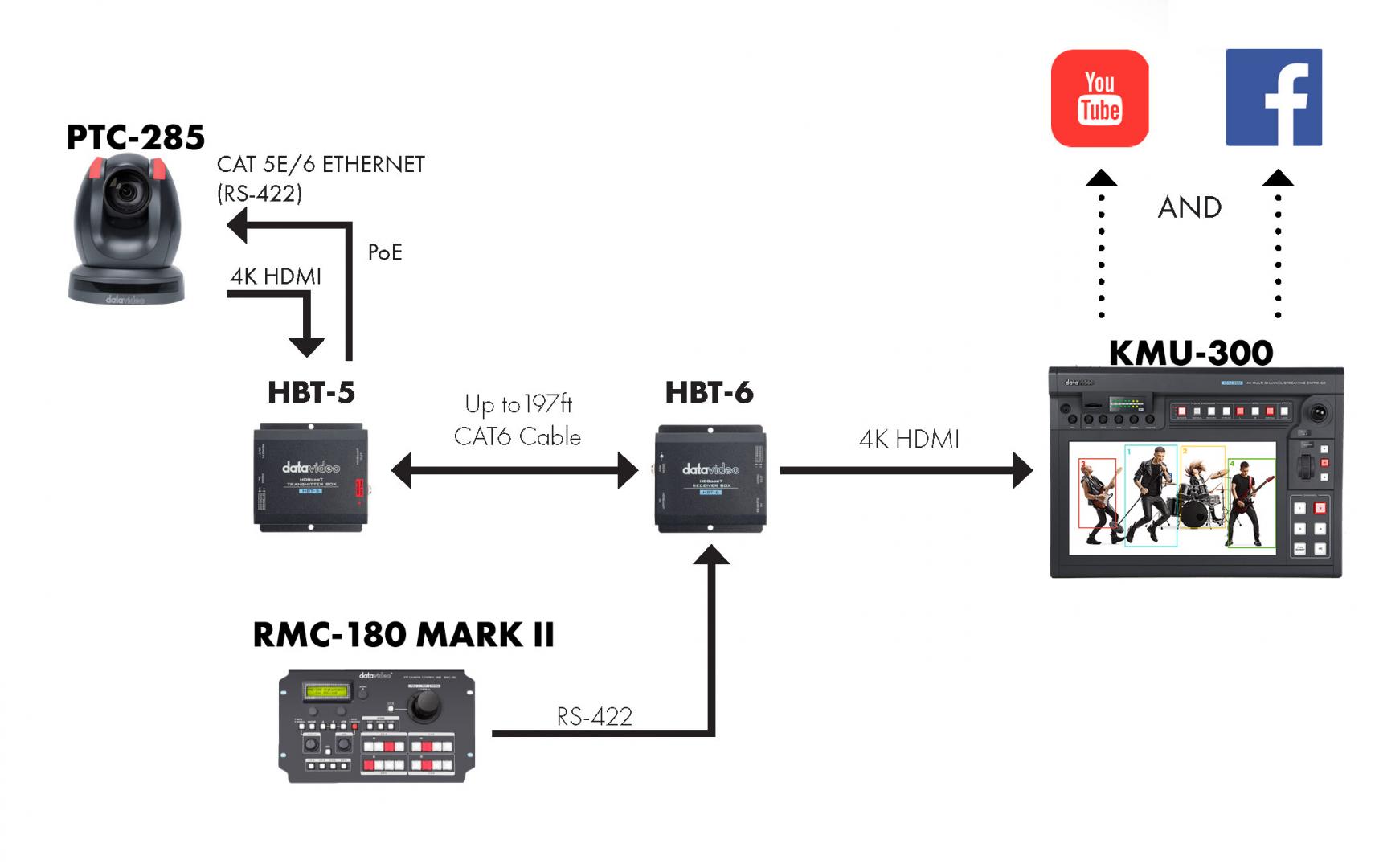

Workflow
