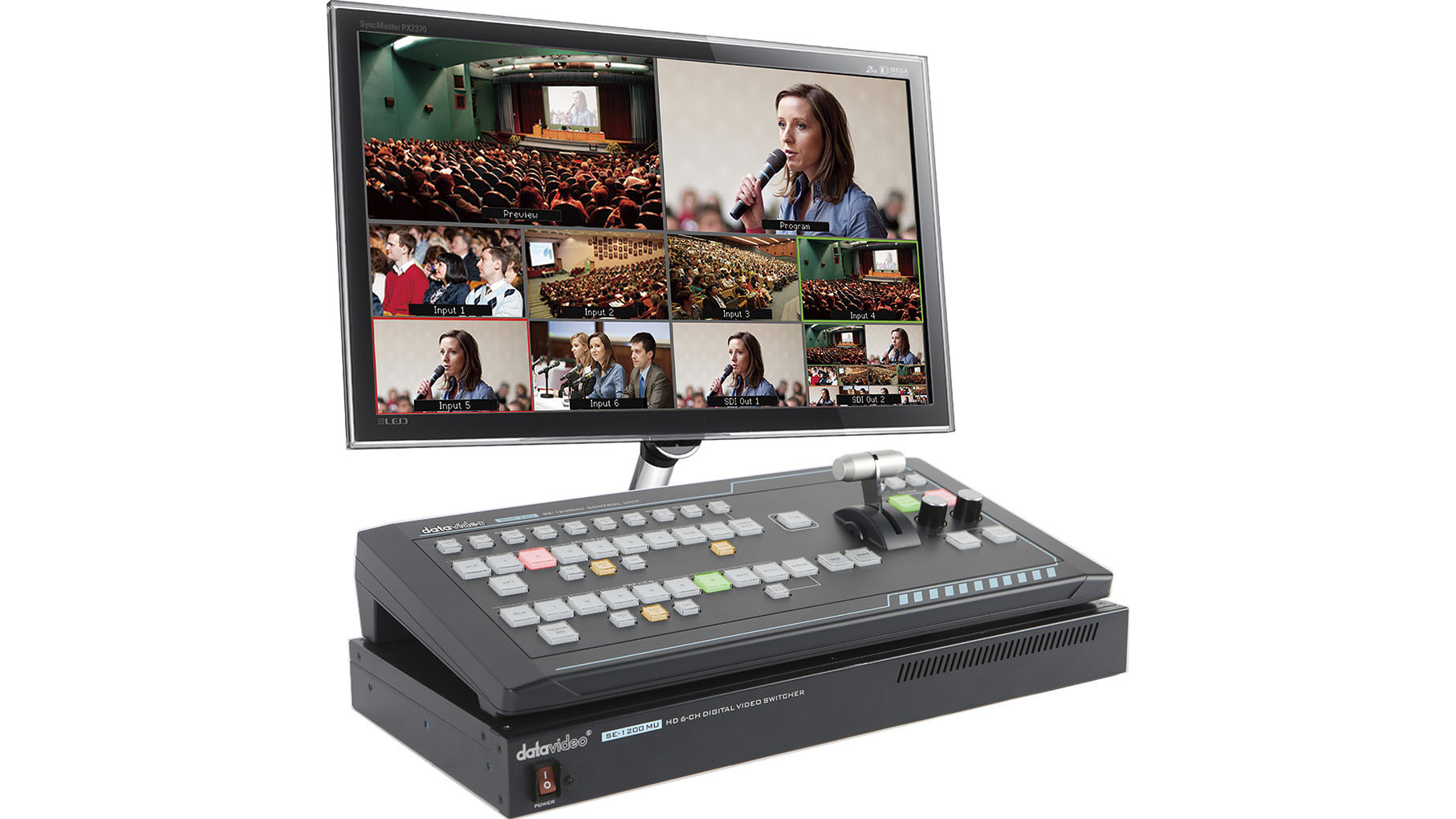

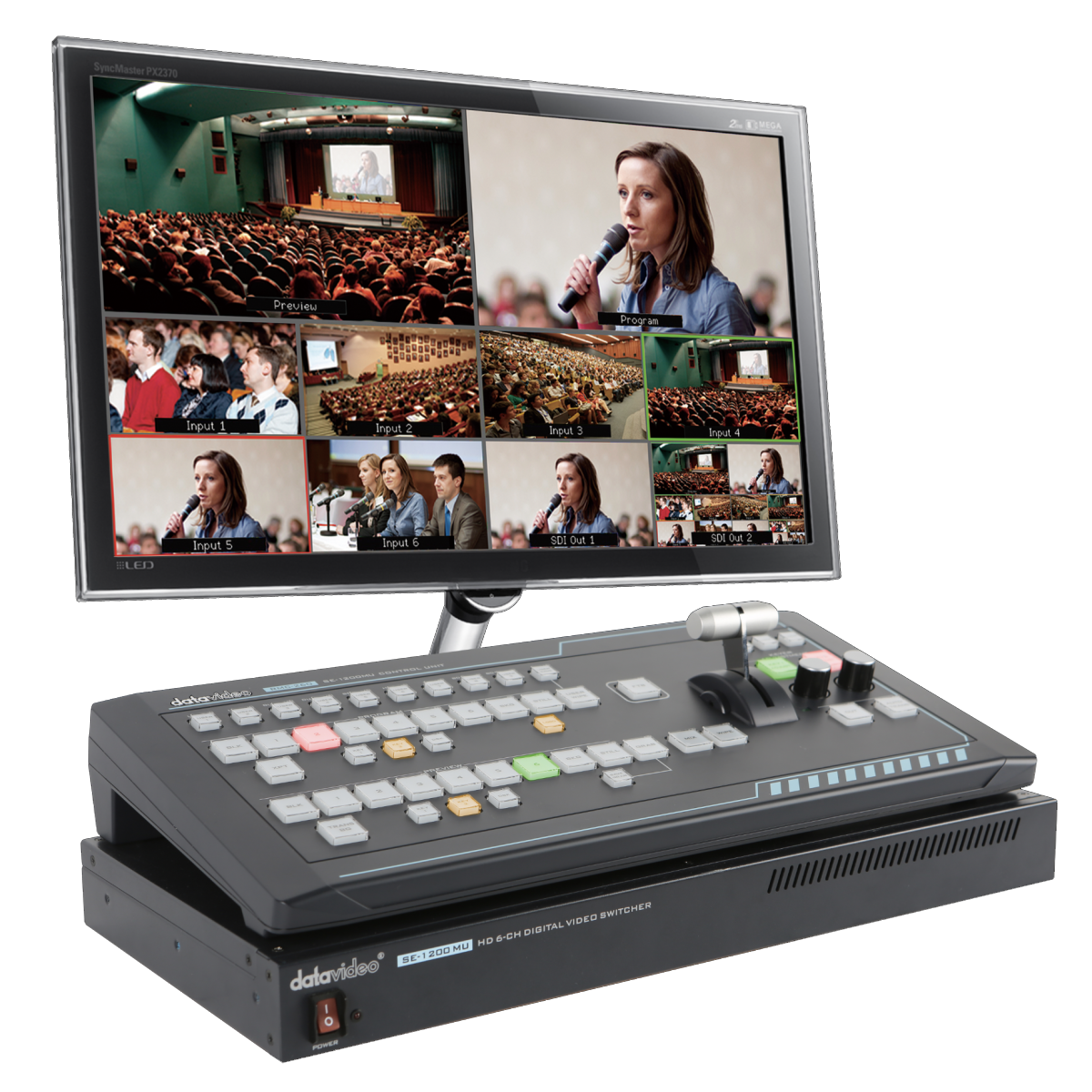

SE-1200MU 6 Input Switcher + RMC-260 Controller Bundle

The SEB-1200 Bundle combines the Datavideo SE-1200MU Switcher and the RMC-260 Controller into a powerful, ergonomic switching package.

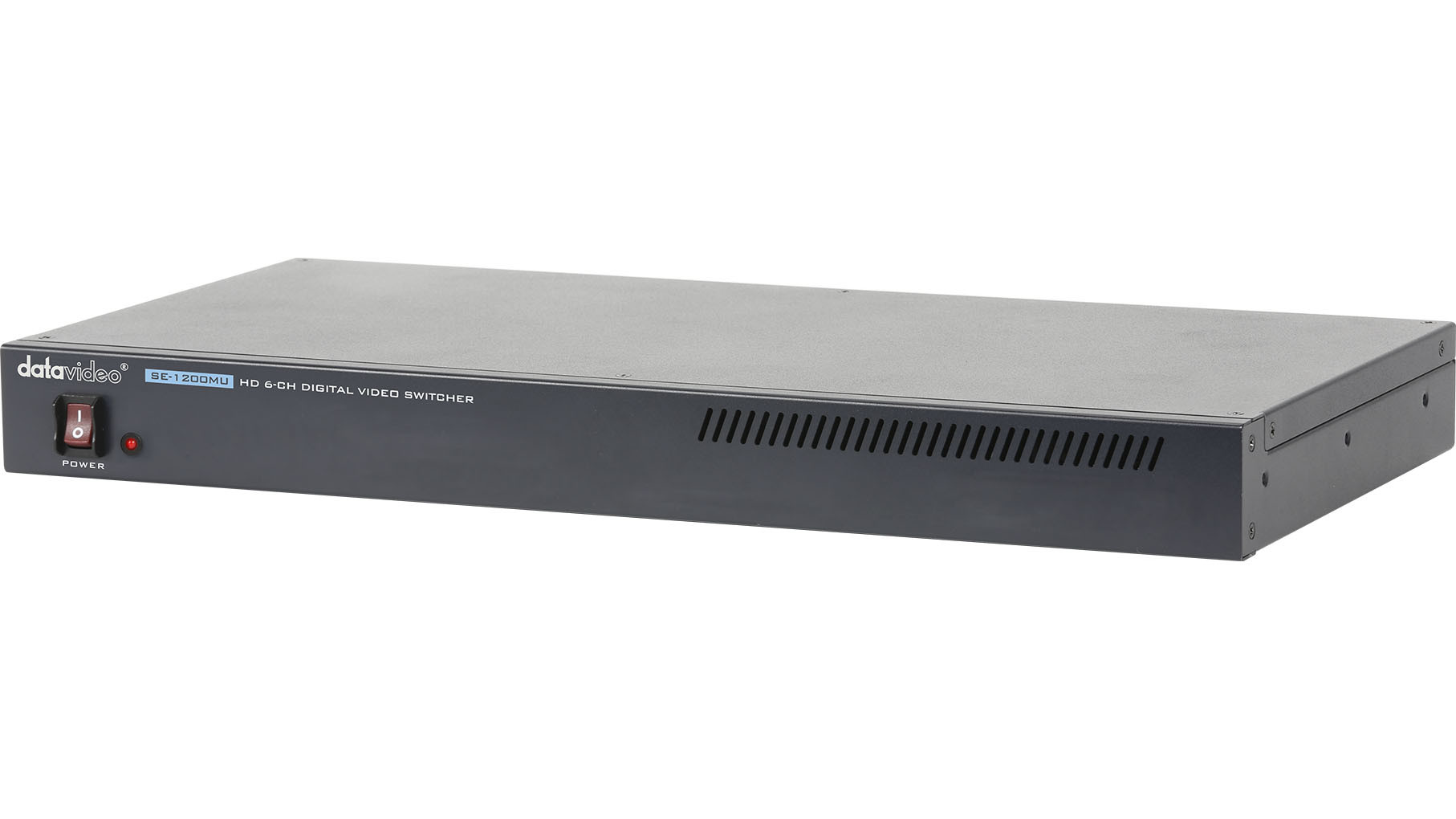

Whether you are filming a seminar or conference, conducting a live outside broadcast or shooting inside a production studio, the Datavideo SE-1200MU HD video switcher enables you to switch seamlessly between video sources and blend high-quality digital content on the fly. Read More

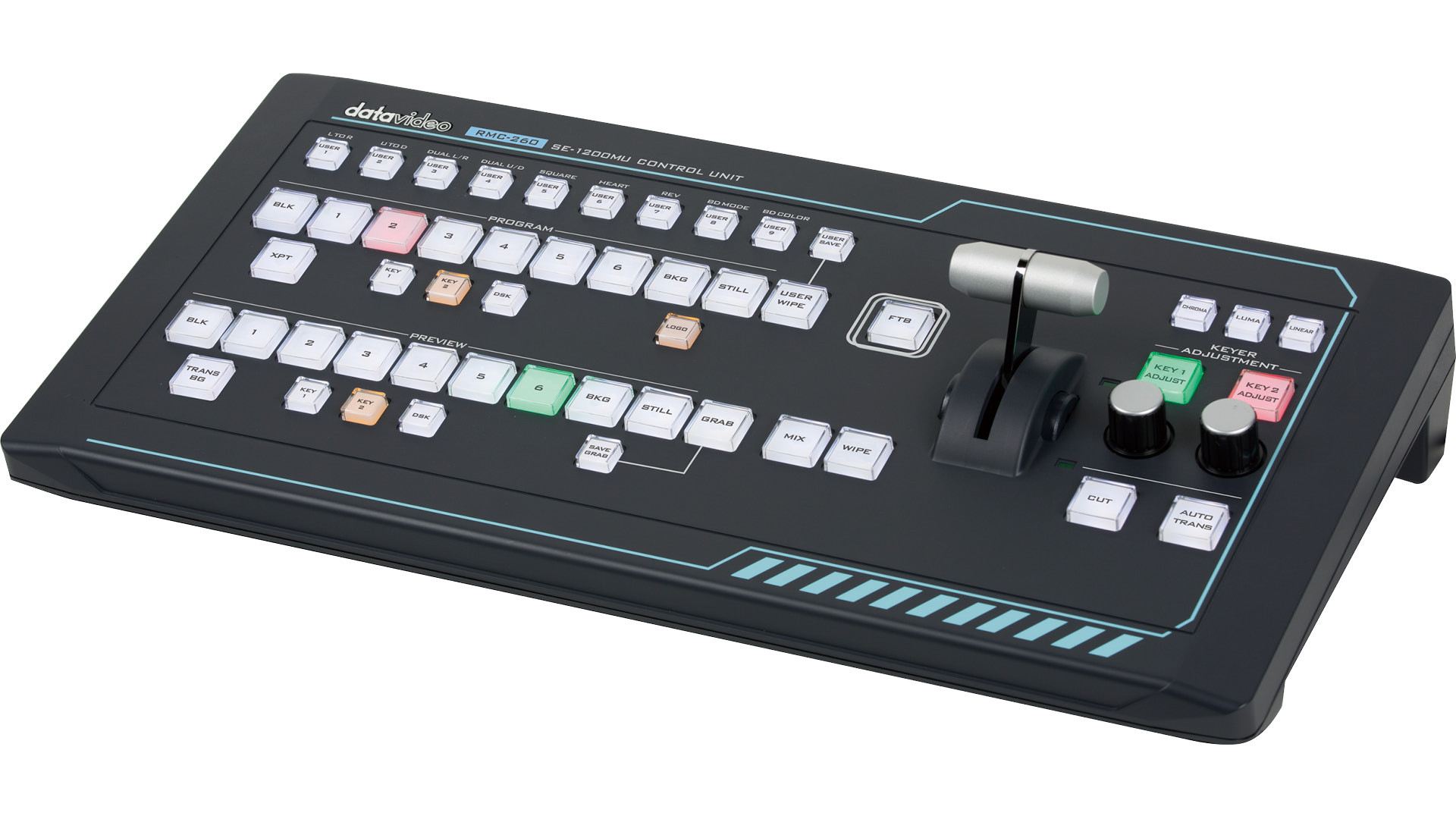

The RMC-260 is a switcher-style controller, an alternative to the PC Controller software of SE-1200MU, all keys on the unit are clearly defined for quick and easy operation. Read More


  • 6 video inputs ( HD-SDI x 4 + HDMI x 2)
    • Frame Sync on each input
  • Flexible Mix/Effects Processor with
    • 2 Upstream Keyers, supporting Chroma Key & Linear/Luma Key
    • 2 DSK, supporting Linear & Luma Key Modes
    • 1 PIP (assignable to any of the 4 keyers
    • Wipe Generator: 32 Wipe Patterns, including Circle & Heart | Borders & Softness Control
    • Wipe, Mix & Cut Transitions
    • Full M/E Preview function
  • Any Input (1-6) can be used as a Frame store
  • Assignable Outputs
    • Each HD-SDI output can be switched in the Menu as:
      - PROGRAM (w/ DSK)
      - Clean PROGRAM (w/o DSK)
      - Clean PREVIEW (w/o DSK)
      - Input 1-6
  • XPT (Cross Point Assignment)
  • PC control
  • Remote streaming of Multi view out using built-in Motion JPEG Streaming processor
  • Tally output
  • GPI output

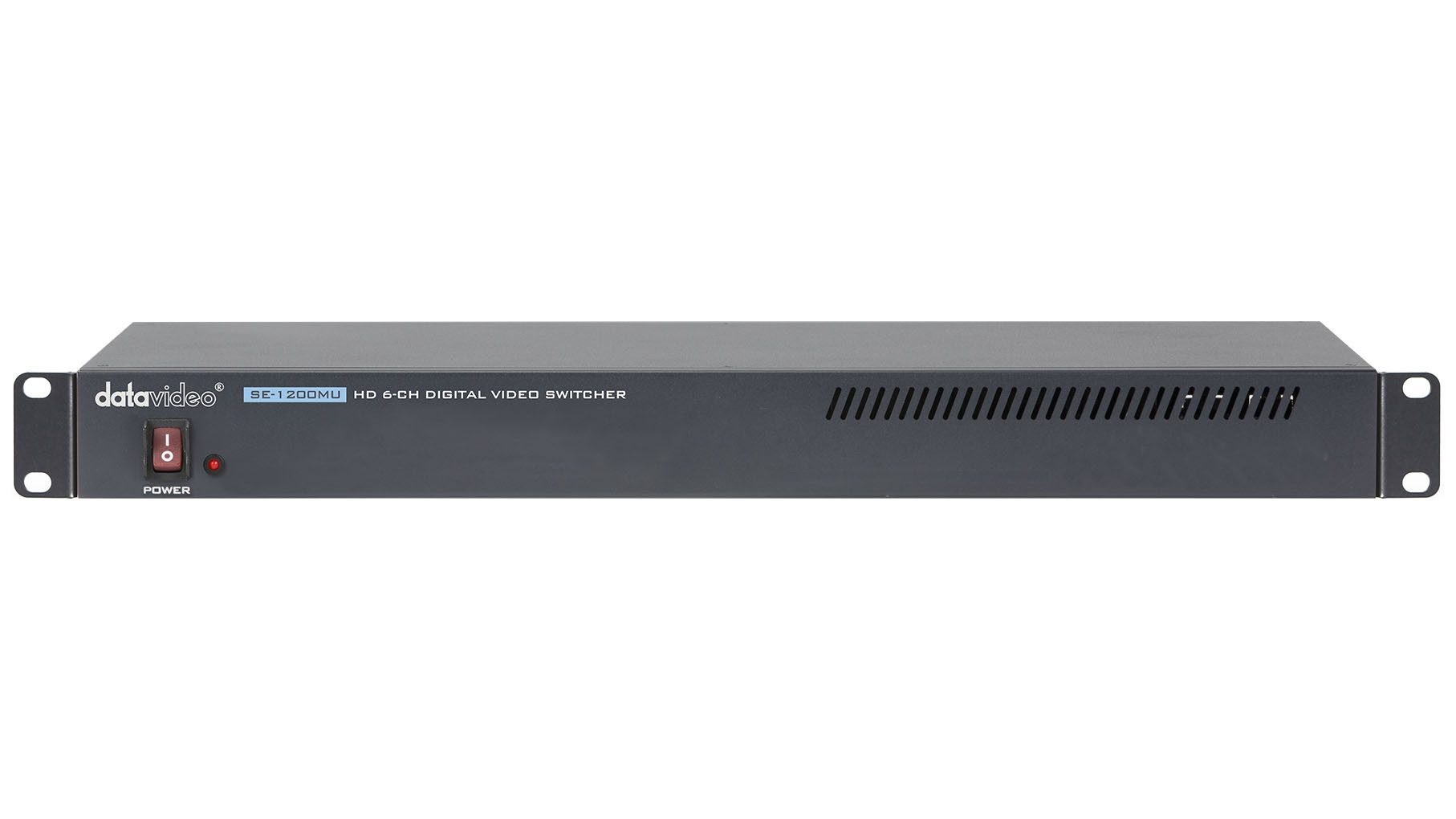

  • 1U rack mount (with rack ears)

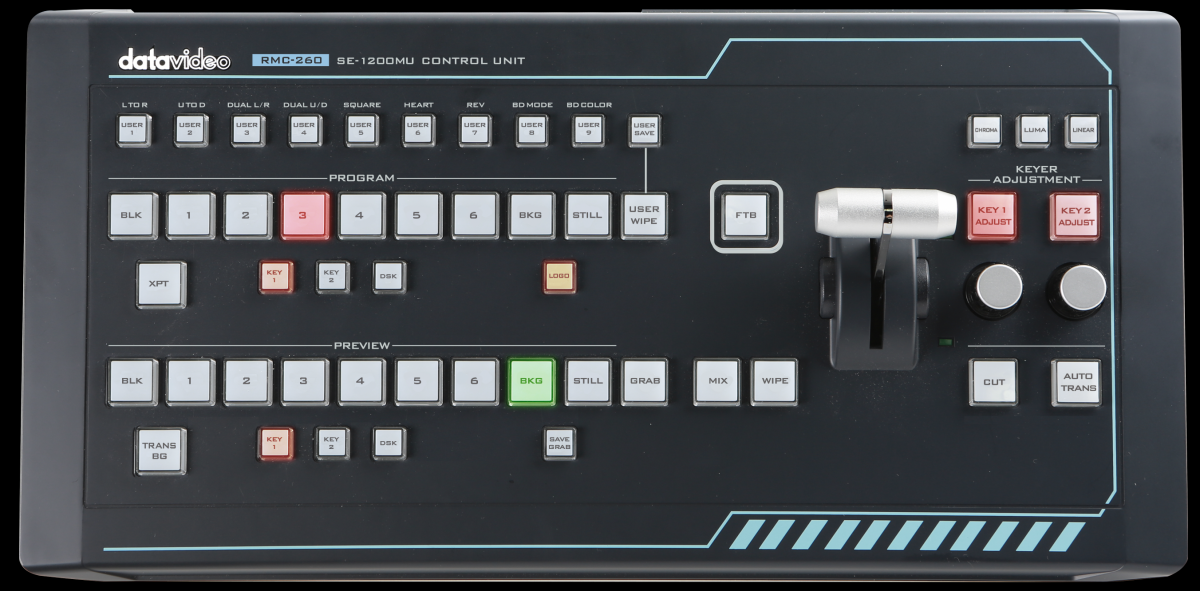

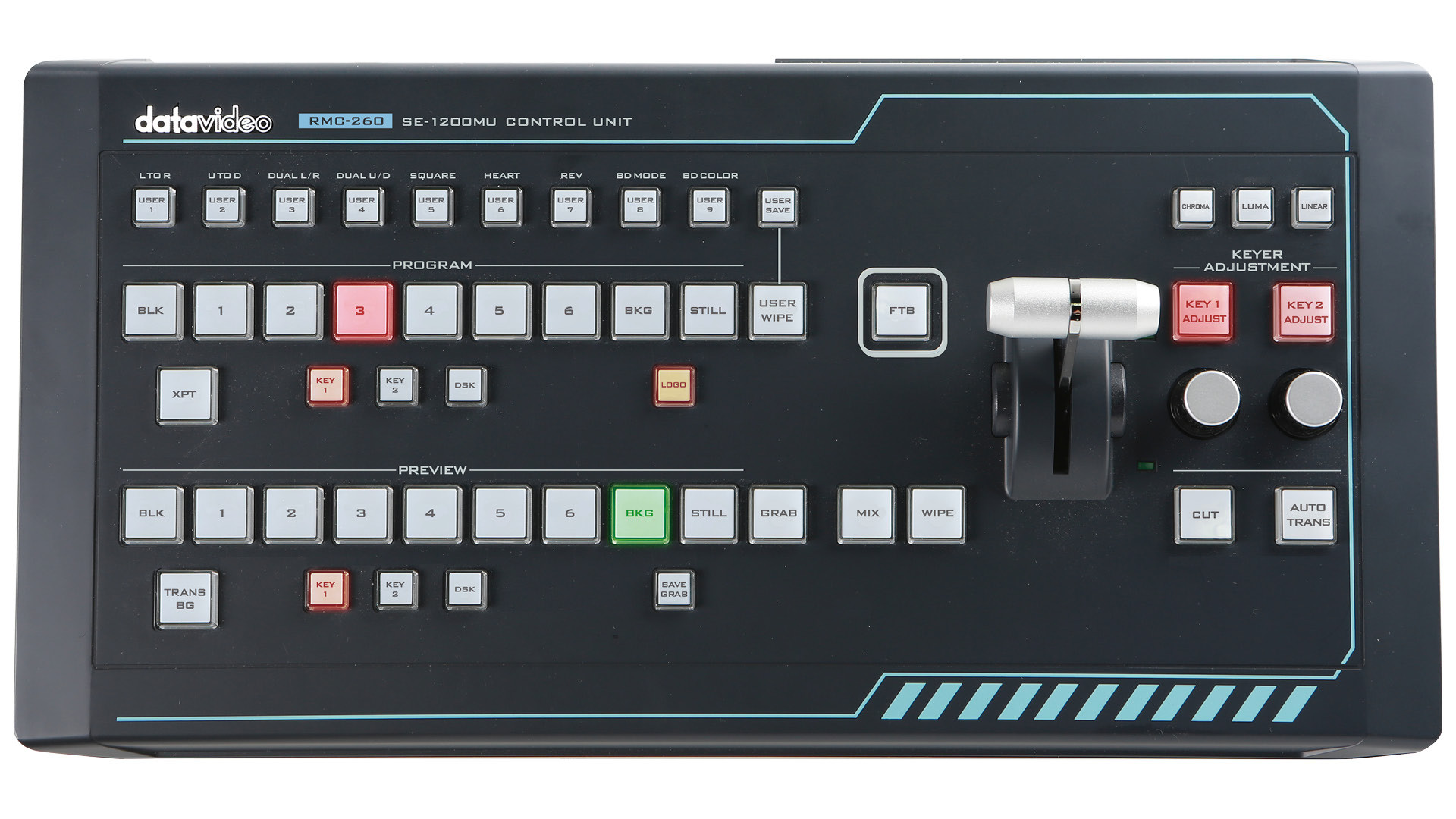

  • A switcher style keyboard for SE-1200MU operation
  • Clear key definitions
  • Support Keyers enable and function assignment quickly

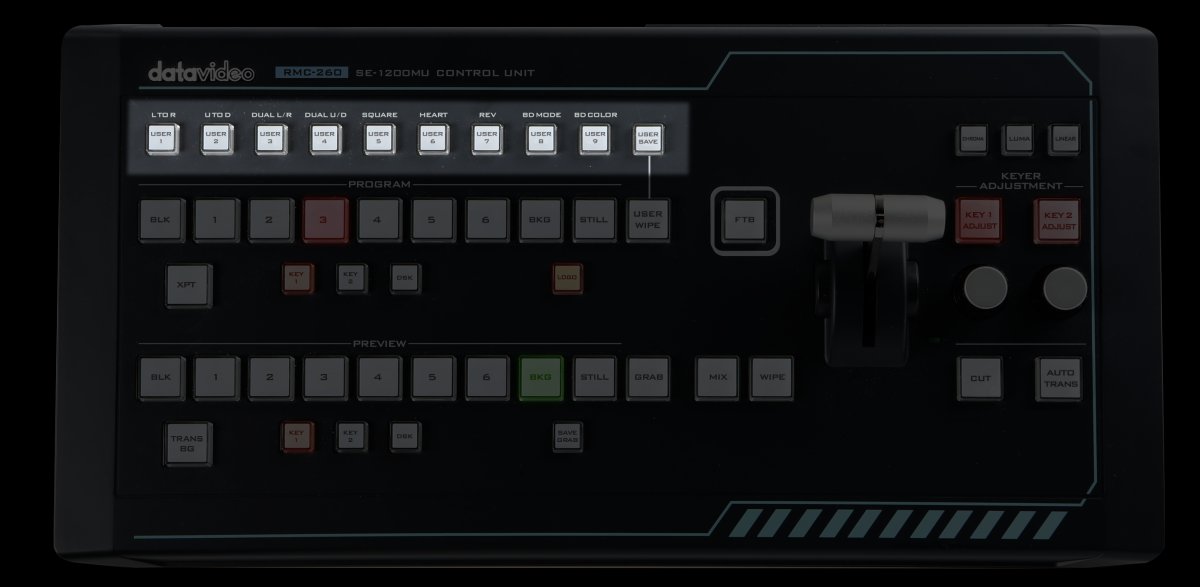

  • Save user behavior to user memory keys and load them quickly
  • Two keyers with two corresponding knobs for assignment of Keyer 1/2 sources
  • XPT (Cross Point Assignment)
  • Take button to switch between PVW and PGM views
  • FTB button fades the PGM view to a black screen
  • Cross Dissolve button applies cross-dissolve transition effect to switching between PGM and PVW views
  • Still Grab function captures the instantaneous video image

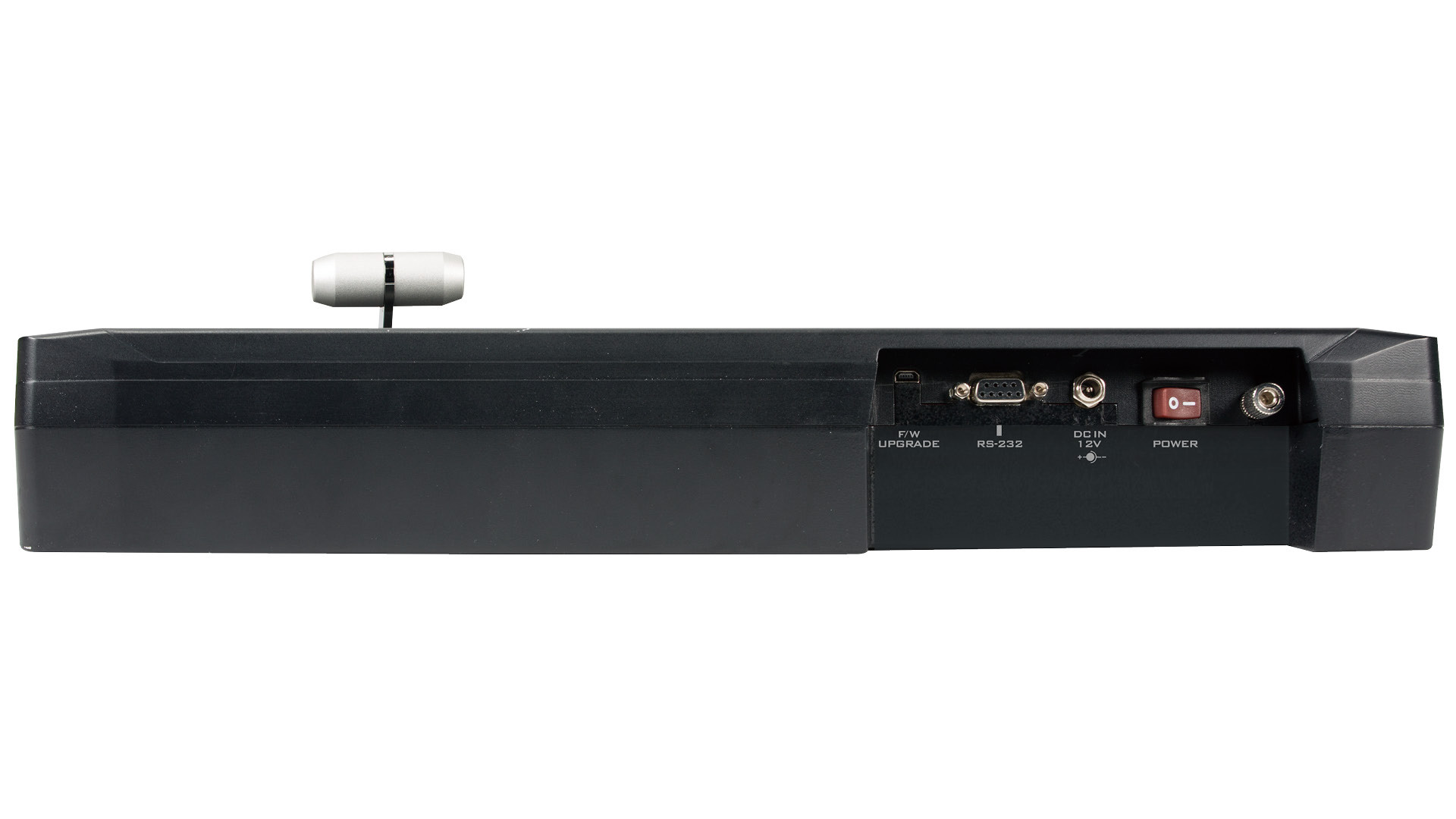

  • RS-232 interface for communication between RMC-260 and SE-1200MU
  • Bright LED lighting
Thank you for allowing JCConnect to utilize the SE-1200MU and RMC-260. IT WAS GREAT!!!!!!!  PIP was a major feature of what we wanted to do for the track and field events we were covering.  We were able to make sure other events were seen simultaneous with other events.  We were also able to figure out on the fly how to zoom in with PIP and show a running clock from the scoreboard.  Great product!!

By Michael J., JCConnect

We used the SE-1200 again on Saturday for a live production (also included live streaming this time.) Everything went very smoothly through the 4+ hour production... This was the first time we used the SE-1200 setup with our existing live encoder… and everything performed perfectly.

By Russell L., Wilmington University

[SE-1200 with RMC-260 and PTC-150 cameras] were very awesome yesterday. Having the ability to program the cameras for pre-shots and just pressing a button and switch to it worked out great! I did need [some direction on setting up the chroma key and Datavideo tech support pointed me to some tutorial videos on your website.]

Thanks Again!

By Joshua S., Engineer; Brookhaven, GA

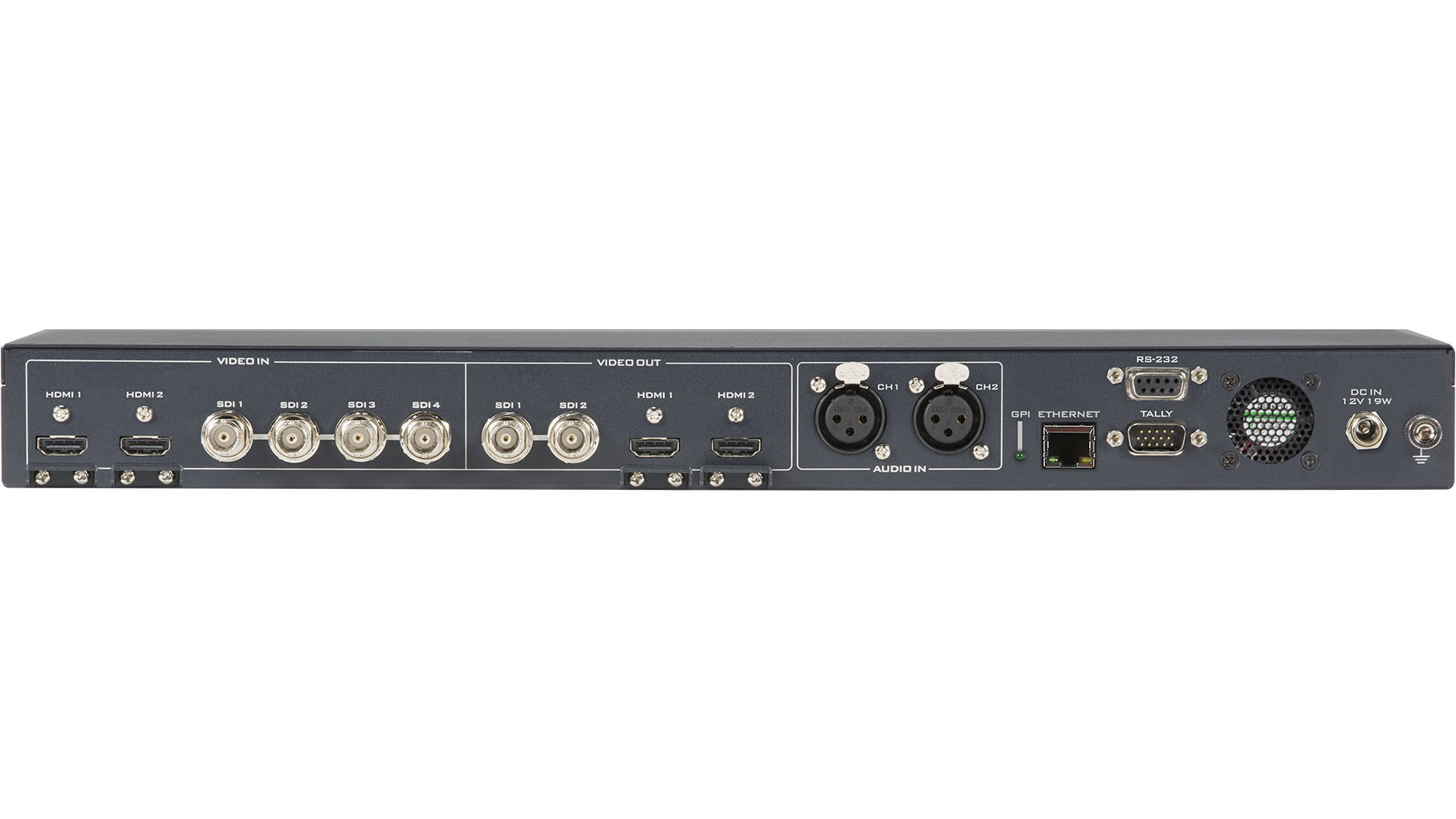

Total Video Inputs 2 HDMI + 4 SDI
Total Outputs 1 HDMI + 2 SDI
SDI Video Input 4 (1080i / 720p)
HDMI Video Input 2 HDMI (RGB/YUV)
1080i / 720p
SDI Audio Output (PGM) 2CH
Analog Audio Input 2CH XLR
Embedded Audio HDMI & SDI
Internal Frame Synchronizers 6 All Inputs
Multi-view Out HDMI (720p->720p ; 1080i->1080p)
SDI (720p->720p ; 1080i->1080i)
Output can select any of input source PROGRAM (w/ DSK)
Input 1~4
Audio Indicator on Multi view Yes (output 2CH)
Tally Out Yes
GPI Yes (Level / Pulse Trigger selectable)
Software Updates Ethernet
HD Format Support 1080i/50, 1080i/59.94, 1080i/60, 720p/50, 720p/59.94, 720p/60
SDI Compliance SMPTE 292M (SDI output / PGM out)
Video Sampling 4:2:2 10-bit
Color Precision 4:2:2 10-bit
Color Space 4:2:2 YUV
HDMI Input Resolutions for Computers 1280x720 59.94Hz 50Hz (720p)
1920x1080 59.94Hz 50Hz (1080p & 1080i)
Colorspace Conversion Hardware based real time
Processing Delay Less than 1 frame
Audio Mixer selectable audio follow video,
master gain control
Downstream Keyers 1
Linear/Luma Keyers 3 (M/E Keyer, PIP, DSK)
Chroma Keyers 2 (M/E Keyer & PIP)
Pattern Generators Colour Bar
Frame store Total 24 stills on internal SD card;
One dedicated still buffer, one dedicated freeze buffer;
Also, any input can be used as Frame store;
3 Still frames stored in local frame buffers for instant access
Control Panel Compatibility Use PC via Ethernet; Control panel
Input Voltage 12V
Power consumption 23W
Operating Temperature 0-50 deg. Celsius at 10%-80% Humidity
Control Protocol DVIP

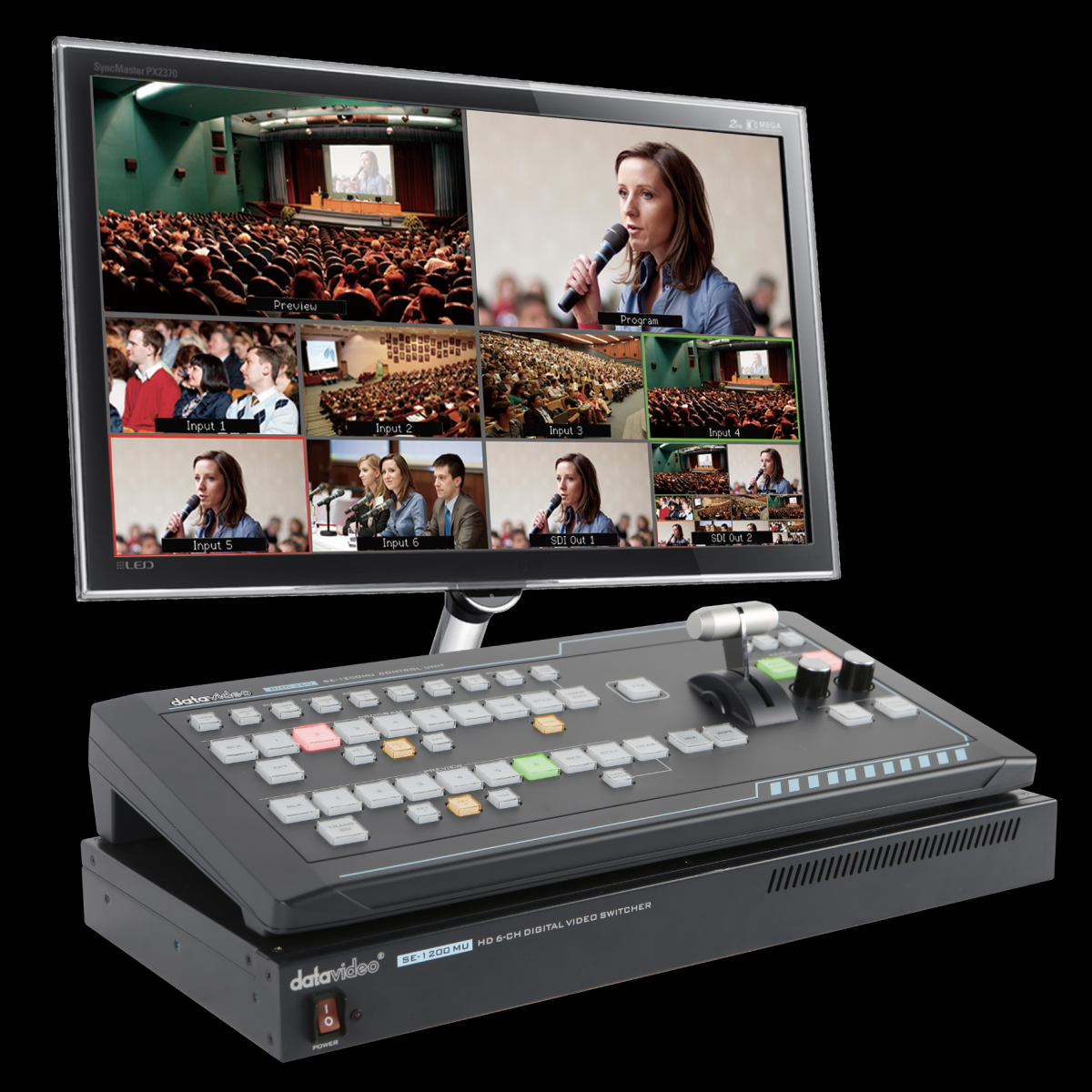

Multi View Monitoring
Number of Windows 2 (PGM, PVW)
+6 (Inputs 1-4, Stills & Freeze)
+2 Output windows (SDI1, SDI2)
Routable Windows Yes (Follow XPT)
Tally Yes
Windows Source Labels Yes

Crestron Modules for SE-1200. Click to Download

  • 1x SE-1200MU product
  • 1x RMC-260 Controller
  • 1x AD Switch DC 12V
  • 1x Utility CD w/ CD Bag
  • 1x Thank You Card



Intercom / Tally Connection Cable for SE-1200MU to ITC-100


HDMI Active Optical Cable - 30M


HDMI Active Optical Cable - 50M


HDMI Active Optical Cable - 100M
