SE-650

4 Input HD digital video switcher

Overview

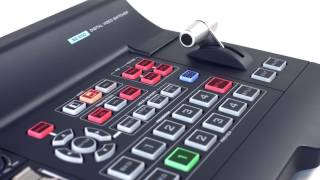

The Datavideo SE-650 is a small, costeffective, professional HD digital video switcher.

It offers two HD-SDI and two HDMI inputs that support video formats up-to 1080i.

It features two HDMI outputs and a user assignable HD-SDI output.

The SE-650 is the perfect device for small scale video production using professional cameras and HDMI equipment. The SE-650 also features an audio mixer with microphone and unbalanced RCA audio inputs.

Advanced tools include Chromakey, Luma key, PiP, wipe generator, still store and tally.



Switcher Comparison

  • 4 Input HD digital video switcher
  • 10-bit processing
  • Inputs: 2 x HD-SDI, 2 x HDMI
  • Outputs: 1 x HD-SDI, 2 x HDMI
  • Any Input can be used as a Frame store (Stills Store)

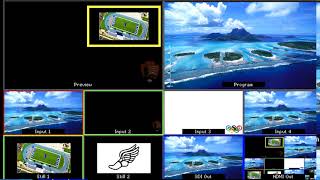

  • Assignable Outputs: Program (w/ LOGO), Clean Program (w/o LOGO), Clean Preview (w/o LOGO), Multiview
  • Frame Sync on each input

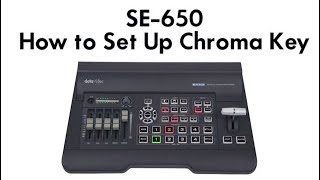

  • Flexible Mix/Effects Processor with 1 Upstream Keyer, supporting Chromakey & Linear/ Luma Key
  • 1 Upstream PIP, supporting Chromakey & Luma Key
  • Wipe Generator: 32 Wipe Patterns, including Circle & Heart - Borders & Softness Control
  • Full M/E Preview function

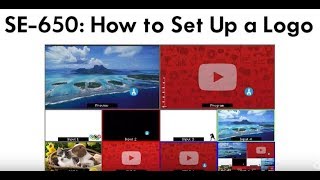

  • Logo insertion
  • XPT (Cross Point Assignment)
  • Tally Output
  • 6 Channel Audio Mixer
  • Audio inputs: 2 x RCA Analogue (L/R), 2 x Microphone
  • Audio outputs: 2 x RCA Analogue (L/R), 1 x Stereo headphone mini Jack
  • Audio em-bedded function
  • Multi-language support
Interfaces
Video Inputs 2 x HDMI
2 x HD-SDI
Video Outputs 2 x HDMI (HDMI 1 is user assignable / HDMI 2 is Multiview)
1 x HD-SDI (User assignable)
Audio Inputs 1 x Stereo RCA (L/R)
2 x Mono Microphone
De-embedded Digital Audio (2 CH)
Audio Outputs 1 x Stereo RCA (L/R)
1 x Stereo headphone (Mini Jack with volume control)
Embedded Digital Audio (2 CH / Channel 1 & 2)
Tally Yes / D-Sub 15 male connector
Software Update USB Port
Audio Mixer
Audio Fader 5 VR (Variable Resistor)
6 Channel (3 Pair) Audio Mixer
Audio LED Meter 2 Rows (Left/Right)
Standards
Supported Resolutions 1080i/50, 1080i/59.94, 1080i/60, 720p/50, 720p/59.94, 720p/60
Internal Processing YUV 4:2:2 10-bit
Extras
Keyers 2 Keyers (2 Chroma Keyers); linear and luma keyer
Upstream Keyers 2 (M/E Keyer & PIP)
Chroma Keyers 2 High Quality Chroma Keyers; available in Keyer and PIP
PIP 1 x PIP with adjustable size, position, and crop. Border with adjustable width & color
Wipes 32 Wipe Patterns such as Circle and Heart. Variable border width with Softness control.
Stills Any unused channel can also be used as a still buffer. Stills can be stored internally
Stinger Transitions Yes
Logo 1
  • Datavideo Kit Series 3 (Supports up to two PTC-150 cameras, SE-1200-or-SE-650, and HDR-1): download
  • Datavideo Kit Series 2 (Supports up to two PTC-150 cameras and SE-1200-or-SE-650): download
  • HDR-1: download
  • PTC-150: download
  • SE-650 / SE-1200MU: download
  • 1x SE-650 product
  • 1x AD Switch DC 12V with AC Cord
  • 1x Thank You Card
