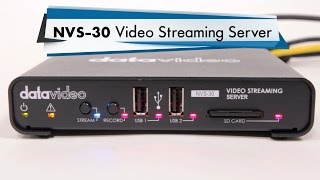

H.264 Video Streaming Server

Simple input and output configuration

1x HDMI input and output.



Portable video streaming encoder and recorder

The NVS-30 supports up to 20Mbps streaming in RTMP/RTSP formats and 30Mbps recording.



Record on SD card, USB thumb drive or network drive

While streaming, you can record the video in MP4 or MOV file format on an SD card, USB thumb drive, or a network drive simultaneously.

Specifications

NVS-30 H.264 Video Streaming Server
Video Input

HDMI x1

Supported Video Input Resolution

1080p 60/59.94/50/30/29.97/25/24/23.98
1080i 29.97/25
720p 60/59.94/50

Video Output

HDMI x1

Audio Input

HDMI embedded audio
3.5mm phonejack x1

Encode

H.264 Baseline/Main/High

Video Bitrate

100Kbps~20Mbps
Rec+Stream:30Mbps

Video Rate Mode

VBR

Audio Mode

Stereo

Audio Bitrate

32~256Kbps

Streaming Protocols

TS over TCP/UDP
Unicast & Multicast RTSP over HTTP/TCP/UDP (RTSP Elementary Stream)
RTMP/RTMPS (Publish)

Recording File Format

MOV
MP4

Storage

USB x2
SD card x1

Power Supply

DC 5V 15W

Dimension (LxWxH)

142 x 109 x 29 mm

Weight

0.3 kg

Operating Temp. Range

0~40 °C

What's in the Box

1 x NVS-30 product
1 x AD Switch DC 5V
1 x Thank You Card
