HD Block Camera
Excellent HD resolution
1/2.8 inch CMOS sensor. 1080p HD resolution
30x optical zoom with digital noise reduction
The BC-80's 30x optical zoom allows you to mount it near or far and still get great, sharp shots, even in less-than-perfect lighting conditions.
1x 3G-SDI, 1x HDMI video output
Featuring a 3G-SDI and HDMI output this camera is ready to be used in any AV or broadcast workflow.
Digital Noise Reduction Function zoom (DNR)
DNR process to ensure the video has the optimal image quality under low light by noise reduction.
Controllable by VISCA/DVIP
The BC-80 supports SONY VISCA protocol enabling the camera to be controlled via RS-422 or DVIP interface.
Specifications
| BC-80 HD Block Camera | |
|---|---|
| Video format | 1080p 59.94/50/29.97/25 |
| Image Sensor | 1/2.8” type progressive scan CMOS sensor |
| Effective Pixels (approx.) | 2.14 Mega pixels |
| S/N Ratio | 50 dB |
| Min. Illumination | Color : 0.4 lx (F1.6, 1/30 sec, 50IRE, Gain: High) |
| Electronic Shutter | 1/25 (1/30), 1/50 (1/60), 1/75(1/90), 1/100, 1/120 (1/125), 1/150(1/180), 1/215( 1/250), 1/300(1/350), 1/425(1/500), 1/600(1/725), 1/1000, 1/1250(1/1500) sec |
| Zoom Ratio | 30x Optical Zoom |
| Gamma Control | Off / Normal / Standard Mode 1-4 |
| Iris Control | Auto / Manual |
| Digital Noise Reductions | Yes |
| On-Screen Display (OSD) | English |
| White Balance | AWB, MWB, One push WB, Outdoor, Indoor, Fluorescent |
| AGC / Gain Control | Auto / Manual (0 to 28 step) |
| Mirror / Flip Image | Yes |
| Focus Mode | Auto / Manual |
| Preset | 10 Position |
| Focal Length | f=4.3 mm (WIDE) to 129 mm (TELE) |
| Field of View (Horizontal, Wide) | Approx. 63.7° (WIDE END) / 2.3° (TELE END) |
| Image Compensation | Day & Night function |
| Video Output | HDMI (V1.3) x 1 |
| Tally LED | Dual color (Red, Green) |
| Filter | M52.0 x 0.75 Thread with UV Protection |
| Protocol | VISCA / DVIP Protocol |
| Remote Control Interface and Transmit Distance | RS-422: Transmit up to 1000m |
| F/W Update | USB |
| IR Control | Yes |
| Camera Control Unit | RMC-180 |
| Tripod Mount | 1/4-20 UNC |
| Options | PTR-10 |
| Color | Dark blue |
| Dimension (LxWxH) | 71 x 202 x 83 mm |
| Weight | 0.7 kg |
| Operating Temp. Range | 0~40 °C |
| Power | DC 12V 15W |
| What's in the Box | 1 x BC-80 main unit |

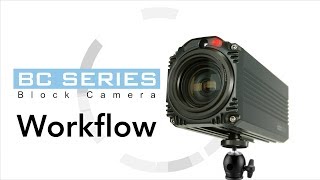

Workflow
