BC-200

4K Block Camera
LEGACY

Outstanding 4K resolution

Outstanding 4K resolution



The BC-200 features 1/2.3 inch CMOS sensor, 4K (3840 x 2160, UHD) 25/30P video resolution.

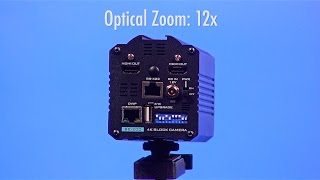

12x Optical Zoom with digital noise reduction

12x Optical Zoom with digital noise reduction



The BC-200's 12x optical zoom allows you to mount it near or far and still get great, sharp shots, even in less-than-perfect lighting conditions.

Controllable by VISCA/DVIP

Controllable by VISCA/DVIP



The BC-200 supports SONY VISCA protocol enabling the camera to be controlled via RS-422 or DVIP interface.



4K Block Camera

COMPARE MORE PRODUCTS
Model Number
BC-200
Video format/Resolution
2160p 29.97/25
1080p 59.94/50
1080i 59.94/50
720p 59.94/50
Image Sensor
1/2.3” type Exmor R CMOS
Effective Pixels (approx.)
8.93 Mega pixels
S/N Ratio
----
Min. Illumination
50%, High Sensitivity Mode:
Color: 0.75 lx (F1.8, AGC on, 1/30 sec)
50%, Normal Mode:
Color: 3 lx (F1.8, AGC on, 1/30 sec)
Electronic Shutter
1/25 (1/30), 1/50 (1/60), 1/75(1/90), 1/100, 1/120 (1/125), 1/150(1/180), 1/215(1/250), 1/300(1/350), 1/425(1/500), 1/600(1/725), 1/1000, 1/1250(1/1500) sec
Zoom Ratio
12x Optical Zoom
Gamma Control
Off / Normal / Standard Mode 1-4
Iris Control
Auto / Manual
Digital Noise Reductions
Yes
On-Screen Display (OSD)
English
White Balance
Auto, Indoor, Outdoor, Sodium Vapor Lamp, One-push, Manual
AGC / Gain Control
Auto/Manual (0 dB to 33 dB)
Max. Gain Limit (9 dB to 33 dB)
Mirror / Flip Image
Yes
Focus Mode
Auto (Sensitivity: normal, low) / One-push AF / Manual / Zoom Trigger AF
Panning / Tilting Range
----
Panning / Tilting Speed
----
Preset
10 Position
Focal Length
f=3.9 mm (wide) to 46.8 mm (tele)
Field of View (Horizontal, Wide)
Approx. 70.7° (WIDE END) / 6.4° (TELE END)
Image Compensation
Day & Night Function
Video Output
HDMI x 2
Audio Input
----
Tally LED
Dual color (Red, Green)
Lens Filter
----
Control Protocol
VISCA / DVIP Protocol
Remote Control Interface
RS-422: Transmit up to 1000m
DVIP (RJ45): 100m
Video Compression Format
----
Audio Compression Format
----
Audio Bitrate
----
HD IP Interface
----
Streaming Protocols
----
First Stream Supported Resolution
----
Second Stream Supported Resolution
----
Video Bitrate
----
Video Bitrate Mode
----
Encoding Frame rate
----
POE
----
F/W Update
USB
IR Control
Yes
Camera Control Unit
RMC-180 series/RMC-300 series/PTZ View Assist APP
Tripod Mount
1/4-20 UNC
Optional Accessories
----
Color
Dark blue
Dimension (LxWxH)
71 x 183 x 83 mm
Weight
0.9 kg
Operating Temp. Range
0~40 °C
Power
DC 12V 15W
What's in the Box
1 x BC-200 main unit
1 x IR remote control
1 x DC 12V power adaptor
