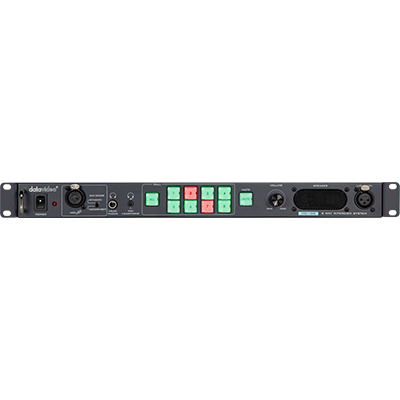

Intercom System

ITC-100
Add product to compare

ITC-100

-

Tally
2 x 15 Pin DSub Sockets for Tally A and B
-
MIC / Headset
3.5 mm Stereo Jack Socket for Headphone / Microphone combination
Headset Impedance 8-600 Ohms 100 mW (min)
-
Headphone
¼” (6.3mm) Stereo Headphone Socket
Headset Impedance 8-600 Ohms 100 mW (min)
-
Light Socket (DC 12 V)
3 PIN XLR Connector
PIN 2: 12V
PIN 3: GND
Light Power Consumption: 12 V / 100 mA (MAX.)
-
Microphone
3 PIN XLR / ¼” (6.3mm) Jack Microphone Socket
Switchable Condenser / Dynamic Input
Microphone Level -67 dB
-
Frequency Response
550-3.6 kHz, <+/- 3dB
-
THD
< 3%
-
S/N
> 50dB
-
Built-in Speaker
70mm x 30mm 32 Ohm 3 Watts
-
Operating Range
Up to 200 meters between base station and slave
-
Operating Temp. Range
0~40 °C
-
Dimension (LxWxH)
482 x 127 x 46 mm
-
Weight
1.9 kg
-
Power
DC 12V, 8W
-
What's in the Box
1 x ITC-100 Base Unit
4 x ITC-100SL Belt Pack
4 x ITC-100SL Carry Case
4 x Cable 5piin XLR to XLR
4 x 3.5mm Jack to 3.5mm Jack Cable
4 x Headset with microphone
4 x Tally LED Indicator
1 x XLR Gooseneck Microphone
1 x XLR Gooseneck Light
1 x 12V 1A Power Supply Unit
-
