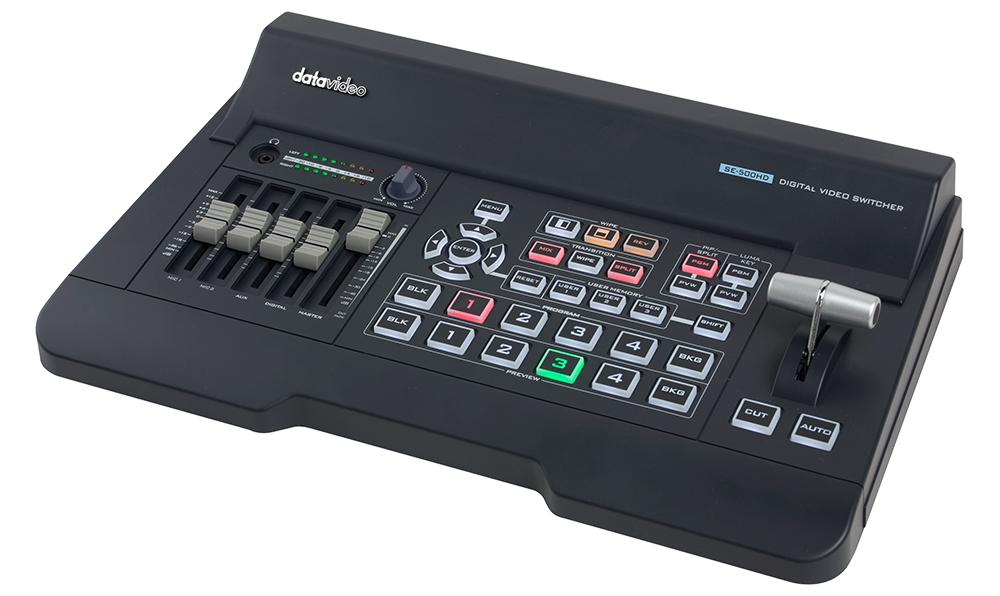

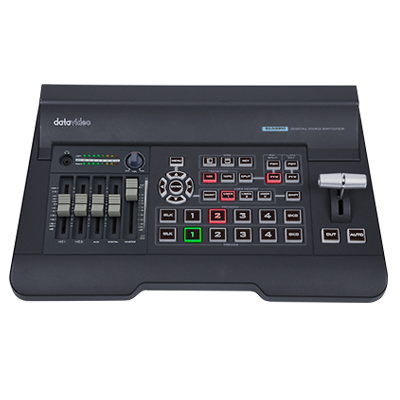

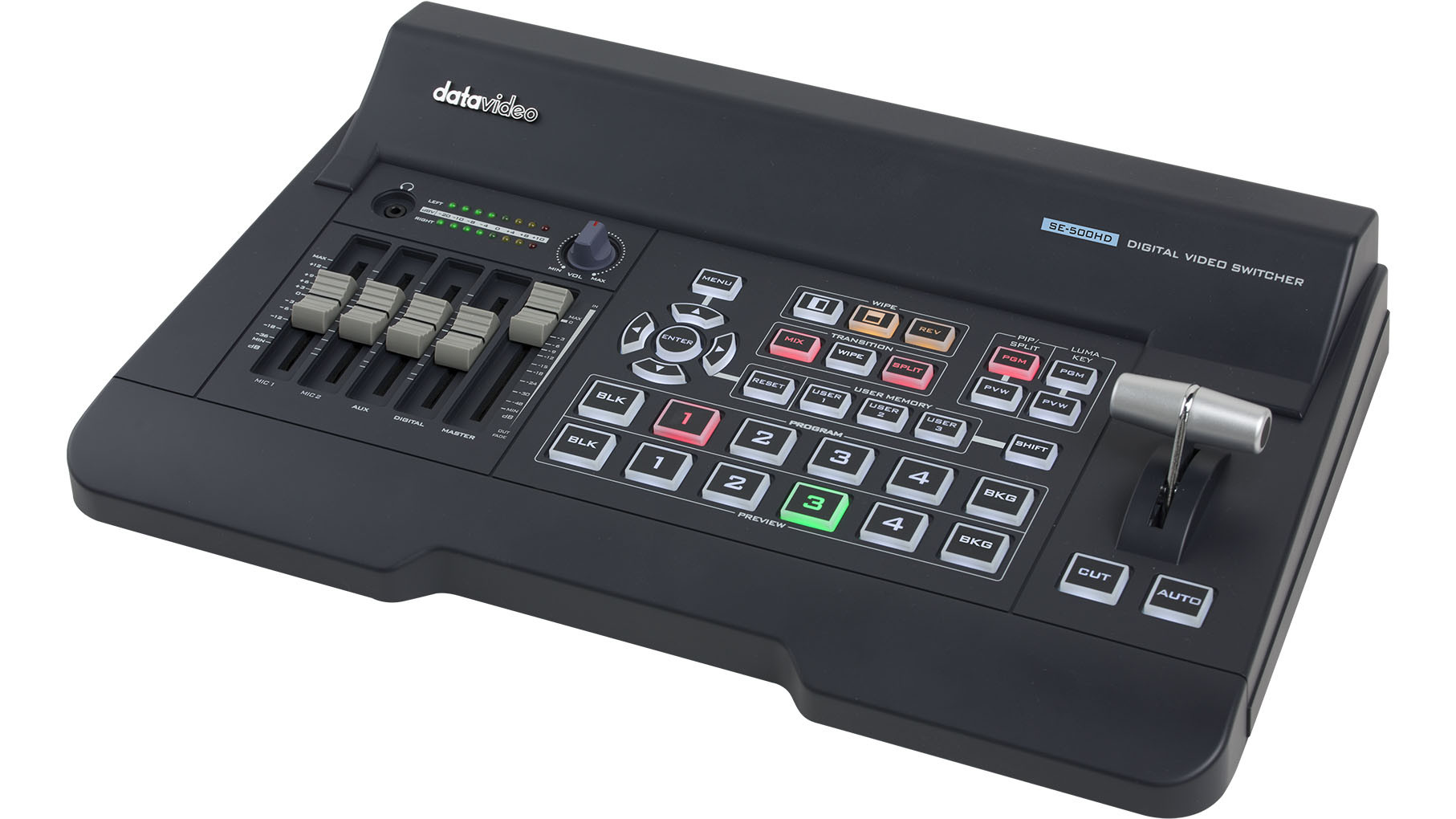

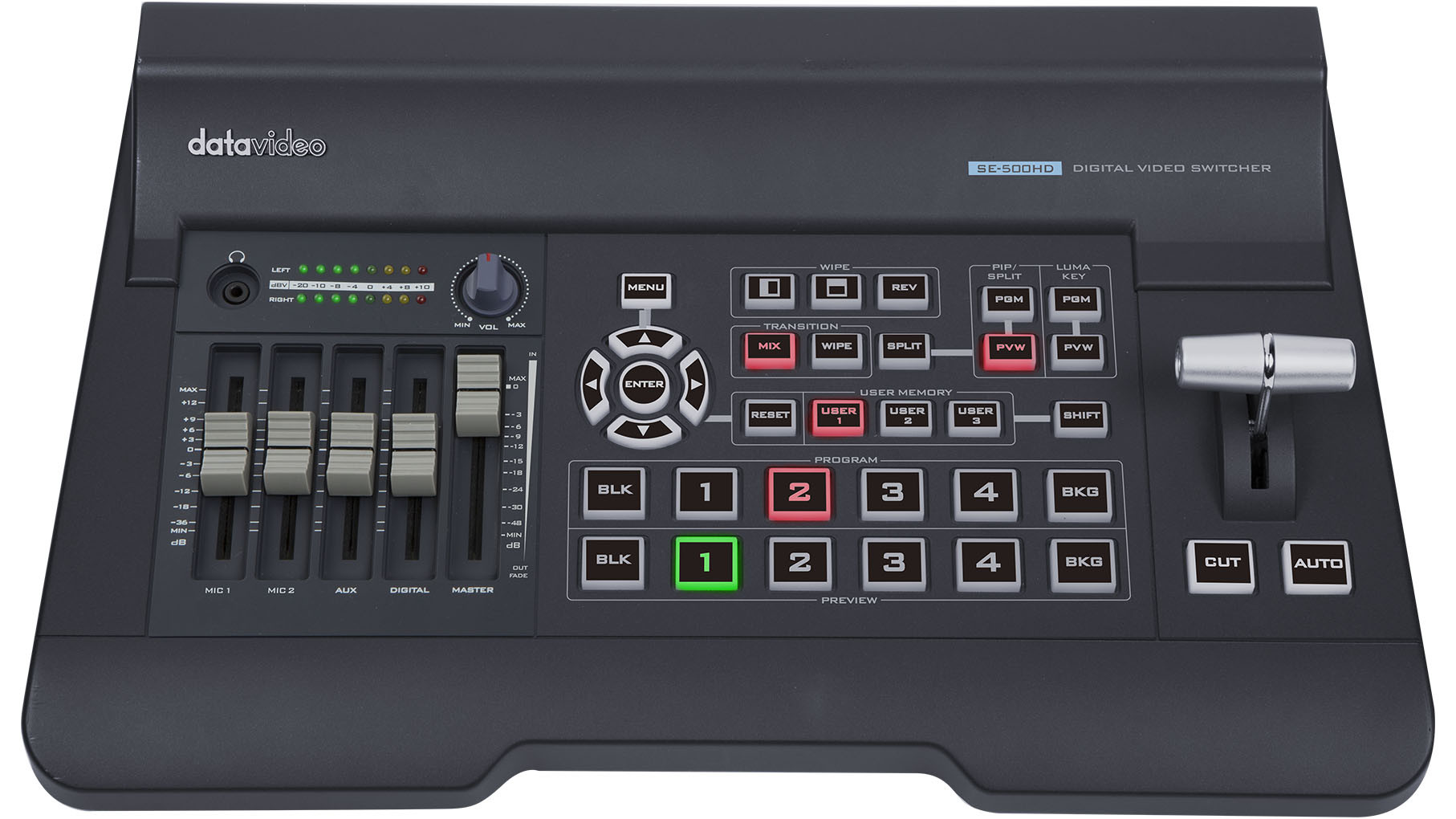

4-Channel 1080p HDMI Video Presentation Switcher

Supports up to Full HD 1080P



Scale mixed resolution/standards inputs up to 1080p.

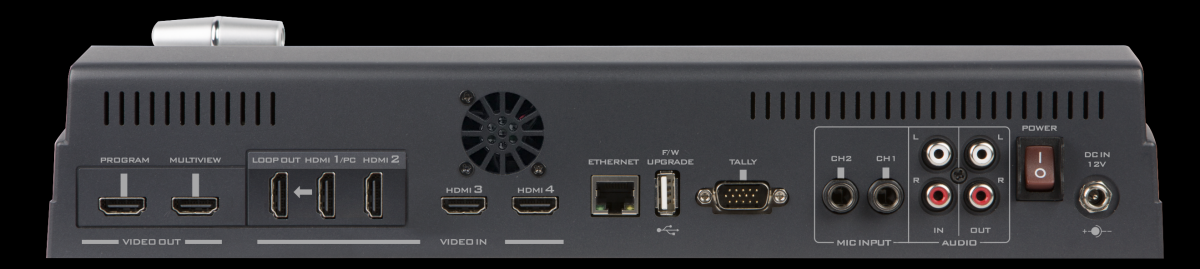

HDMI 1080p switching with advanced features, at a fraction of the cost



Don't let the SE-500HD fool you with its affordability and compact design. This 1080p switcher comes loaded with features such as luma key for graphic overlays, split screen for podcast interviews, and PiP for Powerpoint presentations.

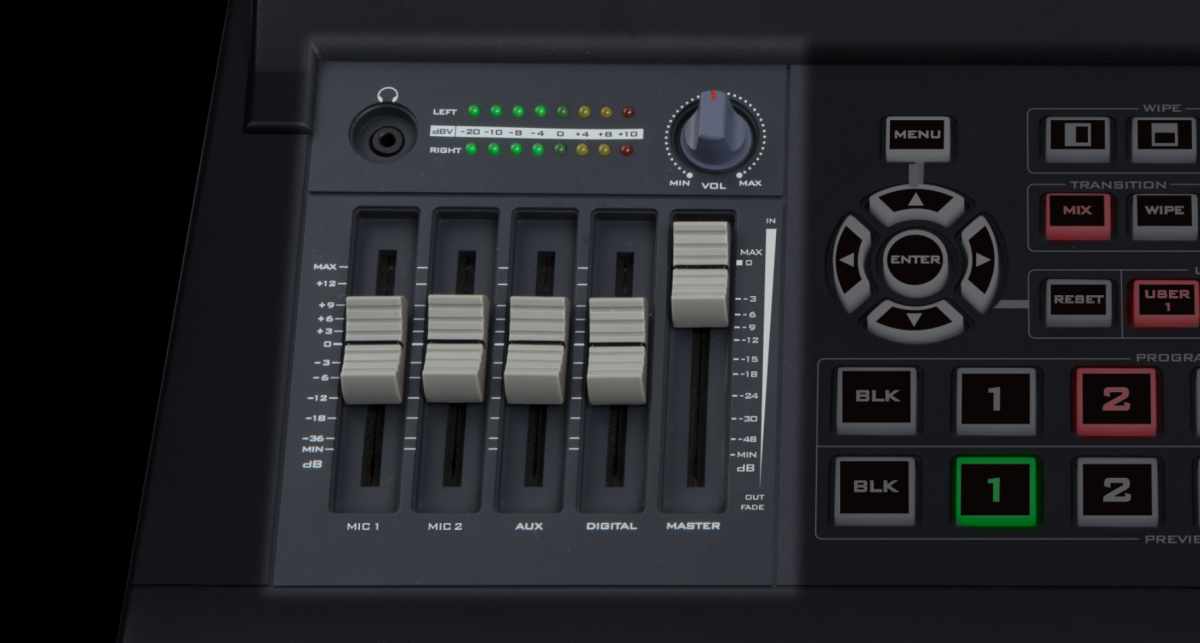

Built-in audio mixer



The SE-500HD's built-in audio mixer means that you've got everything you need to control your audio input levels. For most productions, this means that there's no need to buy a separate external audio mixer.

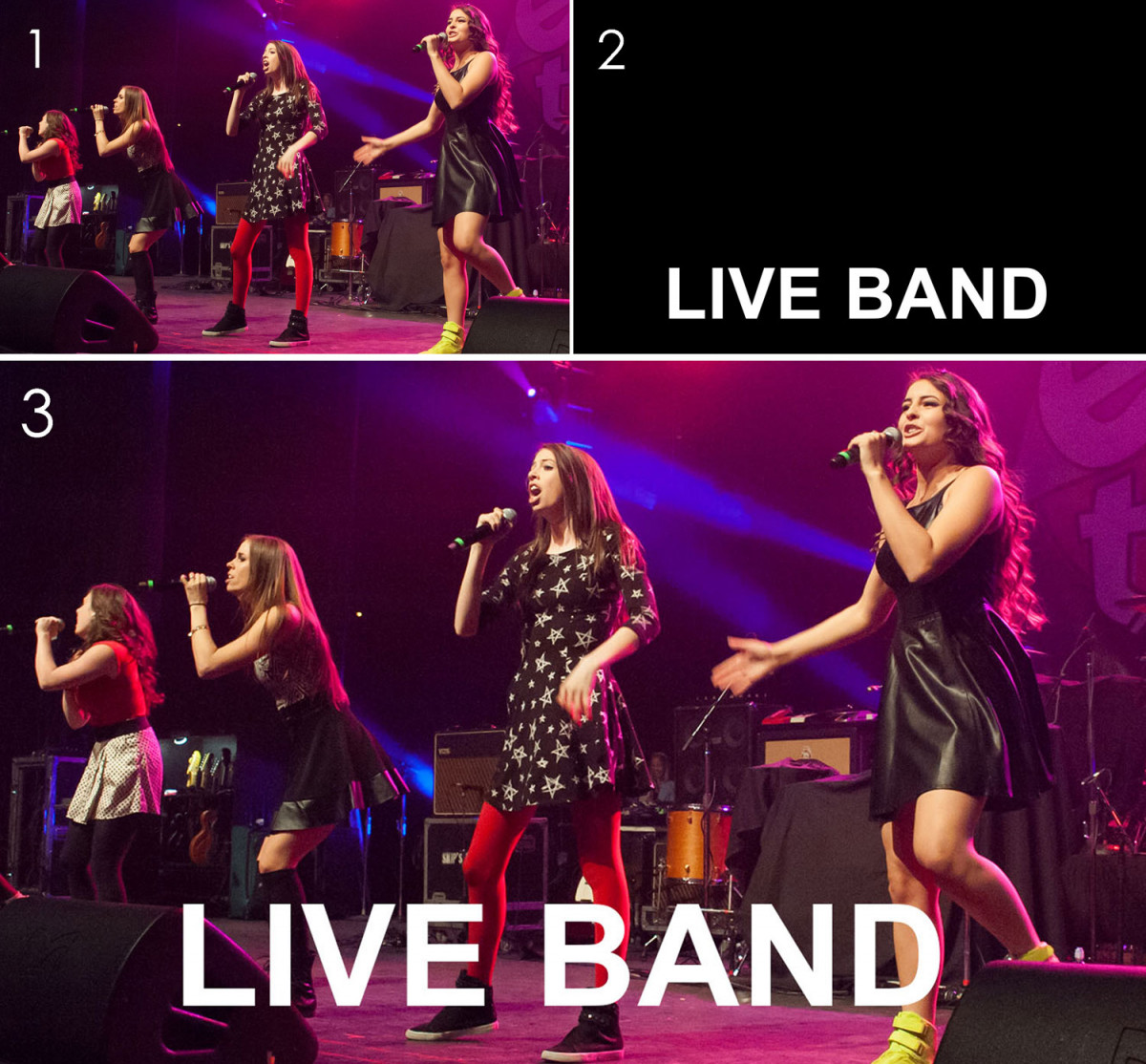

Supports lumakey for titles



With built-in lumakey, user can use PPT to easily create titles by graphic overlays.

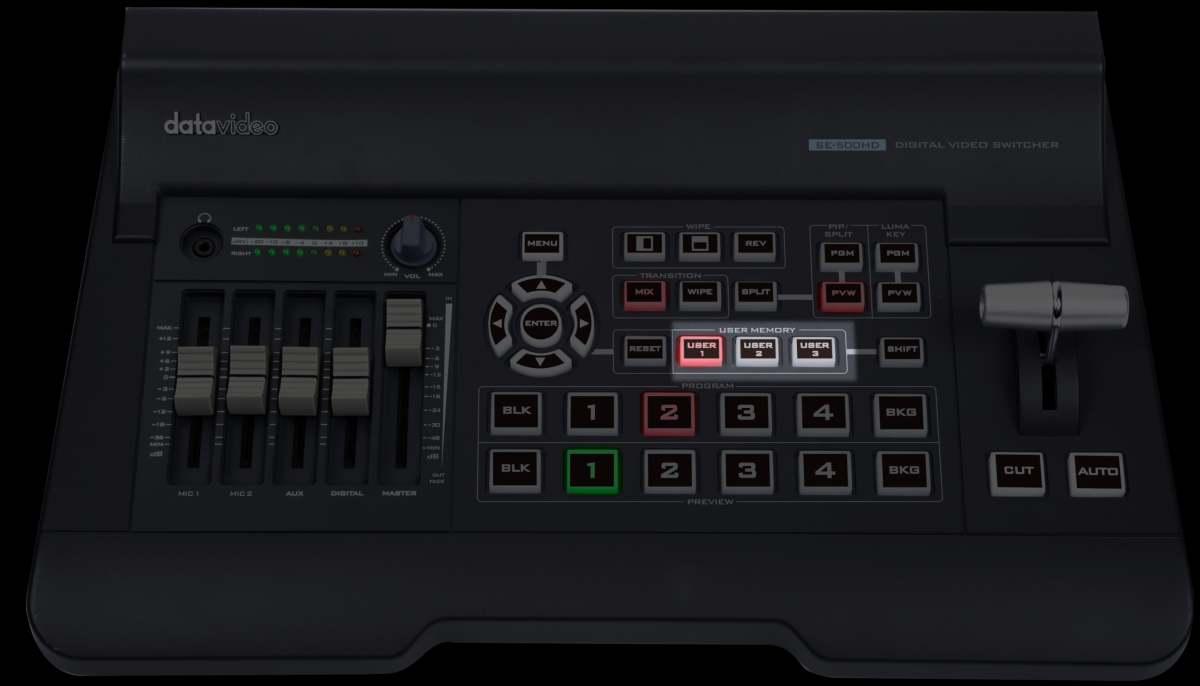

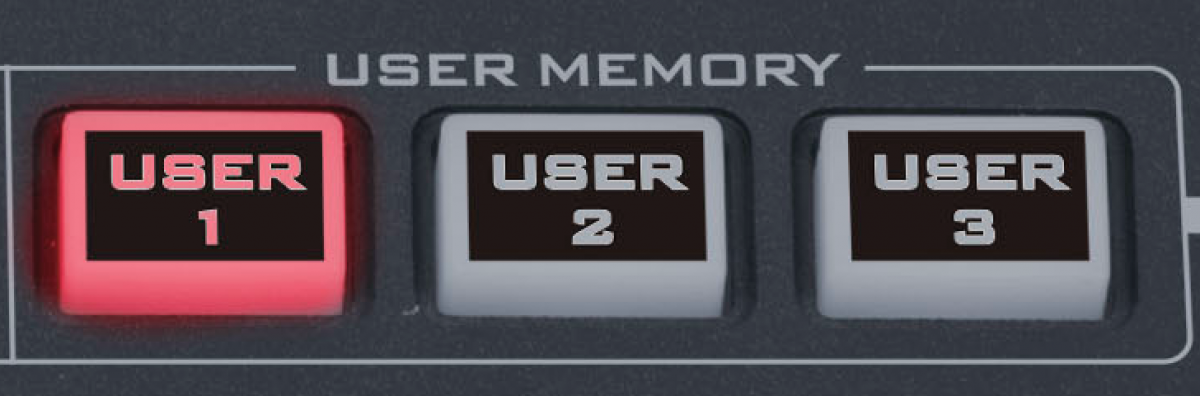

User memories



You can save a complex process into a user memory, turning multiple tasks into a one-finger job.

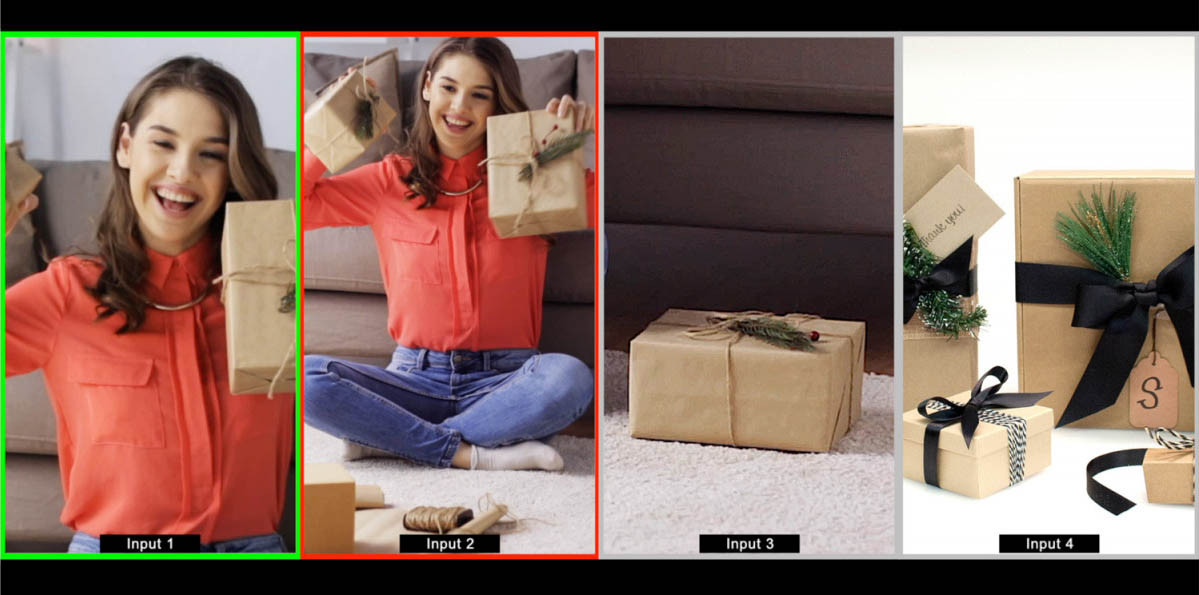

Supports Vertical video multiview



It's an ideal solution for the videos on social media. The vertical video is more favorable while playing on the mobile device.



Professional 10-bit processing switcher



Providing you the best and professional quality of video processing.

Specifications

SE-500HD 4-Channel 1080p HDMI Video Presentation Switcher
Video Standard

Full HD & SD

Video Format

1080p 50/59.94/60Hz
1080i 50/59.94/60Hz
720p 50/59.94/60Hz
576i 50Hz
480i 59.94Hz

Video Processing

HDMI: YUV 4:4:4 10 bit, RGB: 4:4:4

Video Input

4x HDMI

Mix HD & SD Source

Yes

Computer Graphic Interface

4 via HDMI

Video Output

2 x HDMI (1 is MV, 1 is PGM)

Down-converted Output

Yes

Built-in Multi-view Monitoring Out

HDMI

Analogue Audio Input

1 x Stereo RCA (L/R)
2 x Mono Microphone

Analogue Audio Output

1 x Stereo RCA (L/R)
1 x Stereo headphone (Mini Jack with volume control)

Embedded Audio Support

Input 2 channels, Output 2 channels

A+V Switching

Yes

USK

Lumakey

Picture in Picture

1

Effects

FTB, Cut, Wipe with border

Sync / Reference In/Out

Built-in Genlock (internal)

Tally Output

1x D-sub 15pin, dual color

Built-in Audio Mixer

Yes, 4 channels

Special Features

Built-in video scaler for mixed resolution inputs

Chassis

Unibody

Dimension (LxWxH)

400 x 250 x 82 mm

Weight

1.7 kg

Power

DC 12V, 29W

Operating Temp. Range

0~40 °C

Options

CB-46/47/60/61/62

What's in the box

1 x SE-500HD product
1 x AD Switch DC 12V with AC Cord
1 x Thank You Card

PRINT

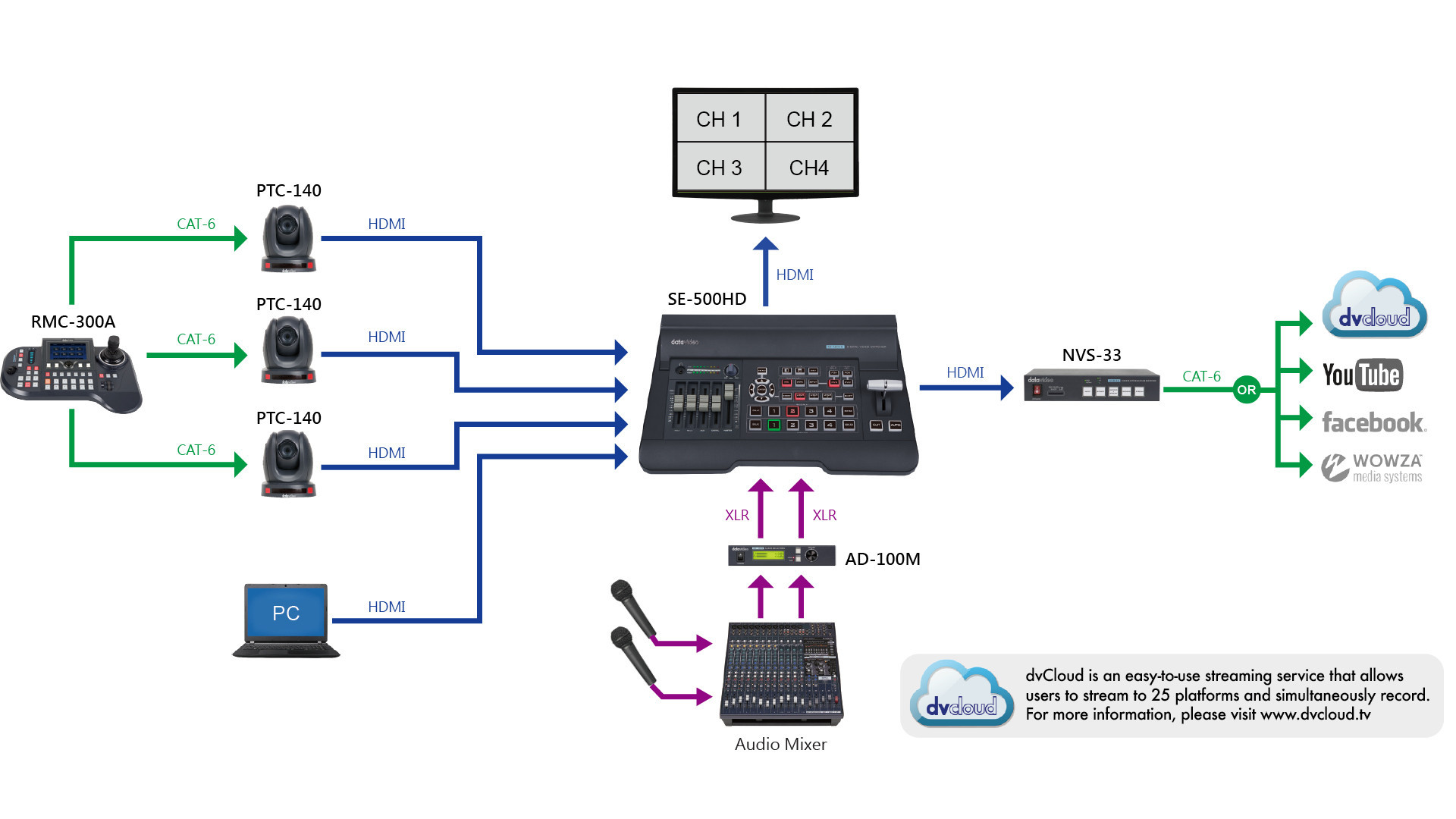

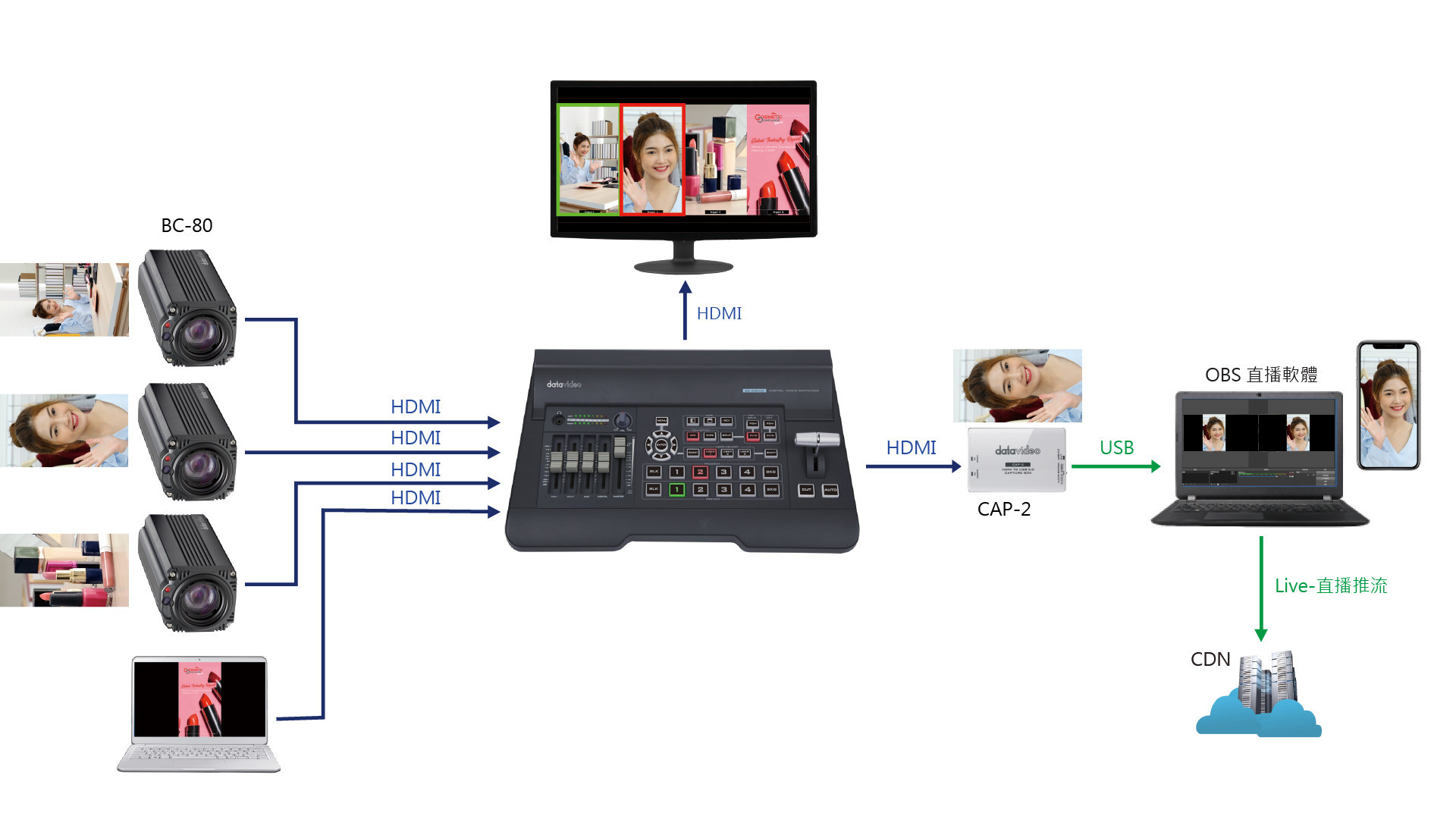

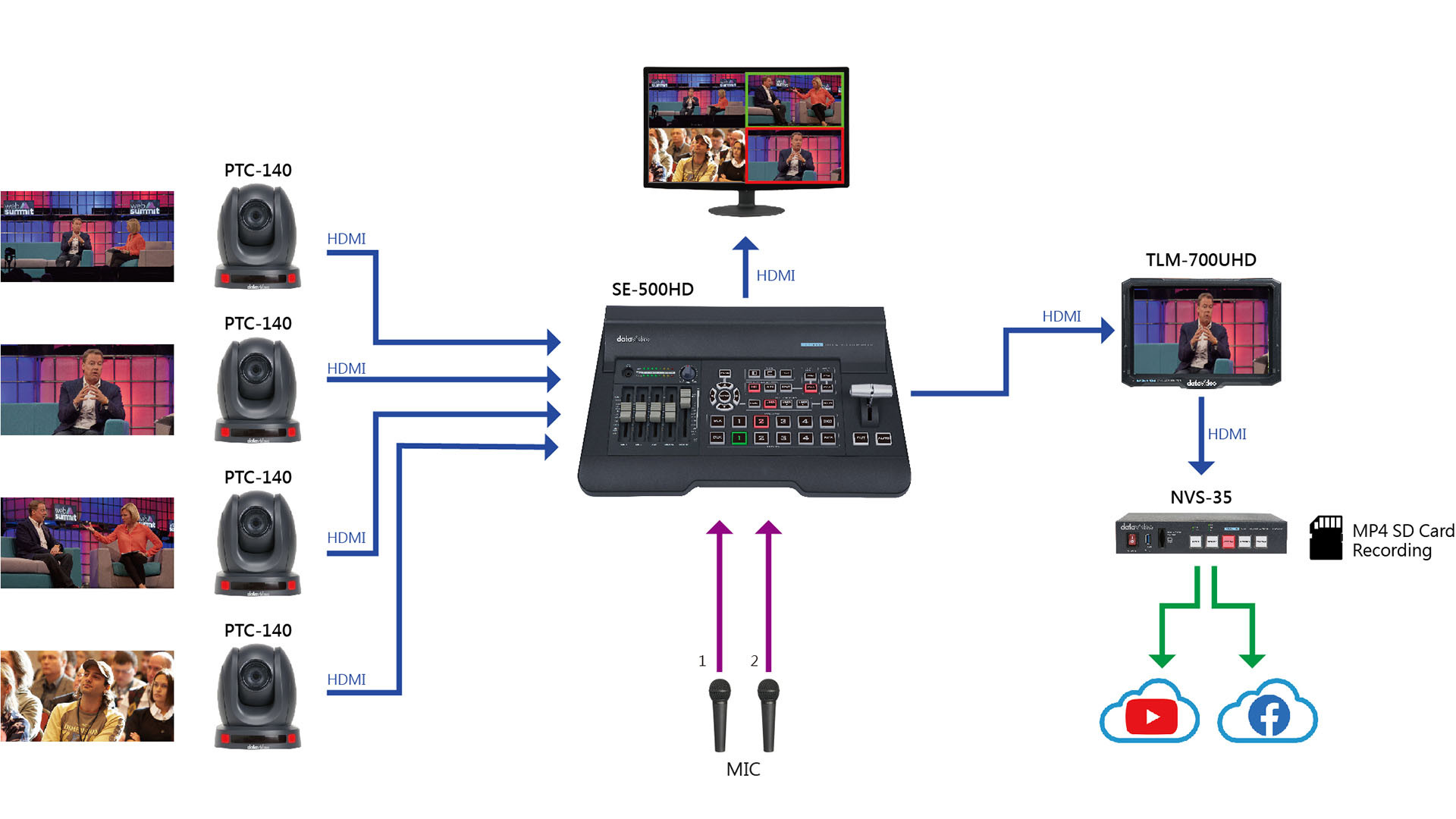

Workflow
