Intercom System

Rackmountable 8 Channels Intercom System

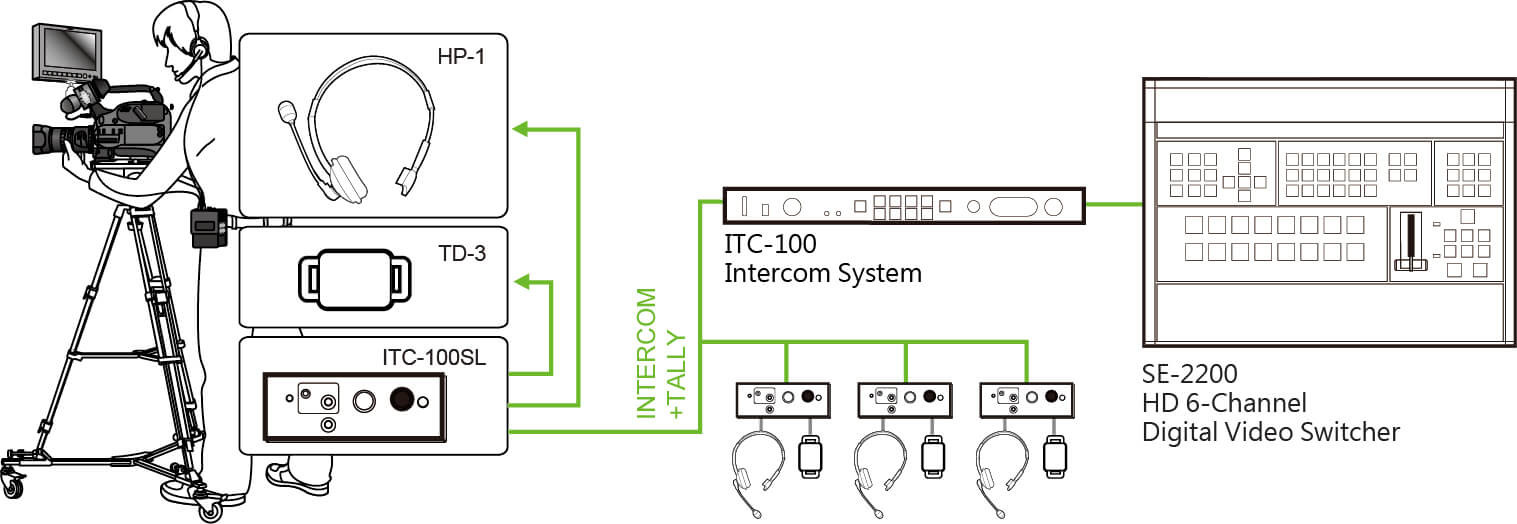

The Datavideo ITC- 100 Intercom system provides 8-way talkback and tally indicators. The producer can talk to an individual channel or to all channels simultaneously.

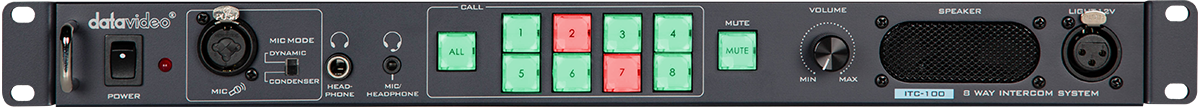

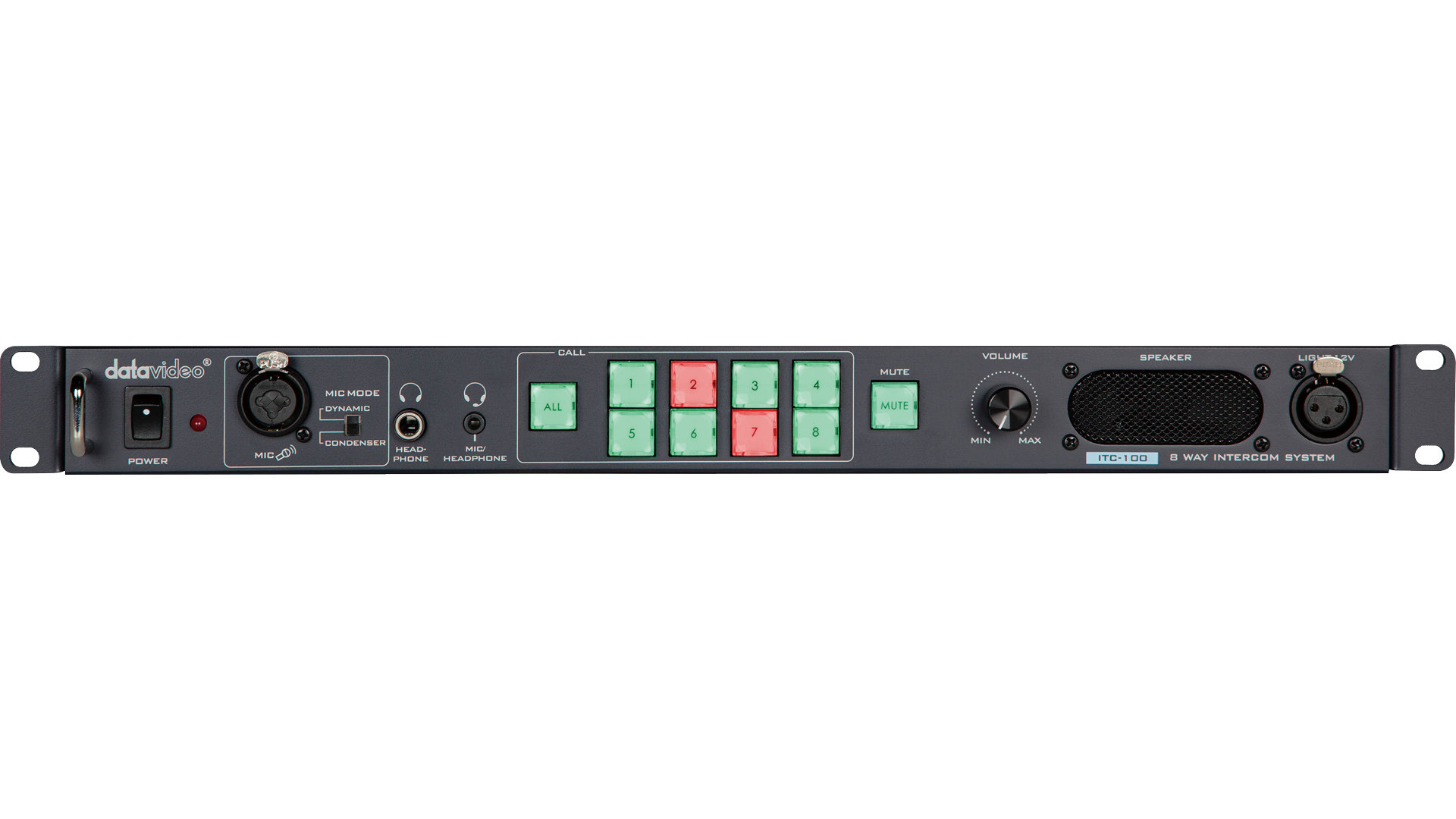

Selectable Channel Talk, Broadcast to All or Mute

The director can select to talk to an individual channel or to all channels simultaneously.


Communication Distance Up to 200 Meters

Good communication is vital in any production studio; keeping communication between the director, camera crew, lighting engineer, and control room is essential to produce a polished end result.

19'' 1U Rack Design

The ITC-100 is a standard 19" 1U rack design, so it is easy to integrate into any rack system for use in the field or studio.


Dual Color Tally Light Indicator

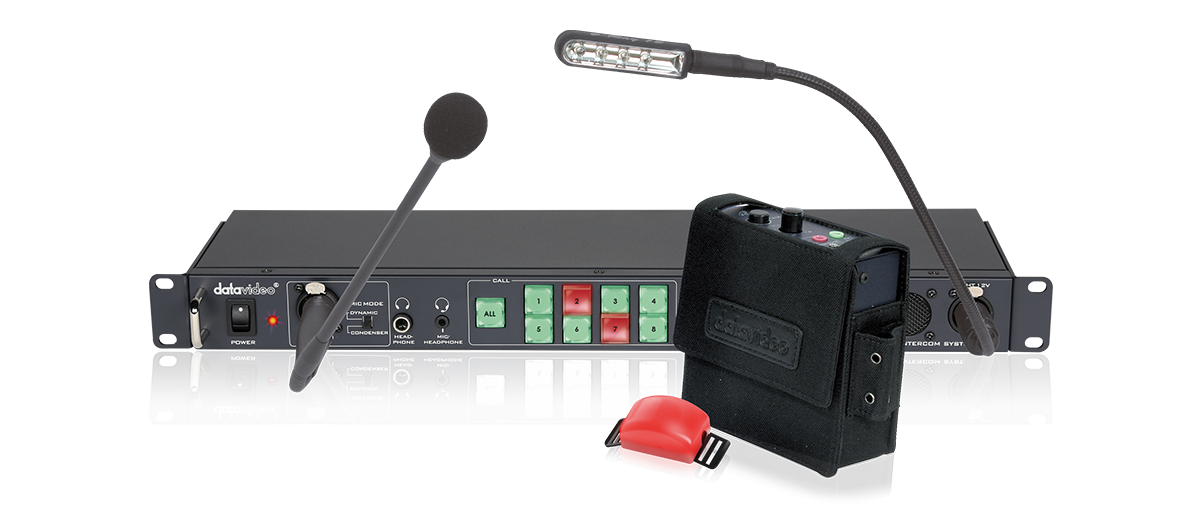

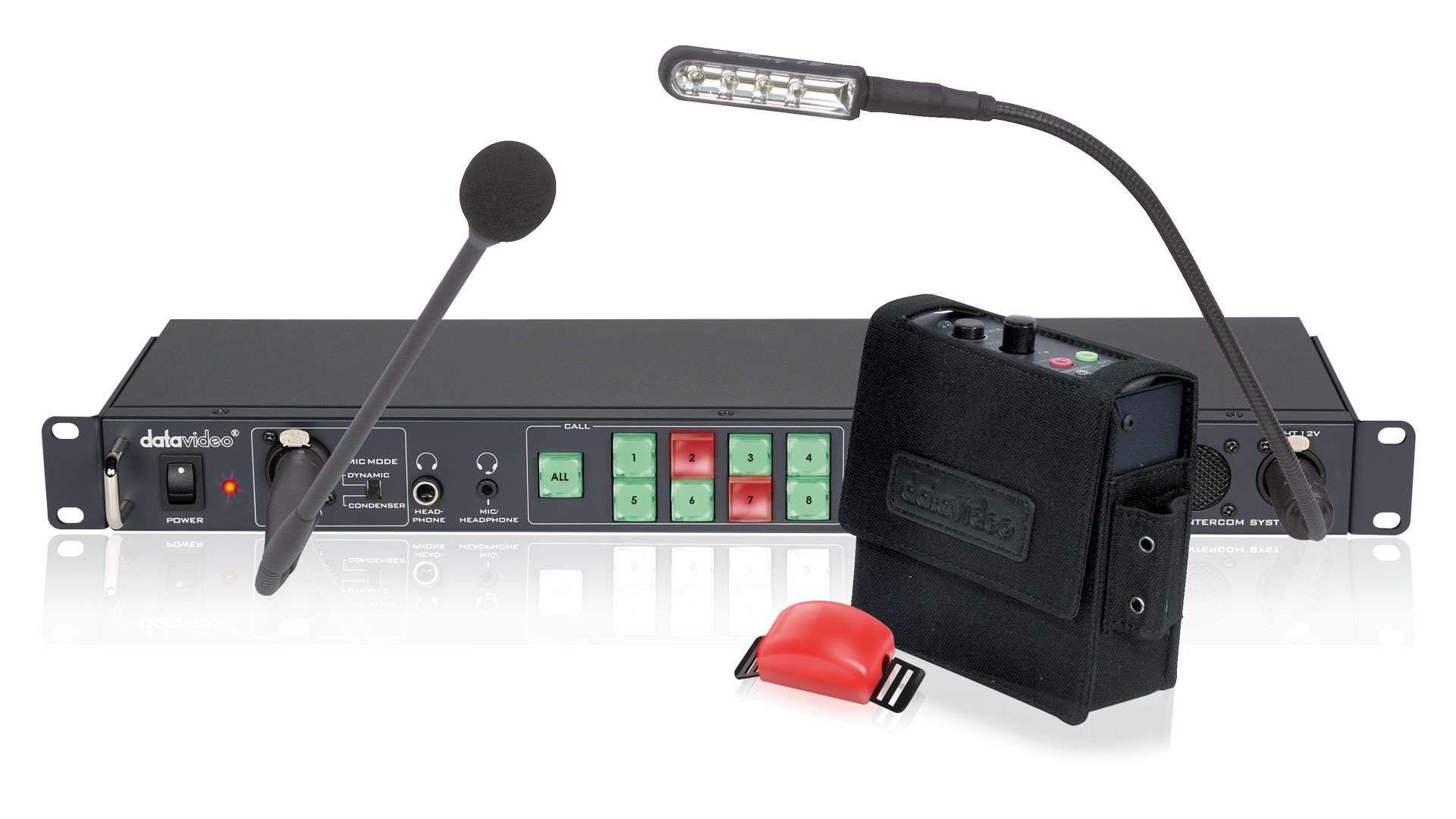

Additional external earphone and microphone interface, and supplied complete with gooseneck mic and light.

Intercom System

Model Number

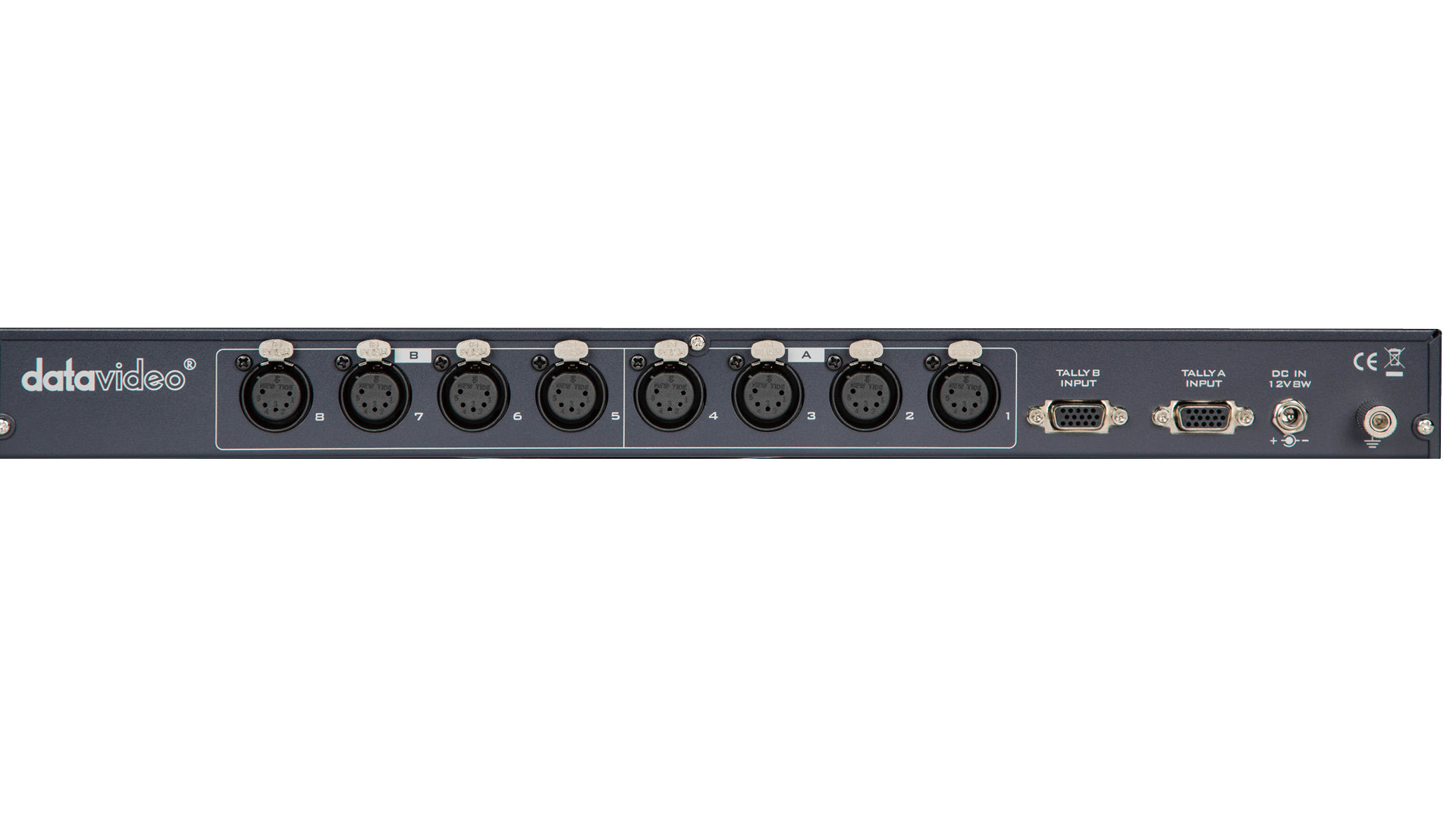

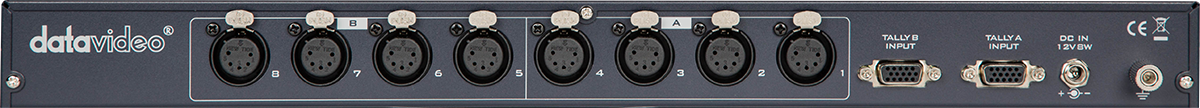

2 x 15 Pin DSub Sockets for Tally A and B
MIC / Headset
3.5 mm Stereo Jack Socket for Headphone / Microphone combination
Headset Impedance 8-600 Ohms 100 mW (min)
¼” (6.3mm) Stereo Headphone Socket
Headset Impedance 8-600 Ohms 100 mW (min)
Light Socket (DC 12 V)
3 PIN XLR Connector
PIN 2: 12V
Light Power Consumption: 12 V / 100 mA (MAX.)
3 PIN XLR / ¼” (6.3mm) Jack Microphone Socket
Switchable Condenser / Dynamic Input
Microphone Level -67 dB
Frequency Response
550-3.6 kHz, <+/- 3dB
< 3%
> 50dB
Built-in Speaker
70mm x 30mm 32 Ohm 3 Watts
Operating Range
Up to 200 meters between base station and slave
Operating Temp. Range
0~40 °C
Dimension (LxWxH)
482 x 127 x 46 mm
1.9 kg
DC 12V, 8W
What's in the Box
1 x ITC-100 Base Unit

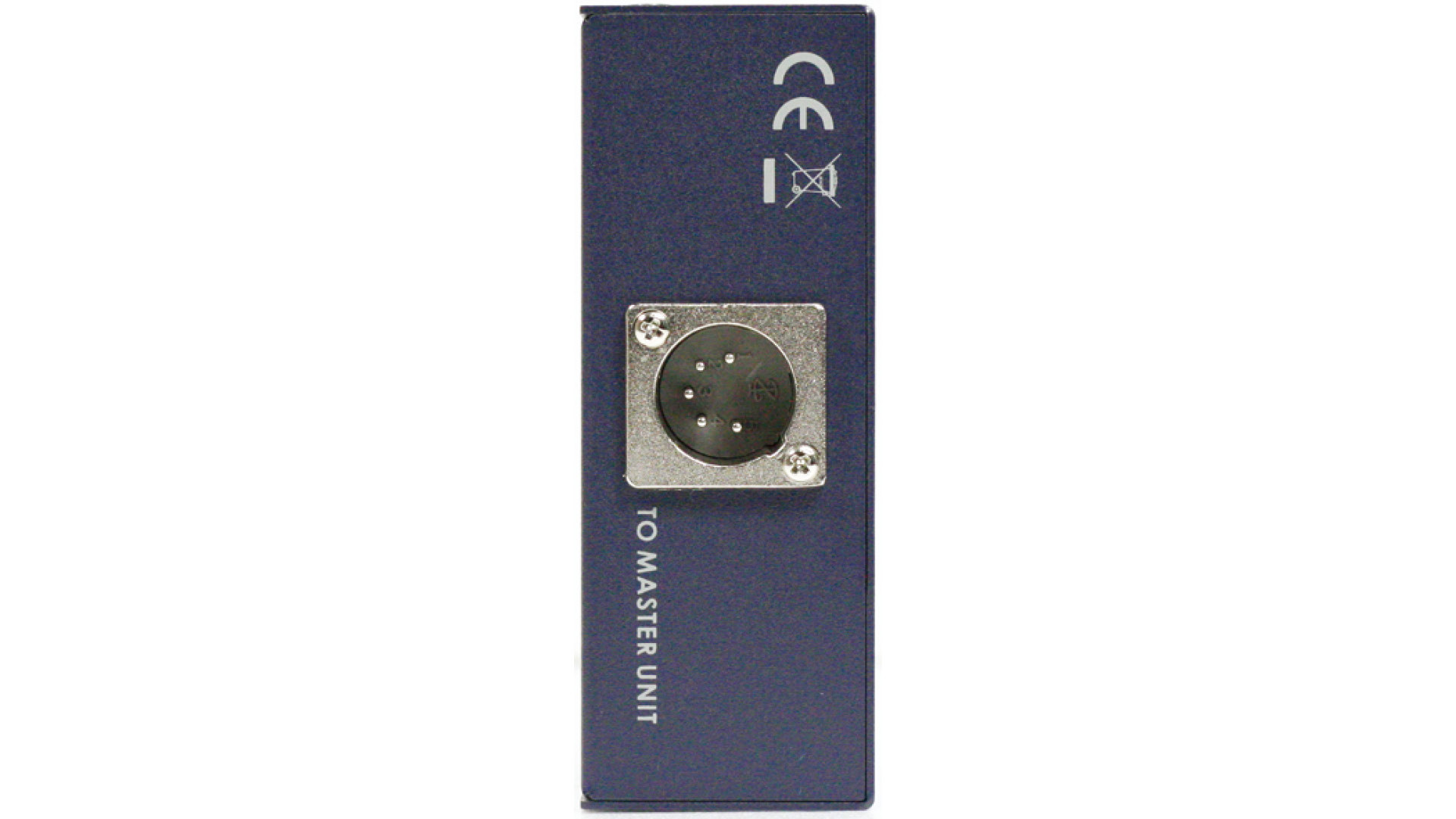

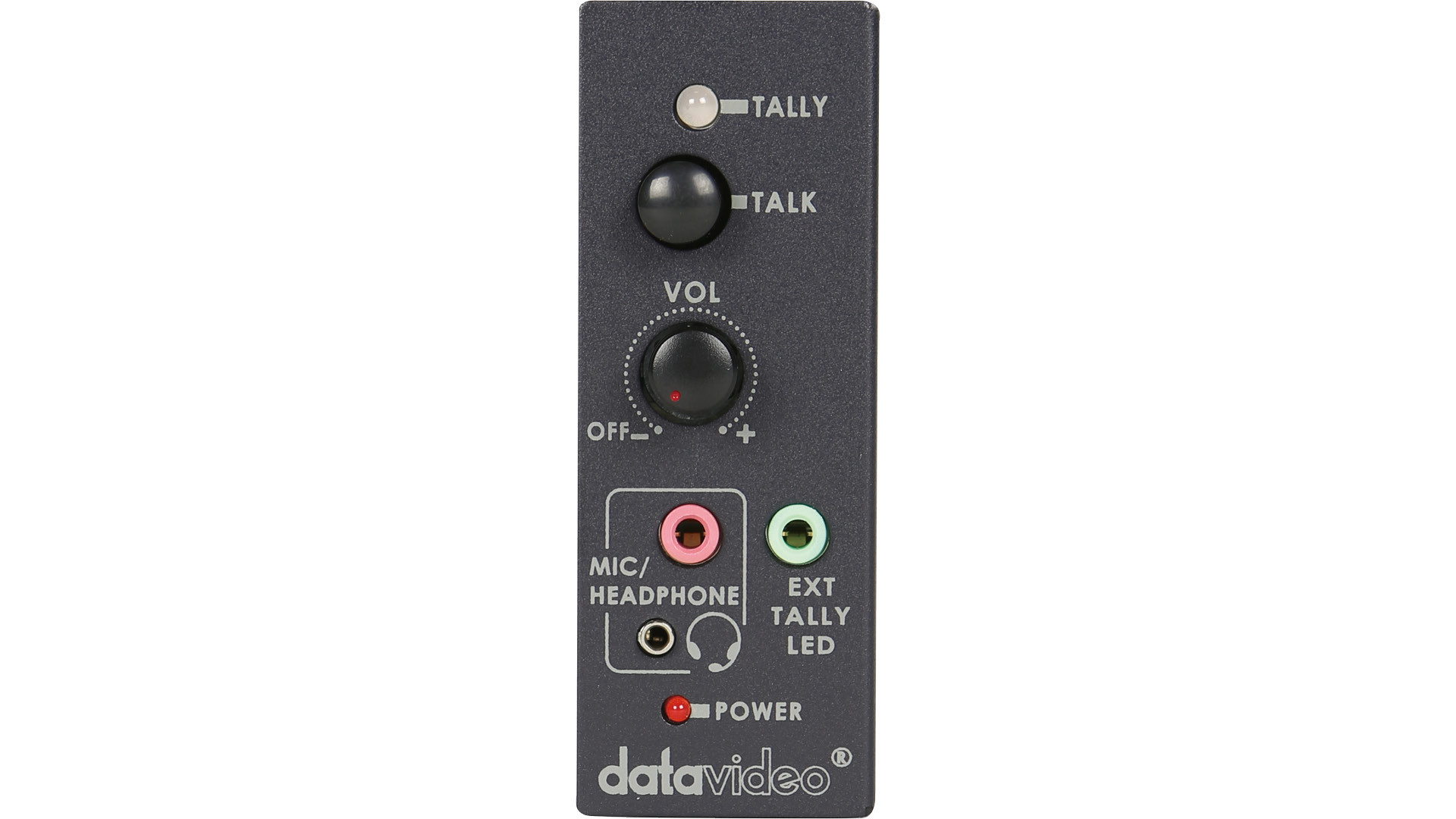

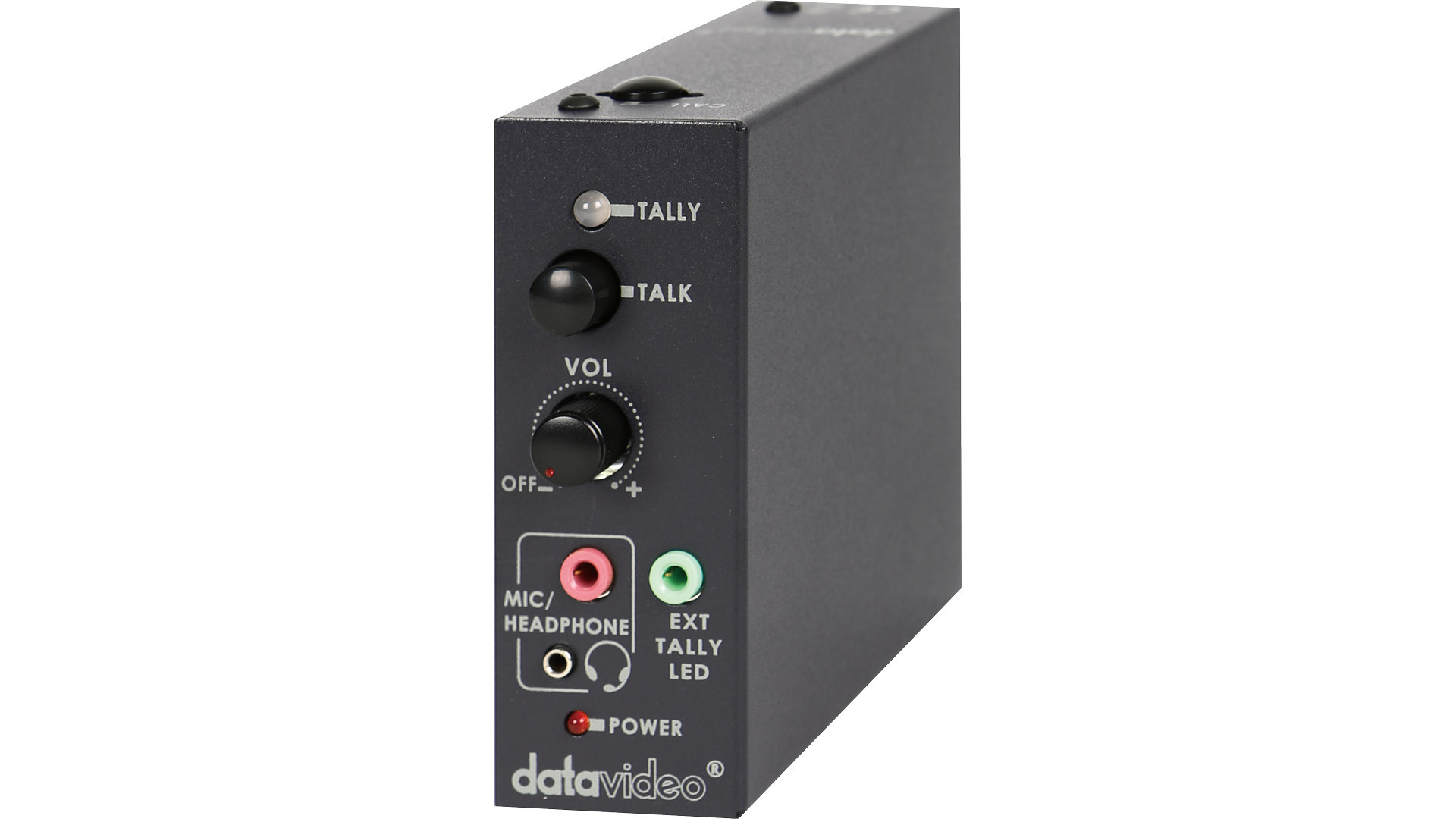

4 x ITC-100SL Belt Pack

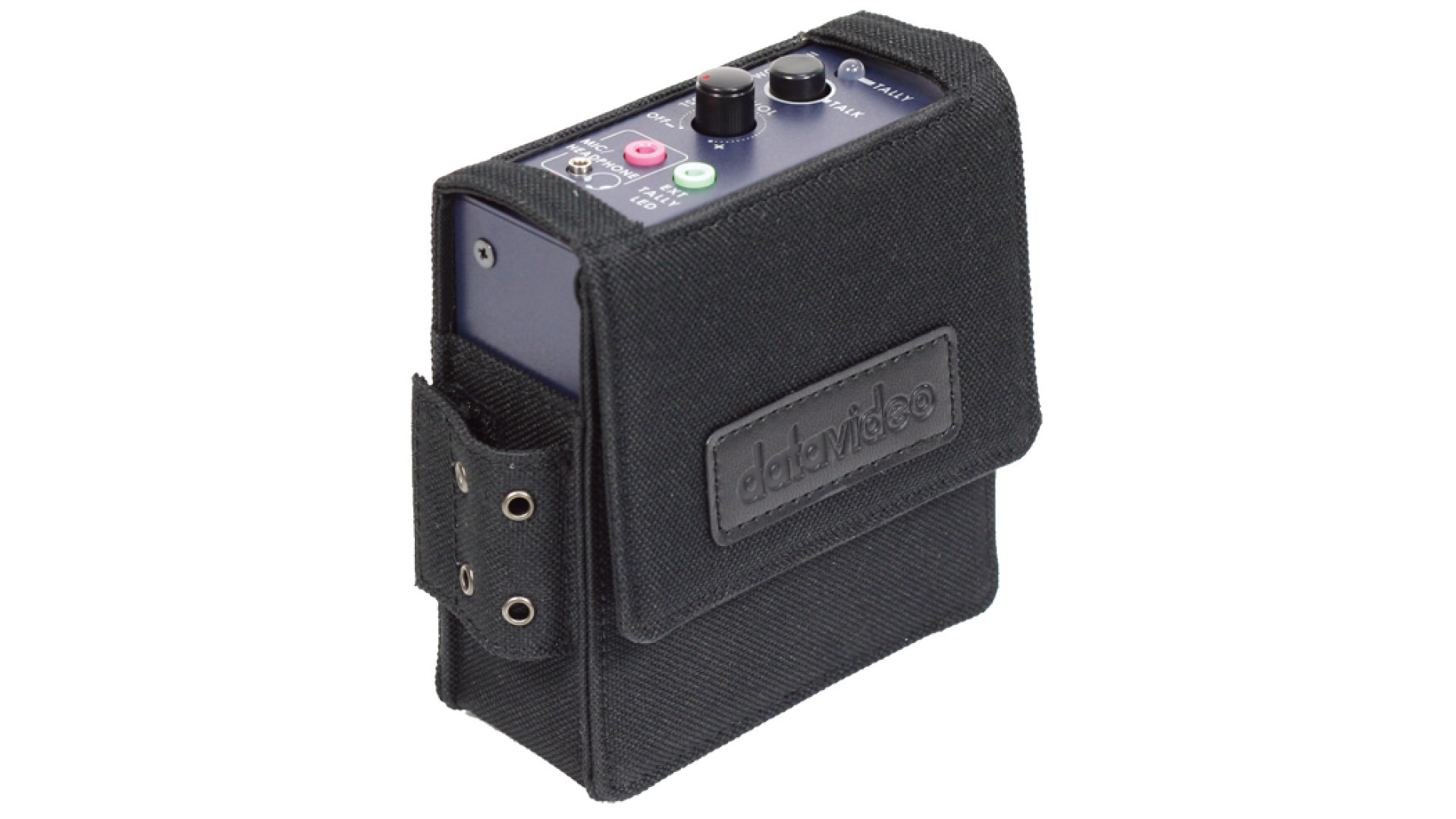

4 x ITC-100SL Carry Case

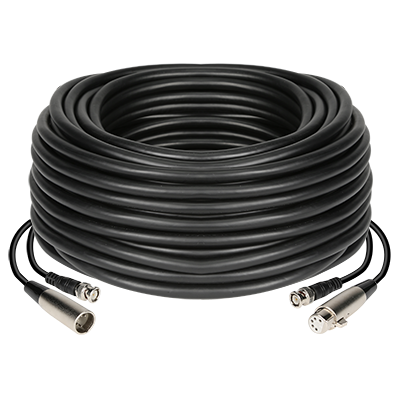

4 x Cable 5piin XLR to XLR
4 x 3.5mm Jack to 3.5mm Jack Cable
4 x Headset with microphone

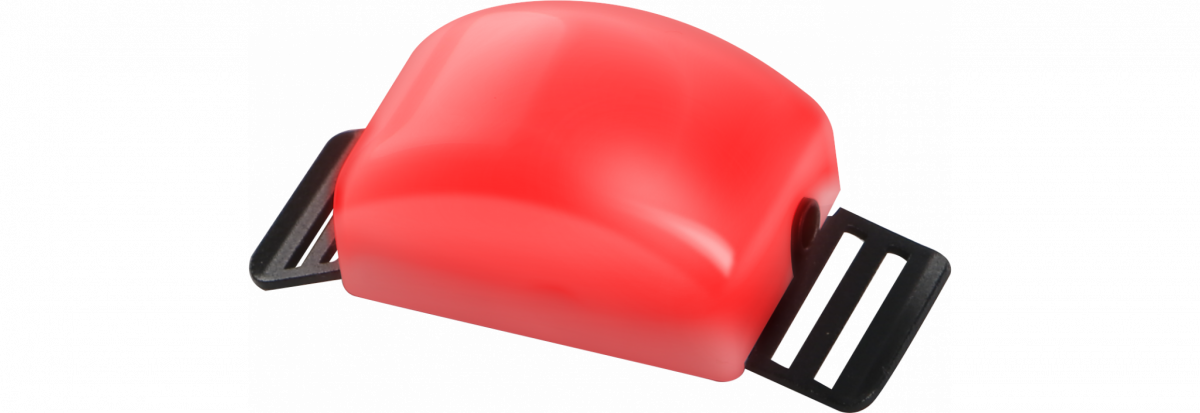

4 x Tally LED Indicator
1 x XLR Gooseneck Microphone
1 x XLR Gooseneck Light
1 x 12V 1A Power Supply Unit
