AD-200

6-Channel Audio Delay/Mixer with Level Adjustment
Audio Mixing and Management

6-Channel Audio Delay/Mixer with Level Adjustment

AD-200

Two in one: Audio Mixer and delay

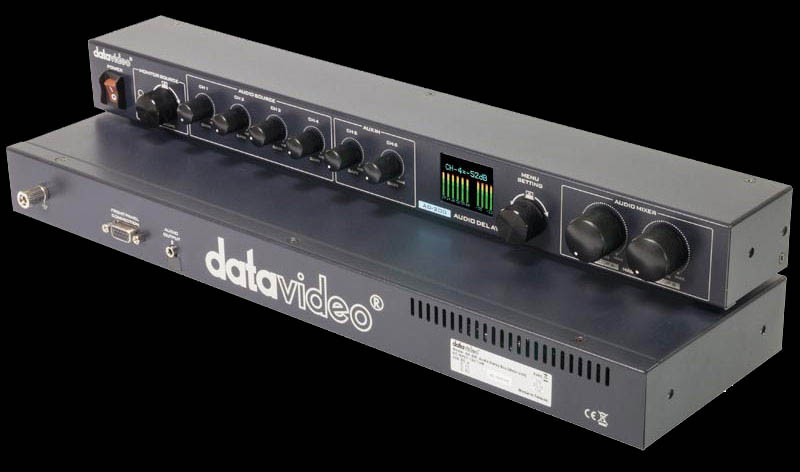

Support up to 3 sec audio delay adjustment for each input channel

Support up to 3 sec audio delay adjustment for each input channel

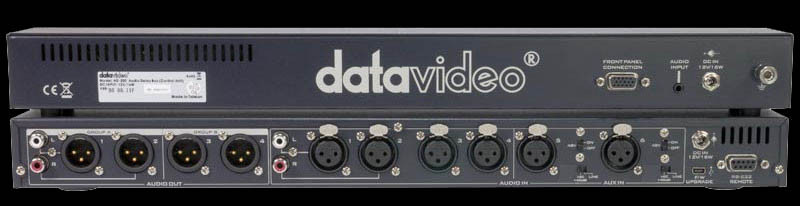

6-CH Audio mixer and matrix router to 4-CH audio outputs

6-CH Audio mixer and matrix router to 4-CH audio outputs

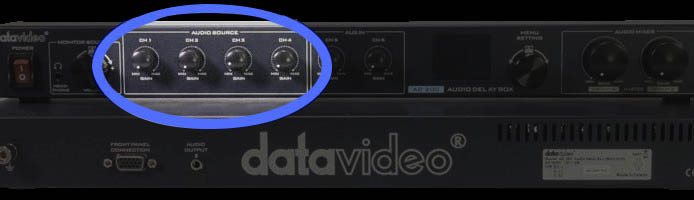

Audio level adjustment of each input

Audio level adjustment of each input

Tutorial videos created specifically for the AD-200

Datavideo Academy is a comprehensive learning platform established by Datavideo Technology. As a professional Broadcast and AV equipment manufacturer, Datavideo Technology is not only committed to providing quality products to users, but also has the responsibility to help users learn to operate Datavideo products.

Through the Datavideo Academy platform, users can easily master the operation of Datavideo products and experience the unique design of Datavideo products, further creating a variety of applications and bringing a good user experience. Now, a tutorial video for the AD-200 is available at Datavideo Academy to help you get the best performance out of the product. Please click on the following link.

Where to Buy?

   Find an authorized reseller

6-Channel Audio Delay/Mixer with Level Adjustment

COMPARE MORE PRODUCTS
Model Number
AD-200
Audio Input
6x XLR, 2x RCA
Audio Output
4x XLR, 2x RCA, 1x 3.5mm
Audio Indicator
1.77" Color OLED
Audio Delay
Up to 3000ms
Audio Sample Rates
48 KHz
Special Feature
Audio Delay and Mix, delay by channel
Chassis
2 units, rack-mount mainframe
Power
DC 12V 19W (front)
DC 12V 16W (rear)
Dimension (LxWxH)
440 x 126 x 42 mm
Weight
1.8 kg
Operating Temp. Range
0~40 °C
What's in the Box
1 x AD-200 main unit
1 x AD-200 control unit
1 x AD Switch DC 12V
1 x D-SUB cable, Male to MALE,Cable
1 x 3.5mm Stereo Cable, 1.2m
4 x 1U rack kit
16 x Screws M4 x 8mm
