RP-65

Rear panel with VP-445, SDI BNC
Racks and Rack Panels

Rear panel with VP-445, SDI BNC

RP-65
USD $629.00

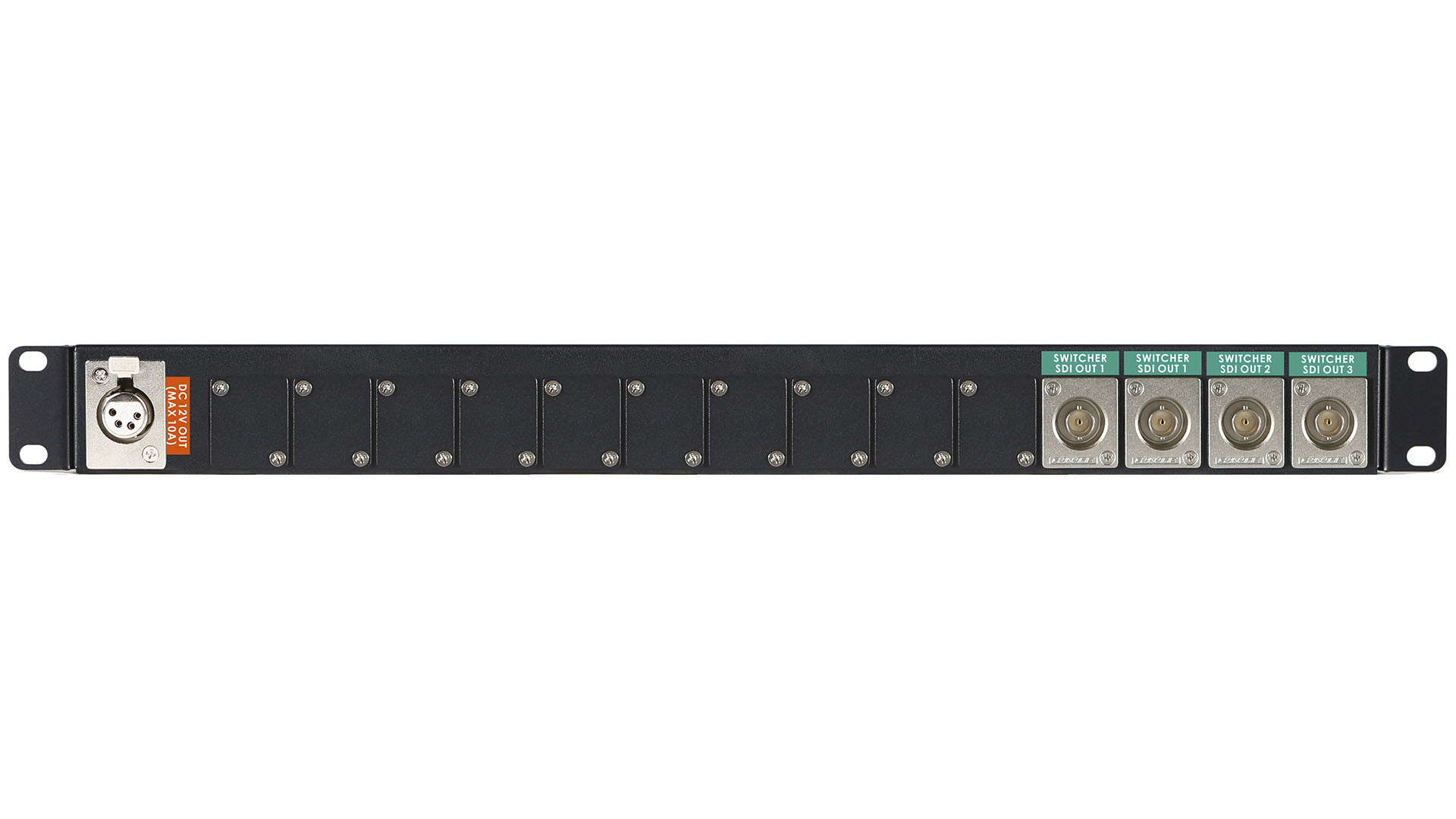

The RP-65 is a rack-mount HD/SD-SDI Output Distribution Rear Panel that can be installed into the OBV-2800+CCU-100OB VAN Studio System to provide up to four SDI output terminals.

The RP-65 includes a VP-445 HD/SD-SDI distribution amplifier, which takes three User-Defined SDI Outputs from the SE-2800 and distributes it to four SDI outputs.

The power is supplied from the PD-2A Power Center and the RP-65 in turn powers the RP-66. Please refer to the system diagram for details on the physical connection.

Rear panel with VP-445, SDI BNC

COMPARE MORE PRODUCTS
Model Number
RP-65
Output Interface
4 x HD/SD-SDI Output
Operating Temperature
0°C to 40°C (32°F to 102°F)
Operating Humidity
10% to 90% (non condensing)
What's in the Box
1 x RP-65
