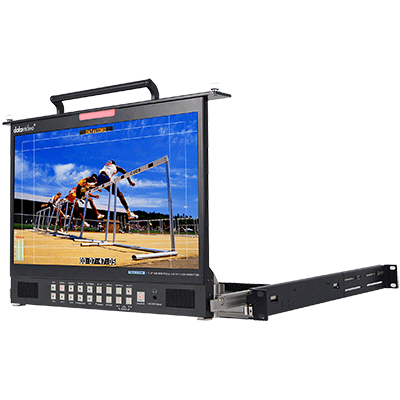

17.3" HD/SD TFT LCD 1U Foldable Rackmount Monitor

TLM-170PM
Add product to compare

TLM-170PM

-

Screen
17.3" LED Backlit
-
Chassis
1RU Pull-Out
-
Resolution
1920x1080
-
Viewing Angle
(H) +80/-80°
(V) +60/-80°
-
Luminance/Contrast
400cd/m²
600:1
-
Video Inputs
1x 3G/HD/SD-SDI
2x HDMI
1x HD/SD-YUV
2x Composite Video
-
Loop Through
1x 3G/HD/SD-SDI
1x Composite Video
-
Supported Input Resolutions
1080p(23.98/24/25/30/50/59.94/60Hz),
1080i(50/59.94/60Hz),
720p(50/59.94/60Hz),
576i(PAL), 480i(NTSC)
-
Aspect Ratio
16:9, 4:3
-
Aspect Marker
YES
-
Safty Marker
YES
-
Tally LED
Live (Red)
Cued (Green)
-
Audio In/Out
Embedded Audio on SDI and HDMI
3 x Mono RCA Inputs Stereo Speakers
-
Special Features
3G-SDI Support, Picture-in-Picture, Blue
Only, Audio Level Indicator, Safe Frame,
Pixel Zoom up to 8x, Network IP Remote,
SDI Time Code Display
-
Dimension (WxHxD)
485.8 x 492.7 x 44.5mm
-
Weight
8.2 kg
-
Operating Temp. Range
0~40 °C
-
Power
DC 12V, 30W
-
What's in the Box
1 x TLM-170P product
1 x AD DC 12V with Power Cord
8 x G0911D501011 M5*10mm Screw
-
