HS-1600T MARK II

4-Channel HD/SD HDBaseT Portable Video Streaming Studio
HDBaseT
EUR €6,150.00
Mobile Cast

4-Channel HD/SD HDBaseT Portable Video Streaming Studio

HS-1600T MARK II
EUR €6,150.00
HDBaseT

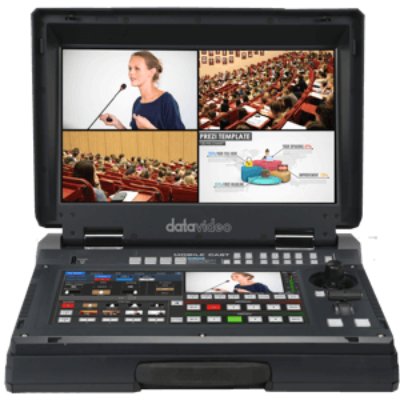

HS-1600T MARK II product image

The HS-1600T MARK II brings a new level of simplicity to production workflows. You'll set up faster and easier thanks to its portable "briefcase" design and HDBaseT Technology. And thanks to its built-in H.264 web streaming encoder, you can stream your show to virtually any CDN like YouTube and Facebook in no time.

HS-1600T MKII 360° Product View

The HS-1600T MKII features a built-in, web-ready recorder. Simply insert an SD card, and you'll have video files that can be immediately uploaded to your preferred video platform or website.

Auto Tracking Camera Control

We're thrilled to announce a major firmware update for the HS-1600T MARK II Video Switcher, featuring impressive AutoTracking features. You can easily track speakers with multiple cameras and also multiple, unique presenters making it truly a single operator solution for complex productions.

Pair it up with Datavideo tracking PTZ cameras for a complete auto tracking workflow!



**If you have a previous HS-1600T MARK II model without the Auto Tracking feature, please contact your local Datavideo office for a firmware update along with the new label for the control surface.

Variety of video (4:4:4 10-bit) and audio inputs/outputs

  • 4 video inputs (RJ-45 x 3 + HDMI x 1)
  • 4 video (HDMI x 3)+HDBaseT outputs
  • Video Sampling in 4:4:4 10-bit
  • Audio inputs: XLR Analogue x 2 + RCA Analogue (L/R) x 2
Variety of video (4:4:4 10-bit) and audio inputs/outputs
Made with HDBaseT Technology

Made with HDBaseT Technology

Camera connections typically require one cable for video, a second cable for power, and a third one for control. However, the HS-1600T MARK II is able to do all of the above using only one ethernet cable for each camera.

This increase in flexibility greatly reduces setup time, and now you can mount the camera in challenging locations (like spots without nearby power outlets)

Built-in camera control

Built-in camera control

The HS-1600T MARK II's next generation design saves you time, money, and table space with its built-in camera control interface for up to 3 Datavideo PTZ cameras.

(Works with PTC-140T and PTC-150TL)

Built-in H.264 recorder for SD cards

The HS-1600T MARK II comes with a built-in web-ready recorder. Simply insert your SD card, and you'll have video files that can be immediately uploaded to the video network of your choice or to your website.

Built-in H.264 recorder for SD cards
Dual Stream encoder to Facebook Live, YouTube, Twitch, and more

Dual Stream encoder to Facebook Live, YouTube, Twitch, and more

With the built-in H.264 streaming encoder, you can stream your show to two different streaming plateforms virtually any CDN including Facebook, YouTube or Twitch in no time.

Direct Access to Auto Tracking Features

Gain immediate access to the auto tracking feature using a range of external controllers.

Beyond traditional camera controls, activating auto tracking on the HS-1600T MARKII is also straightforward and convenient.


Smart PTZ Speed Adaptation

The integrated PID algorithm is able to detect the movement speed of the identified object and automatically adjust the camera's corresponding pan, tilt and zoom speeds in such a way that the lens movement will be smooth, avoiding common camera lens movement problems like jerky movements or unpredicted halts.

Quick Access to Framing Options

All Datavideo PTC Camera with AutoTracking include the RMC-1AT controller. User can quickly select full-body , half-body and close up framing, making it easy to change the shooting scene and framing requirements.


Custom AI Object Tracking

If you are filming multiple people, you can designate a person for Auto tracking. Once linked to the camera, only the designated person will be tracked, avoiding interferences such as the desks, people coming back and forth, large objects, etc.

3 Speed Settings: Fast, Medium, and Slow

Auto-tracking can be set to operate at three different speeds: Fast, Medium, and Slow. This flexibility supports various filming techniques used in broadcasting, ensuring that PTZ cameras can match the dynamic video effects presented by professional video cameras.

17.3'' LED Backlit Monitor

17.3'' LED Backlit Monitor

Built-in Monitor Display. 17.3” HD TFT LED backlit monitor with resolution 1920x1080 pix.

Support SRT streaming protocol, no need to worry about unreliable network environment

Many broadcasters have experienced pixelated video during live streaming, often due to unstable network environments caused by bandwidth volatility.

Streaming RTMP over unreliable, low-bandwidth networks can cause issues.

With dvCloud, you can now replace the RTMP protocol with SRT, which will fix most streaming issues you may have.

SRT is better than RTMP because it handles problematic networks more efficiently. It requires less bandwidth, and it solves data errors faster.

As a result, your viewers will experience a better stream, with less buffering and pixelization.

Seamlessly compatible with dvCloud

Get the most out of your streaming hardware using DVCloud. The HS-1600T MARK II is seamlessly compatible with Datavideo’s DVCloud service.

This subscription service give you the possibility of sending your stream to multiple destinations at the same time without having to have multiple hardware encoders.

You can also record your production on the DVCloud platform in h.264 format. After recording you can directly use this recording to upload it to your favourite content platform.

Direct SRT streaming to dvCloud prevents hickups and lag in your stream, especially when using slow or unreliable internet connections or when streaming large distances (for instance to the other side of the globe). Even if your destination does not support SRT you can still stream SRT to dvCloud and go to the destination in RTMP.

Stream to 25 Platforms Simultaneously (dv Cloud Professional)

dvCloud Professional (please refer to www.dvcloud.tv for more info) can stream to 25 platforms simultaneously. It can stream to either different platforms or different channels of the same platform. Thus, even if your local network bandwidth is limited, you can still stream to multiple platforms at the same time with dvCloud.

Real Time Statistics

dvCloud provides powerful real-time statistics for all video sources and destinations so you can be sure every frame reaches its destination:

  • Monitor your video sources and be sure every frame makes it to the cloud
  • Leave nothing to chance, check your networks performance and adjust your streaming settings before you go live
  • Monitor your NVD-3X MARK II decoders and be sure every frame makes it to the decoder
  • Monitor your streaming destinations in real time with our easy-to-use traffic light system
  • All statistics are graphed, you can see the previous 10 minutes statistics.

Sign up now

For more information on DVCloud, please visit the product page or sign up directly www.dvcloud.tv

Build a reliable SRT live streaming workflow with all Datavideo products.

Build a reliable SRT live streaming workflow with all Datavideo products.

Datavideo's wide range of encoders, cameras, and hand-carry switchers are fully supported by SRT and dvCloud. Datavideo encoders and dvCloud provide reliable streams over unreliable networks. By using a Datavideo encoder and dvCloud together, you can utilize SRT (instead of RTMP) on the initial problematic connection or "First Mile." After your video stream reaches dvCloud, you can depend on dvCloud's reliable, high-bandwidth network to deliver the stream to your favorite destinations, like Facebook and YouTube.

Datavideo's Comprehensive HDBaseT Lineup

Experience a seamless live production future with Datavideo's exceptional HDBaseT products. HDBaseT technology facilitates robust connectivity through advanced digital networking over existing cable infrastructure. Discover the excellence of our HDBaseT cameras, which deliver stunning 4K video and dynamic Auto Tracking with precision. The HS-1600T MARK II switcher revolutionizes integration and control, making it simpler and more efficient. Datavideo's HDBaseT lineup enhances live production with the power of uncomplicated, high-performance connectivity.

PoE Compatibility List

HDBaseT Compatibility List

The chart above shows the product's direct compatibility with other HDBaseT products.

HDBaseT Certified List of Cables

Where to Buy?

Find an authorized reseller

4-Channel HD/SD HDBaseT Portable Video Streaming Studio

COMPARE MORE PRODUCTS
Model Number
HS-1600T MARK II
Video Standard
HD & SD
Video Format
1080p 50/59.94/60Hz
1080i 50/59.94/60Hz
720p 50/59.94/60Hz
576i/p 50Hz
480i/p 59.94Hz
Input Routable / Crosspoint
----
Video Input
3 x HDBaseT
1 x HDMI
Computer Graphic Interface
1 via HDMI
Down-converted Output
Yes
Video Output
3x HDMI PGM
1x HDBaseT PGM
1x STREAM (RJ-45)
Analogue Audio Input
2x Balanced XLR
1x Stereo RCA (L/R)
De-embedded Digital Audio
Analogue Audio Output
1x Stereo headphone
Digital Embedded Audio Support
Input 2 channels, Output 2 channels
Audio Delay Calibration
----
A+V Switching
----
USK
1x USK support Lumakey
DSK
----
Picture in Picture
1
Logo Insertion
----
Title Creator
----
Built-in Audio Mixer
Yes, 4 channels
Built-in Monitor Display
17.3” HD TFT LED backlit, 1920x1080 pix
Built-in Intercom & Tally
----

Streaming

Streaming
H.264 / AVC, Main/ High Profile
Configurable Bit-rate up to 10Mbps
Streaming Audio Encode
AAC-LC
Configurable bit rate range from 32Kbps to 384Kbps
Sample rate: 48KHz, 16bit
Streaming Protocol
TS over TCP/UDP (unicast & multicast)
RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming)
RTMP/RTMPS (Publish)
HLS
SRT
Streaming Control
Web browser UI for configuration and control Socket commands
Recording File System
FAT, exFAT, NTFS
Recording File Format
MP4
Streaming & Recording Setting Control
Web UI for system configuration and control

Others

Special Features
Built-in camera controller
Dimension (LxWxH)
455 x 355 x 134 mm
Weight
17.2 Lbs (7.8 kg), Reinforce Plastic Case
Power
DC 48V, 4.16A
Operating Temp. Range
0~40 °C
What's in the Box
1 x HS-1600T MARK II Product
1 x AD Switch DC 56V with AC Cord
3 x Ethernet Cable
