HP-1

Single Side Headset
Intercom Systems

Single Side Headset

HP-1
EUR €79.00
Features Media Workflow Specs Related Product Support

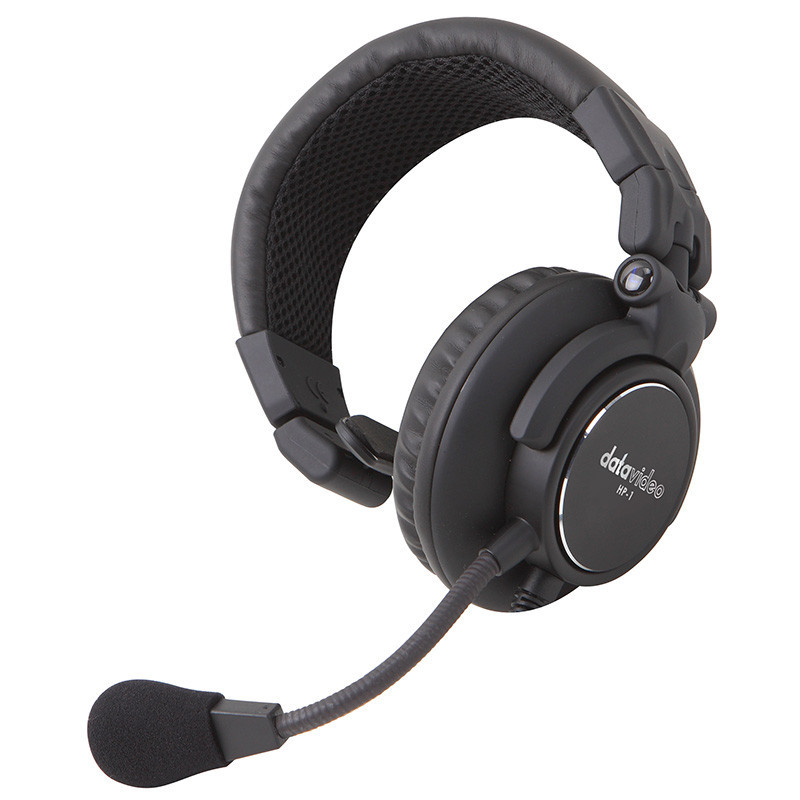

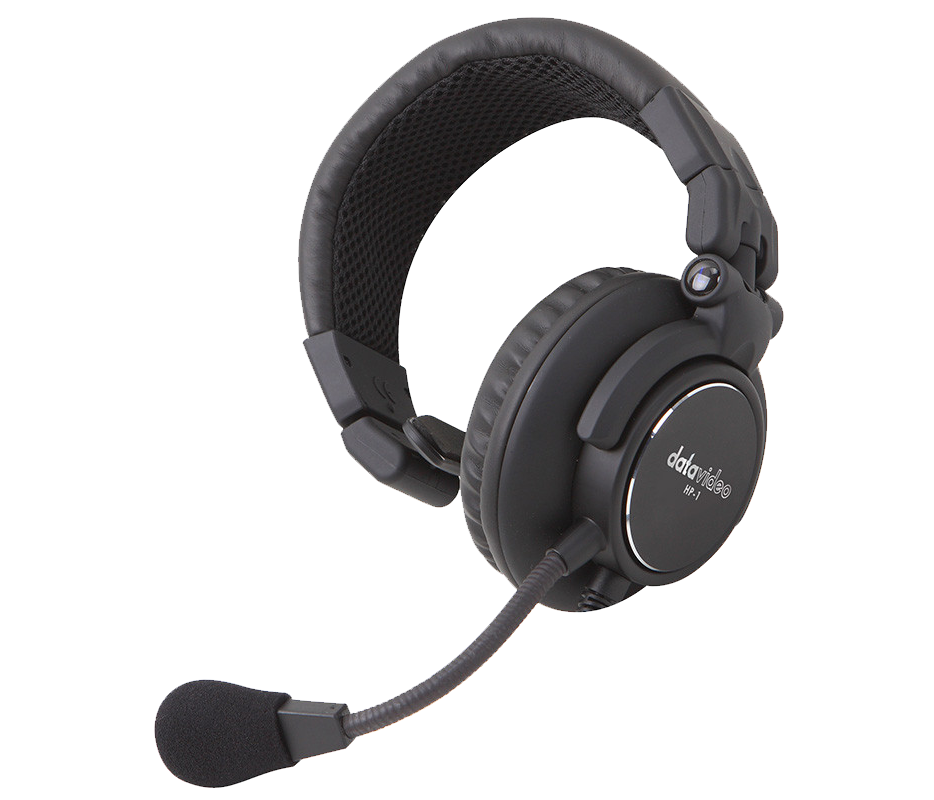

Single Side Headset

  • Single ear headset
  • Circumaural / Closed cans to avoid sound leakage - in and out
  • Ear pads are soft and comfortable for extended use
  • Noise cancelling microphone
  • Connection: x1 1/8" Audio/Microphone Connector

Headphone Specifications

  • Transducer Principle: Dynamic
  • Operating Principle: Closed
  • Transmission Range: 10Hz-22KHz
  • Nominal Impedance: 24 Ohms
  • Nominal SPL at 1KHz: 98dB
  • T.H.D.: <0.2% (at 1KHz 100mW)
  • Nominal Power Rating: 100mW

Microphone Specifications

  • Transducer Principle: Condenser
  • Transmission Range: 20-16KHz
  • Polar Pattern: Omni-Directional
  • Nomal Impedance: 2.2 Kohms
  • Sensitivity: -64dB
SEE MORE

PRODUCT MEDIA


PRODUCT WORKFLOW


Single Side Headset

Model Number
HP-1
Transducer Principle
Dynamic
Operating Principle
Closed
Transmission Range
10Hz-22KHz
Nominal Impedance
24 Ohms
Nominal SPL at 1KHz
98dB
T.H.D.
<0.2% (at 1KHz 100mW)
Nominal Power Rating
100mW

Microphone Specifications

Transducer Principle
Condenser
Transmission Range
20-16KHz
Polar Pattern
Omni-Directional
Nomal Impedance
2.2 Kohms
Sensitivity
-64dB
