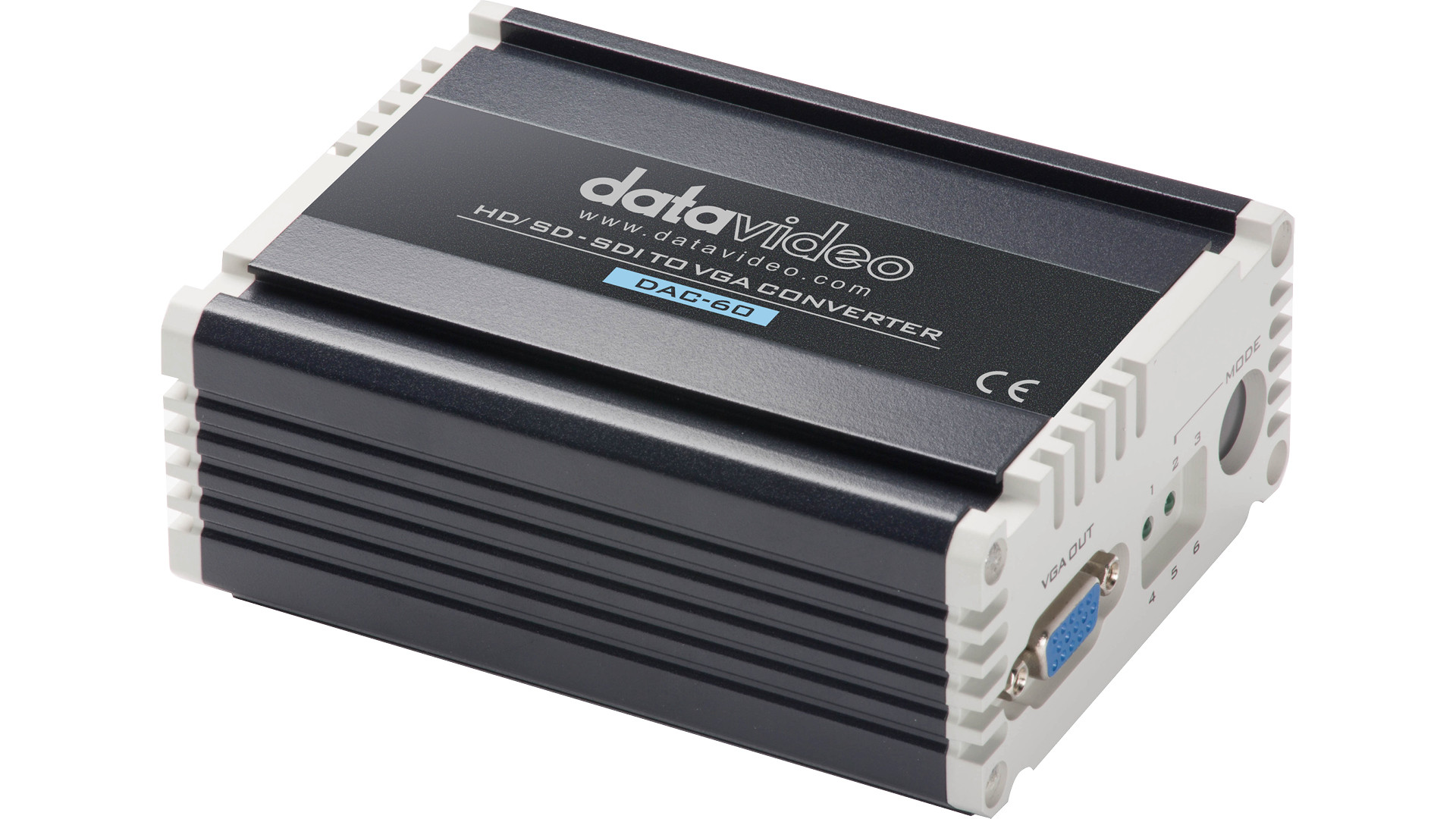

DAC-60

SDI to VGA Converter
EUR €415.00
Converters

SDI to VGA Converter

DAC-60
EUR €415.00

Wide Range Conversion for Great Compatibility

The DAC-60 supports 3G/HD/SD-SDI to VGA conversion, suits projector and LCD screen display really well.

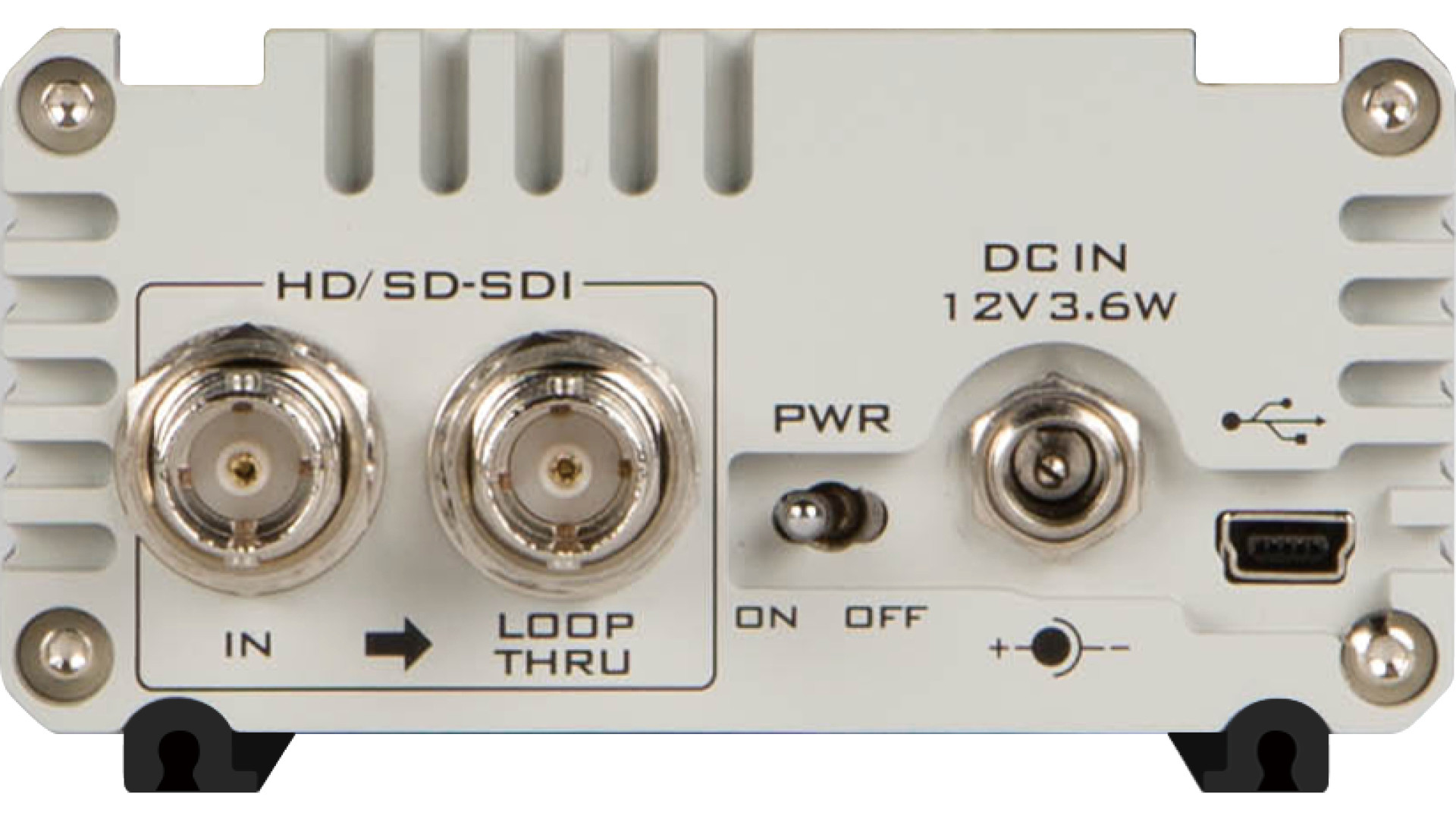

Independent SDI loop through

SDI loop through is unaffected by the adjustments of resolution setting to the VGA signal, users can connect the original video signal to other terminal device.

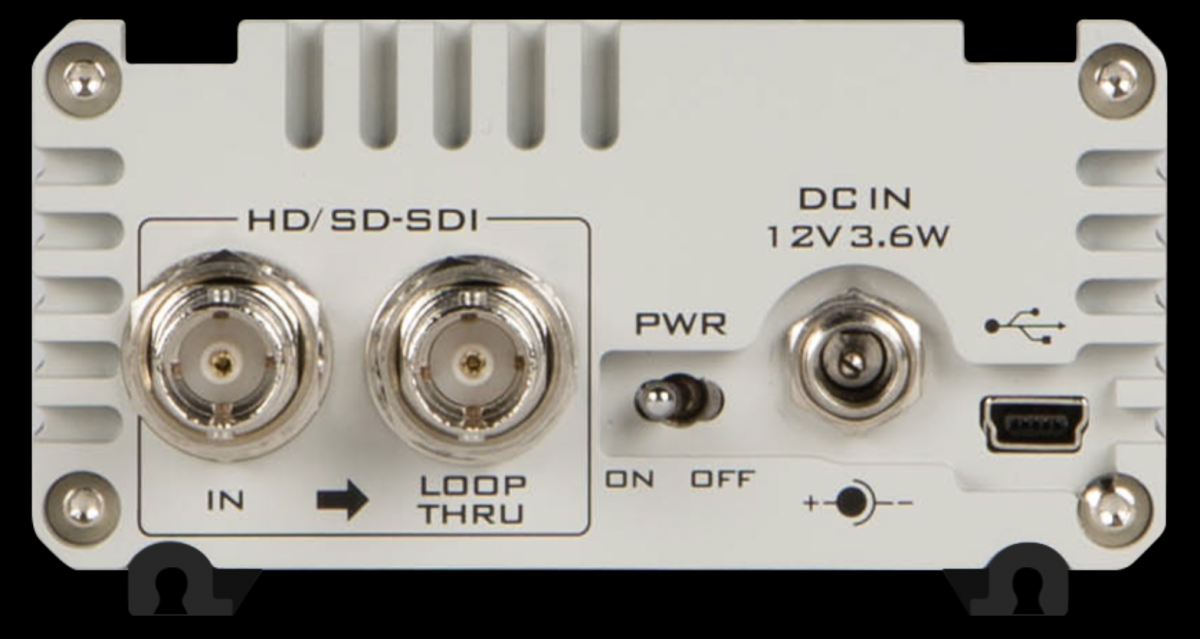

The DAC-60 supports 3G/HD/SD-SDI to VGA conversion

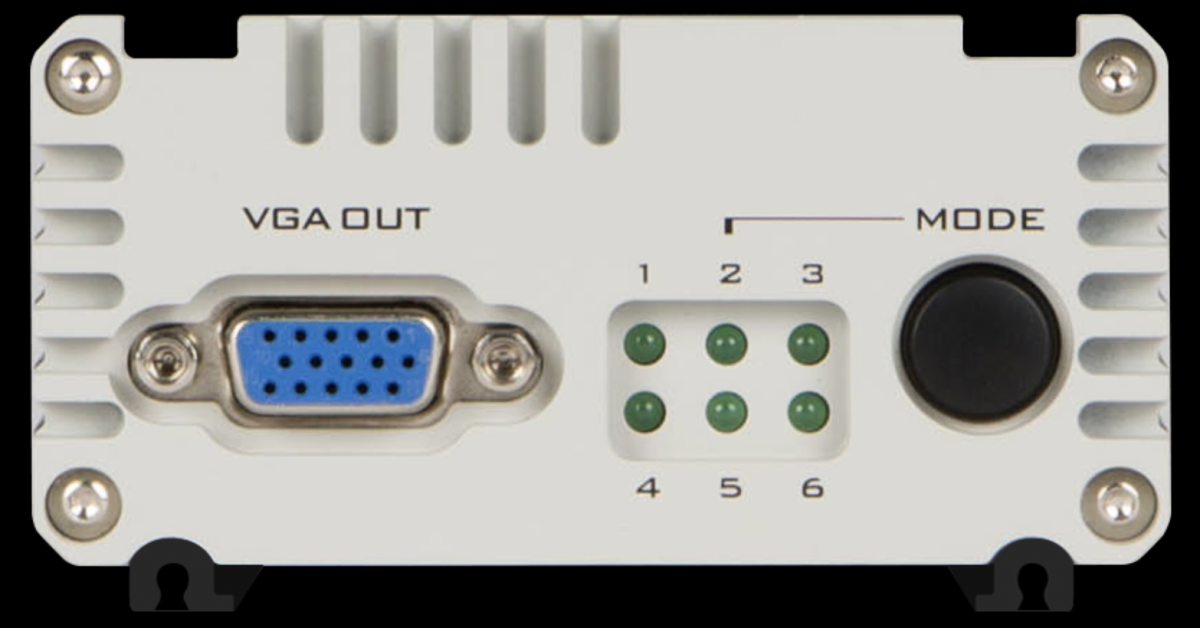

The DAC-60 supports 3G/HD/SD-SDI to VGA conversion

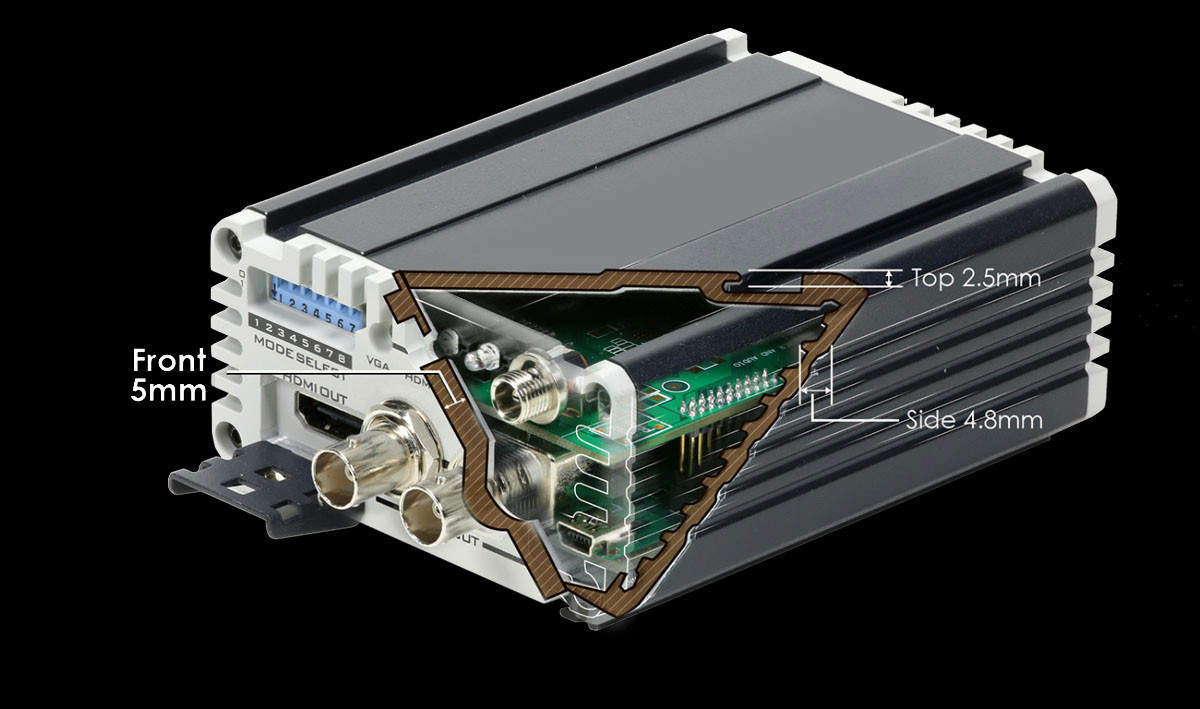

Aluminum Alloy and Heavy Duty Design

Aluminum Alloy and Heavy Duty Design

Super sturdy and durable. DAC series has a rugged metal housing for use in even the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.

Where to Buy?

   Find an authorized reseller

SDI to VGA Converter

COMPARE MORE PRODUCTS
Model Number
DAC-60
Conversion
3G/HD/SD-SDI to VGA
Video Inputs
1x 3G/HD/SD-SDI
Loop Through
Yes
Video Outputs
1x VGA
Audio Inputs
----
Audio Outputs
----
Audio Format Selection
----
Audio Gain
----
Supported Video Input Formats
1080p (23.98/24/25/29.97/30/50/59.94/60Hz),
1080i (50/59.94/60Hz), 720p (50/59.94/60Hz),
576i (PAL), 480i (NTSC)

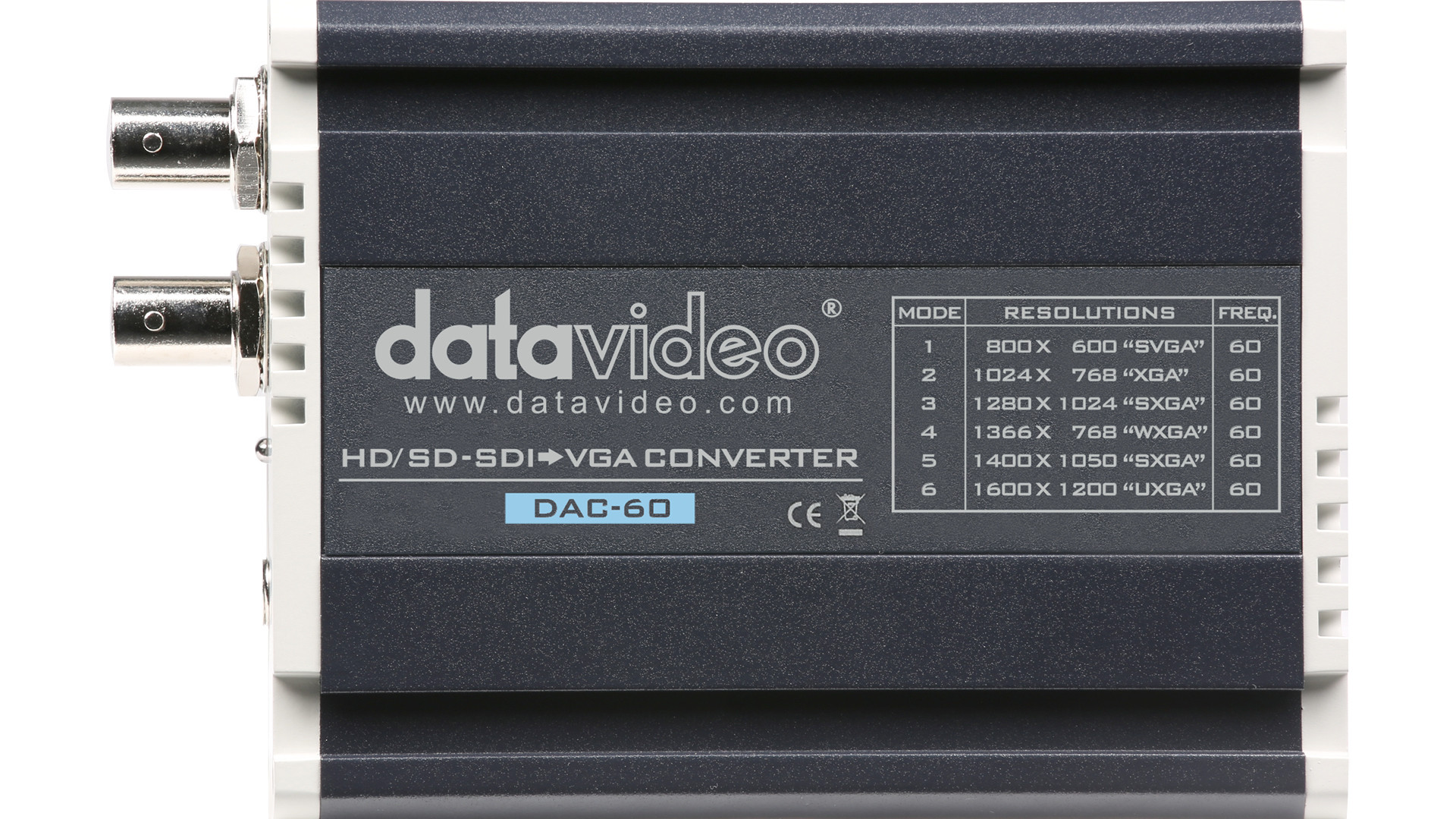

Output Resolutions
1920x1200 (60Hz), 1920x1080(60Hz), 1600x1200(60Hz), 1400x1050(60Hz), 1366x768(60Hz), 1280x1024(60Hz), 1280x800 (60Hz), 1024x768 (60Hz), 800x600 (60Hz)
Equalizer
Yes
Reclock
Yes
SDI Cable Drive
Yes
Updates and Configuration
Mini USB x 1
Dimension (LxWxH)
112 x 85 x 45 mm
Weight
0.4 kg
Operating Temp. Range
0~40 °C
Power
DC 12V, 3.6W
What's in the Box
1 x DAC-60 product
1 x AD Switch DC 12V

PRODUCT SUPPORT

03 Nov 2020 |

Can DAC-60 convert from 16:9 SDI to 4:3 VGA?

Does the DAC-60 take a 16:9 SDI signal and convert...
Learn more >
