TPC-700

Touch Panel Controller
EUR €985.00
Zubehör

Touch Panel Controller

TPC-700
EUR €985.00

The Best Assistant for all Datavideo Products

The Best partner for Datavideo 3200 series switchers, iCast 10NDI 5-Channel All-in-one Streaming Switcher, VGB-2000, VGB-4000 Pro Presentation System, DVK-400 4K Chromakey and TVS-2000A Tracking/Trackless Virtual Studio System.

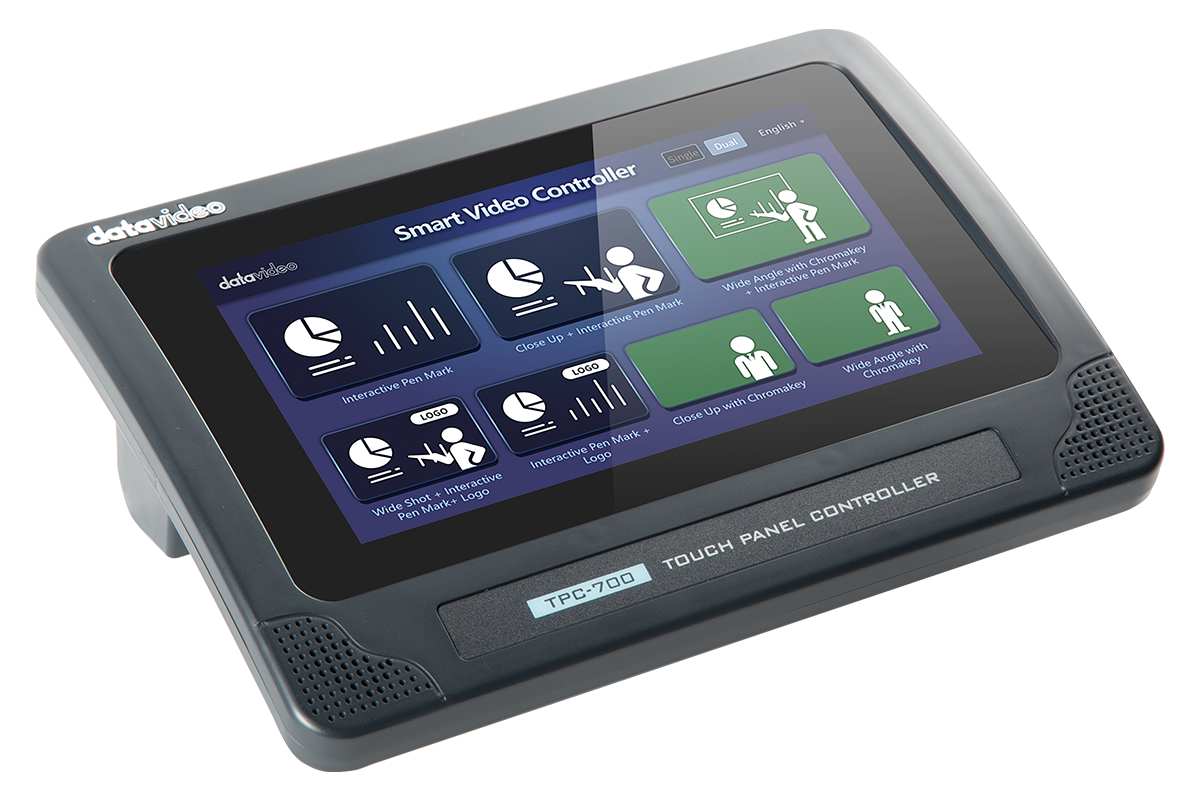

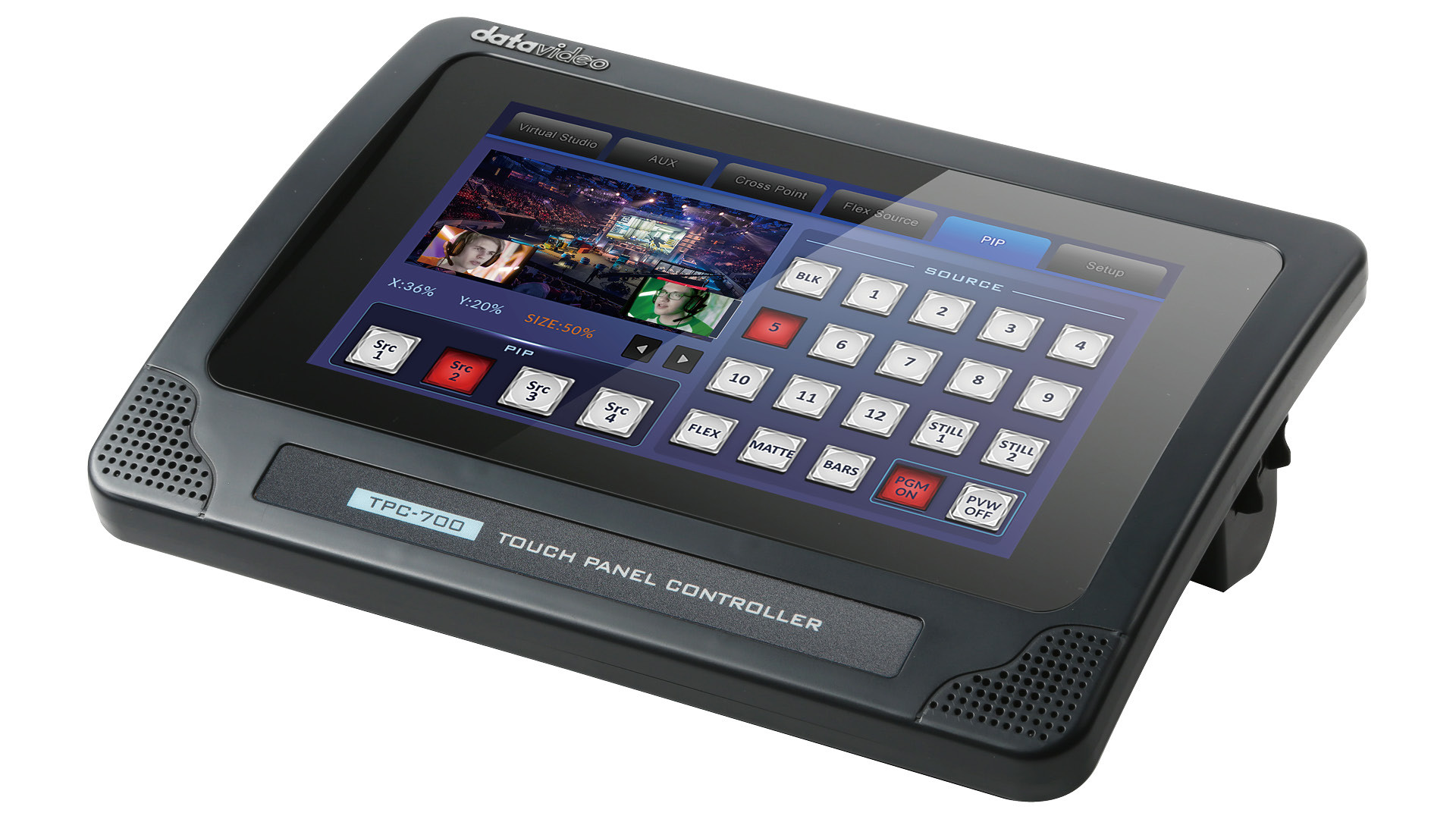

TPC-700 Touch Panel Controller

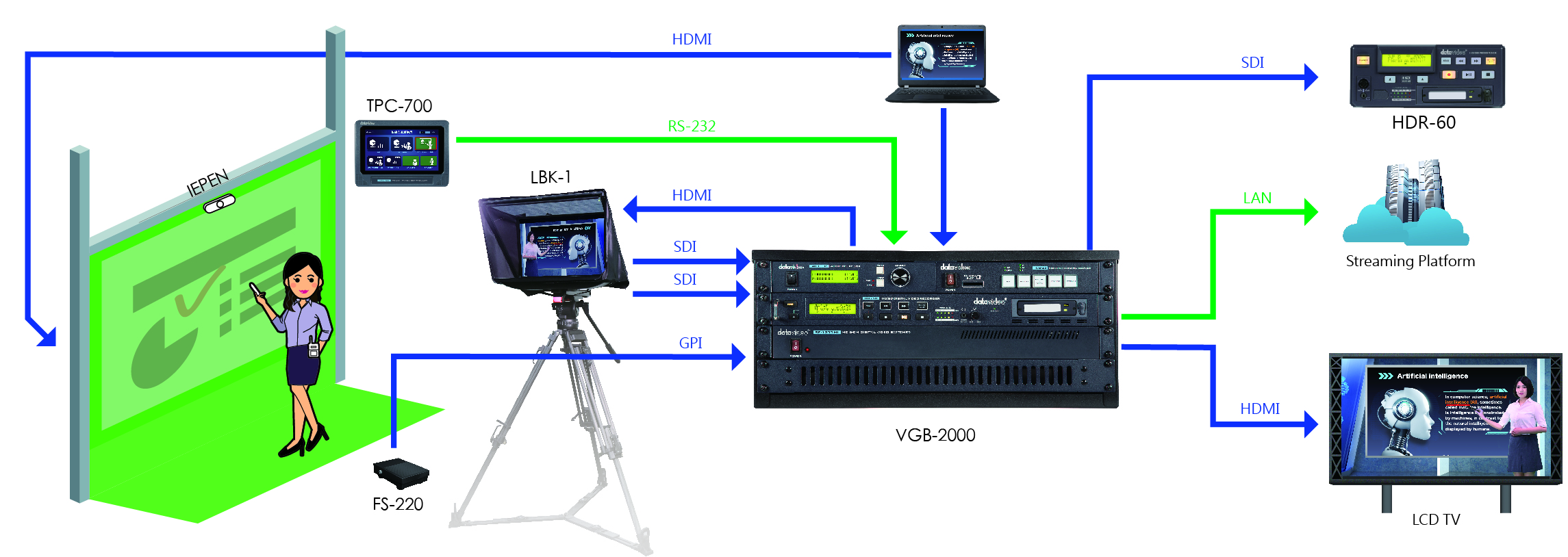

The best assistant for all 3200 switchers, VGB-2000 presentation system and TVS-2000A Virtual Studio System. The SE-3200, VGB-2000 and TVS-2000A Apps that are installed on the TPC-700 contain presets of common operation functions.

TPC-700 Touch Panel Controller

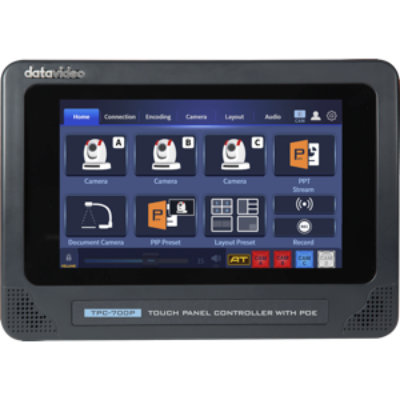

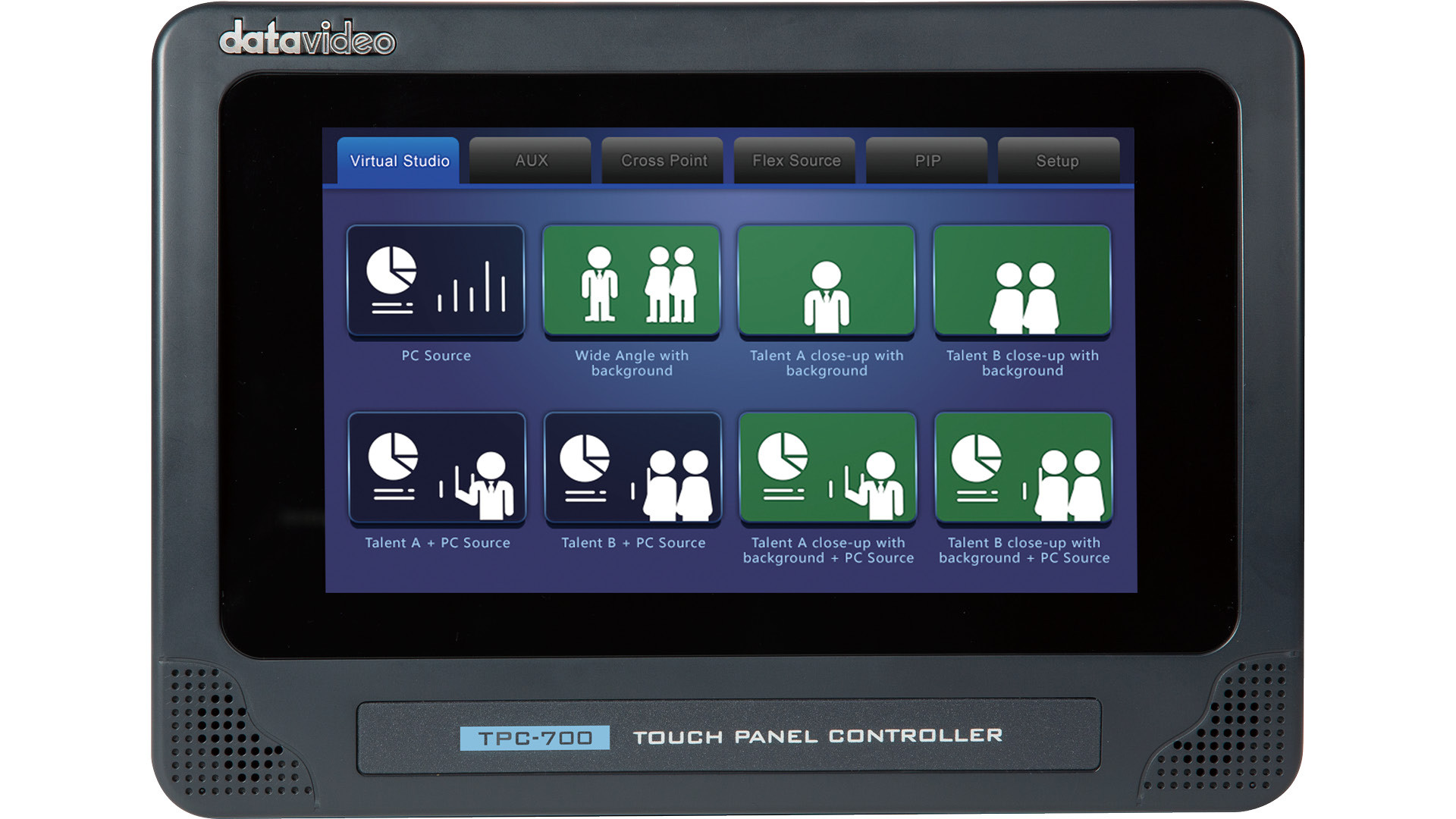

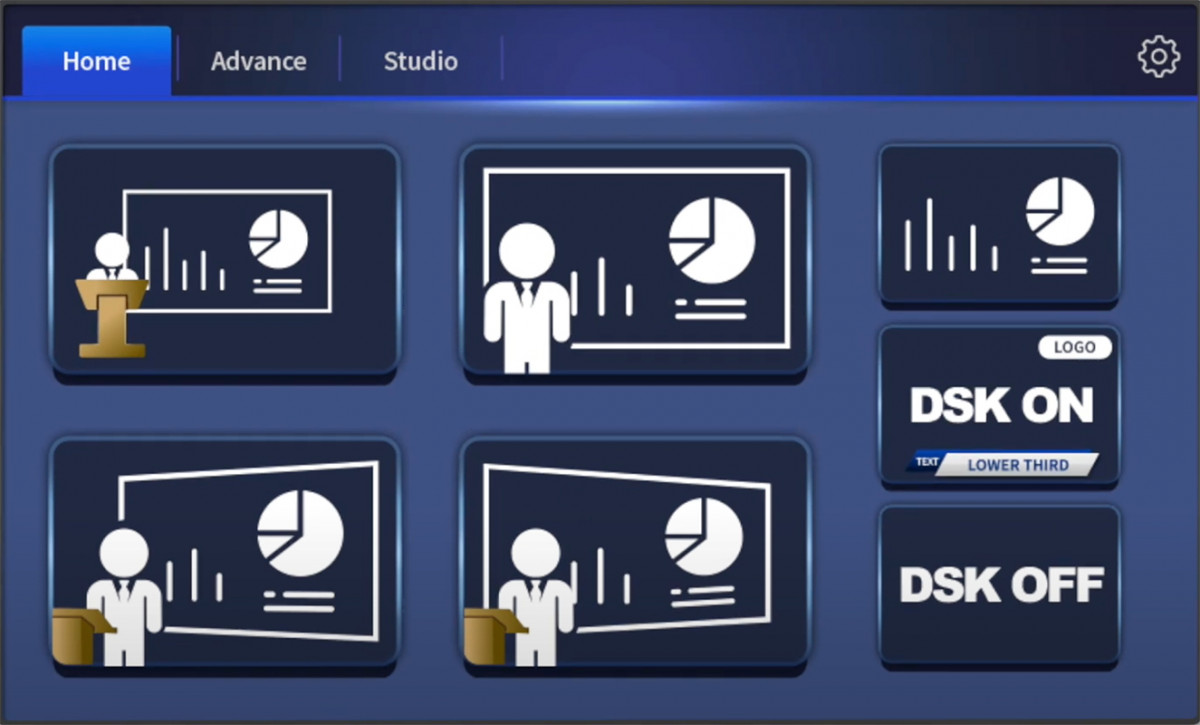

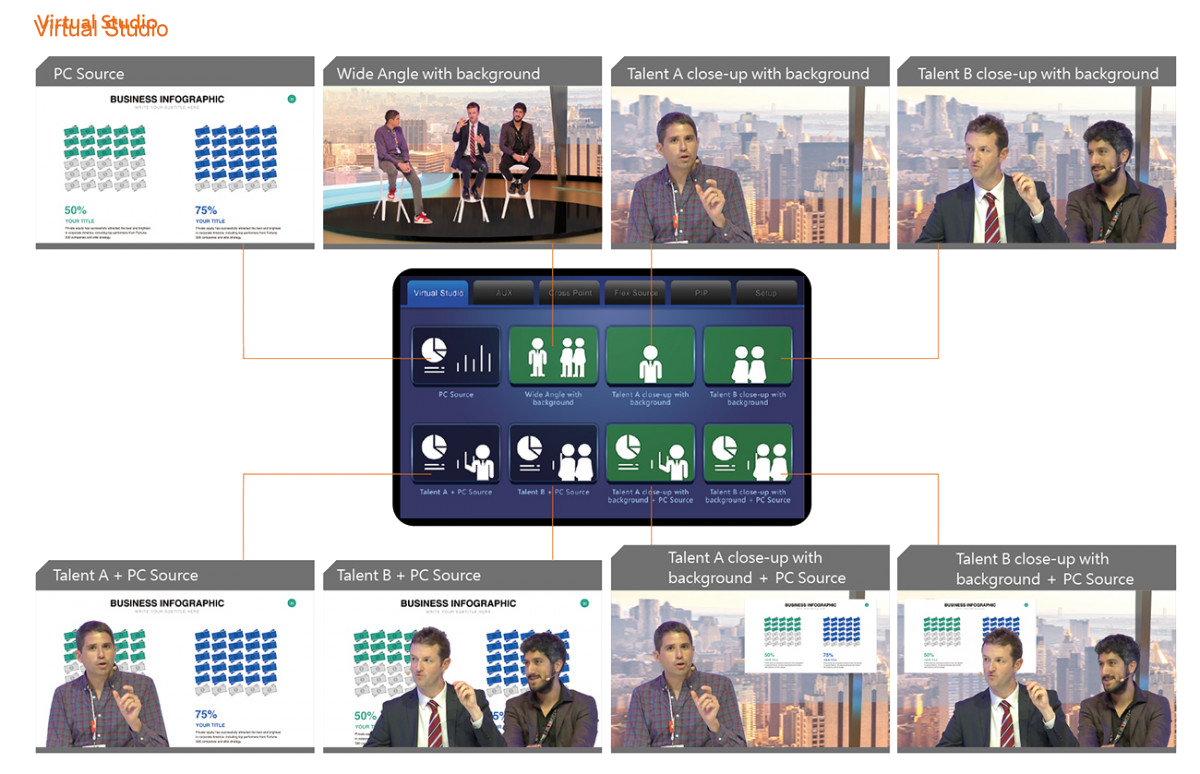

Touch-Panel-Design

Tippen Sie ganz einfach auf den Bildschirm, um verschiedene Voreinstellungen auszuwählen.
Touch-Panel-Design

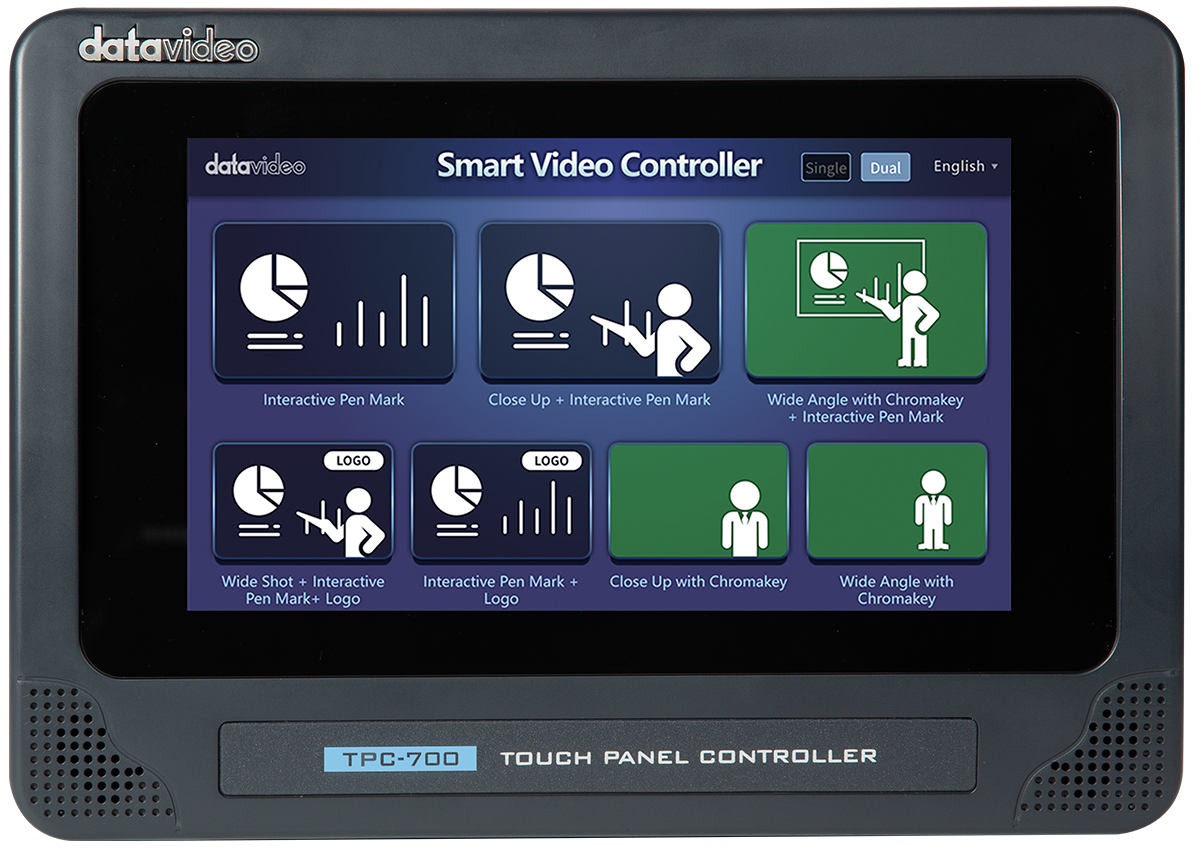

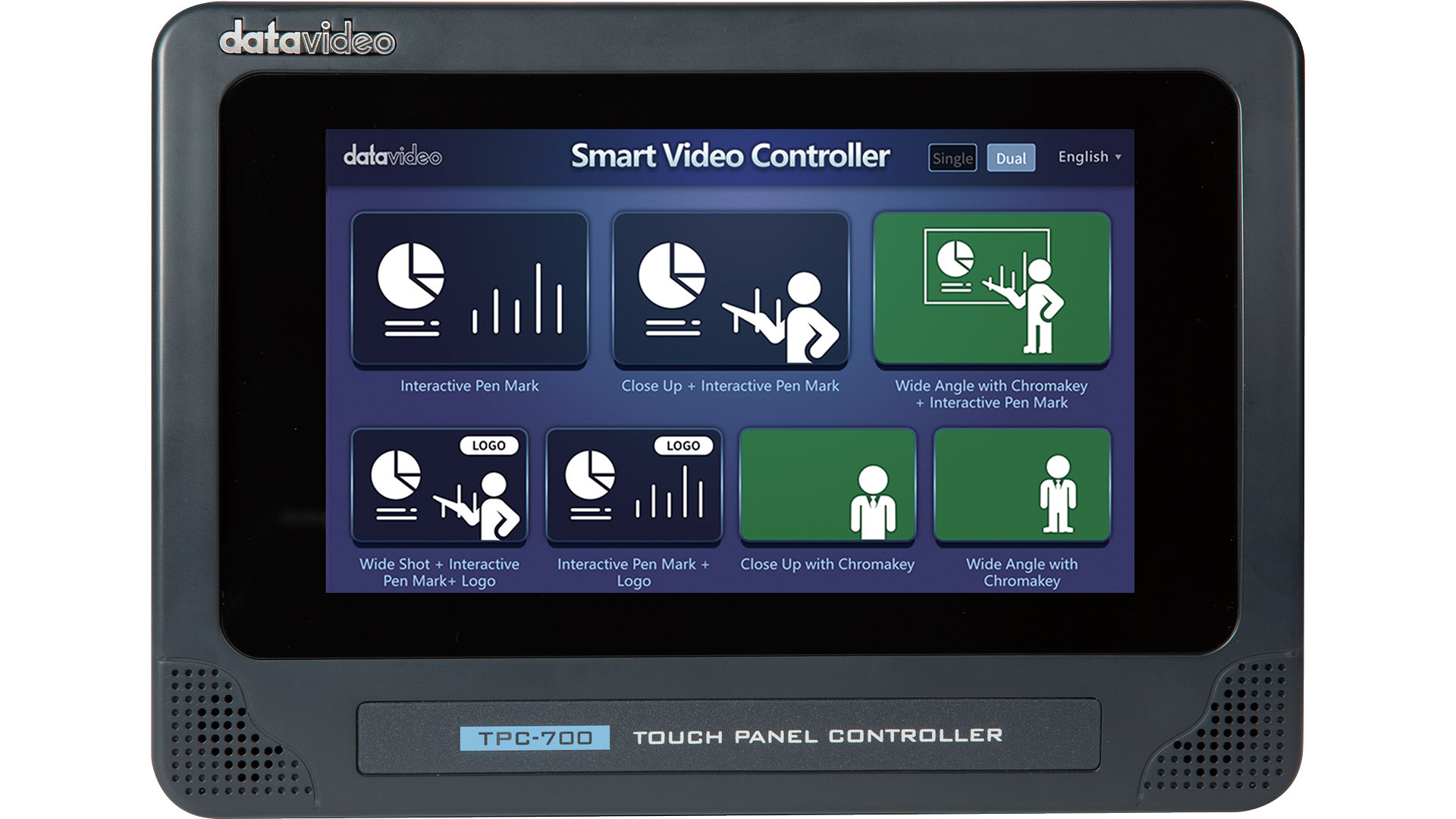

Passen Sie alle Tasten individuell an

Passen Sie alle Tasten individuell an

Jede Taste kann individuell nach Ihren Wünschen angepasst werden.

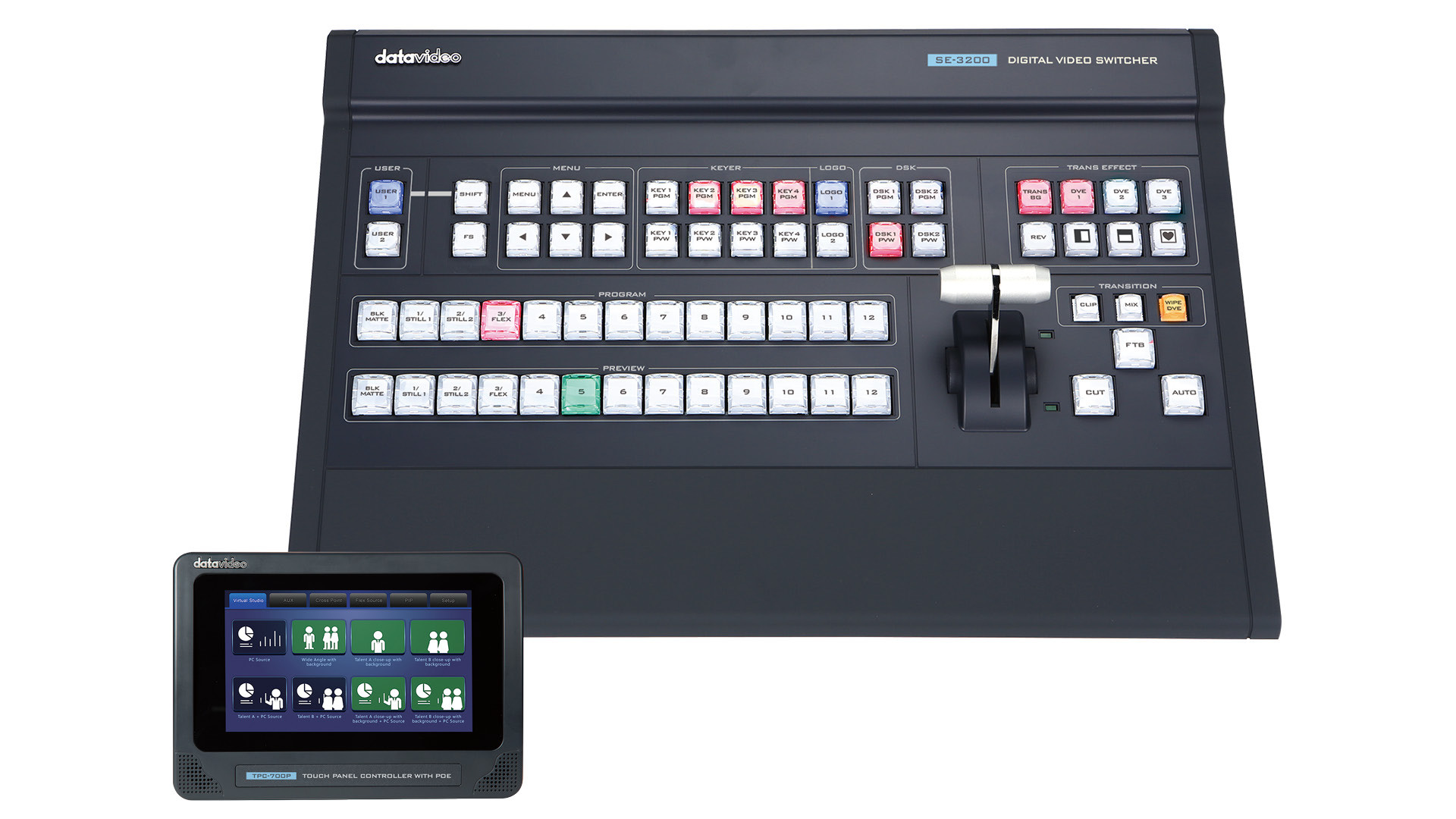

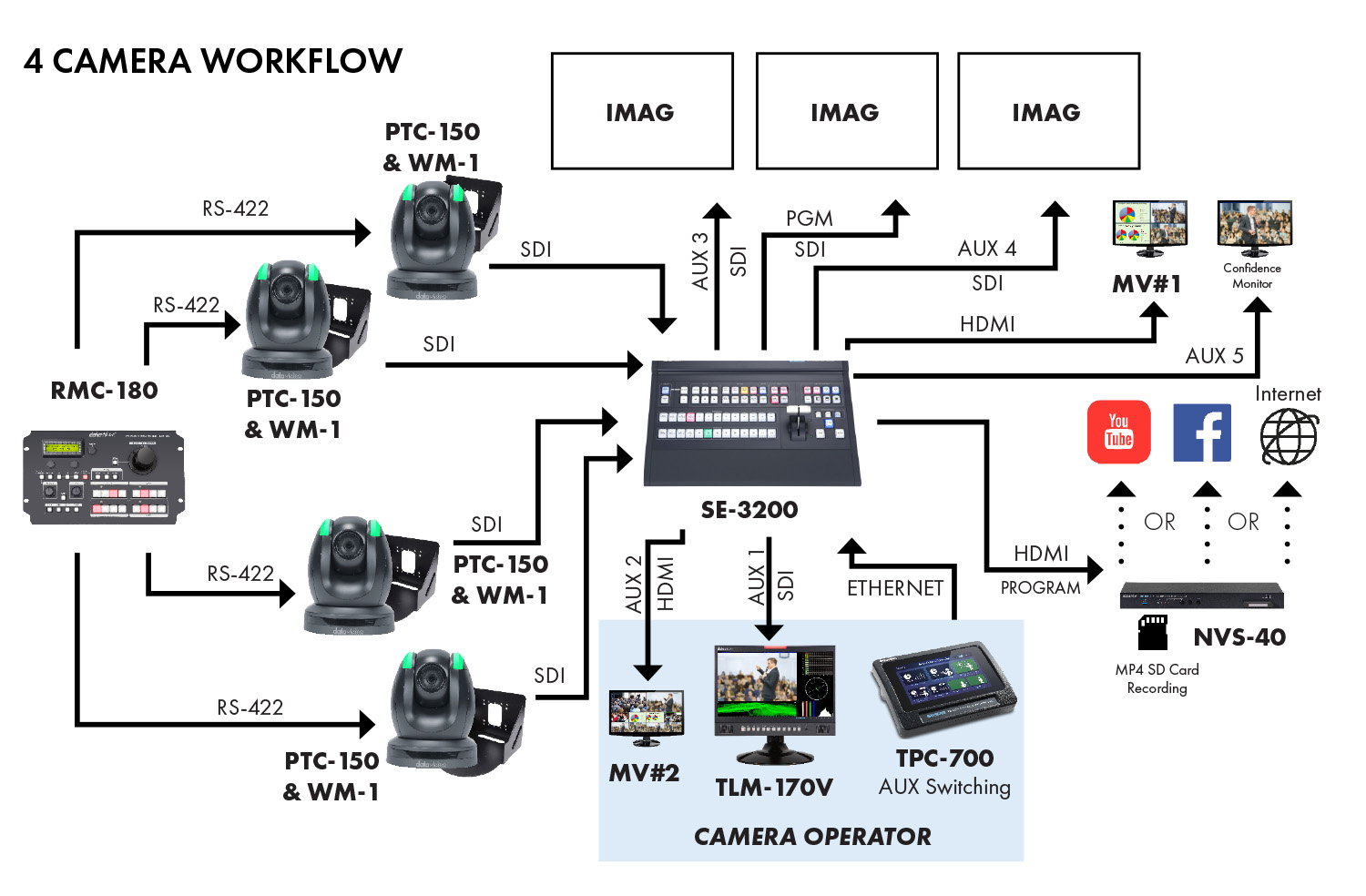

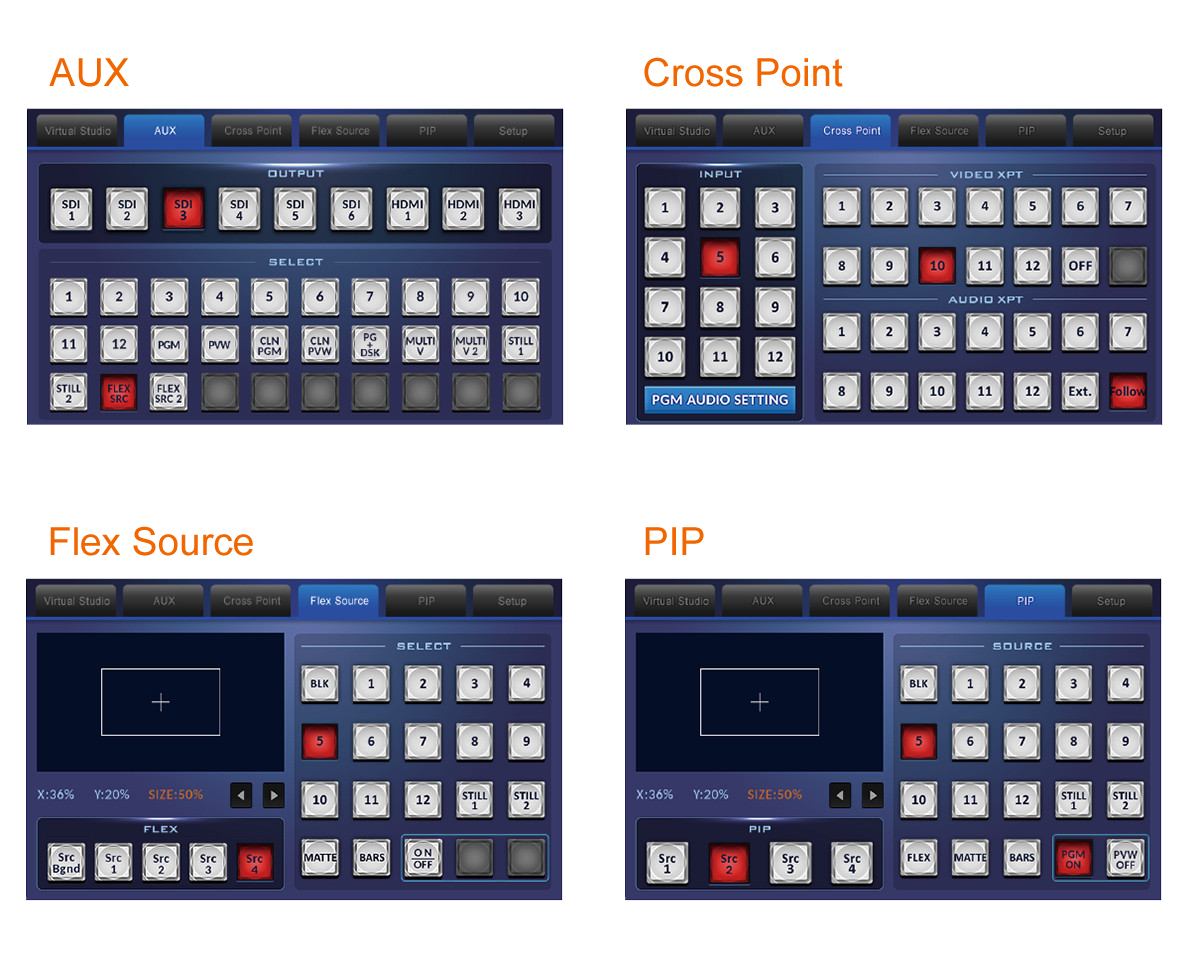

Das Setup eines 3200er Umschalters war noch nie so einfach

Virtueller Multi-Kamera-Studiowechsel, AUX-Ausgabe, Crosspoint (Kreuzpunktvergabe), Flex Source und PIP-Zuweisung: TPC-700 kann all das.
Das Setup eines 3200er Umschalters war noch nie so einfach

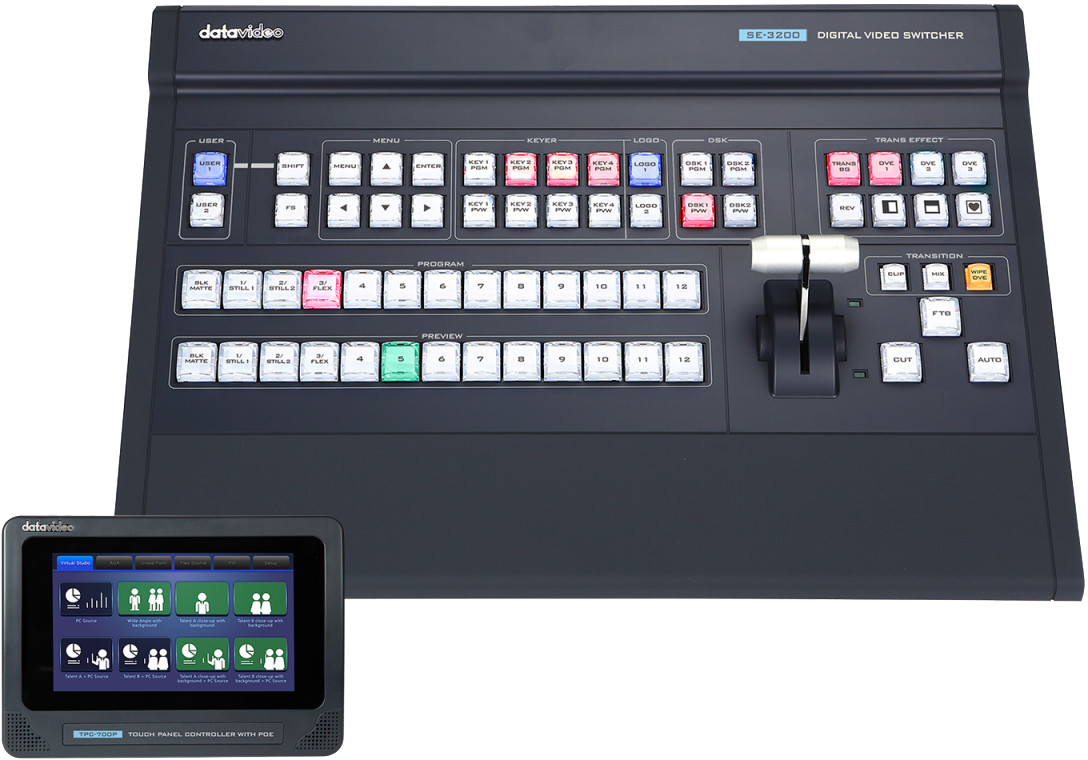

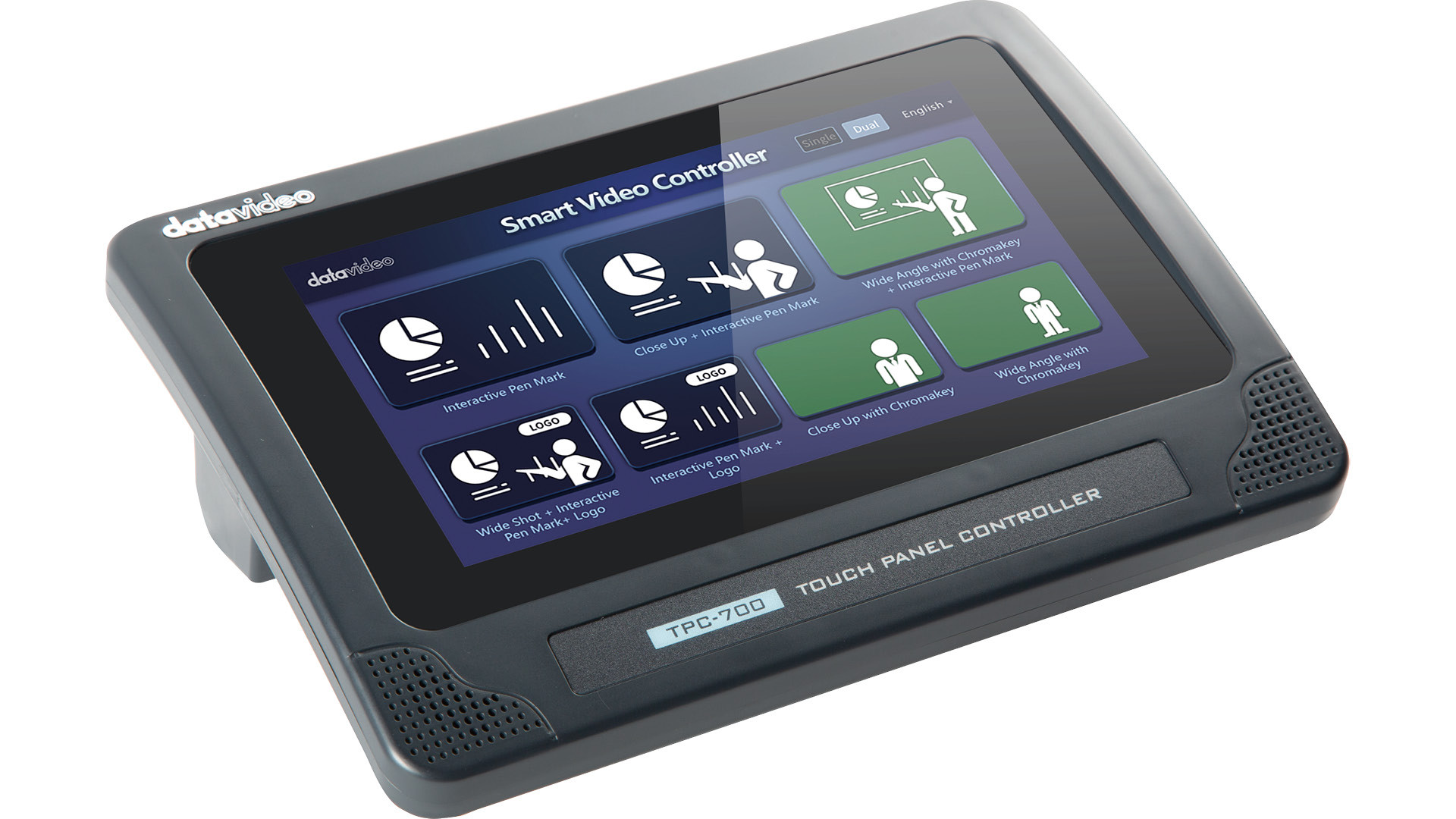

Kompaktes Design

Kompaktes Design

Einfacher Transport zu Ihrer Live-Produktion. Schnelle Verbindung. Einfache Installation.

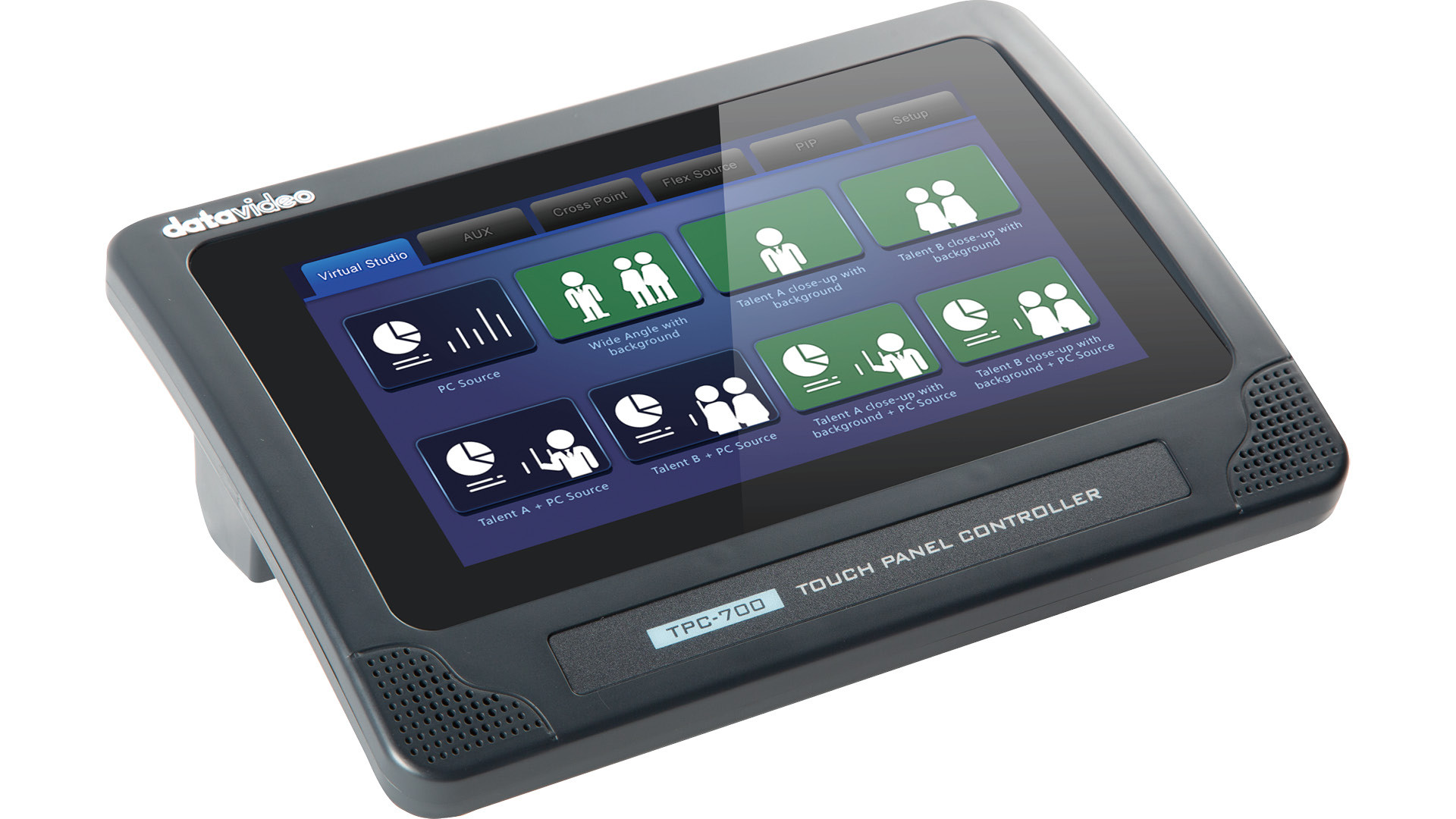

Easy Switch, Record and Live Stream

Datavideo TPC-700/TPC-700P is the best assistant for TVS-2000A Virtual Studio System.  The TVS-2000A App that are installed on the TPC-700/TPC-700P contain presets of common operation functions. The interface is easy to use and can be controlled with a few finger taps on the 7-inch touchscreen to easily select different presets – multi- camera Virtual Studio switching, downstream key, and virtual studio presets.  The Easy to live stream and record your virtual production show on the go.


Easy Change Virtual Studio

Datavideo TPC-700/TPC-700P allow user to install 4 virtual studios in the App.  Just tap your desired virtual scene mode directly from the TPC-700/TPC- 700P for recalling the corresponding virtual scene.

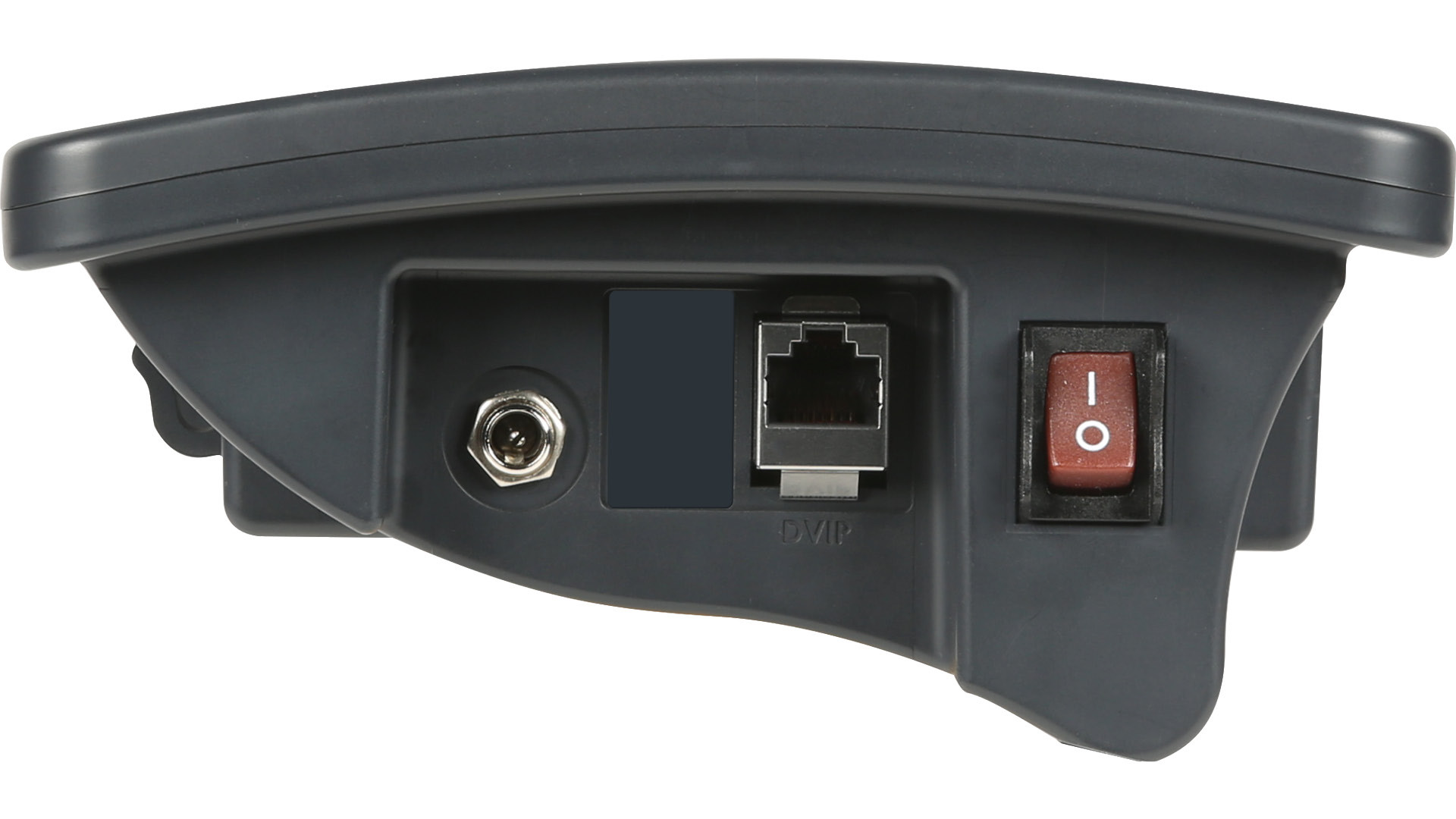

Compact and Easy Installation

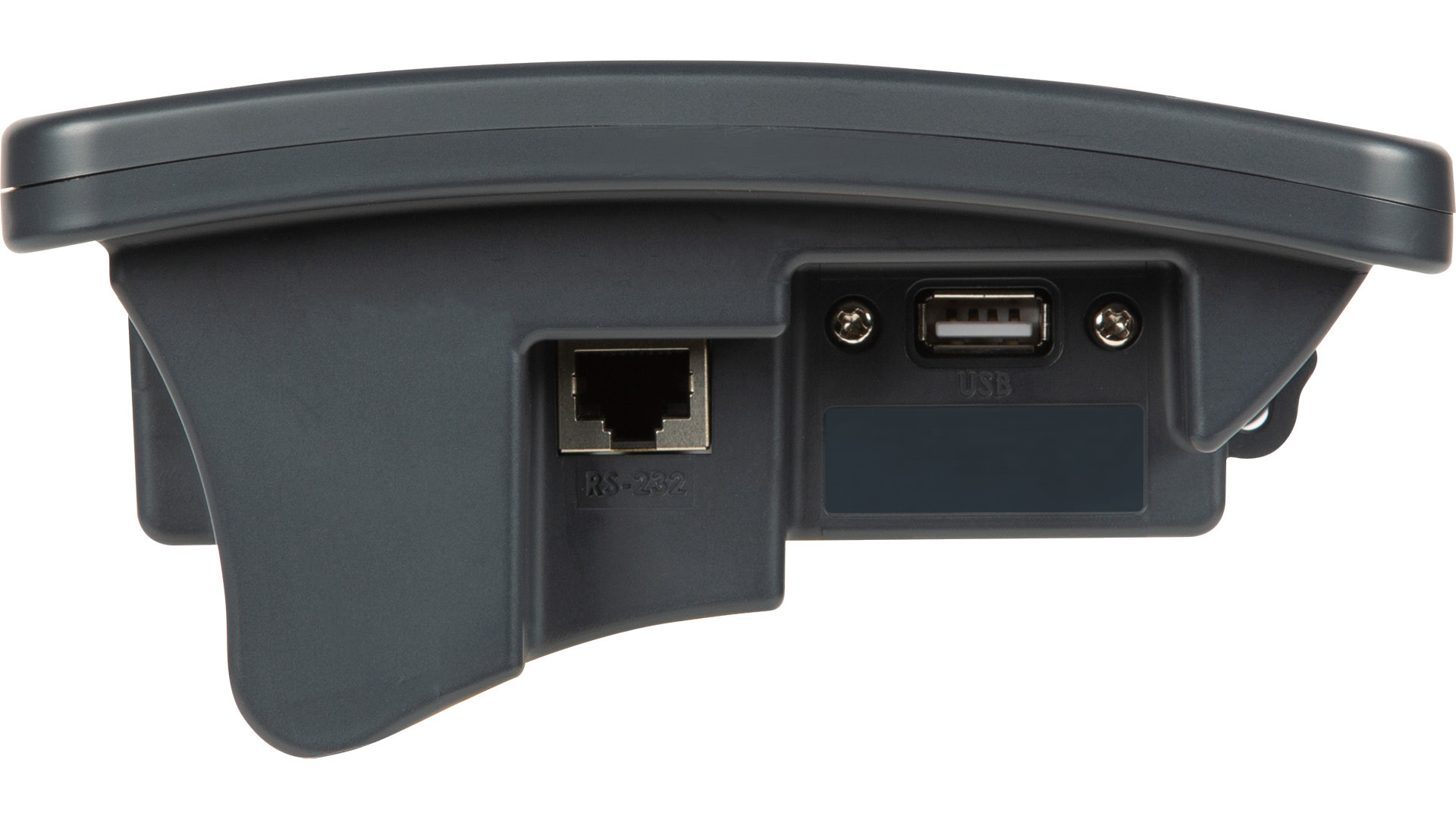

The TPC-700/ TPC-700P are compact designed.  User can apply a D-sub 9 pin to RJ-45 cable and a 9-pin female/female RS422 cable to connect TPC-700 and TVS-2000A system.  Quick connection. Simple installation.  The TPC-700P supports PoE power supply feature.

Learn More

Learn more about TPC-700, please visit:

www.datavideo.com/product/TPC-700

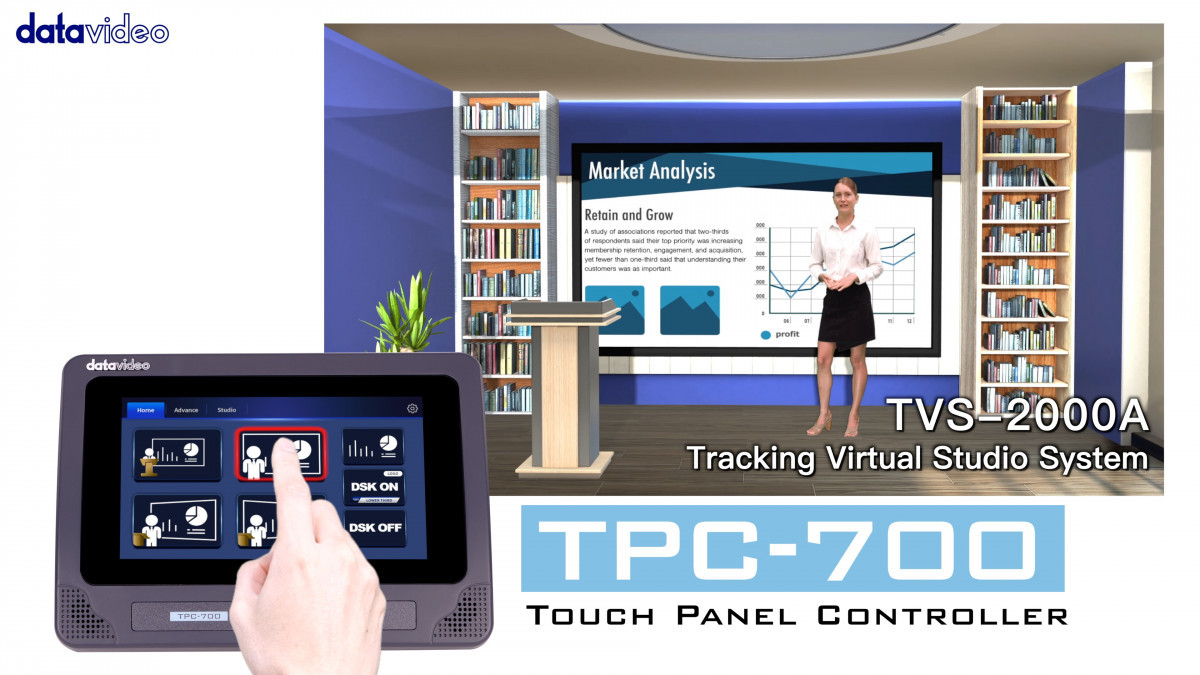

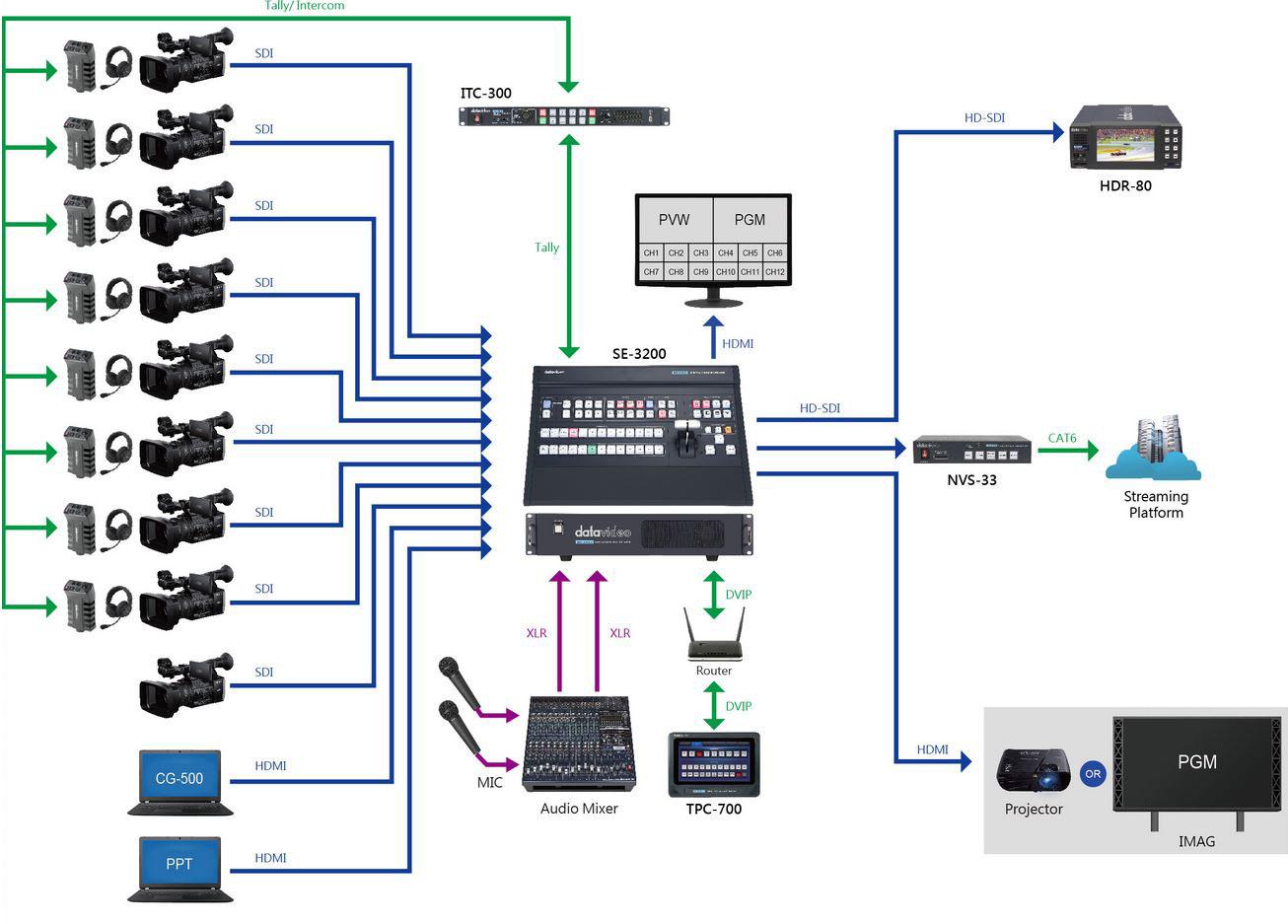

Easy Access of Switching Datavideo TVS-2000A Virtual Studio System by TPC-700 Touch Panel Controller

The Datavideo TPC-700 Touch Panel Controller provides easy access to control TVS-2000A Virtual Studio System. The App installed on the TPC-700 contains presets of standard operation functions. Users can easily switch different camera angles, start recording, live streaming, and overlay the title by applying TPC-700.

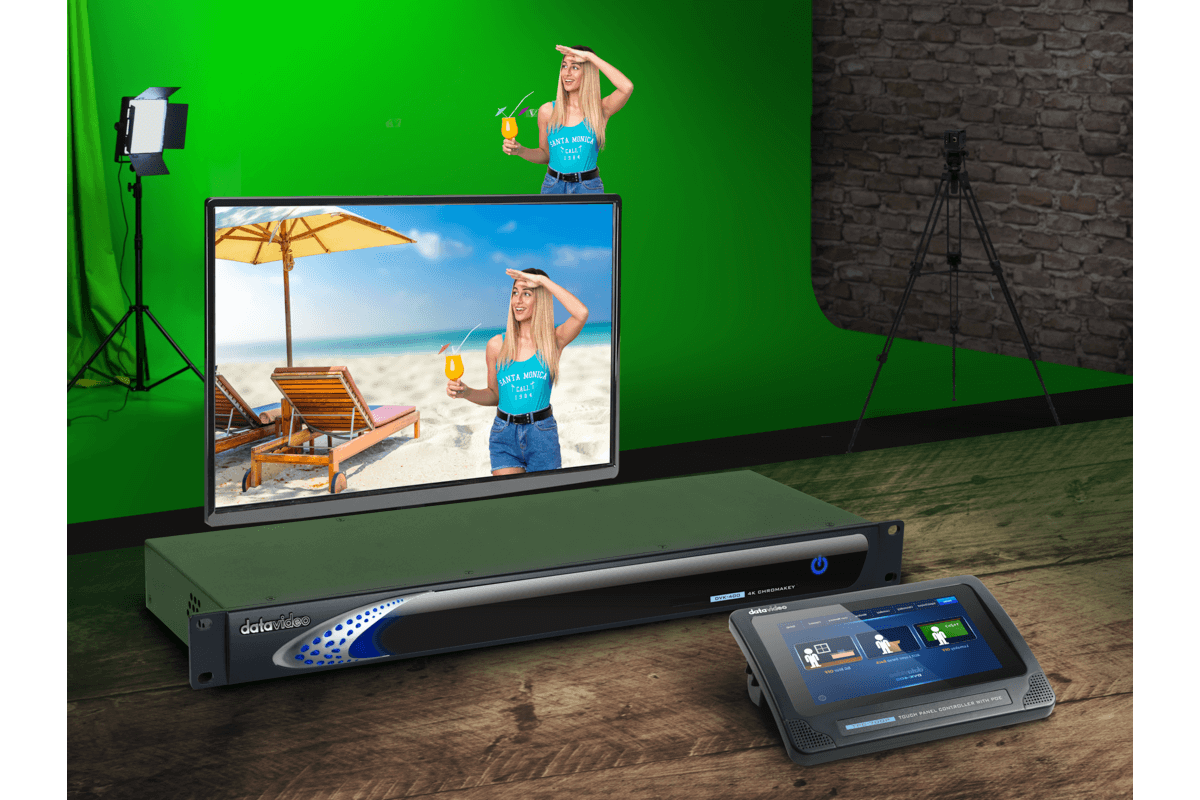

Switch Virtual Background Just One-Touch Needed

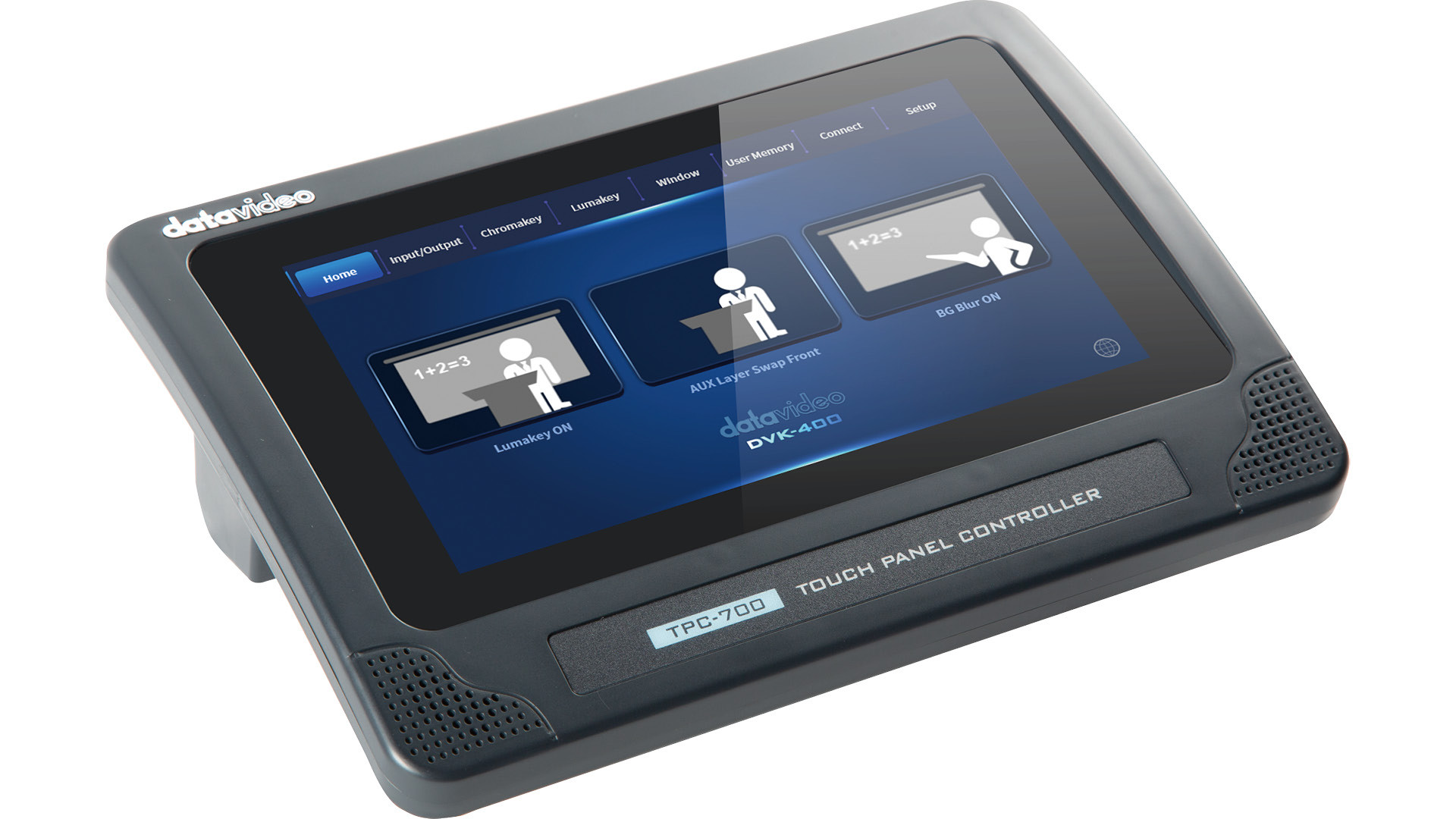

Using the professional intelligent touch interactive control panel TPC-700 in the DVK-400 together, it can be triggered by button to display AR objects. One operator can complete various mode by one TPC-700.

Independent and fast touch operation panel, you can preset the presentation effect of the button, without the need for complex professional technology. It's efficient and professional for chromakey video production.


Wo zu kaufen?

Finden Sie einen autorisierten Händler

Touch Panel Controller

MEHR PRODUKTE VERGLEICHEN
Modell-Nr
TPC-700
Touch Screen
7” capacitive touch screen
Touch Screen Resolution
800 x 480
Firmware Upgrade
Via USB 2.0
Control
RS-232 (RJ-45)
Power
DC 12V
Power over Ethernet (PoE)
---
Power Consumption
10W
Dimension
220x152x79mm
Weight
0.85KG
Operating Temp. Range
0~40 °C
What's in the box
1 x TPC-700 Main Unit
1 x DC 12V Power Adaptor
1 x D-Sub 9Pin to RJ-45 Cable
