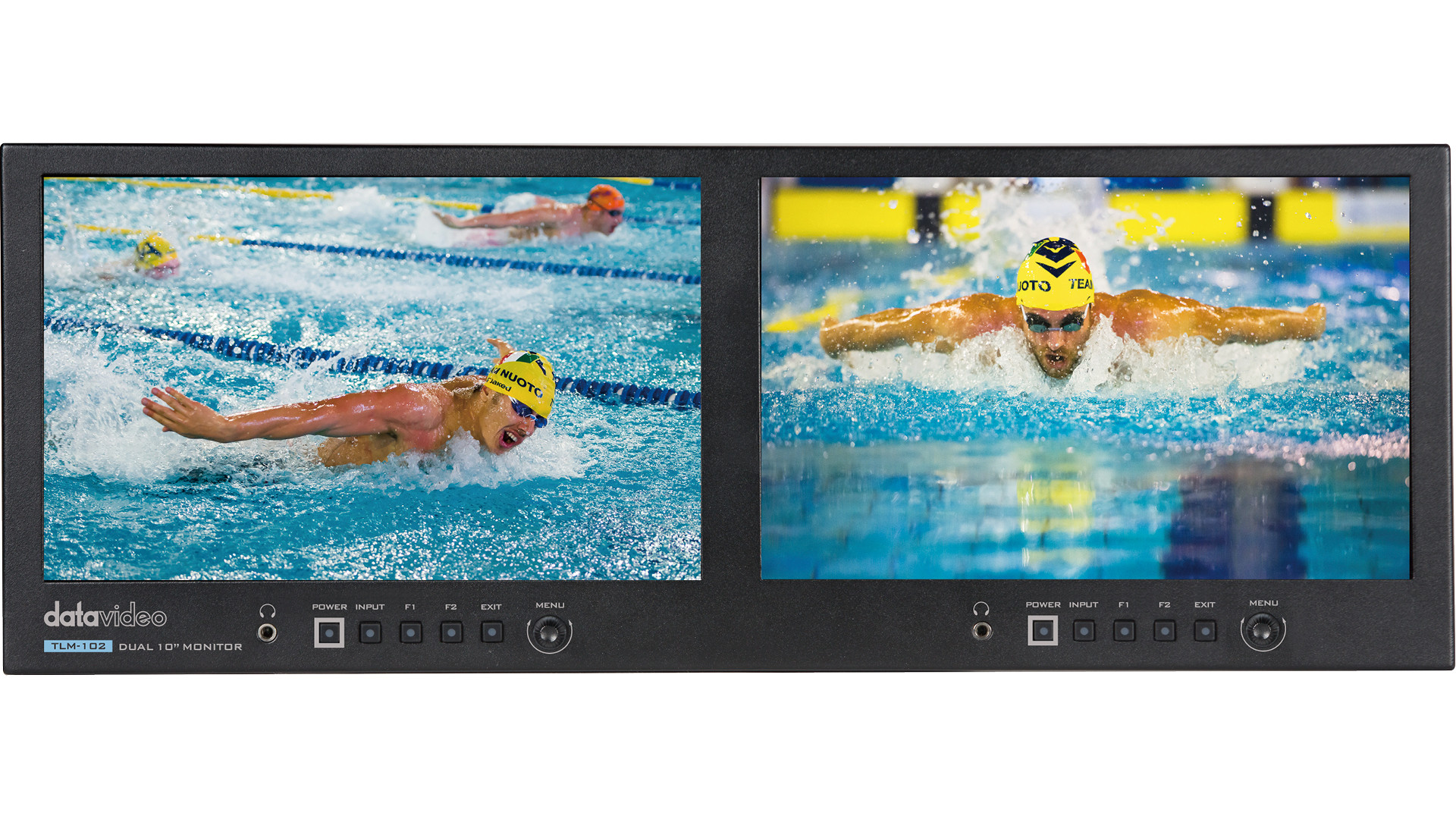

TLM-102

Dual 10" Monitor
Monitores LCD

Dual 10" Monitor

TLM-102
USD $1,329.00

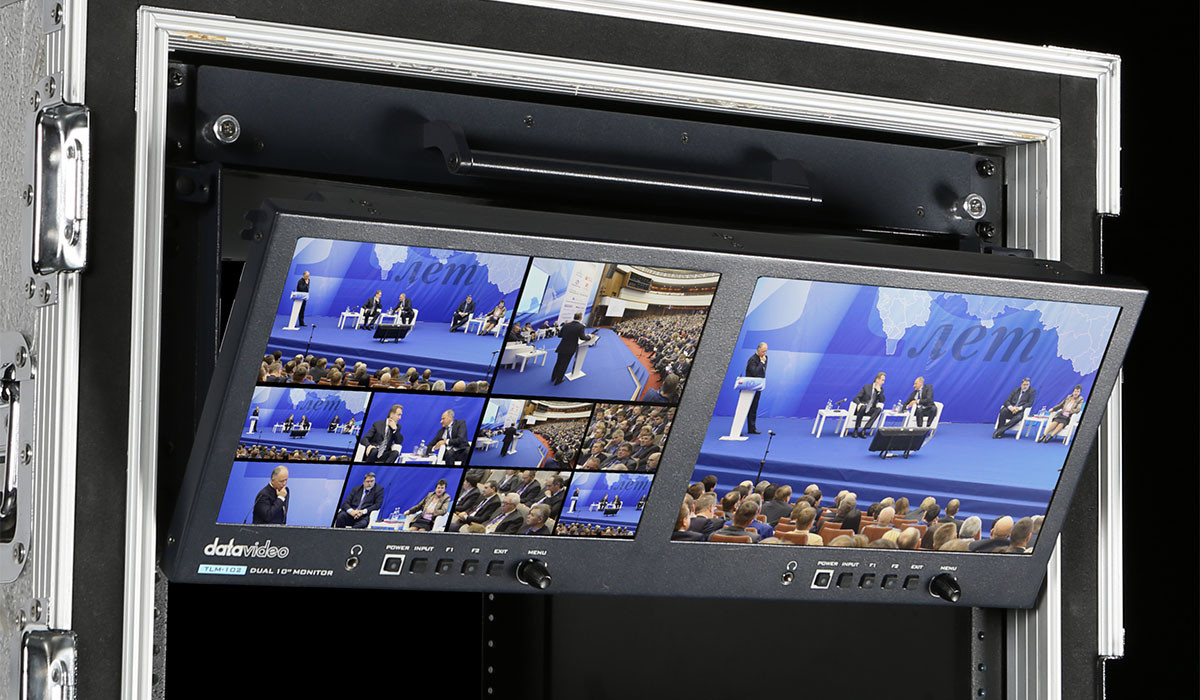

Monitor desktop 10'' Full HD duplo

Monitor desktop 10'' Full HD duplo

Suporta resolução 3G/HD/SD 1280x800.

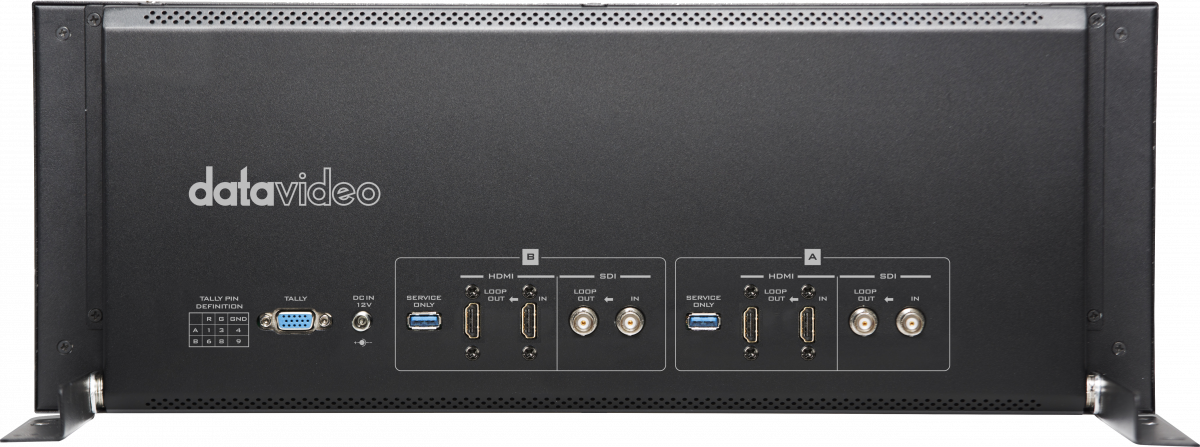

Suporta múltiplas configurações de entrada e saída

Suporta múltiplas configurações de entrada e saída



1 x entrada 3G/HD/SD-SDI, 1 x entrada HDMI e loop out

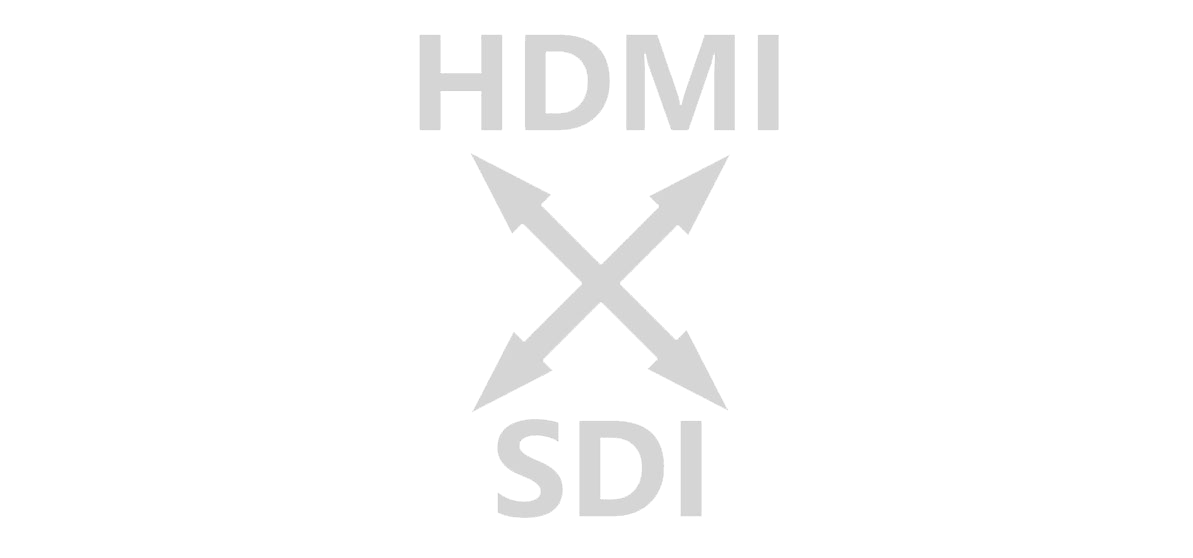

Conversão SDI, HDMI

Conversão SDI, HDMI



O TLM-102 consegue converter sinais SDI, HDMI para encaixar em qualquer tipo de produção.

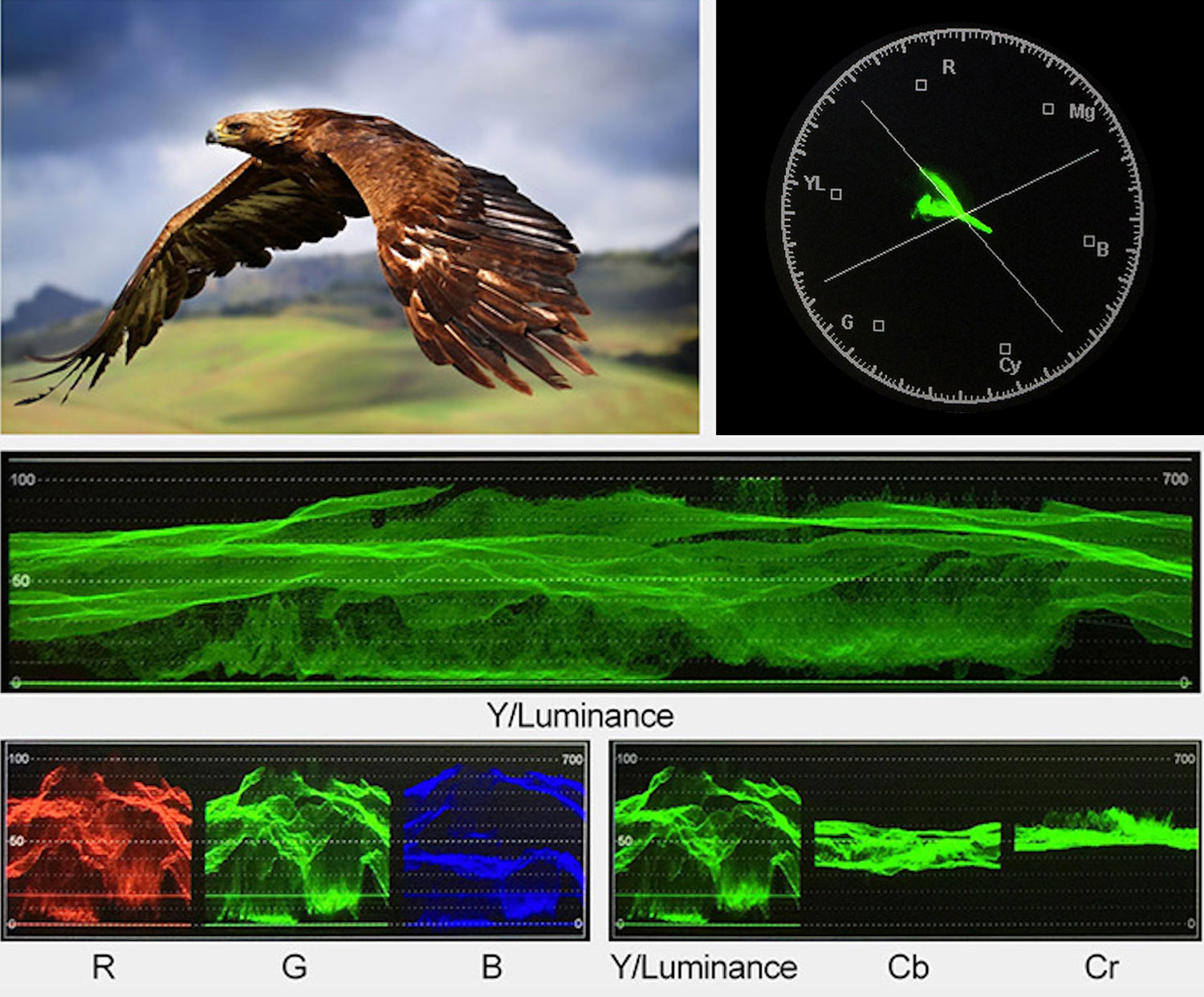

Várias funções embutidas

Várias funções embutidas



Suporta column (YRGB peak), time code, waveform, vector scope e medidor de nível de áudio, peaking, zoom, pix para pix, underscan, check field

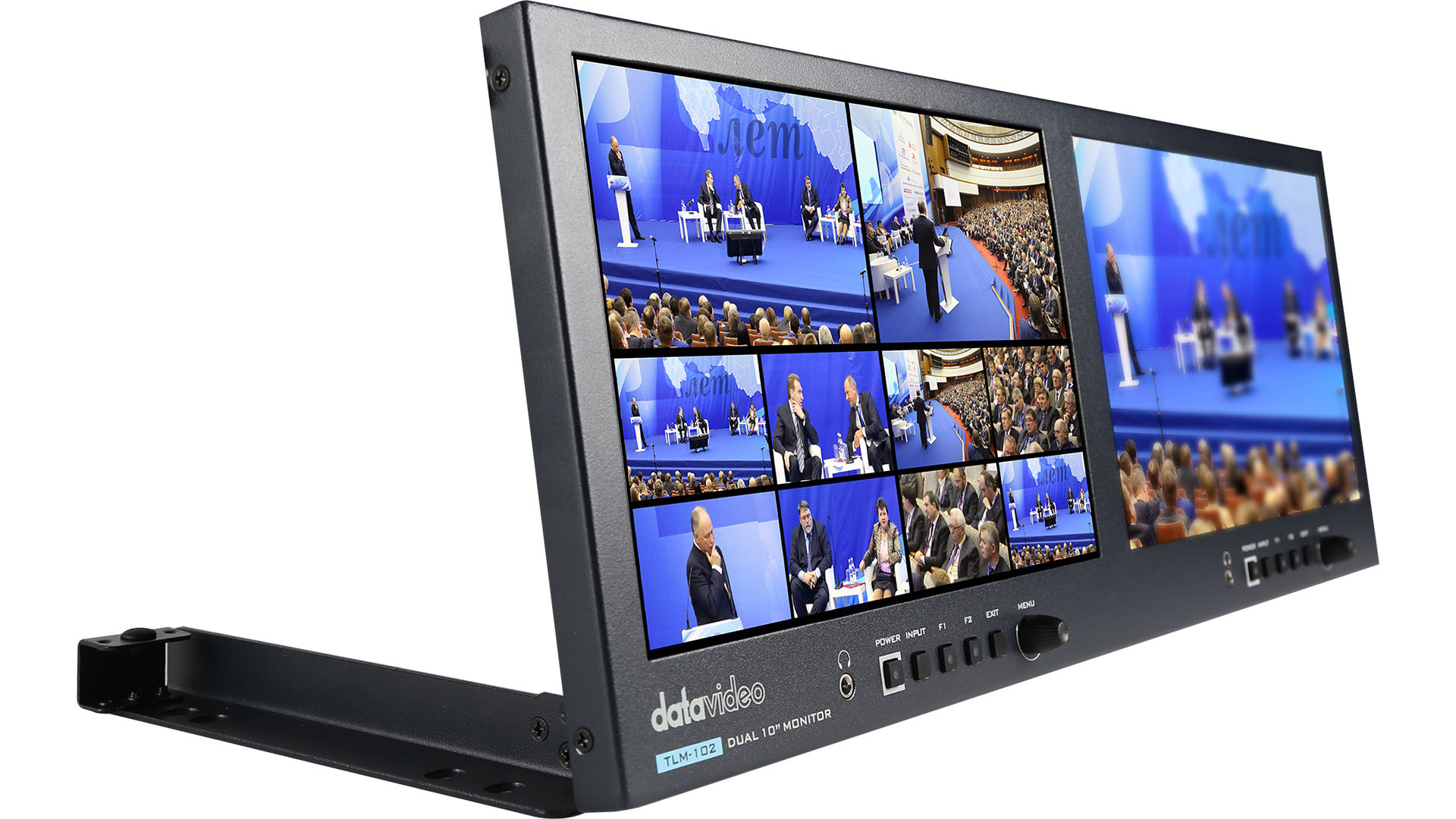

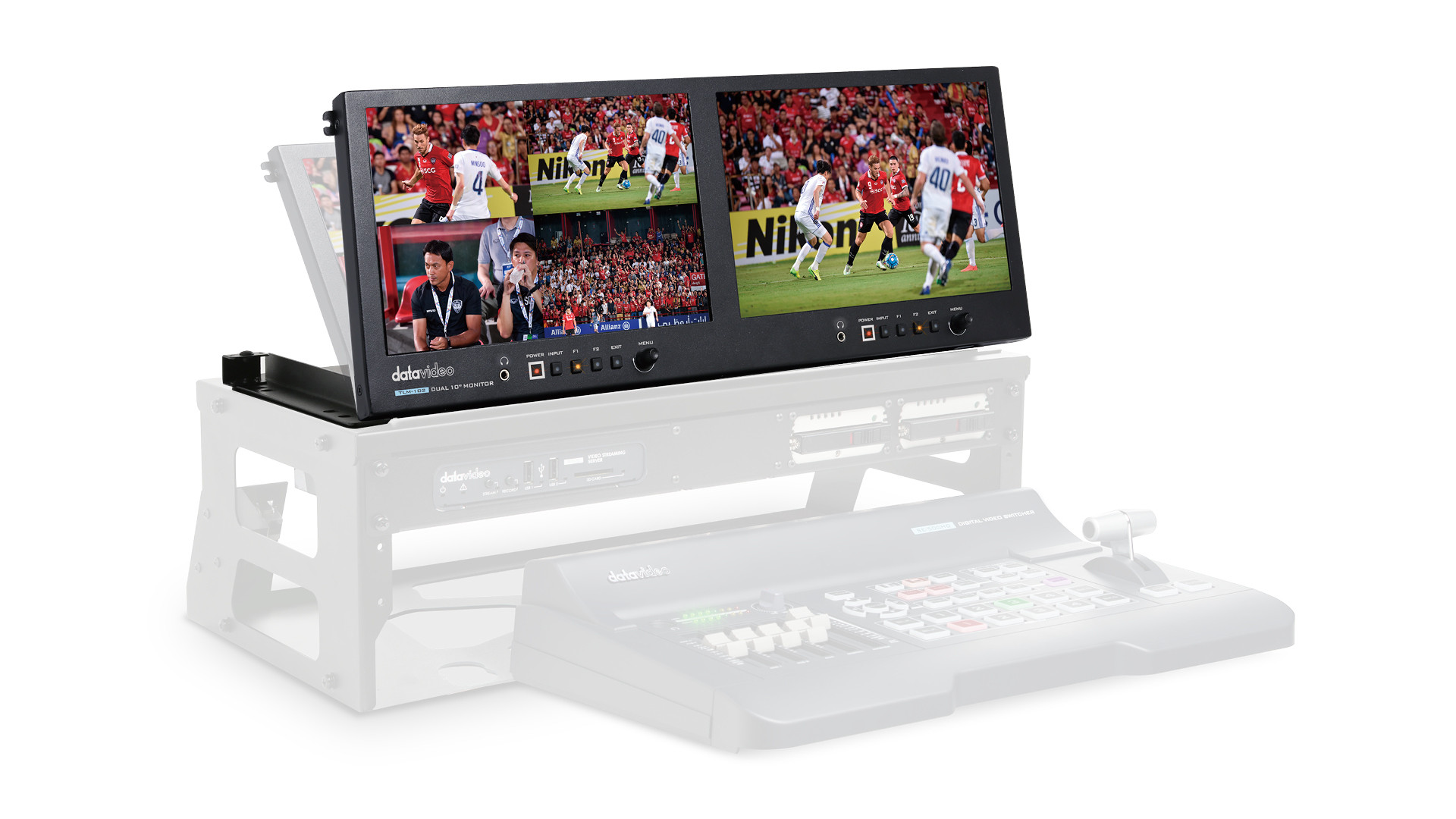

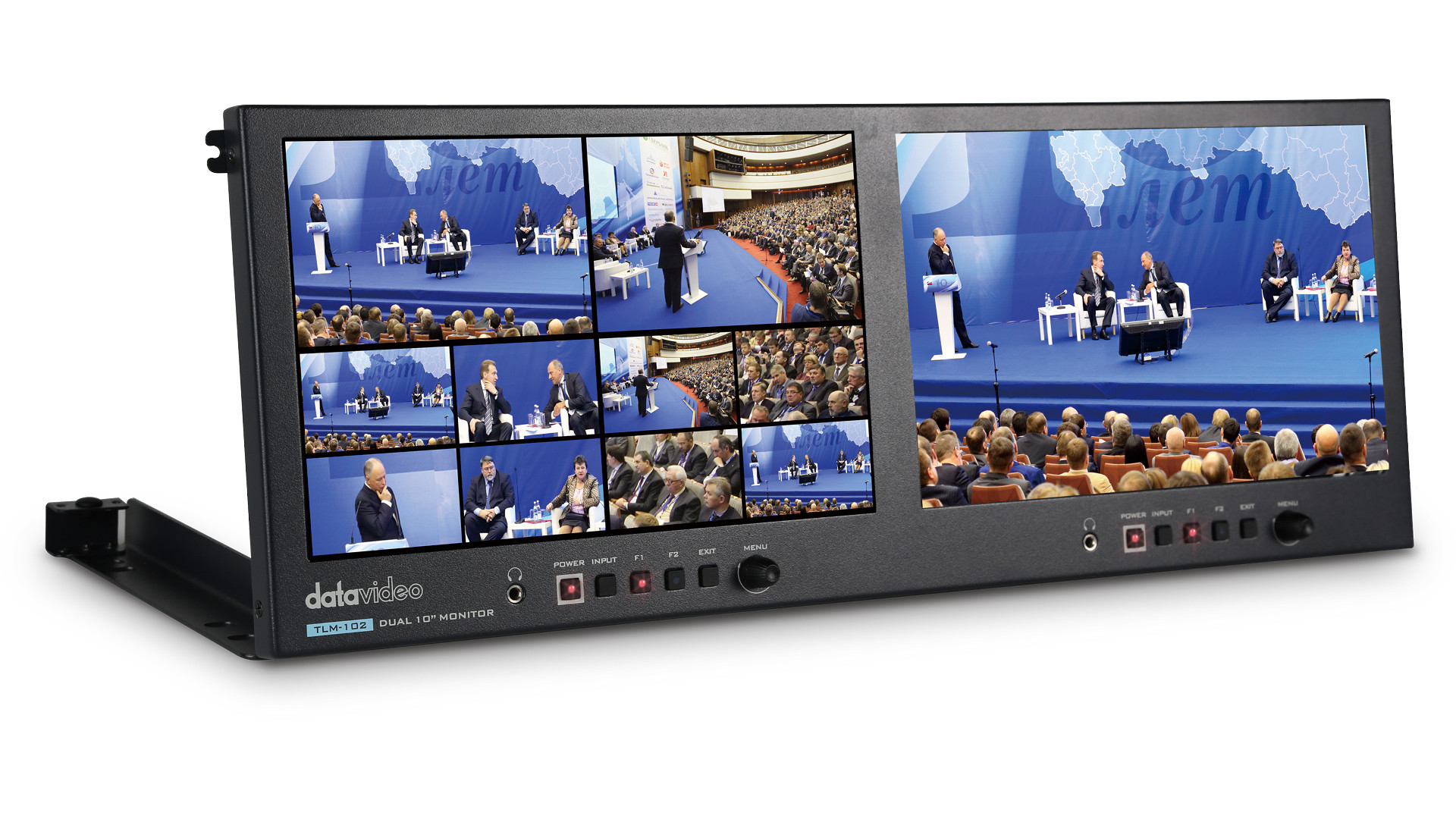

It's is a 4RU rack mount monitor and also a desktop monitor.

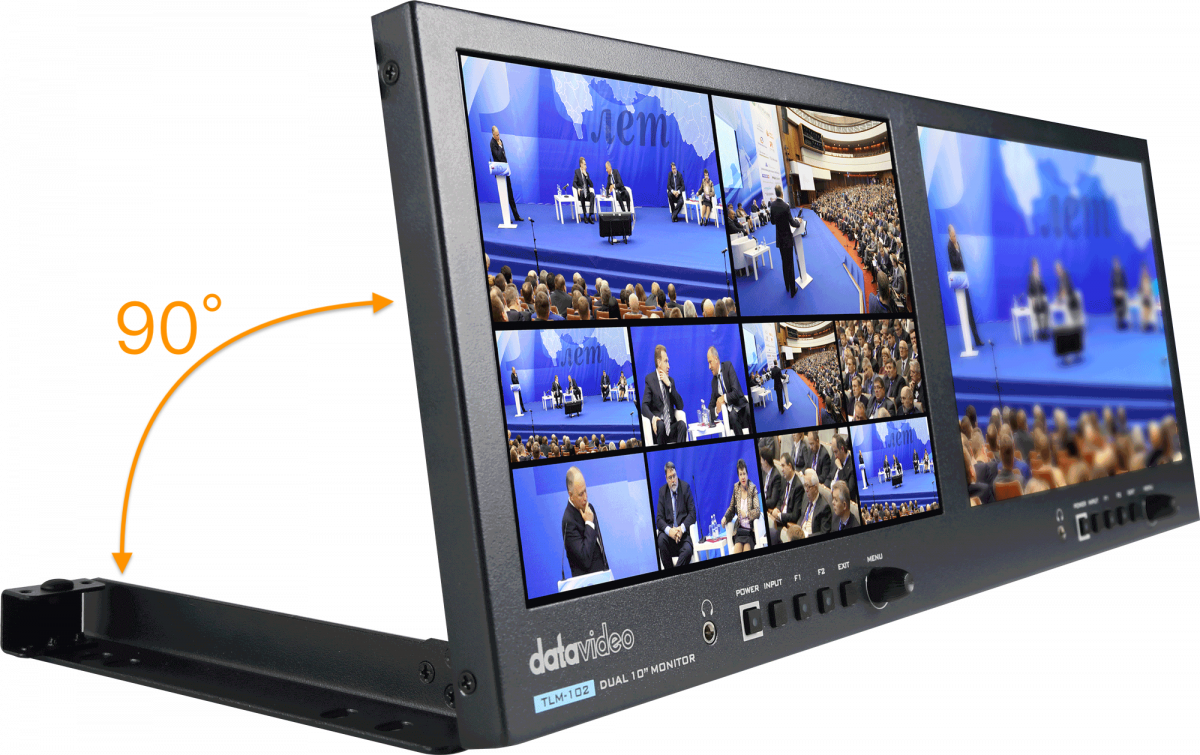

TLM-102 provides a 90-degree angle adjustment design, so you can install it on a rack or place it on a desk. The thoughtful angle design allows you to freely adjust the most appropriate viewing angle when monitoring, making work very easy and convenient.

NEED MORE HELP?

   Contact us to get more help!

Dual 10" Monitor

COMPARAR MAIS PRODUTOS
Número do modelo
TLM-102
Screen
Dual 10.1" LCD
Chassis
4RU Rack Mount
Resolution
1280x800
Viewing Angle
(H) +85/-85°
(V) +85/-85°
Luminance/Contrast
300cd/m²
800:1

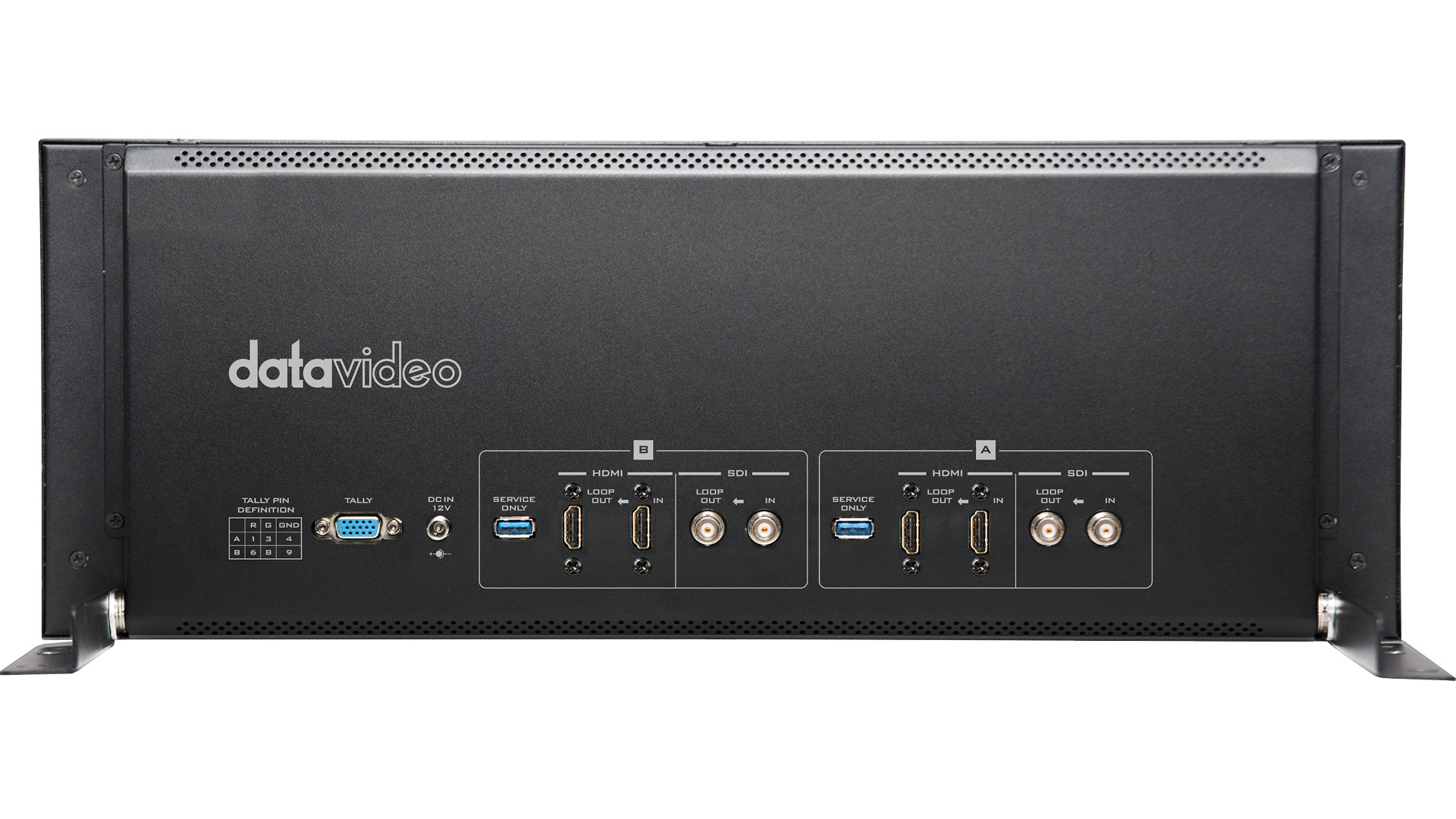

Video Inputs
2x 3G/HD/SD-SDI
2x HDMI
Loop Through
2x 3G/HD/SD-SDI
2x HDMI
Supported Input Resolutions
1080p(23.98/24/25/29.97/30/50/59.94/60Hz),
1080i(50/59.94/60Hz), 720p(23.98/24/25/29.97/30/50/59.94/60Hz),
480i(NTSC), 576i(PAL)
Aspect Ratio
16:9, 4:3
Aspect Marker
YES
Safty Marker
YES
Tally LED
Live (Red)
Cued (Green)
Audio In/Out
Embedded Audio on SDI and HDMI
Headphone Jack
Special Features
time code, waveform, vector scope & audio level meter , peaking, zoom, pix to pix, underscan, SDI, HDMI cross conversion
Dimension (WxHxD)
482 x 178 x 38 mm
Weight
3.6 kg
Operating Temp. Range
0~40 °C
Power
DC 12V, 28W
What's in the Box
1 x TLM-102 product
1 x AD Switch DC 12V with AC Cord
1 x Tally Convertor
2 x Screw φ3.0*6m/m
4 x Screw M5 x 10mm
