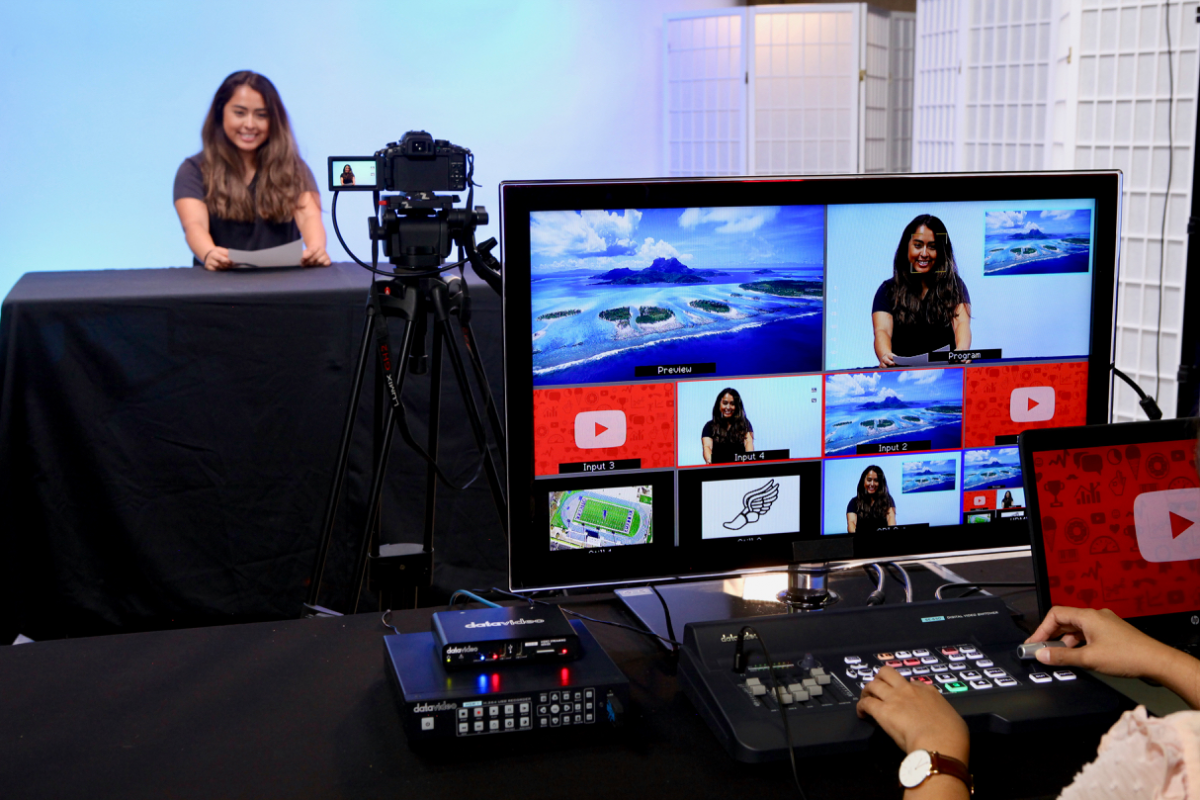

Designed with the simplest wiring and the easiest operation in mind, this system allows teachers and students at the school to easily handle broadcasting. The goal of this system is to eliminate the need for outsourcing production, enabling on-the-go television-level broadcasting and recording for various school activities, providing a convenient video solution.
Many school activities require live broadcasting, such as lectures, graduation ceremonies, and sports events. To make it easy for teachers or students to handle broadcasting, an intuitive broadcasting system is required.
The programs broadcast by the school are produced by the school's teachers and students together, creating content suitable for the school's students. This includes news, current affairs, and educational information, allowing students to see programs that belong to their own school.
Intuitive touch-screen operation allows for broadcasting without the need for extensive learning. By using user-friendly equipment, it fosters teamwork among students and helps produce high-quality video broadcasts, promoting a sense of community living.
4K High-Quality Production

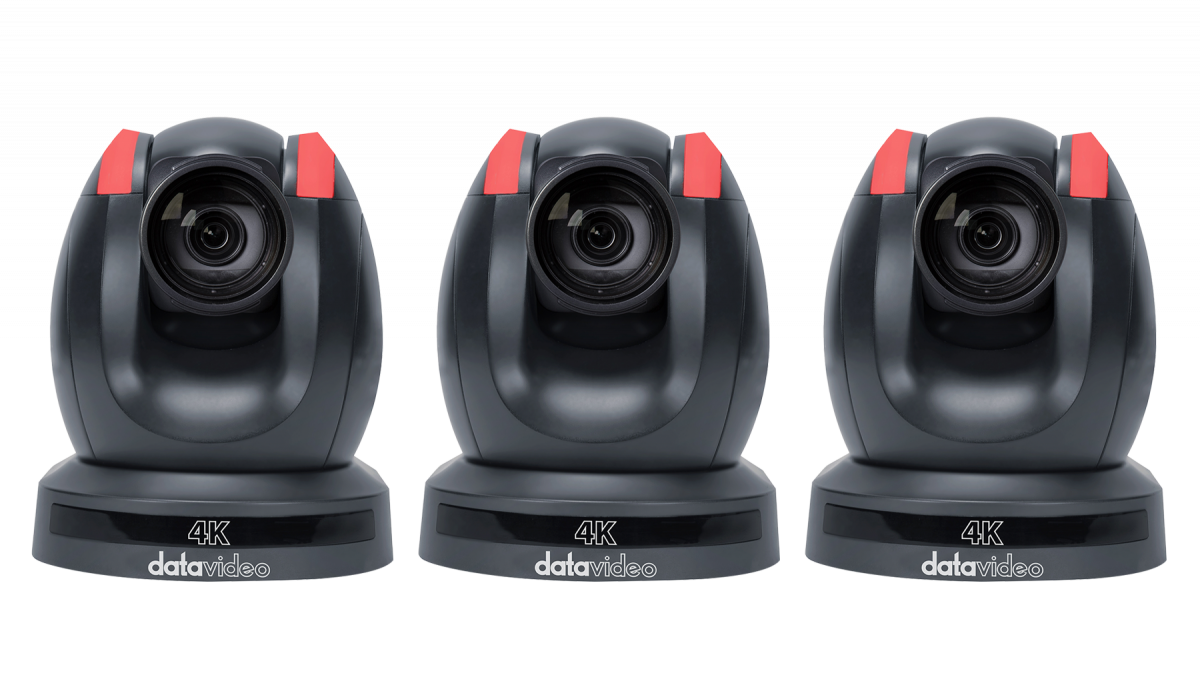

Using three 4K pan-tilt-zoom cameras along with a touchscreen director and recording machine that supports 4K video switching, this system allows you to produce high-quality videos at the forefront of technology.
Touchscreen Control
Multi-touch control allows you to set camera angles and make menu selections with the touch of a finger, facilitating seamless switching between scenes.

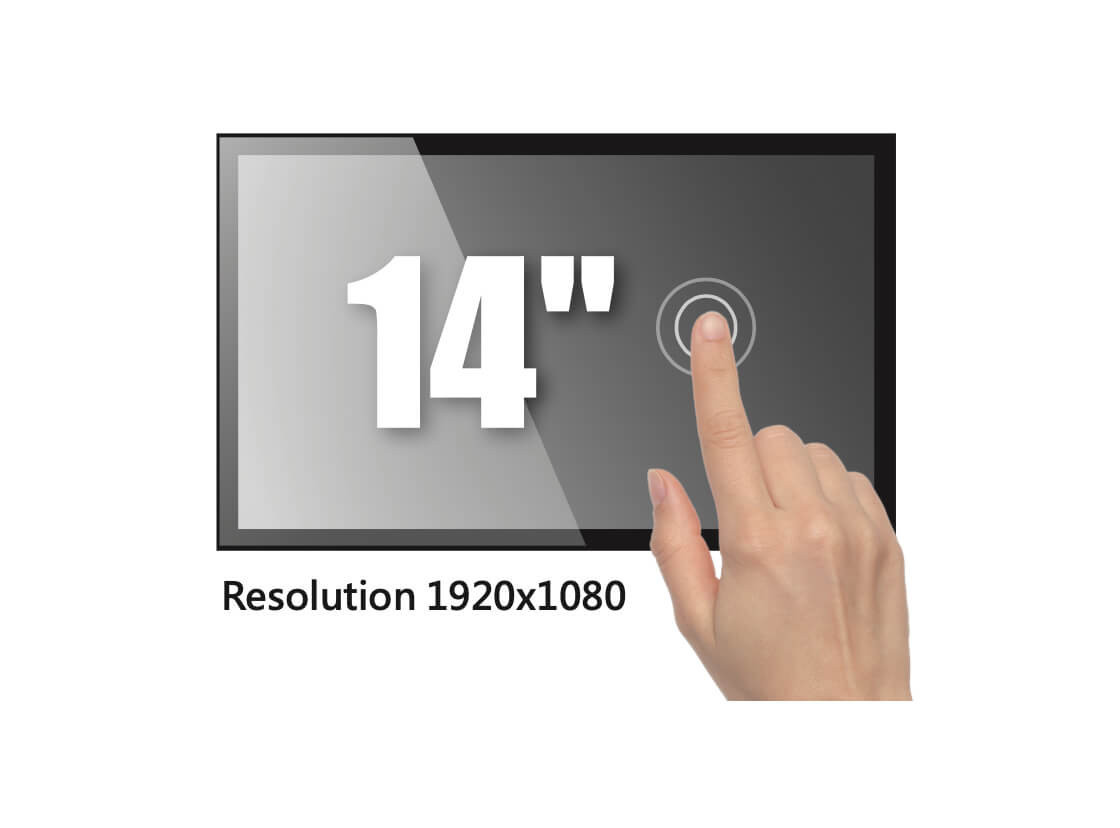

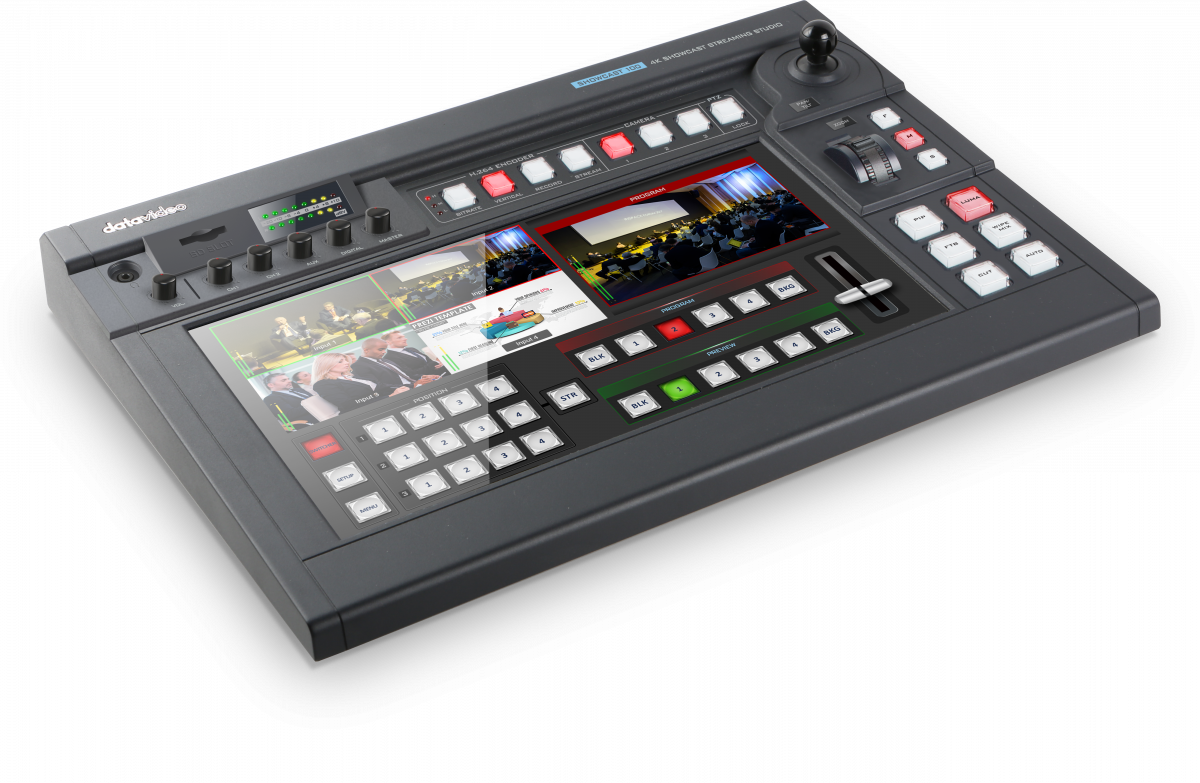

The new 4K 4-channel touchscreen director system, ShowCast 100, integrates seven major functions into one: broadcasting, subtitles, camera control, streaming, touchscreen, recording, and mixing. Its eye-catching 14-inch touchscreen operates like a tablet, with a one-function-one-button design that makes it a user-friendly professional broadcasting system. It supports 4K 50/60p, providing excellent resolution and smooth visuals.

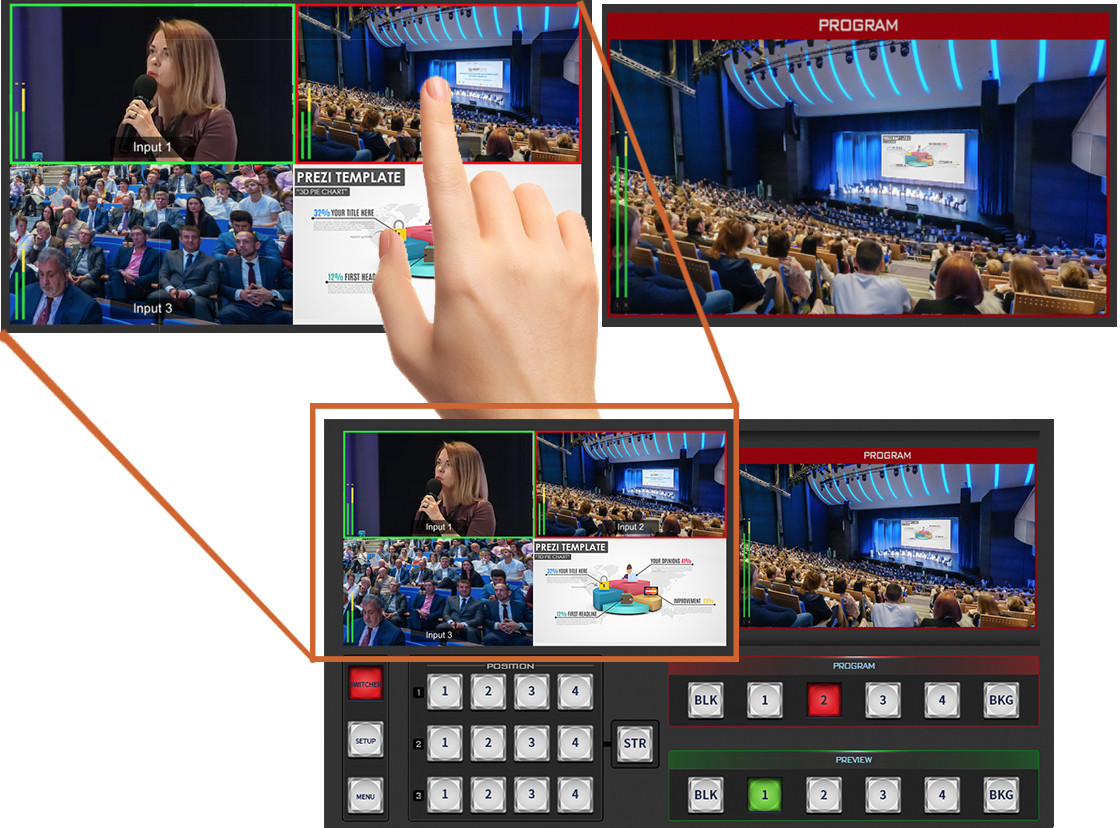

Transforms the functionality of a professional director system into a convenient and innovative softkey interface. The touchscreen enables intuitive operation of broadcasting, subtitles, camera control, recording, mixing, and other key functions, making it user-friendly even for non-professional directors.
SHOWCAST 100 Innovative Softkey Design: Each softkey corresponds to a specific function, and the software is designed in a paginated manner, organizing various functions logically and into groups. It provides an intuitive user interface similar to a tablet, delivering a fast and intuitive user experience.
The touchscreen panel makes it easy to intuitively perform various functions of the director system. SHOWCAST 100 comes with many easy setup features.
Unique all-in-one design simplifies the number of external devices needed in your video production system. The lightweight and compact body of SHOWCAST 100 makes it an ideal choice for on-site production.

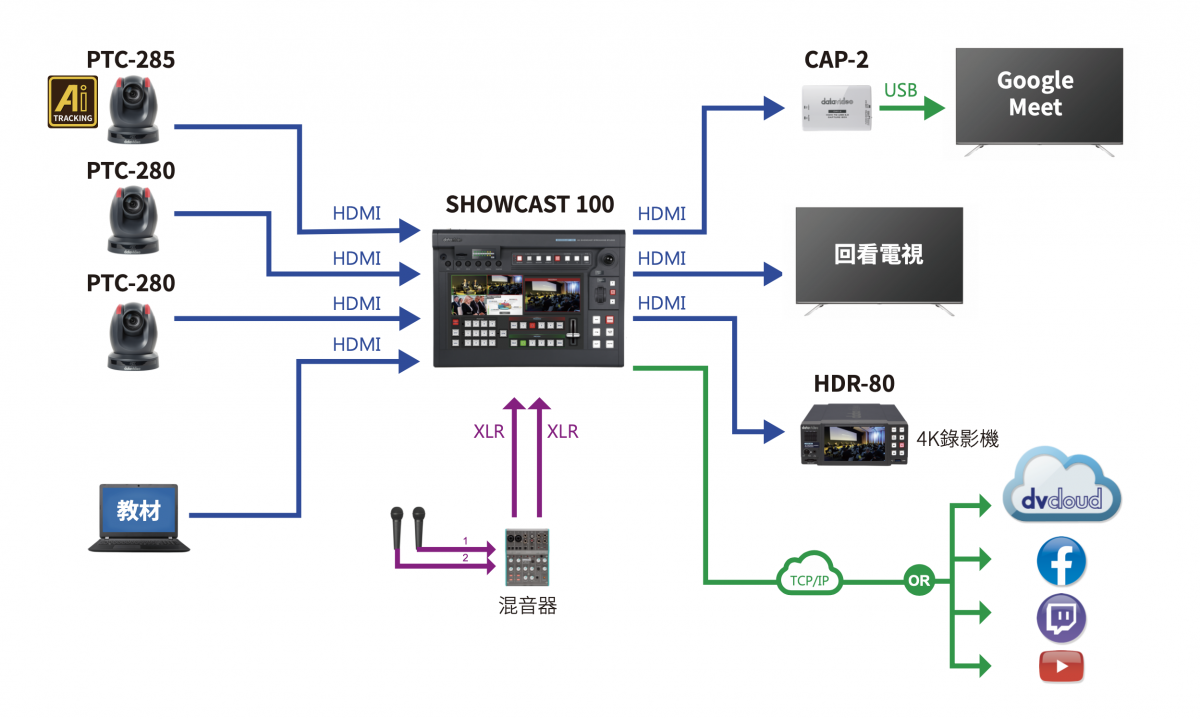

The four HDMI input/output channels are designed for basic video production workflow of meetings, corporate conferences, church events, etc.

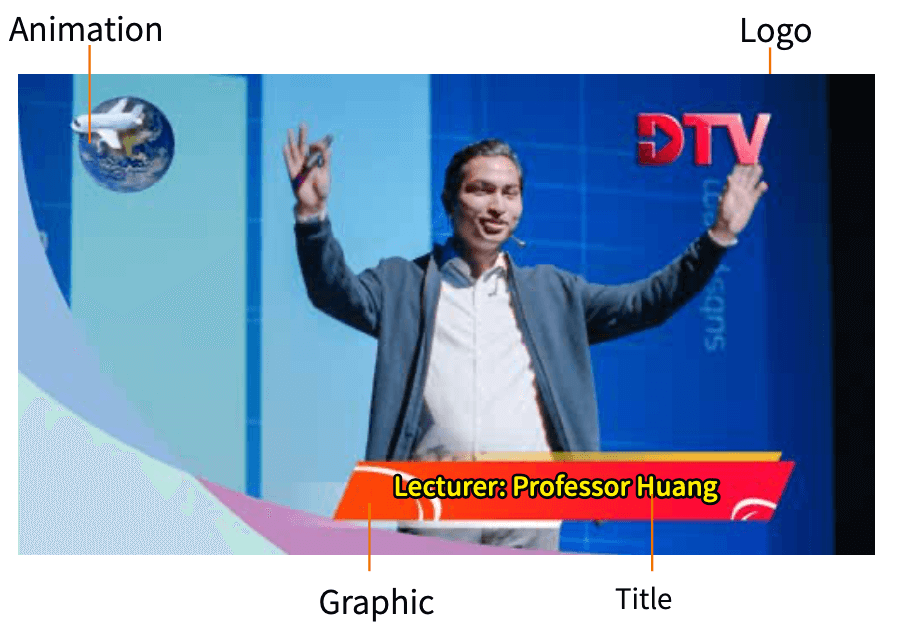

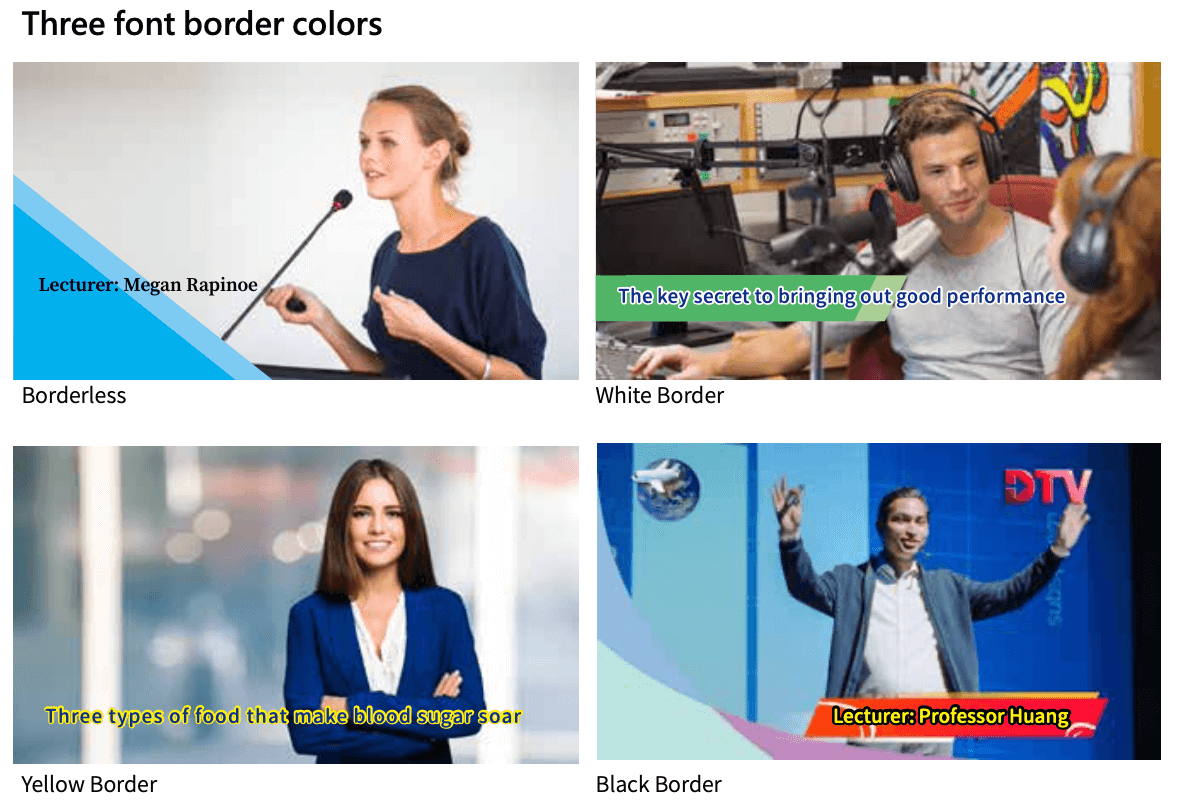

The SHOWCAST 100 offers two ways to overlay subtitles. A lumakeyed subtitle is usually used for logos, animated texts, etc. Another way is to overlay subtitles using the built-in network streaming encoder.
The SHOWCAST 100's built-in camera control functions allow you to simultaneously control three PTZ cameras. You can directly save the lens position presets, pan and tilt camera lens in real time, zoom in and out of an image, and adjust the white balance, iris and mirror mode.
The built-in dual live streaming encoder allows you to record and stream simultaneously. With the SHOWCAST 100's recording capability, you can easily back up the recorded video files for post production edits without much effort.

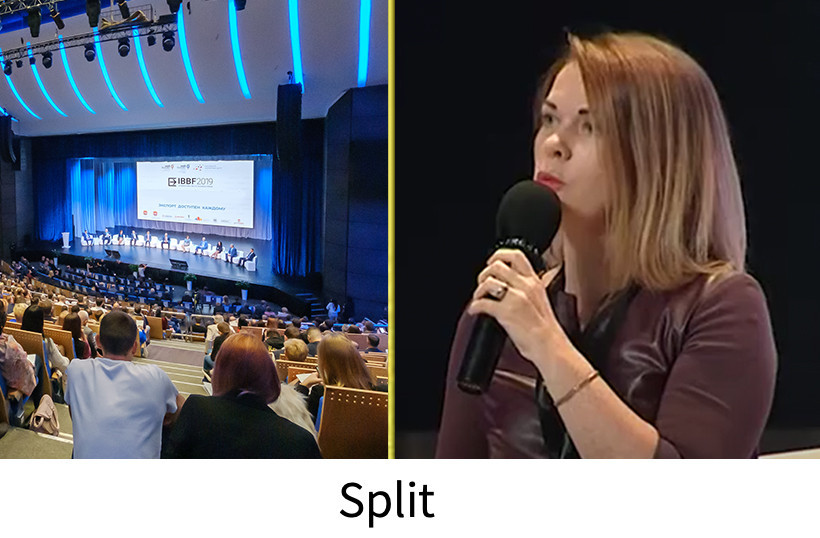

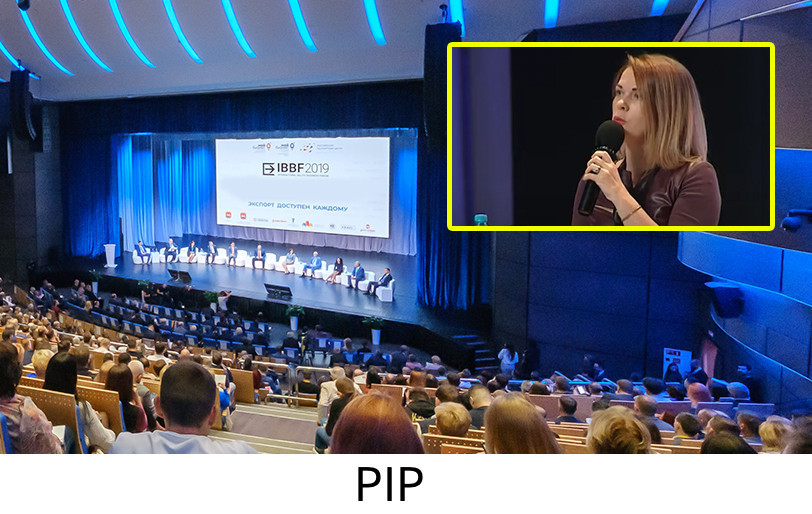

PIP is often required in video production. Most of the time, the PIP window size need to be adjusted for the program view. The SHOWCAST 100 allows you to drag different sliders on the touchscreen UI with your finger to set the aspect ratio of the PIP window. The split window is usually used for live interview, corporate presentations, and panel discussions.

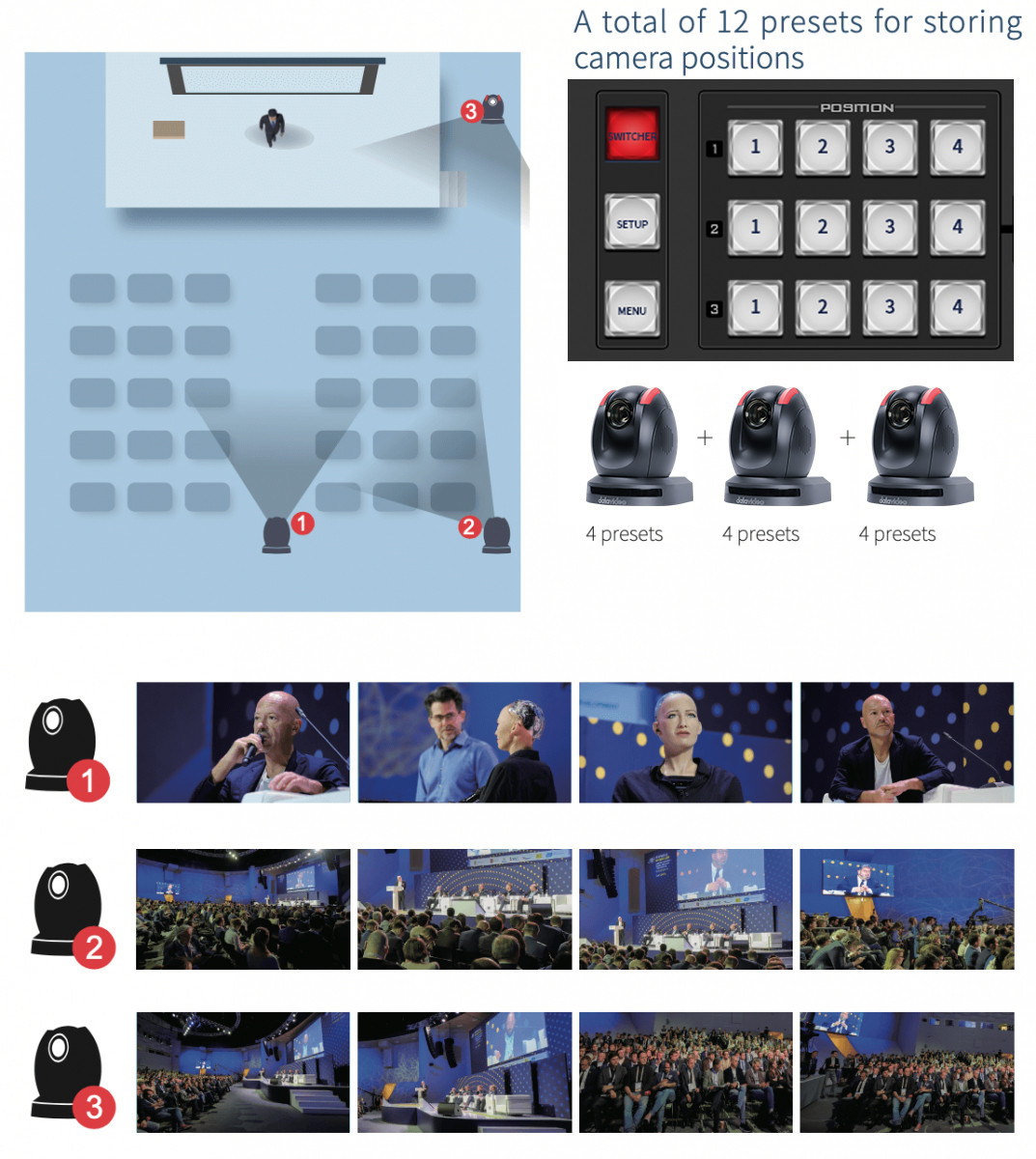

Even though SHOWCAST 100 can control only three PTZ cameras, you can save up to four presets per camera, giving you a total of 12 different angles for your production. The 12 memory presets allow the director to instantaneously switch between different camera angles on SHOWCAST 100 by pushing corresponding preset buttons.
Transcribe audio by entering subtitles line by line using News CG then play subtitles in real time by simply tapping the space bar on the keyboard.
Highlight the information that you wish to convey to your audience. You can also transcribe audio by entering subtitles line by line using News CG after which you will be able to play subtitles in real time by simply tapping the space bar on the keyboard controller.
Not just for a single-camera setup, HDR-80 can record up to four 1080p60 streams simultaneously to separate ProRes files. All files are synced with the same time code, making it easy for tracking during post-production.

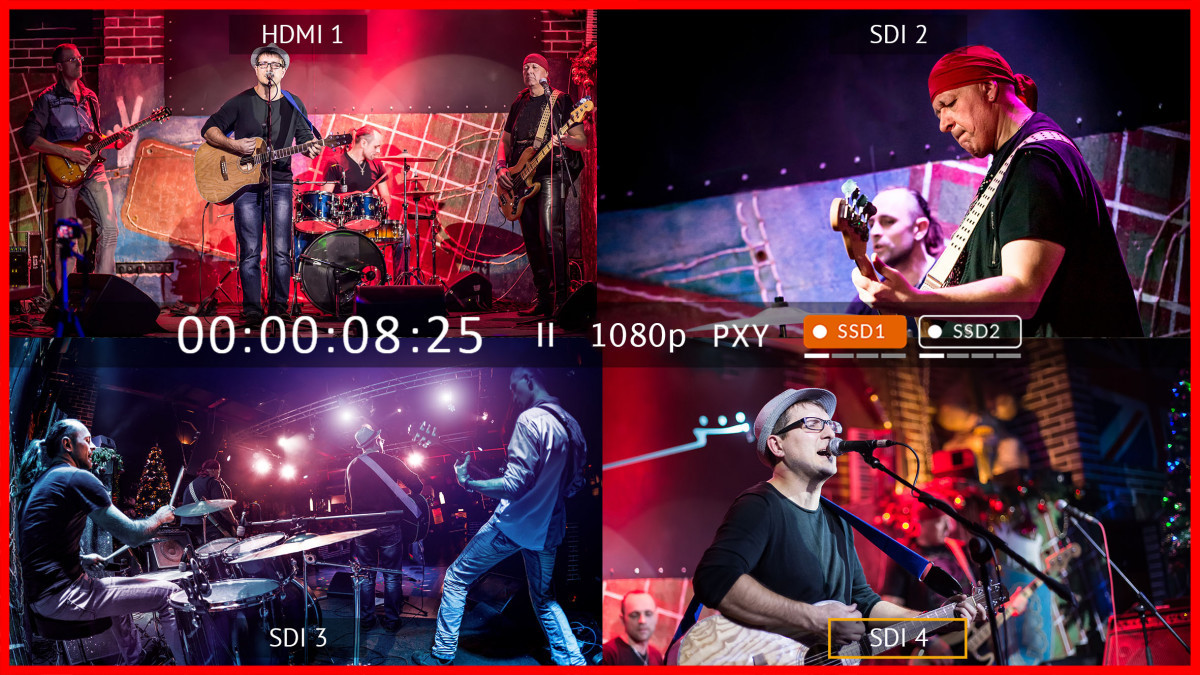

The HDR-80 is not only a ISO recorder, it can also be used as a four channel HD video switcher. Display all four sources in quadview, you can cue and simply tap the touch screen to switch seamlessly between cameras. PGM output can even be used for live streaming.

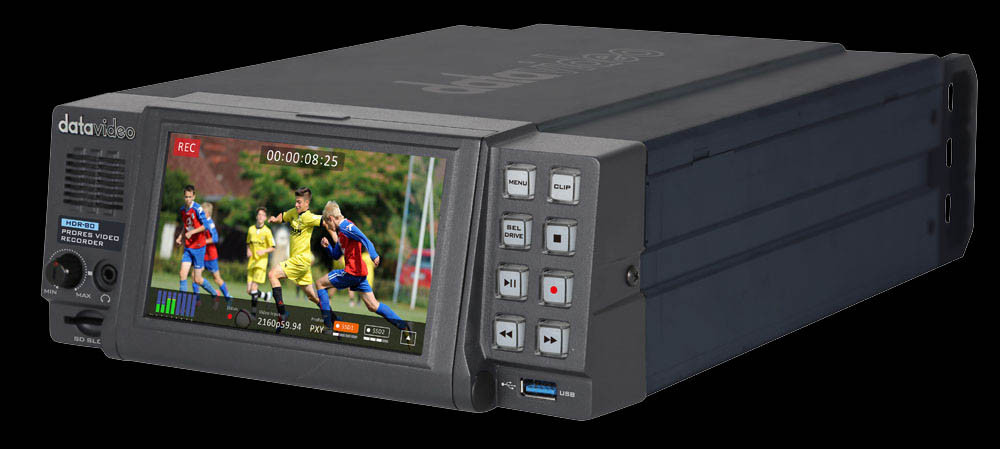

HDR-80 is a ProRes 4K recorders that record video on two SSD hard drives. HDR-80 is a desk top model meant to be used on a table top. The recorders have a high resolution 5” LCD touch screen on the front for video monitoring, device settings and configuration. The monitor also provides complete suite of scopes and calibration tools such as waveform, vector scope, focus peaking to ensure perfect recording.
HDR-80 is able to record video in resolutions up to 2160p60 using the available SDI and HDMI interfaces at the back.
