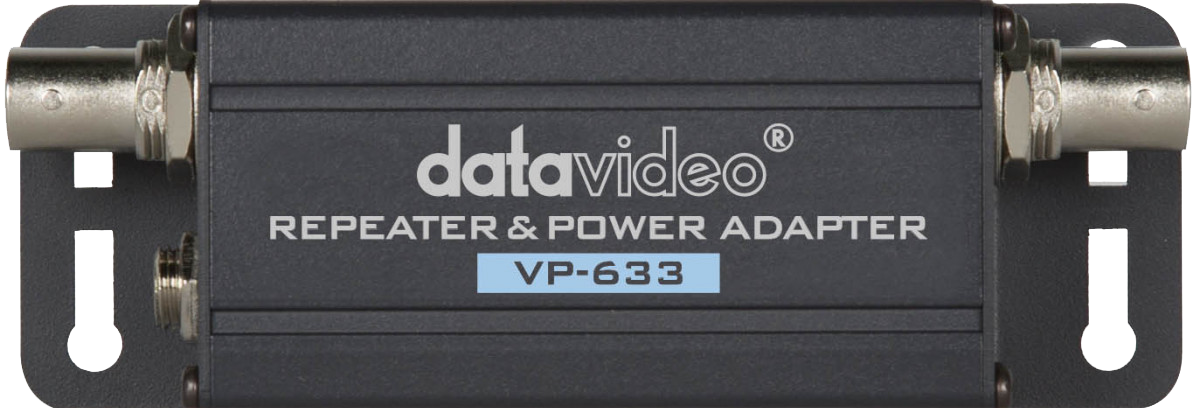

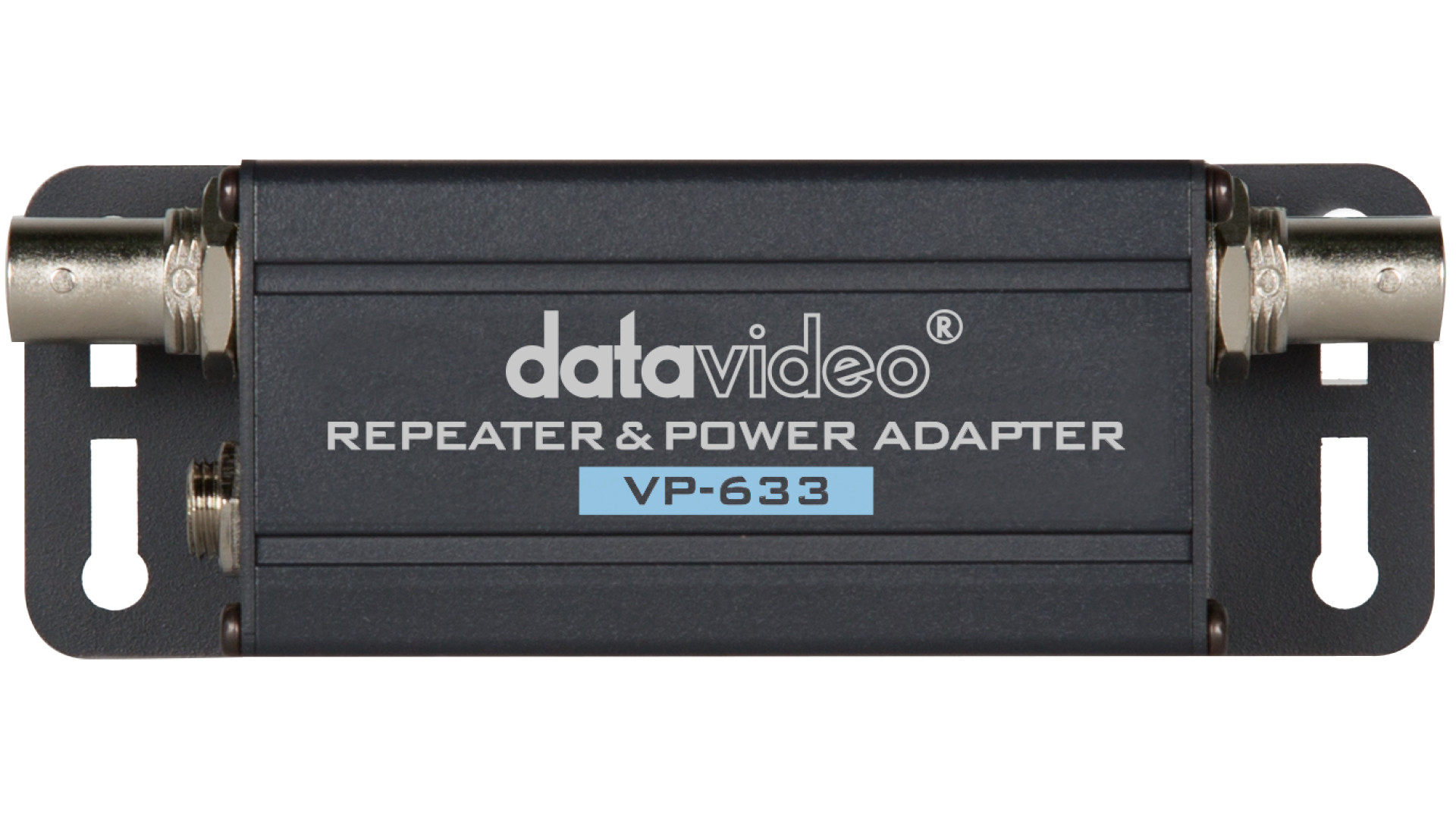

VP-633

100m SDI Repeater (Powered)
USD $329.00
Repeaters and Distribution

100m SDI Repeater (Powered)

VP-633
USD $329.00

Extend the capabilities of SDI cables

Supports HD/SD-SDI

Extend the capabilities of SDI cables, and 12v DC PSU Supplied
Supports HD/SD-SDI

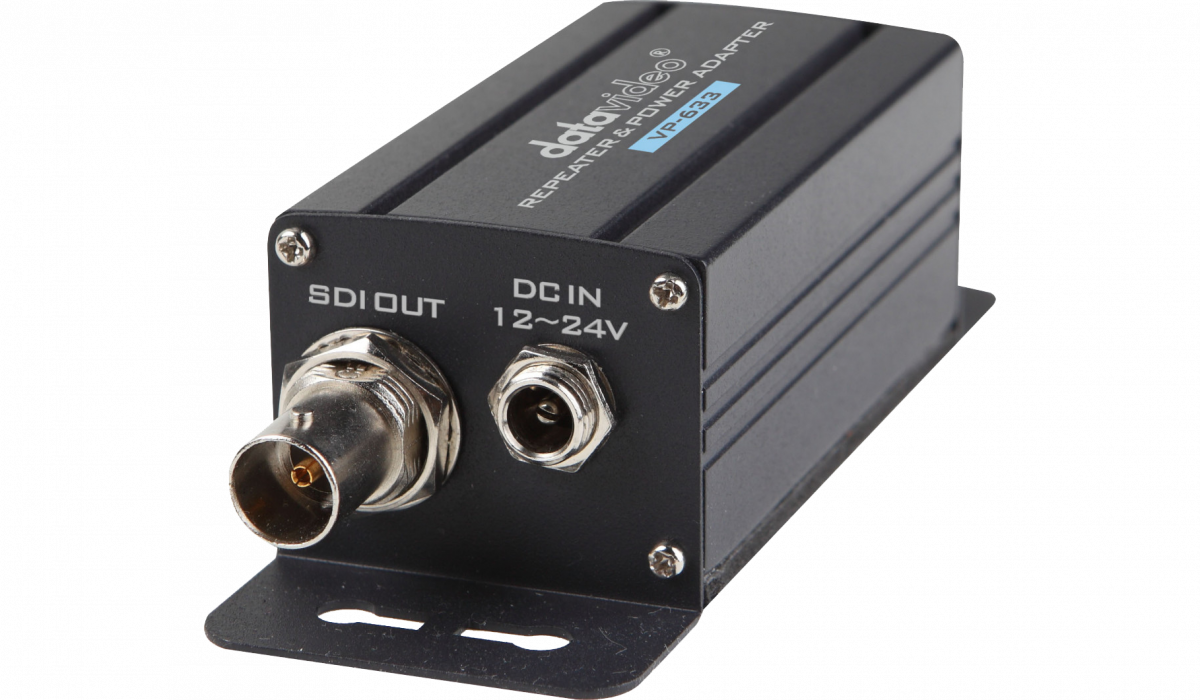

Each extended SDI signal up to 200m, when used with multiple VP-634's allows runs of up to 1000m

Each extended SDI signal up to 200m, when used with multiple VP-634's allows runs of up to 1000m

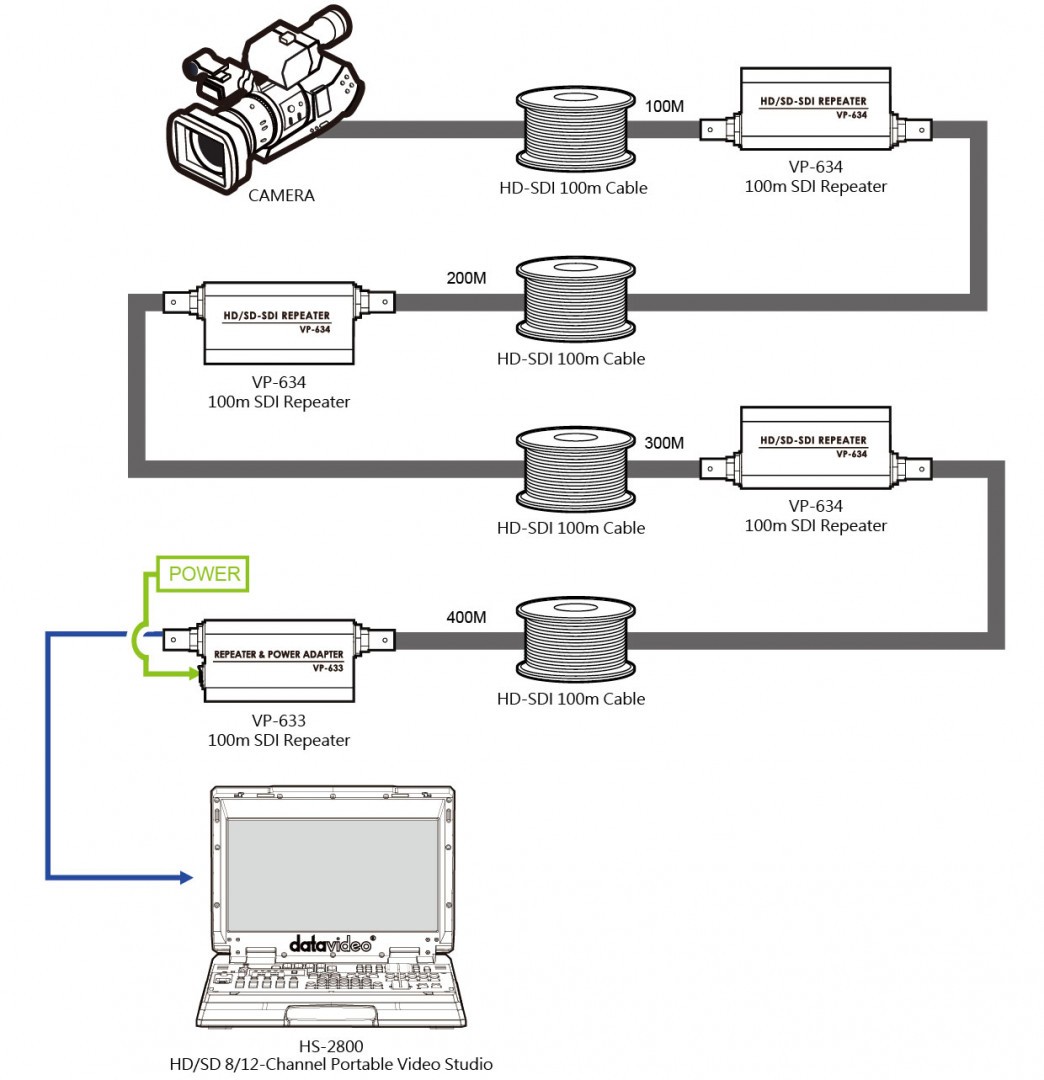

Up to 4 SDI Repeaters (1 x VP-633 plus 3 x VP-634) can be used in one chain, allowing runs of up to 1000m with good quality SDI cable. Add up to 3 x unpowered VP-634 for each additional 200m required (SDI Cable dependant)

Where to Buy?

   Find an authorized reseller

100m SDI Repeater (Powered)

COMPARE MORE PRODUCTS
Model Number
VP-633
Video Input/Output
Input: HD-SDI/SD-SDI
Output: HD-SDI/SD-SDI
Video Format
SD: 480i, 576i
HD: 720p 50/59.94/60
1080i 50/59.94/60
1080p 24/25/30
Video Standard
SD: SMPTE 259M
HD: SMPTE 292M
Video Processing
----
Video bandwidth
----
Audio Format
SDI Embedded Audio
Power
DC 12V~25V (VP-633 only)
Dimension (LxWxH)
107 x 38 x 32 mm
Weight
0.1 kg
Operating Temp. Range
0~40 °C
What's in the Box
1 x VP-633/634 product
1 x AD Switch DC 12V
