The Datavideo RMC-300A stands out as a multi-functional multi-camera controller with advanced control protocols. It supports various control protocols such as Sony VISCA, VISCA over IP-S, VISCA over IP-C, and Datavideo DVIP.
With the capability to control up to 24 Datavideo PTZ and block cameras via DVIP or up to 8 Datavideo cameras through serial RS-422 transmission, the RMC-300A provides unparalleled flexibility.
Its user-friendly interface on a 5” touch panel, combined with hardware buttons, empowers users to efficiently manage complex EFP workflows without compromise.
The Datavideo RMC-300A camera controller features dual USB 2.0 ports for expanded device connectivity, a 10/100Mbps Ethernet port with an RJ-45 connector for reliable network integration, and eight RS-422 ports (RJ-45 connectors) that enhance compatibility with various devices.
5-inch LCD touch panel design allows users to easily control settings of each cameras.
The Datavideo RMC-300A camera controller features dual USB 2.0 ports for expanded device connectivity, a 10/100Mbps Ethernet port with an RJ-45 connector for reliable network integration, and eight RS-422 ports (RJ-45 connectors) that enhance compatibility with various devices.
Designed to control up to 24 cameras, with 14 preset memories for each camera for easy camera operation.
Easily access to all the cameras setting, and call back your favorite settings such as Shutter, Focus, IRIS, Gain, Zoom, and movement speeds.
The RMC-300A's Auto Tracking (AT) menu has been upgraded to allow more precise subject tracking. Operators can now select specific objects to track on the screen and adjust the tracking speed for smoother camera movement. Positional options include left third, right third, or center frame placement, providing better compositional control. Additionally, the tracking can be set for full body, half body, or close-up framing, enhancing the adaptability of the camera for various live production scenarios. These enhancements make the auto-tracking feature more versatile and effective for dynamic broadcasts.
Gain immediate access to the auto tracking feature using a range of external controllers.
Beyond traditional camera controls, activating auto tracking on SHOWCAST 100 is also straightforward and convenient.
The integrated PID algorithm is able to detect the movement speed of the identified object and automatically adjust the camera's corresponding pan, tilt and zoom speeds in such a way that the lens movement will be smooth, avoiding common camera lens movement problems like jerky movements or unpredicted halts.
The positioning of talent depends on the videographer's creativity and intent rather than strict rules. Different positions can convey various emotions, messages, or visual effects. A centered composition provides a sense of stability and balance, suitable for scenes that require highlighting the main subject. Videographers may also place the talent on the left third or right third of the frame, leaving adequate space in the foreground to showcase the talent's sight direction or potential future possibilities.
All Datavideo PTC Camera with AutoTracking include the RMC-1AT controller. User can quickly select full-body , half-body and close up framing, making it easy to change the shooting scene and framing requirements.
The RMC-300A from Datavideo features Image Key and Graphic Key functionalities, enhancing user interaction and workflow efficiency. Image Key allows operators to use camera screenshots as placeholders on the selection menu, simplifying the process of switching views during live events. Meanwhile, Graphic Key uses pre-loaded graphics to label camera feeds, aiding directors in managing complex setups. Together, these tools streamline operations and improve multi-camera control precision during productions.
The RMC-300A supports live video preview on its screen via RTSP (Real Time Streaming Protocol), enabling operators to stream and monitor video feeds directly from the controller. This feature eliminates the need for extra software or hardware, crucial for real-time monitoring during live events and broadcasts, where quick decision-making is key.
Single person control of Pan, Tilt, and Zoom is possible with the 2-axis Joystick and the zoom knob. Easily access all the cameras settings in the OSD, and call back your favorite settings such as Shutter, Focus, IRIS, Gain, Zoom, and movement speeds.
The 14-position memory can also be set to display 3 speeds: Fast, Medium, and Slow, meeting the filming techniques of broadcasting, ensuring that even PTZ cameras can match the dynamic video effects presented by professional video cameras.
The RMC-300A can control PTZ and block cameras, as well as robotic camera heads such as the Datavideo PTR-10 series by using the DVIP or RS-422 interfaces.
Can control up to 8 cameras via RS-422 or 24 cameras via DVIP.

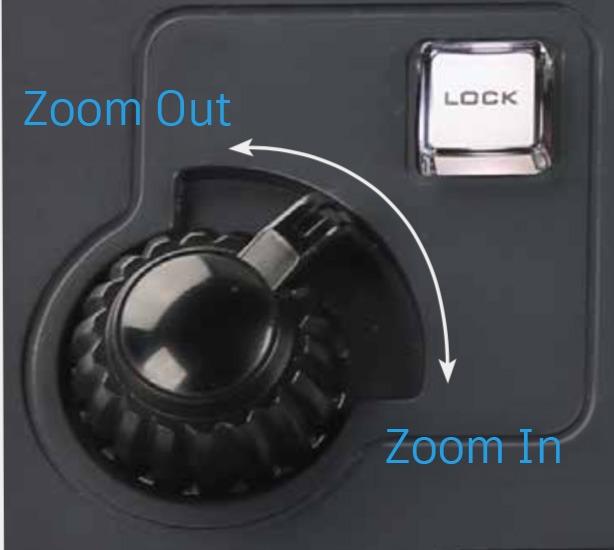

Easy to use knob for the camera to zoom in/out, and the Lock button to help you secure the position of the joystick and the zoom knob.
Speed settings for PTZ control
Pan/Tilt/Zoom speed can be fixed at fast, medium, and slow speed.
User friendly interface on 5-inch LCD touch panel
Datavideo Academy is a comprehensive learning platform established by Datavideo Technology. As a professional Broadcast and AV equipment manufacturer, Datavideo Technology is not only committed to providing quality products to users, but also has the responsibility to help users learn to operate Datavideo products.
Through the Datavideo Academy platform, users can easily master the operation of Datavideo products and experience the unique design of Datavideo products, further creating a variety of applications and bringing a good user experience. Now, a tutorial video for the RMC-300A is available at Datavideo Academy to help you get the best performance out of the product. Please click on the following link.
