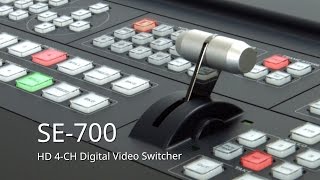

SE-700

HD 4 - Channel Digital Video Switcher

SE-700 is a cost-effective, high quality video switcher, that is easy to learn and use.

SE-700 includes two SDI and two HDMI inputs (video only. It features two assignable SDI and one HDMI output for connecting HD recorders, monitors and streaming.

Also included are two balanced XLR audio inputs for connecting an external audio mixer.

Other features include Chroma Key, Luma Key, DSK, PIP, Wipe Generator, Still stores, Tally and RJ-45 control interface.

  • 4 video inputs (SDI x 2 + HDMI x 2)
  • Flexible Mix/Effects Processor
    • 1 Upstream Keyer, supporting Chroma Key & Linear/Luma Key
    • 1 Upstream PIP, supporting Chroma Key & Luma Key Modes as well as unkeyed mode
    • Wipe Generator: 32 Wipe Patterns, including Circle & Heart | Borders & Softness Control
    • Wipe, Mix & Cut Transitions
    • 1 DSK
    • Full M/E Preview function
  • Frame store
    • Dedicated Stills Buffer
    • Upto 24 images stored on SD Card
  • Assignable Outputs
    • Each SDI output can be switched in the Menu as:
      - PROGRAM (w/ DSK)
      - Clean PROGRAM (w/o DSK)
      - Clean PREVIEW (w/o DSK)
      - MULTISCREEN
      - Input 1-4
  • XPT (Cross Point Assignment)
  • Easy to use On-screen Menu System for quick setting of parameters
  • PC & Tablet control also available
  • Tally output
  • GPI Output
I love this switcher!

By Joe J., AV Music Plus; New Lenox, IL

Connections
Total Video Inputs 2 HDMI + 2 SDI
Total Outputs 1 HDMI + 2 SDI
SDI Video Input 2 (1080i / 720p)
HDMI Video Input 2 HDMI (RGB/YUV)
1080i / 720p
SDI Audio Output (PGM) 2CH
Analog Audio Input 2CH XLR
Embedded Audio HDMI & SDI
Internal Frame Synchronizers 4 All Inputs
PGM Out HDMI / SDI
Multi-view Out HDMI (720p->720p ; 1080i->1080p)
SDI (720p->720p ; 1080i->1080i)
Output can select any of input source PROGRAM (w/ DSK)
Clean PROGRAM
PREVIEW (w/o DSK)
MULTISCREEN
Input 1~4
Audio Indicator on Multi view Yes (output 2CH)
Tally Out Yes
GPI Yes (Level / Pulse Trigger selectable)
Software Updates Ethernet
Standards
HD Format Support 1080i/50, 1080i/59.94, 1080i/60, 720p/50, 720p/59.94, 720p/60
SDI Compliance SMPTE 292M (SDI output / PGM out)
Video Sampling 4:2:2 10-bit
Color Precision 4:2:2 10-bit
Color Space 4:2:2 YUV
HDMI Input Resolutions for Computers 1280x720 59.94Hz 50Hz (720p)
1920x1080 59.94Hz 50Hz (1080p & 1080i)
Processing
Colorspace Conversion Hardware based real time
Processing Delay Less than 1 frame
Audio Mixer selectable audio follow video,
master gain control
Extras
Downstream Keyers 1
Linear/Luma Keyers 3 (M/E Keyer, PIP, DSK)
Chroma Keyers 1 Upstream Keyer,
1 Upstream PIP
Pattern Generators Color Bar
PIP 1
XPT Yes
Frame store Total 1000+ Stills on Internal SD Card
One dedicated still buffer, one dedicated freeze buffer. Also, any Input can be used as Frame store, 3 Still frames stored in local frame buffers for instant access
Control Panel Compatibility Use PC via Ethernet; Control panel
Input Voltage 12V
Power consumption 23W
Power consumption 23W
Operating Temperature 0-50 deg. Celsius at 10%-80% Humidity
Control Protocol DVIP
Multi View Monitoring
Number of Windows 2 (PGM, PVW)
+6 (Inputs 1-4, Stills & Freeze)
+2 Output windows (SDI1, SDI2)
Routable Windows Yes (Follow XPT)
Tally Yes
Windows Source Labels Yes
  • 1x SE-700 product
  • 1x AD Switch DC 12V
  • 1x Thank You Card
