AD-10

Audio Delay Box

Audio & Video Synchronization

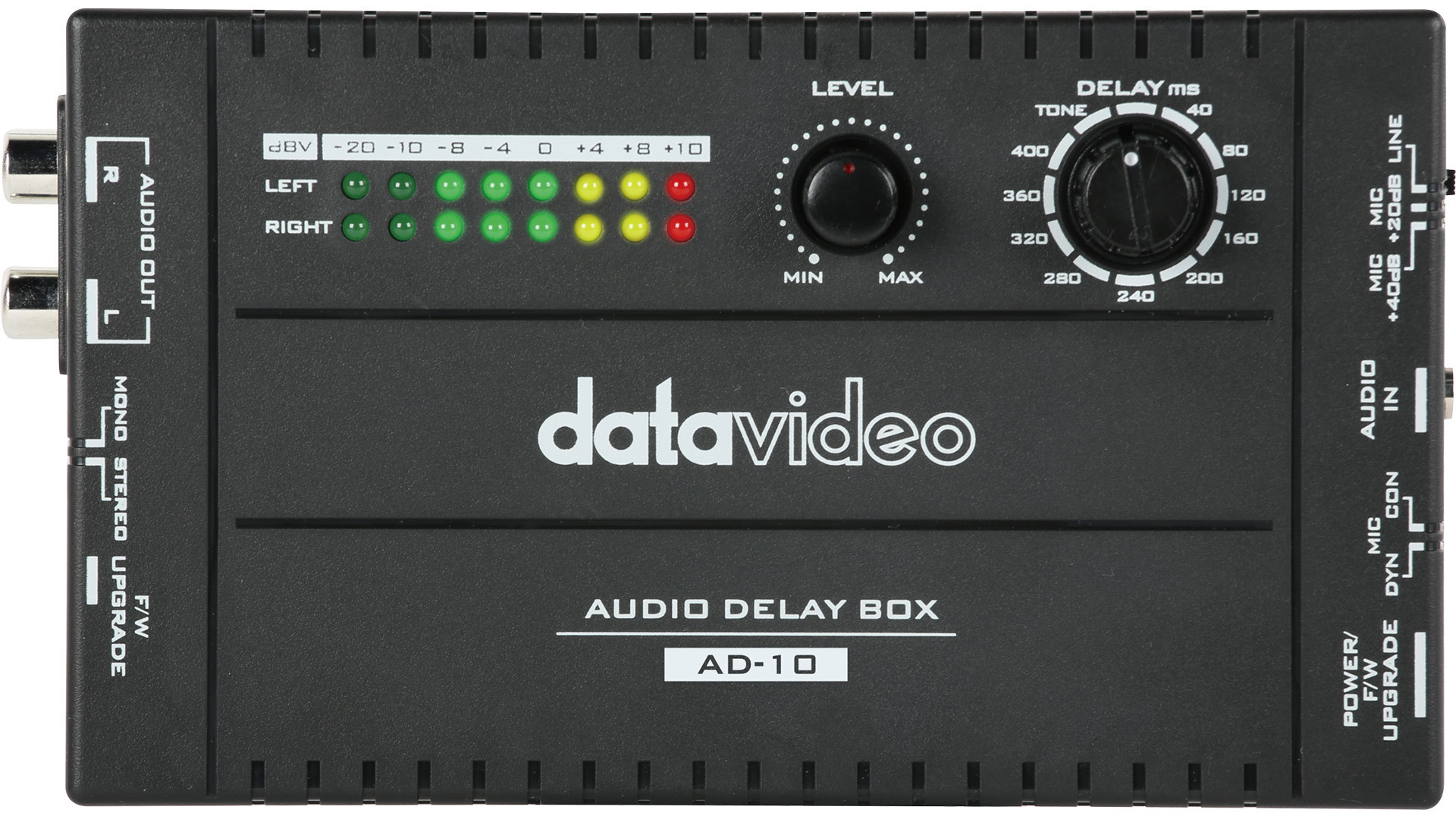

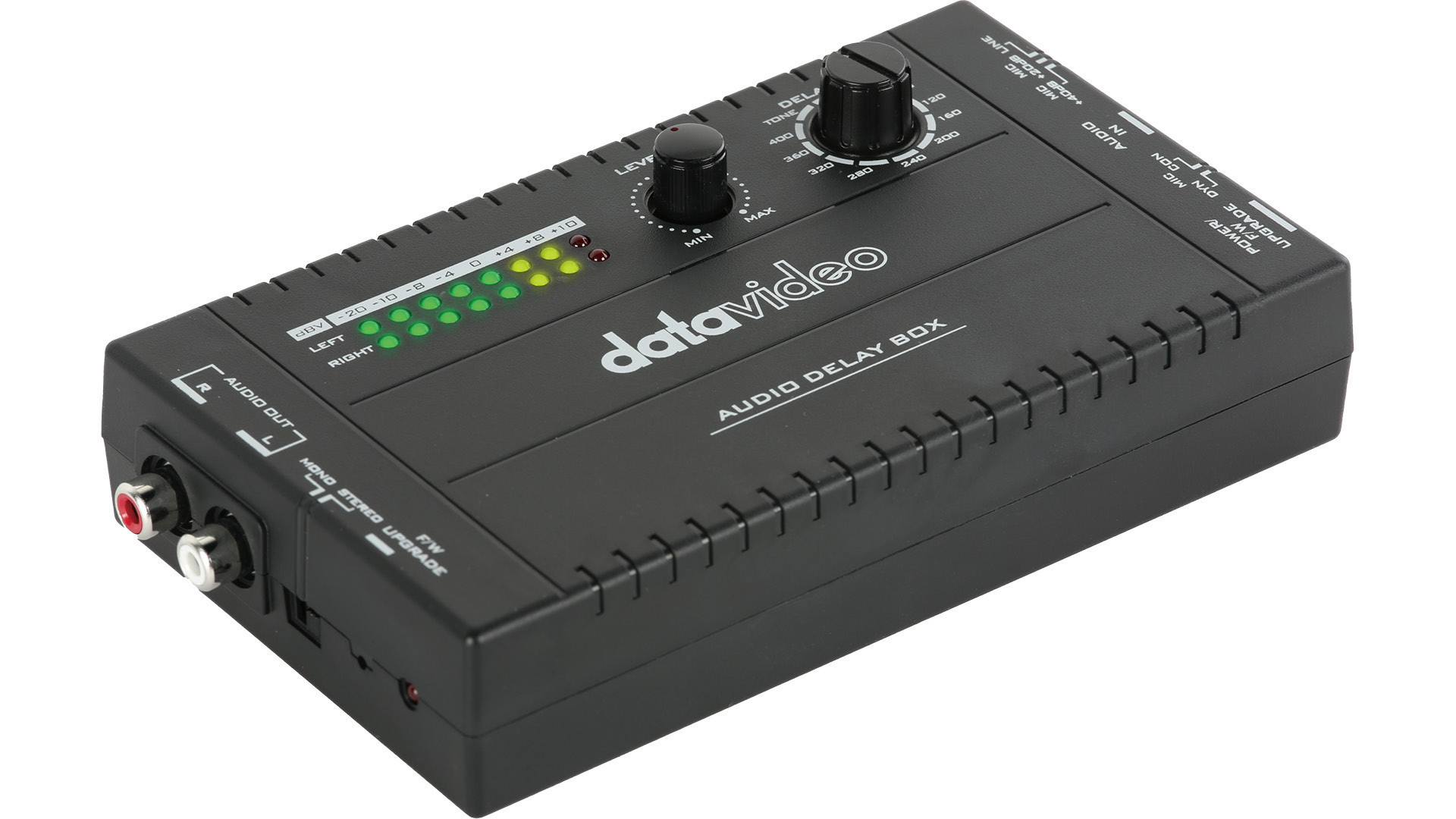

Easy-to-use design

Easy to control with clear LED indicators. Compact and lightweight, suitable for integration into any workflow.


Delay up to 400ms

Up to 400ms of sound delay range with easy to adjust knob design, synchronize video and sound with precision.

Delay up to 400ms

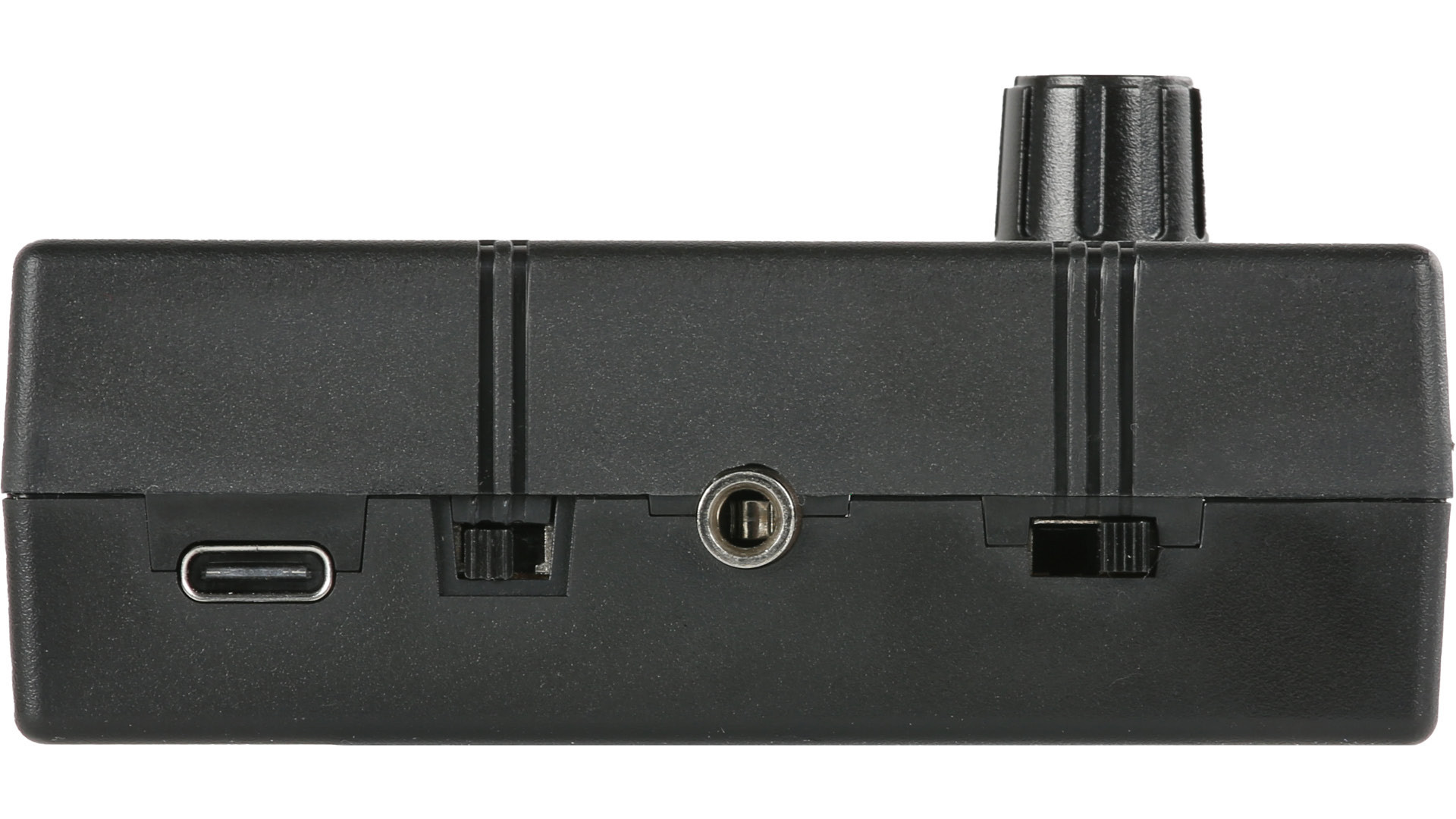

Power by external USB power supply

Convenient power supply available anywhere, make your work process smoother.

Full range of input options to meet a variety of needs

Switchable for Microphone input or Audio Line input, and switchable Condenser / Dynamic Microphone. Meet a wide range of microphone input requirements.

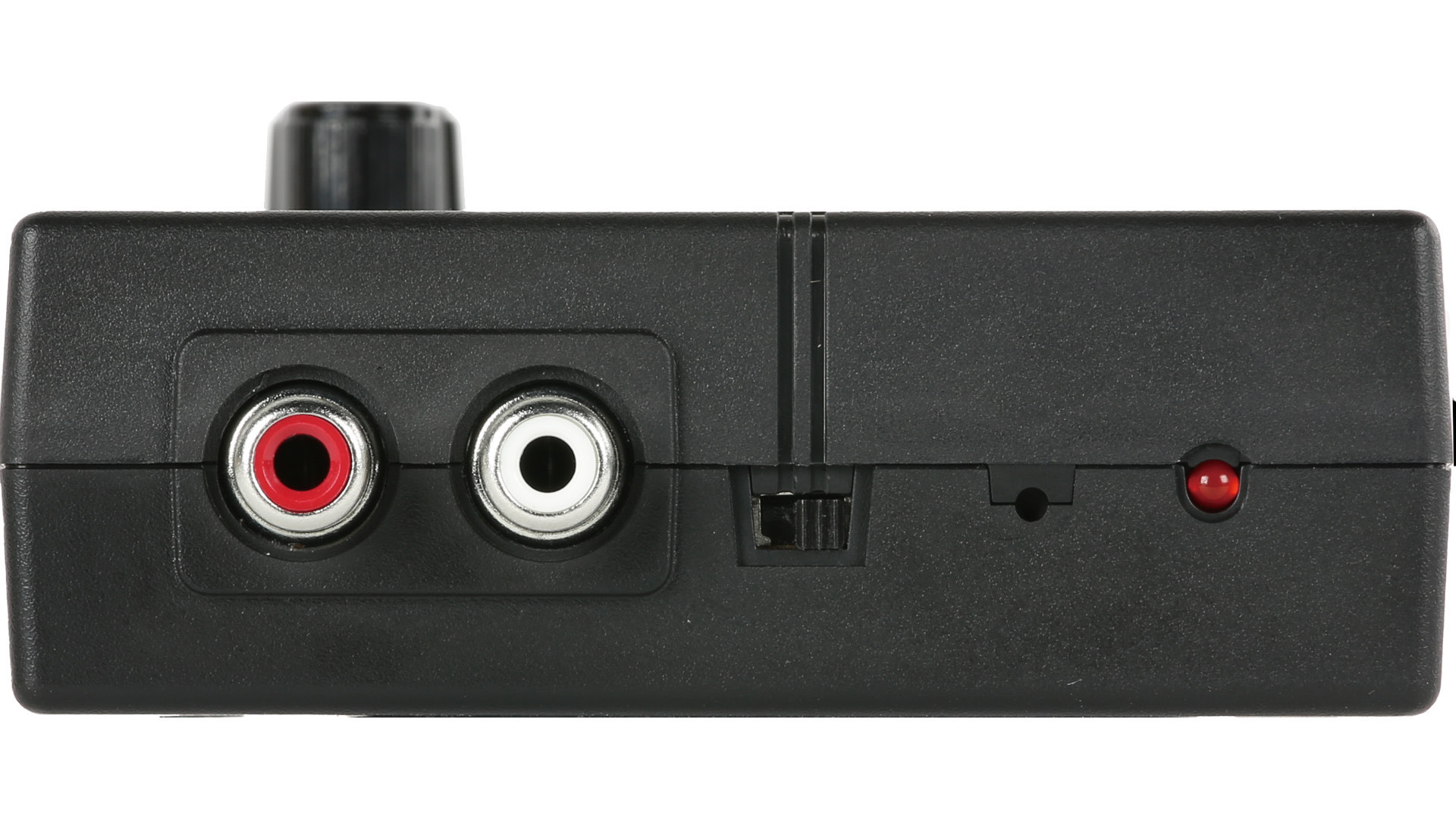

Compatible outputs

Switchable mono/stereo output. Stereo RCA output connectors for wide compatibility.

Tutorial videos created specifically for the AD-10

Datavideo Academy is a comprehensive learning platform established by Datavideo Technology. As a professional Broadcast and AV equipment manufacturer, Datavideo Technology is not only committed to providing quality products to users, but also has the responsibility to help users learn to operate Datavideo products.

Through the Datavideo Academy platform, users can easily master the operation of Datavideo products and experience the unique design of Datavideo products, further creating a variety of applications and bringing a good user experience. Now, a tutorial video for the AD-10 is available at Datavideo Academy to help you get the best performance out of the product. Please click on the following link.

Where to Buy?

   Find an authorized reseller

Audio Delay Box

COMPARE MORE PRODUCTS
Model Number
AD-10
Audio Input
1 x 3.5mm Jack Socket
( Tip: Mic/Line (Left)、Ring: Mic/Line (Right)、Sleeve: GND)
16K ohms, MAX Line input Level: +10dBV
Audio Output
2 x unbalanced stereo audio, RCA sockets 600 ohms, MAX=+10dBV
Audio Indicator
2 Rows (Left / Right)
Audio Delay
Up to 400ms
Audio Sample Rates
48 KHz
Special Feature
Switchable for Microphone input or Audio Line input
Switchable Condenser / Dynamic Microphone
Stereo RCA output connectors for wide compatibility
Chassis
Compact and lightweight design
Power
USB Type C (5V/1A) - Not included with the product. A generic USB-C to USB cable can be used to power the unit.
Dimension (LxWxH)
151 x 88.5 x 30.7 mm
Weight
0.18 kg
Operating Temp. Range
0~40 °C
What's in the Box
1 x AD-10 product
1 x RCA to 3.5mm Cable
